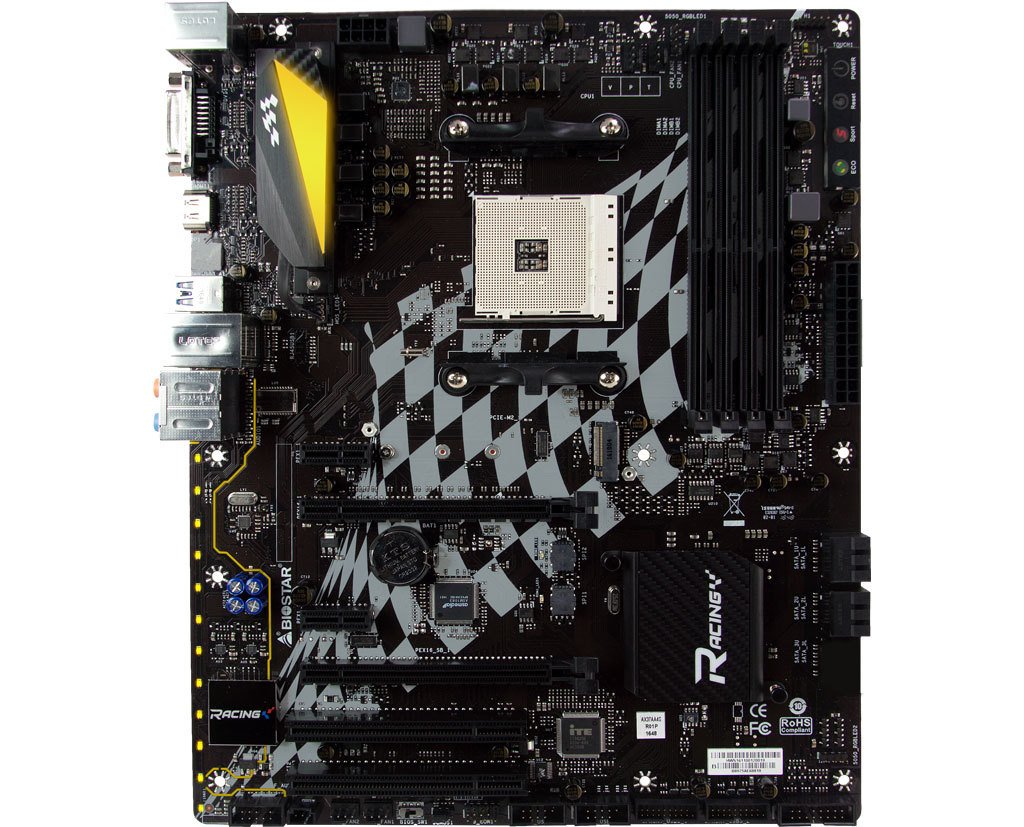

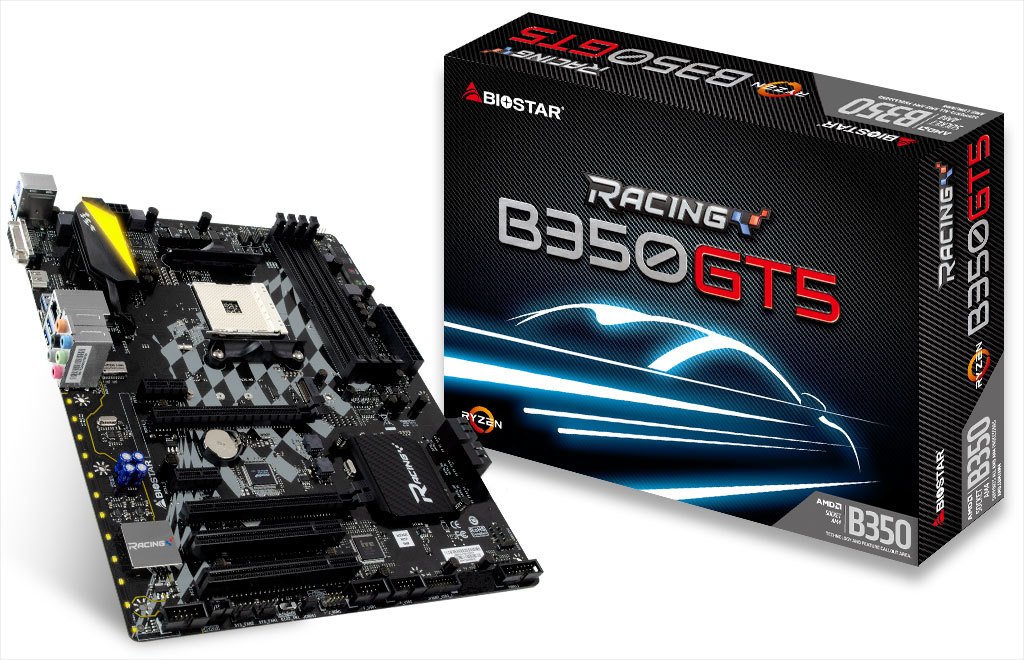

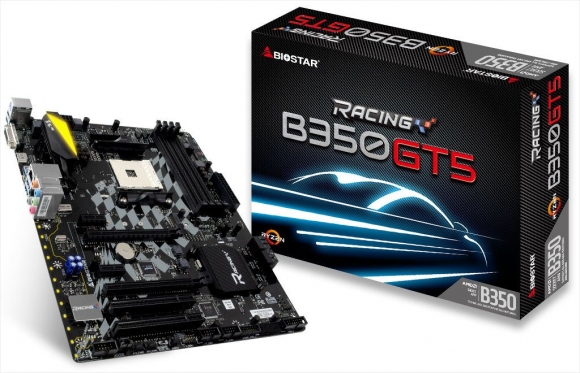

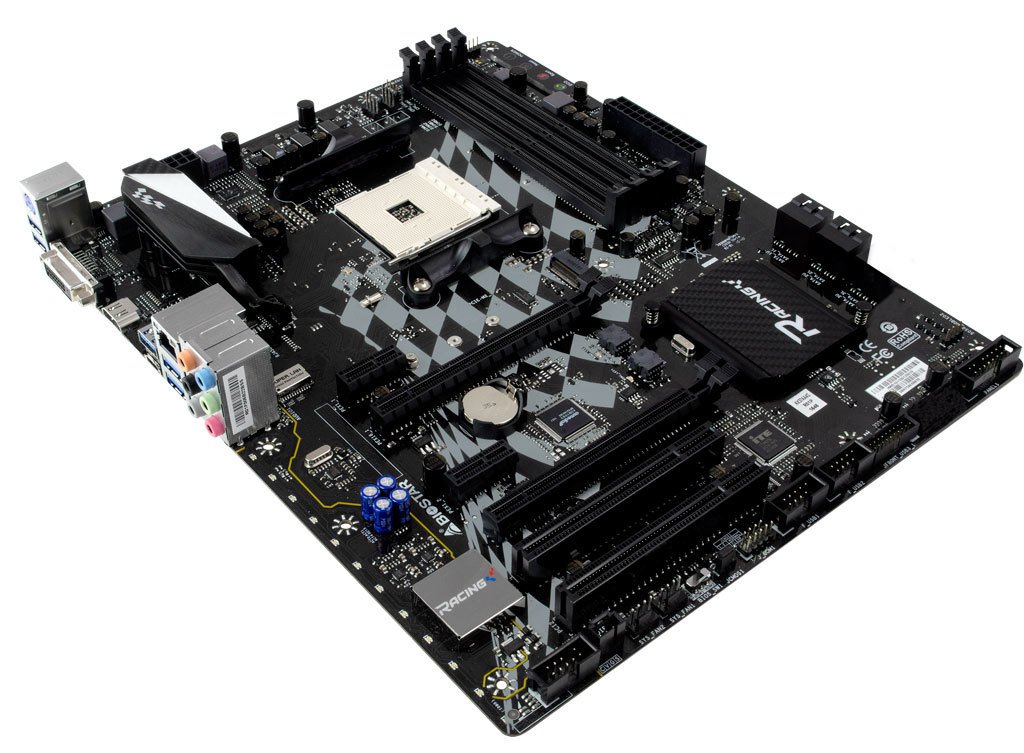

Biostar B350GT5 AM4 Socket ATX Motherboard

BIOSTAR is thrilled to welcome its latest entry in the 2nd-generation RACING series motherboard family, supporting the latest AMD RYZEN processors featuring AMD X370 and B350 chipsets. BIOSTAR is thrilled to welcome its latest entry in the 2nd-generation RACING series motherboard family, supporting the latest AMD RYZEN processors featuring AMD X370 and B350 chipsets. The users can enjoy the best of the new AMD platform together with the best of the BIOSTAR RACING series. The RACING series of AMD RYZEN features the superior gaming network optimization with BIOSTAR exclusive utility FLY.NET, which automatically detects the bandwidth of software and DRAGON LAN for an optimal online gaming experience. The other whole new feature enhances the degree of overclocking performance with Digital Power+ for further performance enhancements on unlocked AMD RYZEN CPUs for the extra performance boost, so you can get more out of your system, perfect for overclockers!

The Biostar B350GT5 motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD B350 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-1866 / 2133 / 2400 / 2666. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / White design.

• Chipset: AMD B350
• CPU SUPPORT: AMD A-series APU / Ryzen CPU / NPU for Socket AM4
• Maximum CPU TDP (Thermal Design Power) : 95Watt
• MEMORY: Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
• EXPANSION SLOT: 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
• 1 x PCI-E x16 2.0 Slot(x4)(share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16(x4) will run at x1 speed)
• 2 x PCI-E x1 2.0 Slot
• 2 x PCI Slot
• STORAGE:
• 4 x SATA3 Connector
• Support SATA RAID: 0,1,10
• 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
• * M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.
• USB: 1 x USB 3.1 Gen2 Type-C Port
• 1 x USB 3.1 Gen2 Port
• 4 x USB 3.1 Gen1 Port
• 1 x USB 3.1 Gen1 Header
• 2 x USB 2.0 Header
• LAN: Realtek RTL8118AS - 10/100/1000 Controller
• Support Super LAN Surge Protection

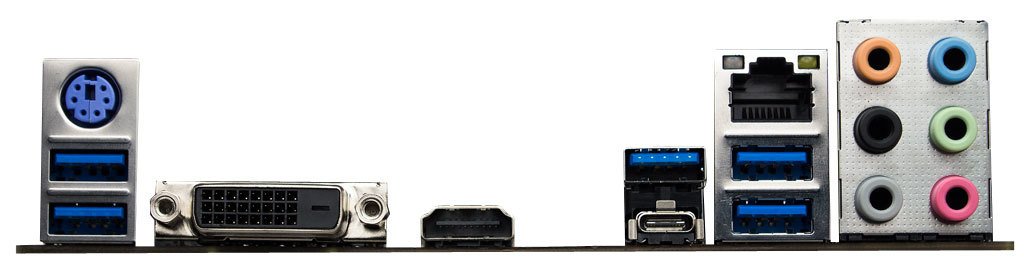

• REAR I/O:
• 1 x PS/2
• 1 x USB 3.1 Gen2 Type-C Port
• 1 x USB 3.1 Gen2 Port
• 4 x USB 3.1 Gen1 Port
• 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
• 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
• 1 x RJ-45 Port
• 6 x Audio Connector
• INTERNAL I/O:
• 1 x USB 3.1 Gen1 Header
• 2 x USB 2.0 Header
• 4 x SATA3 6Gb/s Connector
• 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage
• 1 x Front Audio Header
• 1 x Front Panel Header
• 1 x S/PDIF-Out Header
• 2 x CPU Fan Header
• 2 x System Fan Header
• 1 x Serial Header
• 2 x 5050 LED Header

• AMD B350
• AMD A-series APU / Ryzen CPU / NPU for Socket AM4
• DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866
• * DDR4 2667 for AMD Ryzen CPU

Manufacturer：BIOSTAR
MPN：B350GT5
CPU Socket Type：AM4
Processor Type：AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Chipset：AMD B350
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866
* DDR4 2667 for AMD Ryzen CPU
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI-E x16 3.0 Slot (x16 for Ryzen CPU only, NPU/APU run at x8 speed)
PCI Express 2.0 x16：1 x PCI-E x16 2.0 Slot (x4) (share bandwidth w/ PCI-E x1 slot, when PCI-E x1 is occupied, PCI-E x16 (x4) will run at x1 speed)
PCI Express x1：2 x PCI-E x1 2.0 Slot
PCI Slots：2 x PCI Slots
SATA 6Gb/s：4 x SATA 6Gb/s
M.2：1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/2260/2280 SATA 6Gb/s & PCI-E Storage
* M.2 (32Gb/s): The bandwidth is depended on CPU, Ryzen is 32Gb/s; APU & NPU is 16Gb/s.
SATA RAID：0/1/10
Onboard Video Chipset：Supported only by CPU with integrated graphic
Audio Chipset：Realtek ALC892
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8118AS
Max LAN Speed：10/100/1000Mbps
Video Ports：1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
HDMI：1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
RJ45：1 x RJ45
USB 3.1：1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Ports
Audio Ports：6 Ports
Onboard USB：1 x USB 3.1 Gen1 Header
2 x USB 2.0 Headers
Other Connectors：1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
2 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x 5050 LED Header
Form Factor：ATX
LED Lighting：RGB
Dimensions (W x L)：12.0" x 9.6"
Features：MULTI GRAPHICS:
2-way AMD Crossfire Technology

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring

OS SUPPORT:
Support Windows 7 (x64) / 10 (x64)

BUNDLE SOFTWARE:
Racing GT Utility
FLY.NET
BullGuard

FEATURES:
VIVID LED DJ
5050 LED FUN ZONE
Supports Double Hi-Fi
GT TOUCH
Dual BIOS
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update
Package Includes：ACCESSORIES:
4 x SATA Cables
1 x I/O Shield
1 x DVD Driver
1 x User Manual
