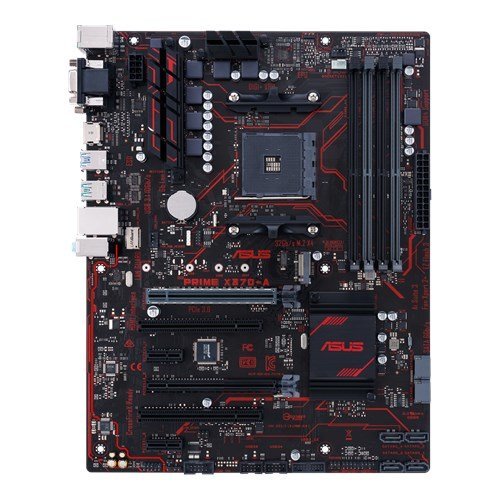

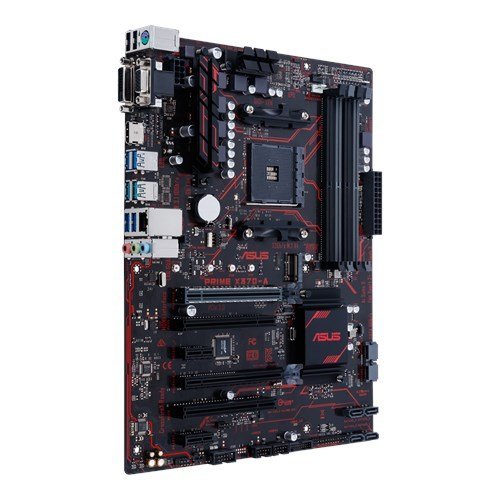

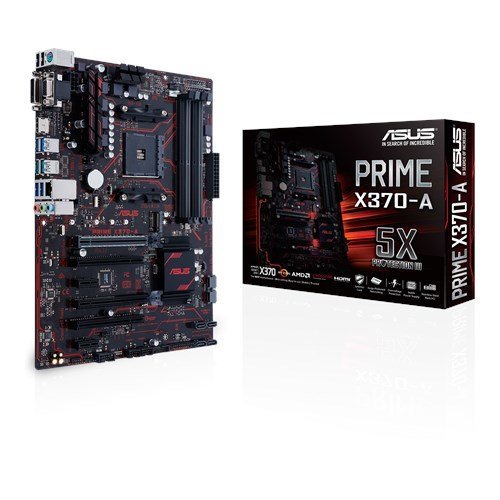

ASUS PRIME X370-A AMD Ryzen AM4 DDR4 HDMI DVI VGA M.2 USB 3.1 ATX X370 Motherboard
- Model: 3ykjki
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
The ASUS PRIME X370-A should be at the heart of your next computer. Powered by AMD Ryzen AM4 and 7th generation Athlon processors, it maximizes connectivity and speed with NVMe M.2, USB 3.1 Type A and Gigabit LAN. 5X Protection III Hardware-level safeguards provide component longevity and reliability. FanXpert 2+ with Fan RGB LED Control delivers advanced fan controls for optimized cooling. Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design.
The Asus PRIME X370-A motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD X370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2933 / 3200. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Red design.
- AMD X370
- AMD Ryzen / Athlon / A-Series
Manufacturer：ASUS
MPN：Prime X370-A
CPU Socket Type：AM4
Processor Type：Ryzen / Athlon / A-Series
Chipset：AMD X370
Number of Memory Slots：4×288pin
Memory Standard：Ryzen: DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 *1
7th Gen A-series/Athlon: DDR4 2400/ 2133 *
*1 Due to the limitation of AMD Ryzen processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported：64GB
PCI Express 3.0 x16：AMD Ryzen CPUs:
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon CPUs:
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16：1 x PCIe 2.0 x16 (max at x4 mode)
PCI Express x1：2 x PCIe 2.0 x1
PCI Slots：2 x PCI Slots
SATA 6Gb/s：6 x SATA 6Gb/s
M.2 (Key M)：Ryzen Processors:
1 x M.2 Socket 3, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
7th Gen A-series/Athlon Processors:
1 x M.2 Socket 3, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU *2
Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b, max. up to: 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D, max. up to: 1920 x 1200 @ 60 Hz
- Supports RGB, max. up to: 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048MB
*2 AMD Ryzen Processor does not support
Audio Chipset：Realtek ALC887-VD2
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps

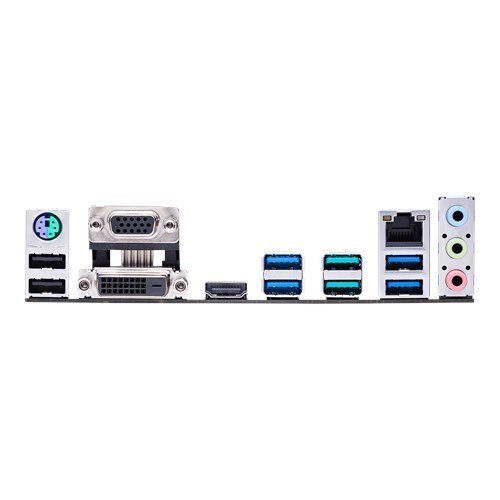

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D
1 x D-Sub
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1
USB 3.0：4 x USB 3.0
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 Ports
Onboard USB：1 x USB 3.0 connector support additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors：1 x Fan RGB header
1 x COM port connector
1 x CPU Fan connector (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x S/PDIF out header
1 x Front panel audio connector (AAFP)
1 x System panel
1 x Clear CMOS jumper
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.35"
Power Pin：1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
Features：Multi-GPU Support:
Supports AMD CrossFireX Technology
Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Operating System:
Windows 10 64-bit
