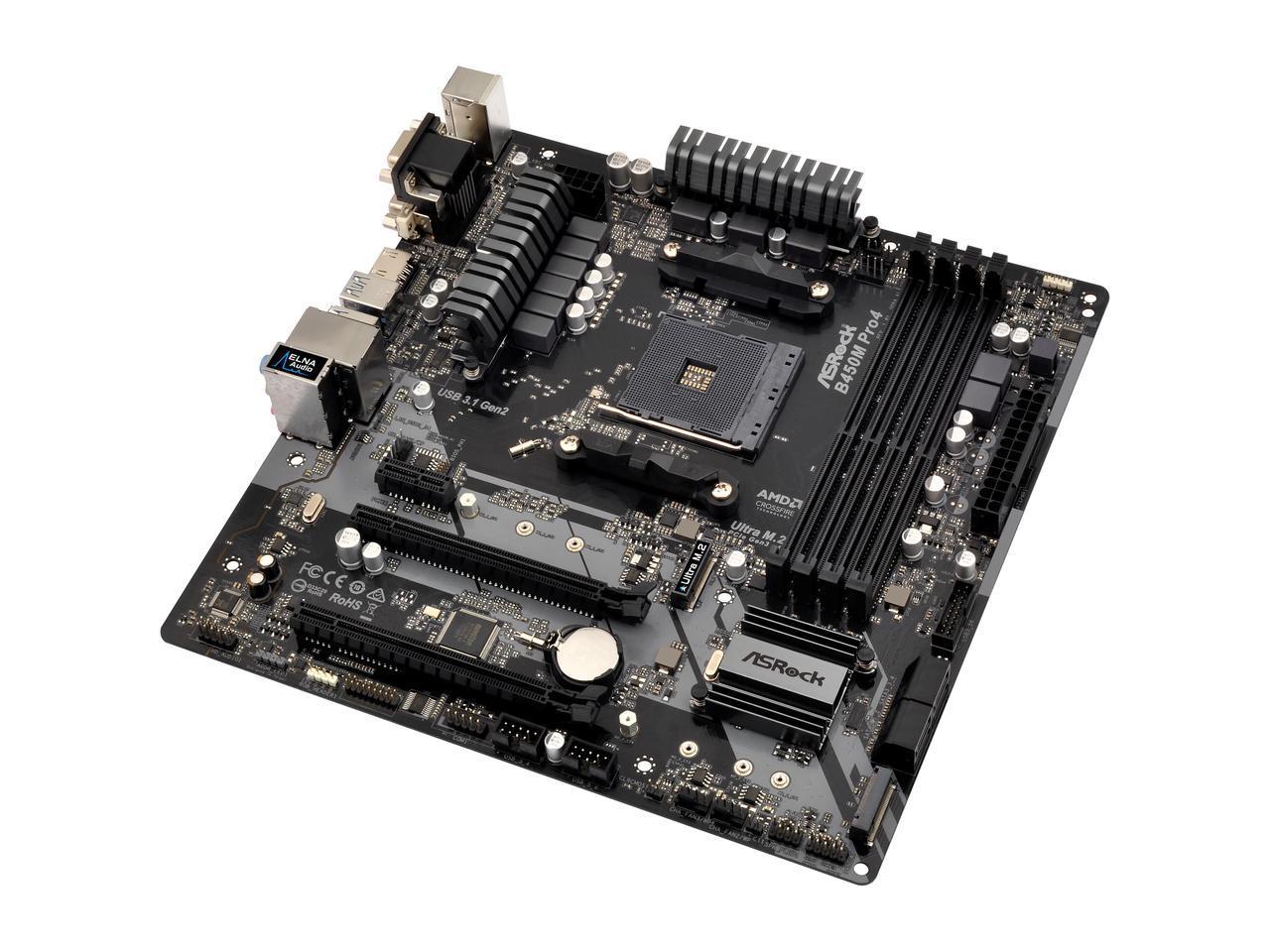

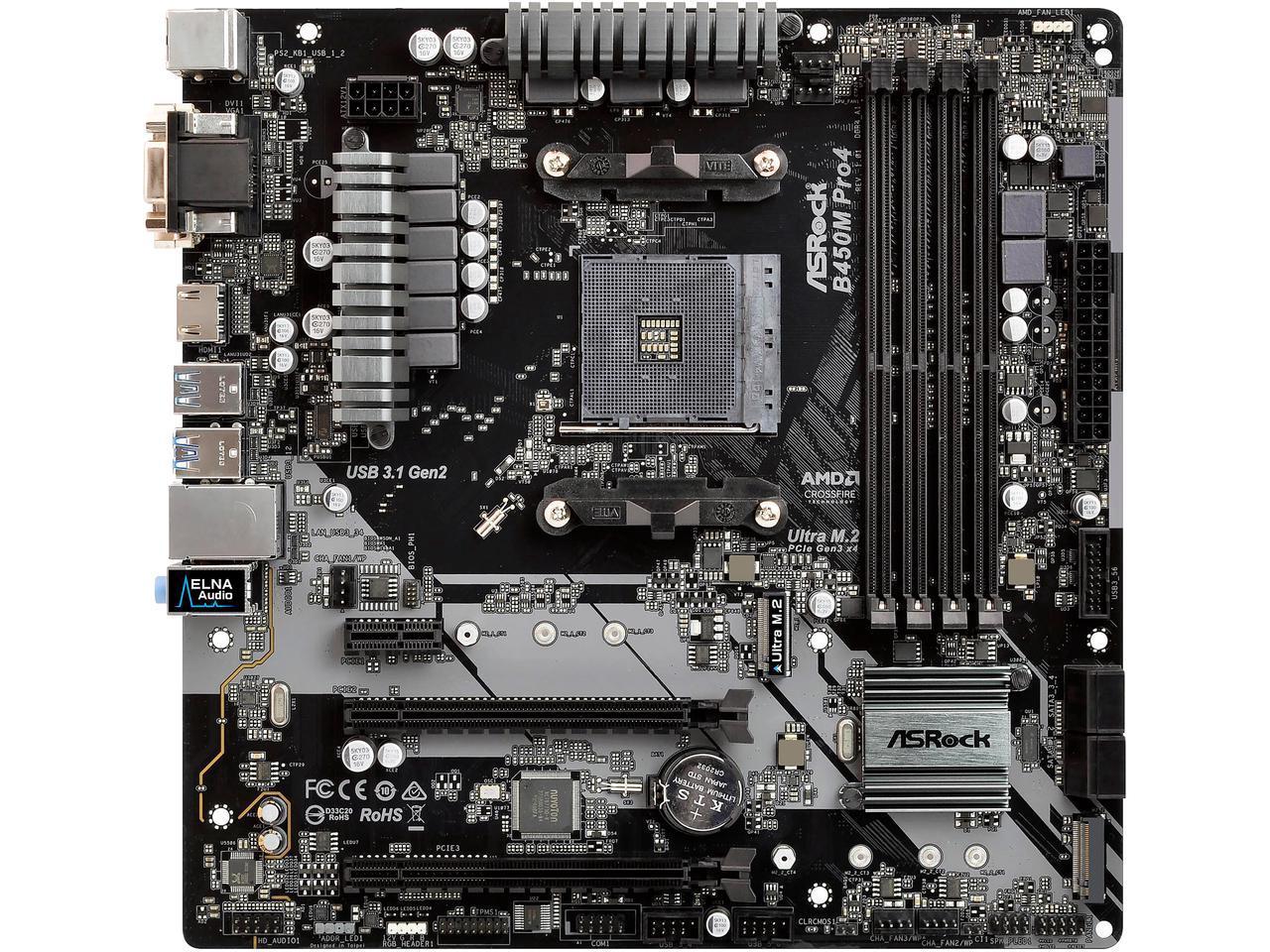

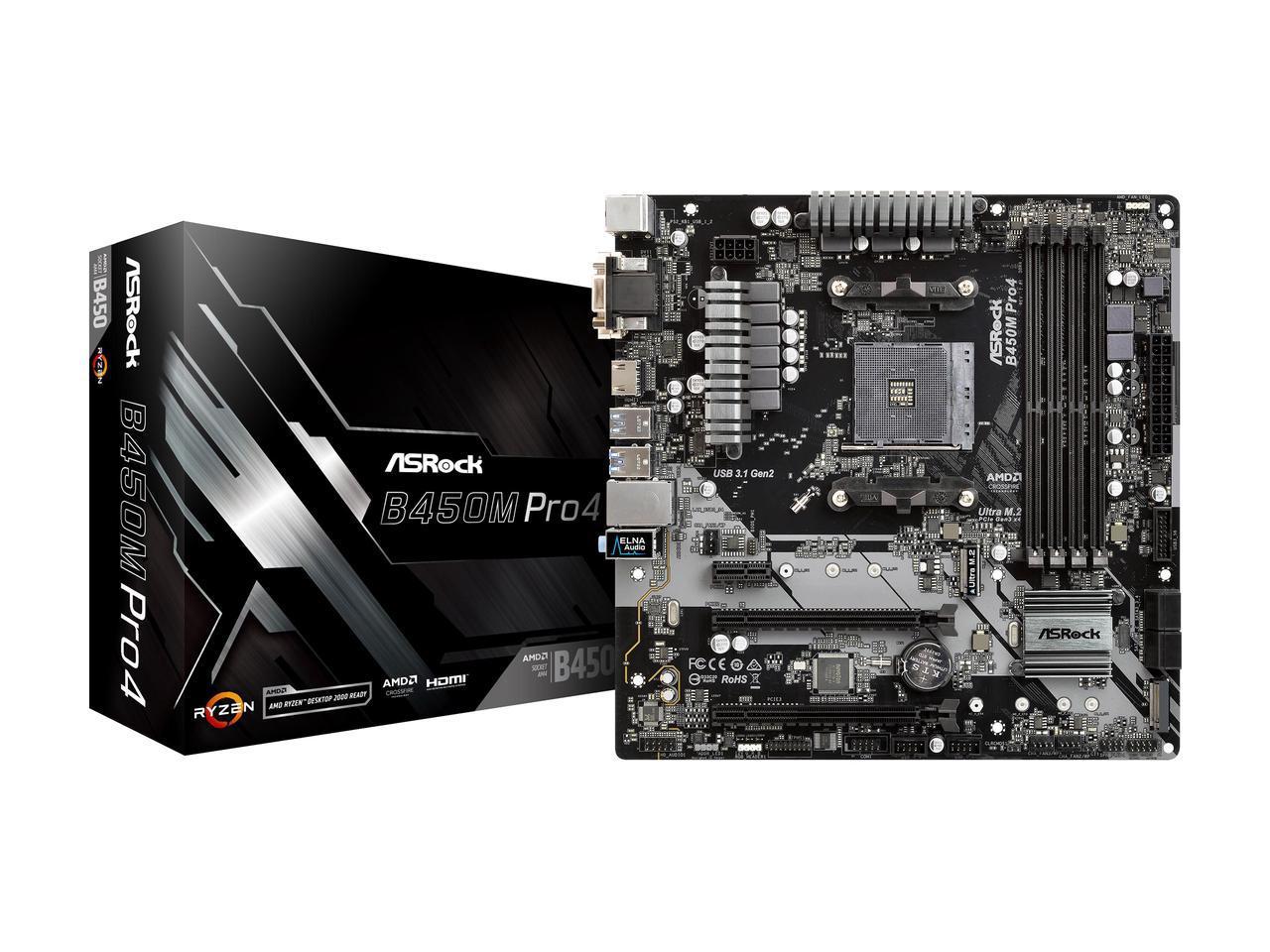

ASRock B450M PRO4 AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

This motherboard, even small is in par with most of the ATX motherboards with the same B450 chipset. The B450 chipset features the AMD StoreMI technology, StoreMI moves frequently-accessed files to the faster drive to improve important things like boot and program loading times, providing users flexibility. Overclocking is still supported with this chipset. Supports AMD AM4 processors (Pinnacle Ridge, Summit Ridge, Raven Ridge). DDR4 memory compatible, up to 3200+ MHz (OC) (depends on your processor). Four SATA 3 interfaces and a single Ultra M.2 slot and a regular M.2 slot.

• AMD AM4 Socket
• Supports DDR4 3200+ (OC)
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
• AMD Quad CrossFireX?
• Graphics Output:HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
• 2 USB 3.1 Gen2 (Rear Type-A+C)
• 6 USB 3.1 Gen1 (2 Front, 4 Rear)
• Realtek Gigabit LAN

Manufacturer：ASRock
MPN：B450M PRO4
CPU Socket Type：AM4
Processor Type：Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset：AMD B450
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133, un-buffered memory for AMD Pinnacle Ridge*
DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133, un-buffered memory for AMD Summit & Raven Ridge*
* Pinnacle & Summit ridge supports ECC & Non-ECC memory
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series processors (Summit Ridge & Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

PCI Express 2.0 x16：AMD Ryzen series CPUs (Summit Ridge & Pinnacle Ridge)
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Ryzen series Processors (Raven Ridge)
- 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
PCI Express x1：1 x PCI Express 2.0 x1 Slot
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled.
M.2 (Key M)：1 x Ultra M.2 Socket (M2_1), type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)**
1 x M.2 Socket (M2_2), type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module**

** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI, max. up to: 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DVI-D, max. up to: 1920x1200 @ 60Hz
Supports D-Sub, max. up to: 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port
(Compliant HDMI monitor is required)
Supports HDCP with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps

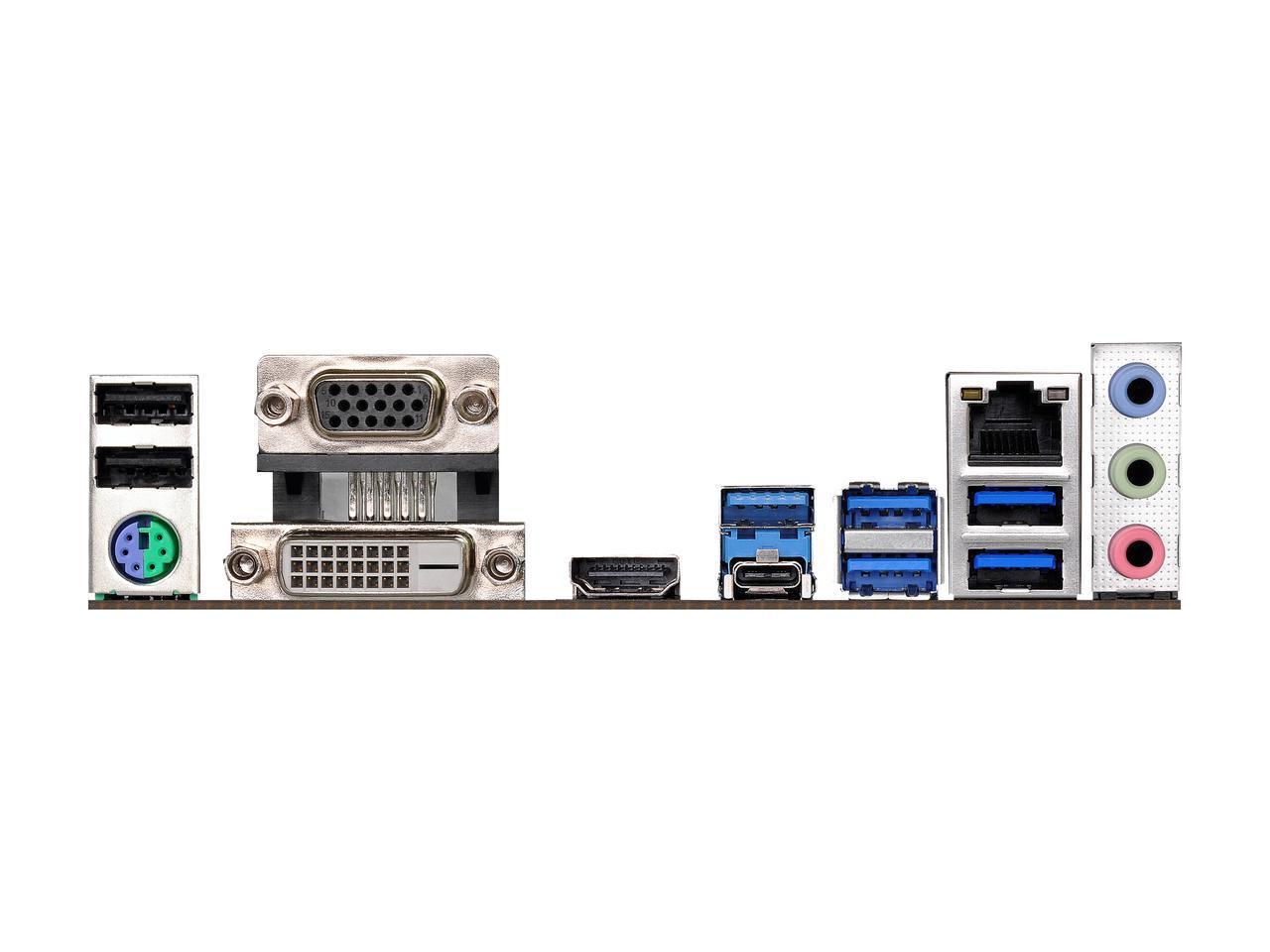

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub Port
1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen2 Type-A Port (10Gb/s)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s)
4 x USB 3.1 Gen1 Ports
USB 1.1/2.0：2 x USB 2.0 Ports
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x Power LED and Speaker Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip.
1 x Addressable LED Connector
* Supports in total up to 5V/3A, 15W LED Strip.
1 x AMD Fan LED Header
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin)
3 x Chassis/Water Pump Fan Connectors (4-pin)
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
* CPU/Water Pump Fan and Chassis/Water Pump Fan max. 2A (24W) fan power. Also supports Smart Fan Speed Control
1 x Front Panel Audio Connector
Form Factor：Micro ATX
Dimensions (W x L)：9.6" x 9.6"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features：Unique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI Software:
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

Hardware Monitor (CPU, CPU/Water Pump, Chassis/Water Pump Fans):
- Temperature Sensing
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature):
- Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
