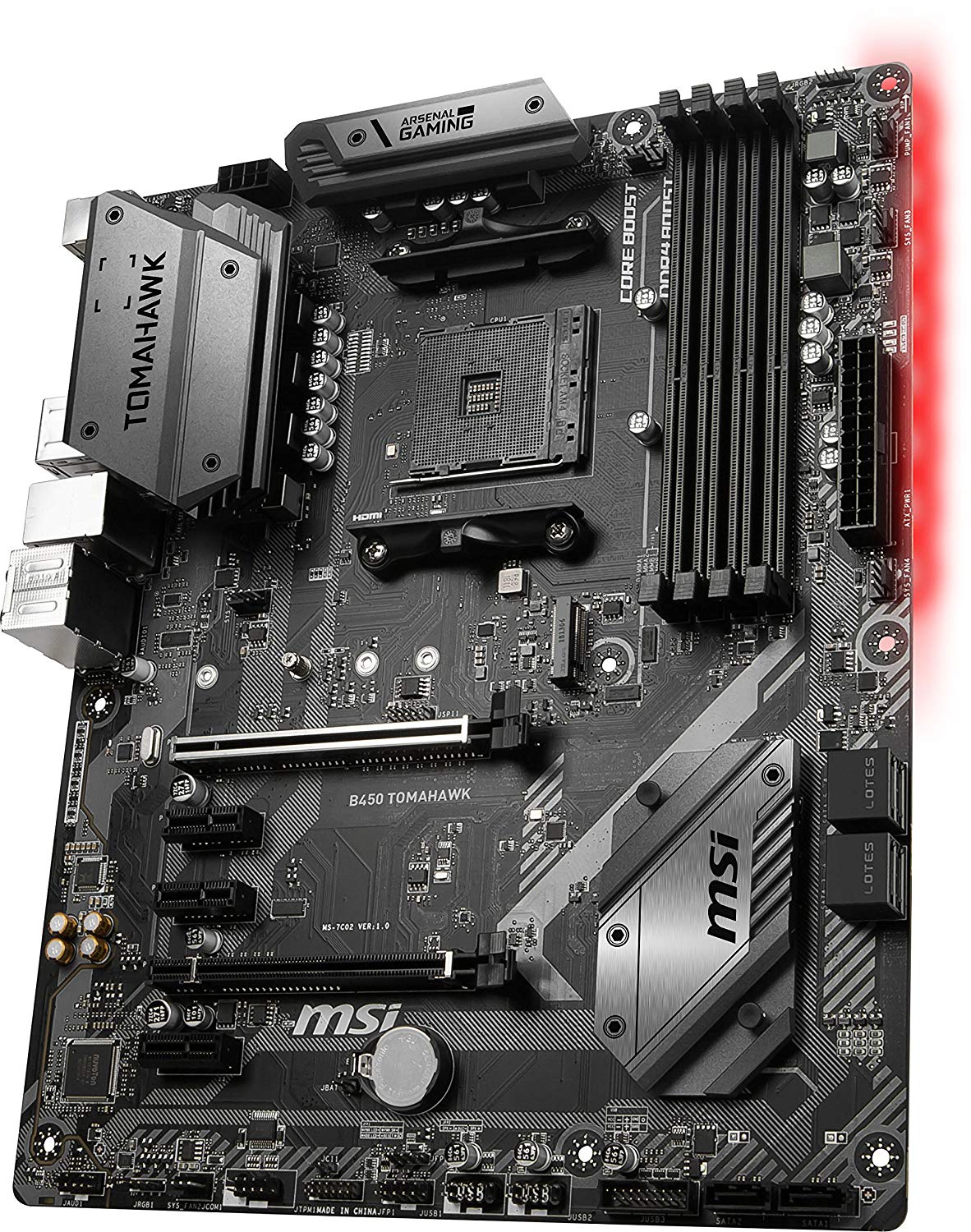

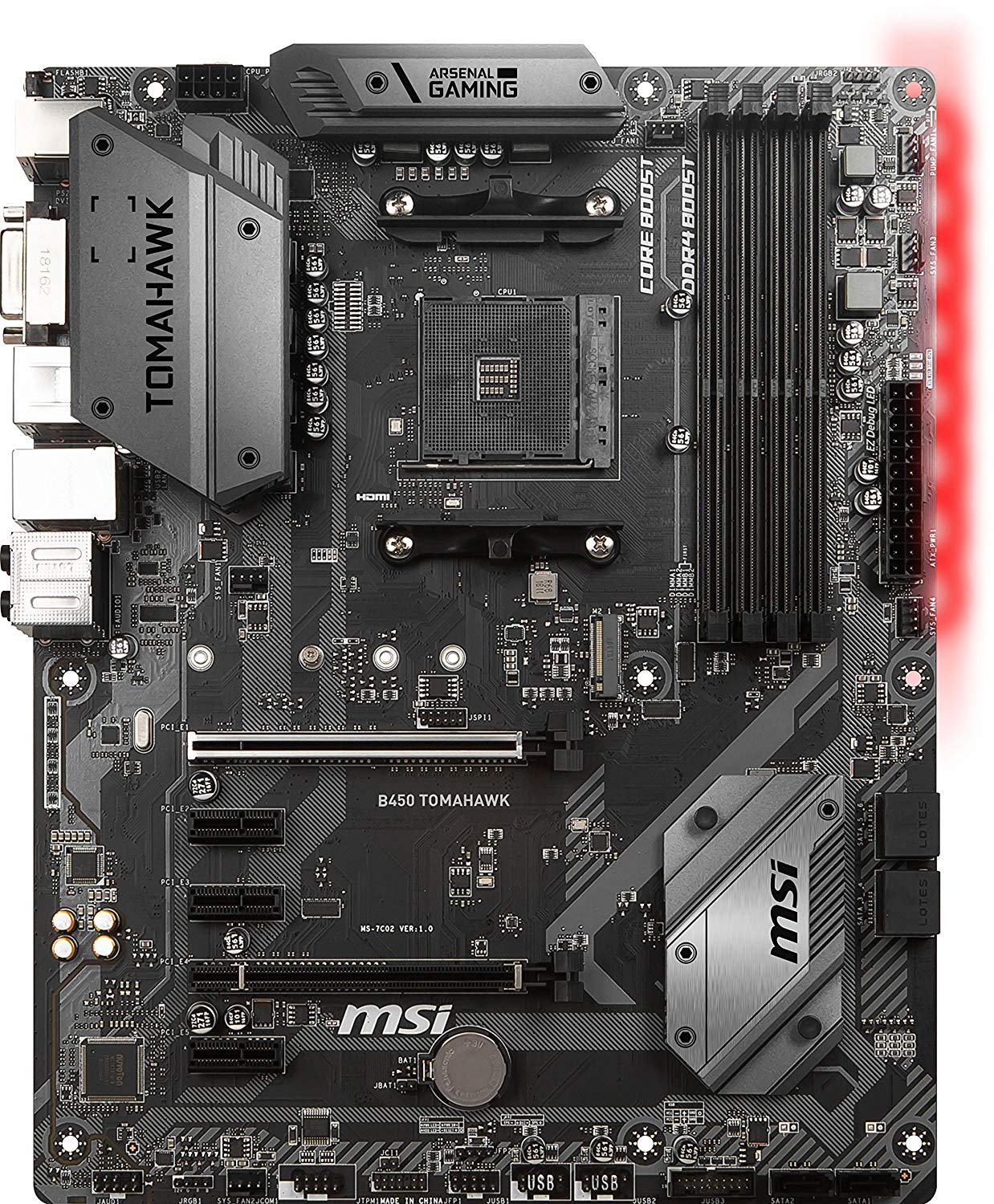

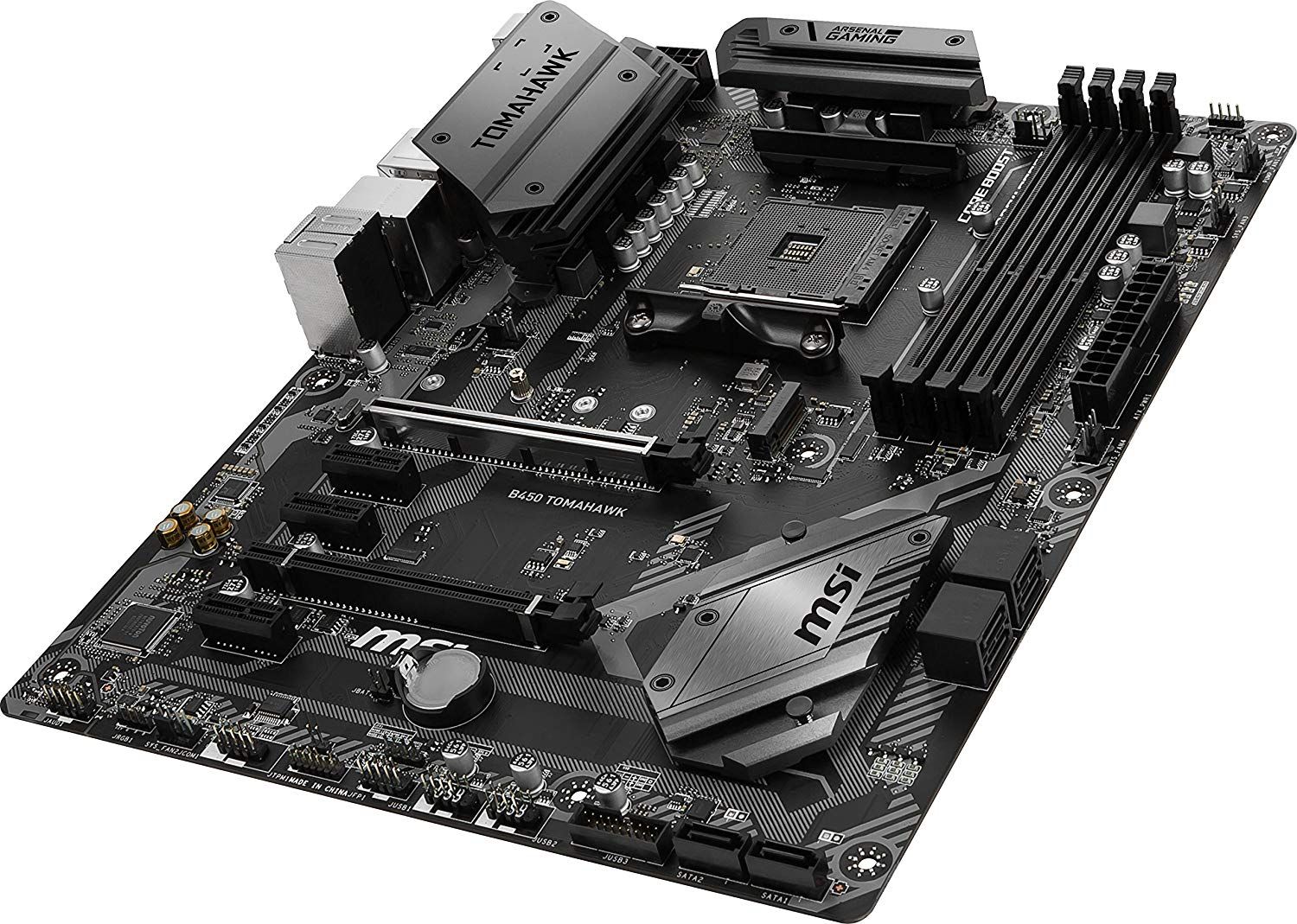

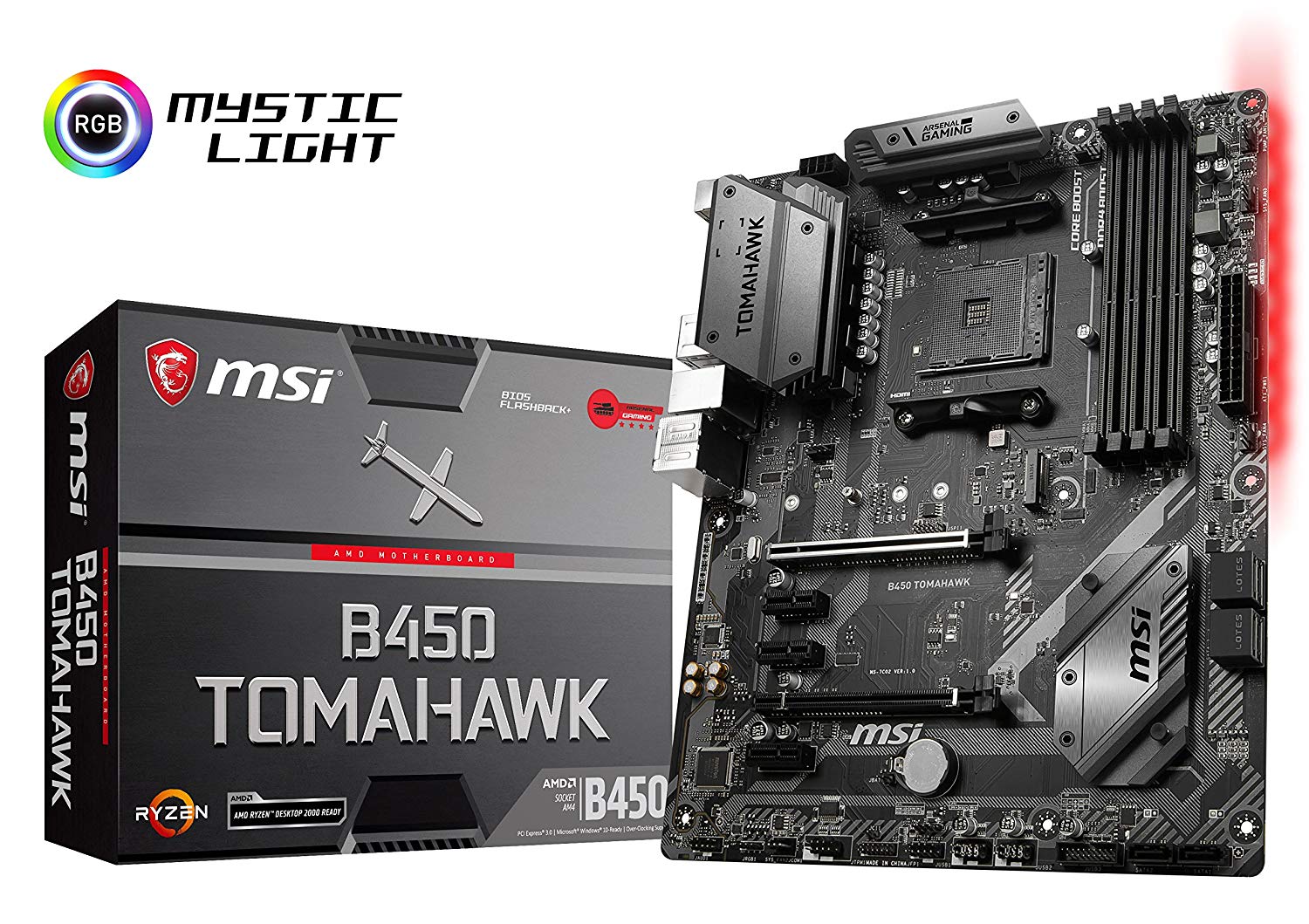

MSI B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

MSI B450 Tomahawk AM4 motherboard features AMD's new B450 chipset. With this new chipset, users are now able to use the latest Ryzen 2000 Series CPUs out of the box. MSI B450 Chipset motherboard is designed for the gaming enthusiasts demand top performance and reliability. With integrated Radeon Graphic Technologies, take your game level to the next level with stunning and smooth visual experience. Cooling your PC is essential for reliable performance with enough fan headers. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

• AMD B450
• Supports AMD RYZEN 1st & 2nd Generation / Ryzen w/ Radeon Vega Graphics Processors for Socket AM4
• Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 (by A-XMP OC MODE), 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)

Manufacturer：MSI
MPN：B450 TOMAHAWK
CPU Socket Type：AM4
Processor Type：Supports AMD RYZEN 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4
Chipset：AMD B450
Number of Memory Slots：4×288pin
Memory Standard：Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 (by A-XMP OC MODE), 2667/ 2400/ 2133/ 1866 MHz (by JEDEC)
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with AMD Ryzen 1st and 2nd Generation processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors
PCI Express 2.0 x16：1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
* PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.
PCI Express x1：3 x PCIe 2.0 x1 slots*
* PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.
SATA 6Gb/s：AMD CPU:
2 x SATA 6Gb/s ports*
AMD B450 Chipset:
4 x SATA 6Gb/s ports

* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
M.2：1 x M.2 slot (Key M)*
Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices
* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
SATA RAID：0/1/10
Onboard Video Chipset：Supported only by CPU with integrated graphic:
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
Only support when using AMD Ryzen with Radeon Vega Graphics Processors
Maximum shared memory of 2048MB
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Realtek 8111H
Max LAN Speed：10/100/1000Mbps

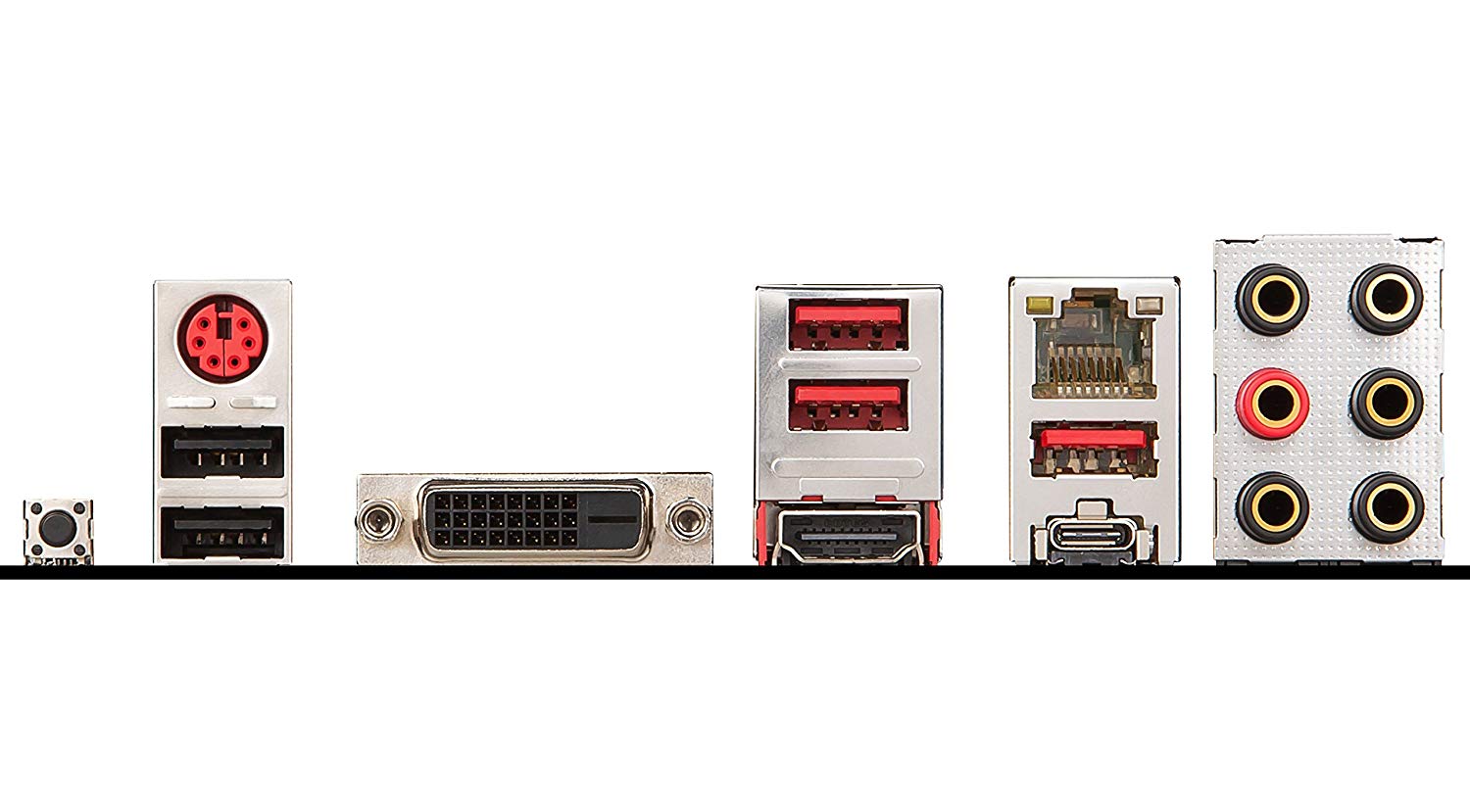

PS/2：1 x PS/2 keyboard/mouse port
RJ45：1 x RJ45
USB 3.1：AMD B450 Chipset
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port

AMD CPU
2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports
USB 1.1/2.0：2 x USB 2.0 (High-speed USB) ports (Type-A)
Onboard USB：2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4

Supports DDR4 Memory, up to 3466(OC) MHz

Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed

Lightning Fast Game experience: 1 x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire

Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience

Mystic Light and Mystic Light Sync: 16.8 million colors / 10 effects in one click. Synchronize RGB strips and other RGB solutions for customization

BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
