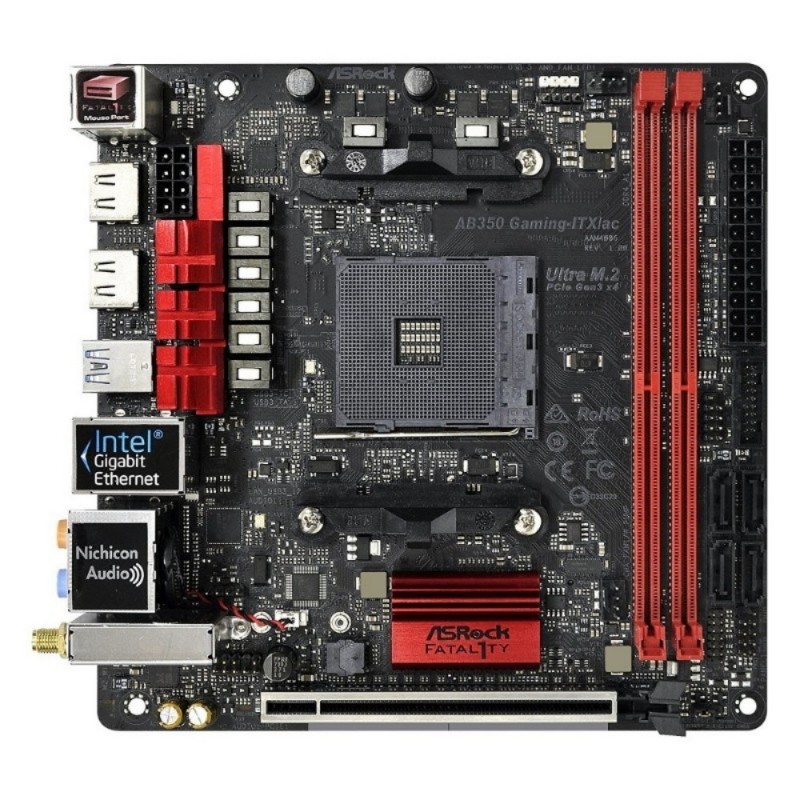

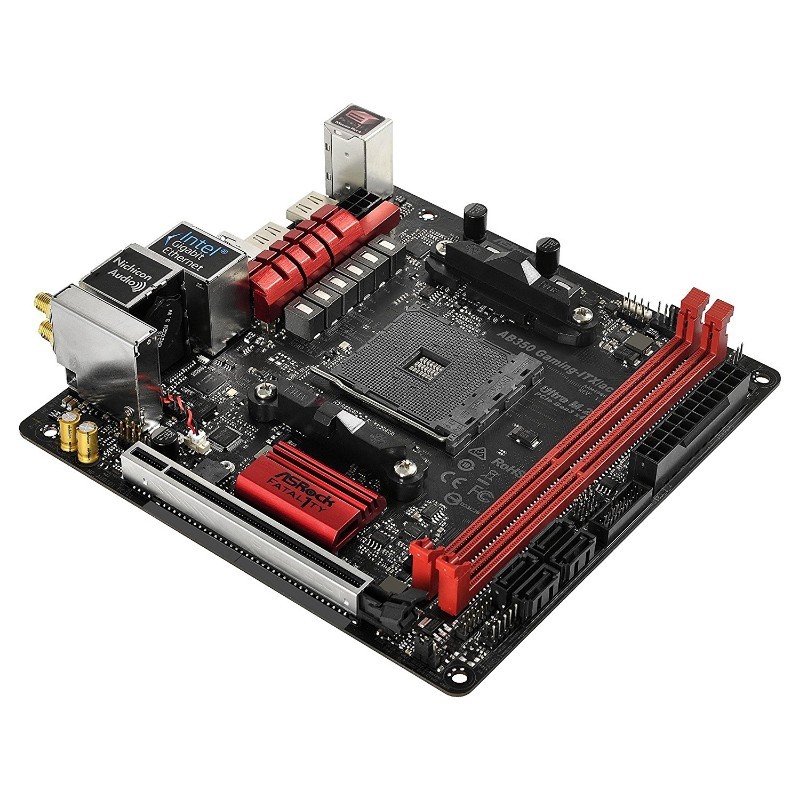

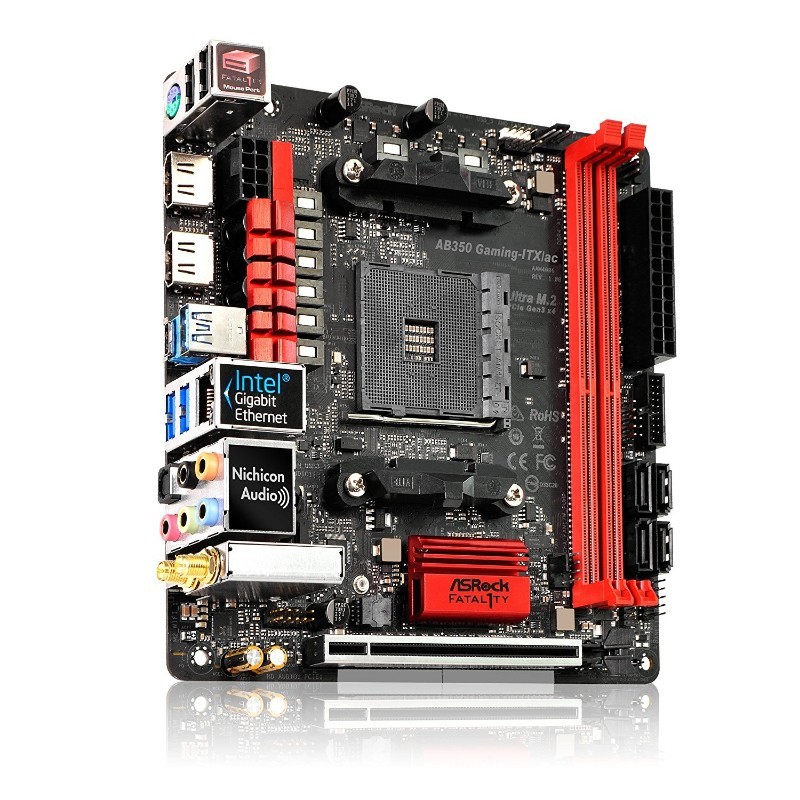

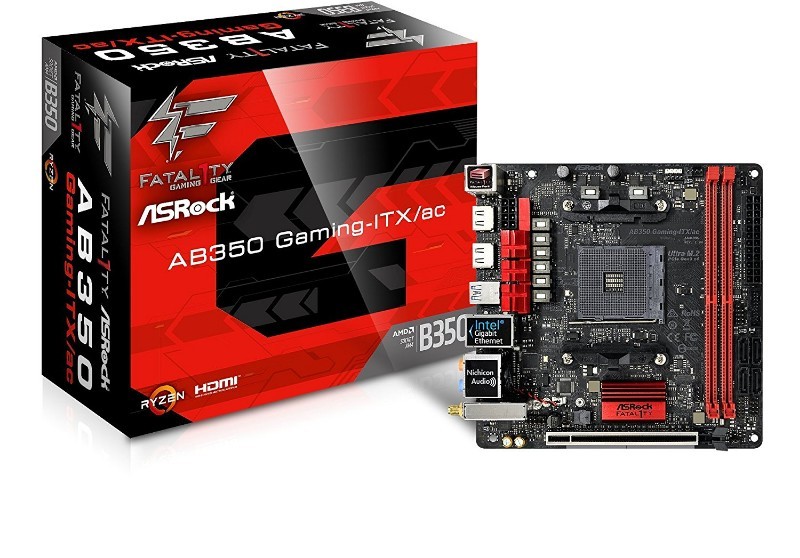

ASRock AB350 Gaming-ITX/ac AM4 AMD B350 SATA 6Gb/s USB 3.0 HDMI Mini ITX AMD Motherboard

The ASRock AB350 Gaming-ITX/ac Motherboard is the clear winner for your next mini ITX build. Packed with features at a low price, the board comes ready to be equipped with an AMD Ryzen CPU, supports high-speed DDR4 memory up to 3466 MHz, and a plethora of connectivity options for your storage. The built-in 802.11ac WiFi adapter means you won't have to worry about a PCIE or USB wireless adapter.

The ASRock AB350 Gaming-ITX/ac motherboard supports AM4 processors and will fit in a standard Mini ITX case. This board is powered by the AMD B350 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2933 / 3200 / 3466. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, stylish Black / Red design.

• AMD Promontory B350
• AMD Ryzen series CPU (Summit Ridge and Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133
• AMD 7th Gen A-Series APUs support DDR4 2400/ 2133

Manufacturer：ASRock
Classification：Fatal1ty
MPN：AB350 Gaming-ITX/ac
CPU Socket Type：AM4
Processor Type：Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge and Raven Ridge)
Chipset：AMD Promontory B350
Number of Memory Slots：2×288pin
Memory Standard：AMD Ryzen Processors (Summit Ridge & Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133
AMD 7th Gen A-Series APUs supports DDR4 2400/ 2133
*Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported：32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs/ Raven Ridge CPUs
- 1 x PCIE 3.0 x16 Slot (PCIE1: x8 mode)*

*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
*Supports NVMe SSD as boot disks
Other Slots：1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15? Gold Contact in VGA PCIe Slot (PCIE1)
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2：1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0Gb/s module. and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16Gb/s) (with A-Series APU)*
* Supports NVMe SSD as boot disks.
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
Integrated AMD Radeon R-Series Graphics in A-series APU*
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
Supports HDCP with HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports

*Actual support may vary by CPU
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Intel 802.11 ac Wi-Fi Module (Free Bundle)
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
Bluetooth：Supports Bluetooth 4.2 / 3.0 + High speed class II

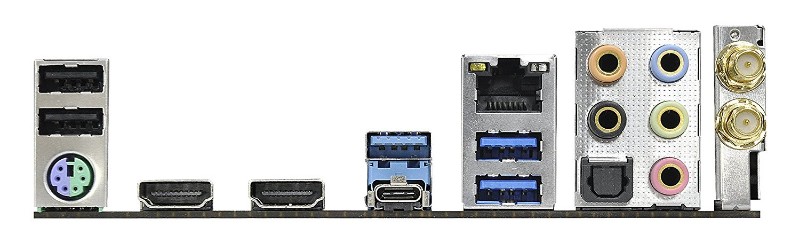

PS/2：1 x PS/2 keyboard/mouse port
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen1 Type-A Port
1 x USB 3.1 Gen1 Type-C Port
2 x USB 3.1 Gen1 Ports
USB 1.1/2.0：2 x USB 2.0 Ports
* 1 x Fatal1ty Mouse Port (USB 2.0) is included.
S/PDIF In：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB：1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x LPC Header
1 x AMD Fan LED Header*
1 x CPU Fan Connector (4-pin)**
1 x Chassis Fan Connector (4-pin)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header

*The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W)
***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W)
***CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Form Factor：Mini ITX
Dimensions (W x L)：6.7" x 6.7"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
Features：Gaming Armor:
Power
- Hi-Density Power Connector (8-pin)
Memory
- 15? Gold Contact in DIMM Slots
Internet
- Intel LAN
Cooling
- 2oz Copper PCB
Audio
- Creative Sound Blaster Cinema 3

Unique Feature:
ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment

Software and UEFI:
Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
CPU, Chassis, Chassis Optional/Water Pump Fans:
- Temperature Sensing
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- Fan Multi-Speed Control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
