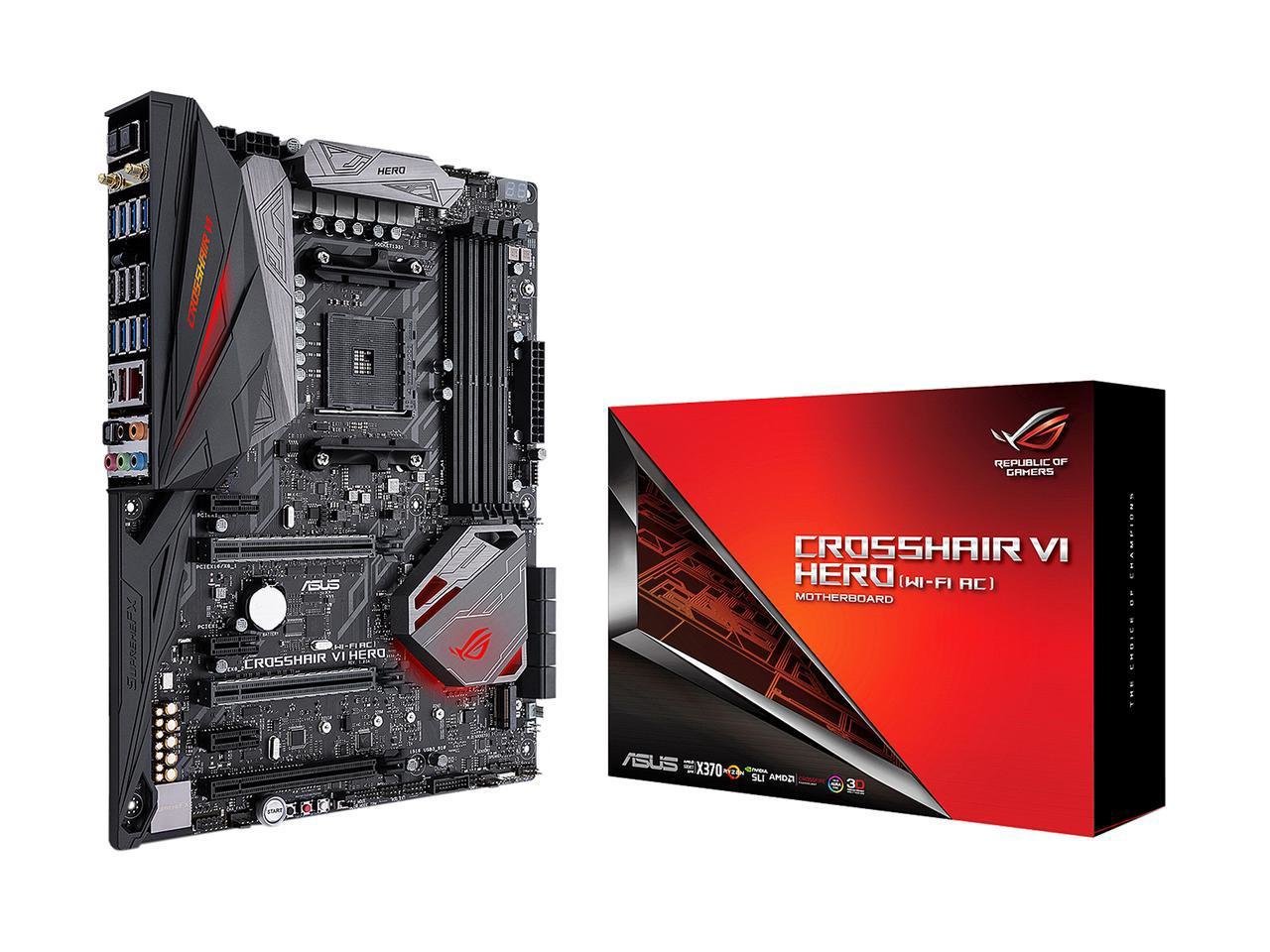

ASUS CROSSHAIR VI HERO (WI-FI AC) AM4 AMD X370 SATA 6Gb/s USB 3.1 ATX Motherboard

As a member of ROG, the ASUS Crosshair VI Hero (WI-FI AC) motherboard offers hardcore gamers an amazing platform to build their dream gaming rig. All essentials required for incredible gaming are covered with the best-in-class technologies, including gaming performance, audio, networking, connectivity, lighting, and protection. Comes with an AM4 Socket, for AMD Ryzen series, 7th generation A-series and 7th generation Athlon processors. This motherboard also goes the extra mile by providing support for 3D printing, AI SUITE 3, ROG GPU-Z, and more.

• AMD X370
>
• AMD Ryzen Series
• DDR4 3200(O.C.)/ 2666/ 2400(O.C.)/ 2133(O.C.) *
• AMD 7th Generation A-series/ Athlon Processors
• DDR4 2400/ 2133

Manufacturer：ASUS
Classification：ROG
MPN：CROSSHAIR VI HERO (WI-FI AC)
CPU Socket Type：AM4
Processor Type：AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors
Chipset：AMD X370

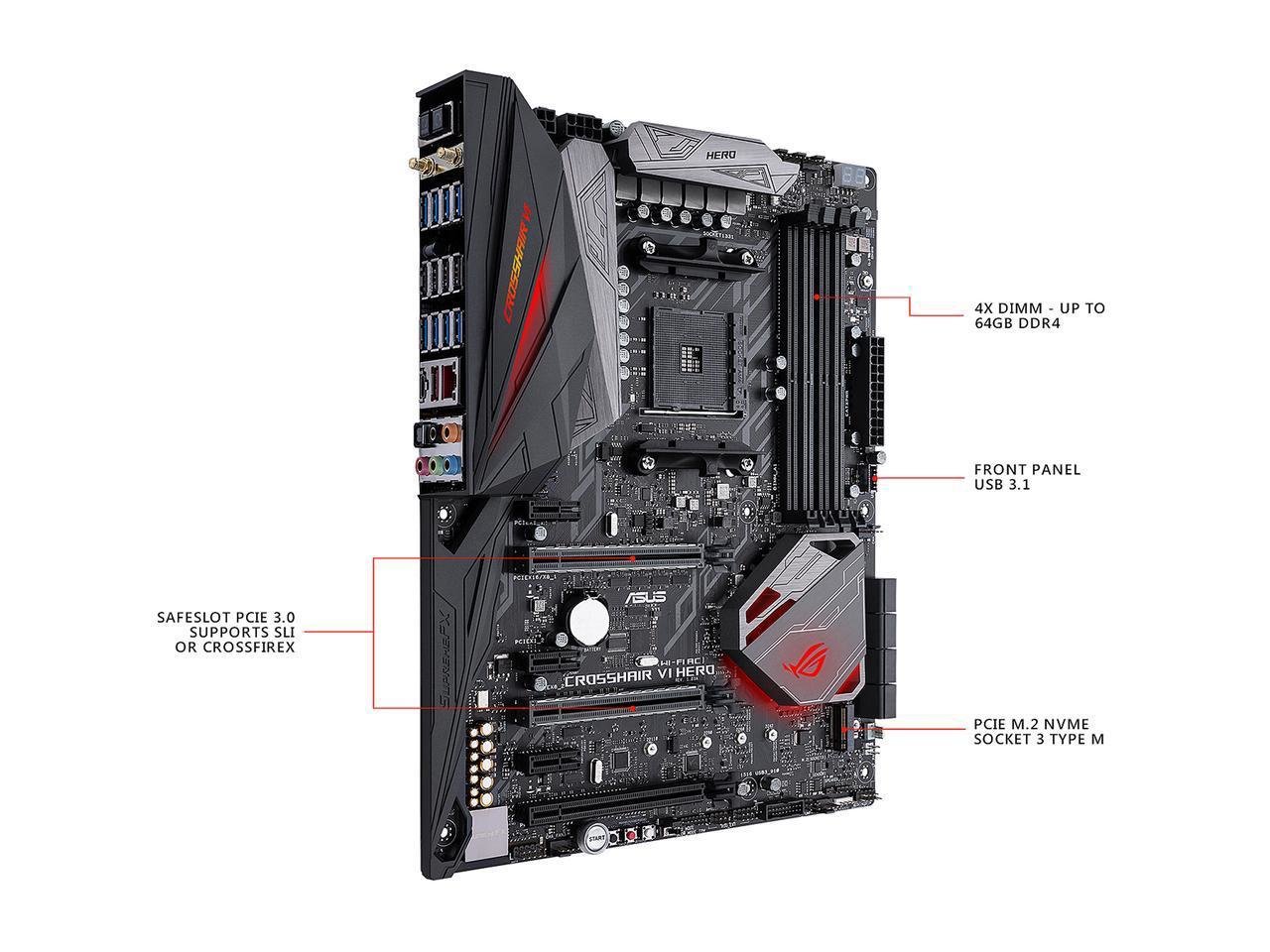

Number of Memory Slots：4×288pin
Memory Standard：AMD Ryzen Processors
DDR4 3200(O.C.)/ 2666/ 2400(O.C.)/ 2133(O.C.) *
AMD 7th Generation A-series/ Athlon Processors
DDR4 2400/ 2133 *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen CPUs
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
AMD 7th Generation A-series/Athlon CPUs
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16：1 x PCIe 2.0 x16 (max at x4 mode) *
* PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.
PCI Express x1：3 x PCIe 2.0 x1
SATA 6Gb/s：8 x SATA 6Gb/s
M.2 (Key M)：AMD Ryzen Series:
1 x M.2 Socket 3, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD 7th Generation A-series/Athlon Processors:
1 x M.2 Socket 3, type 2242/2260/2280/22110 storage devices support (SATA mode)
SATA RAID：0/1/10
Audio Chipset：ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels：8 Channels
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth：Bluetooth V4.1*
* Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.

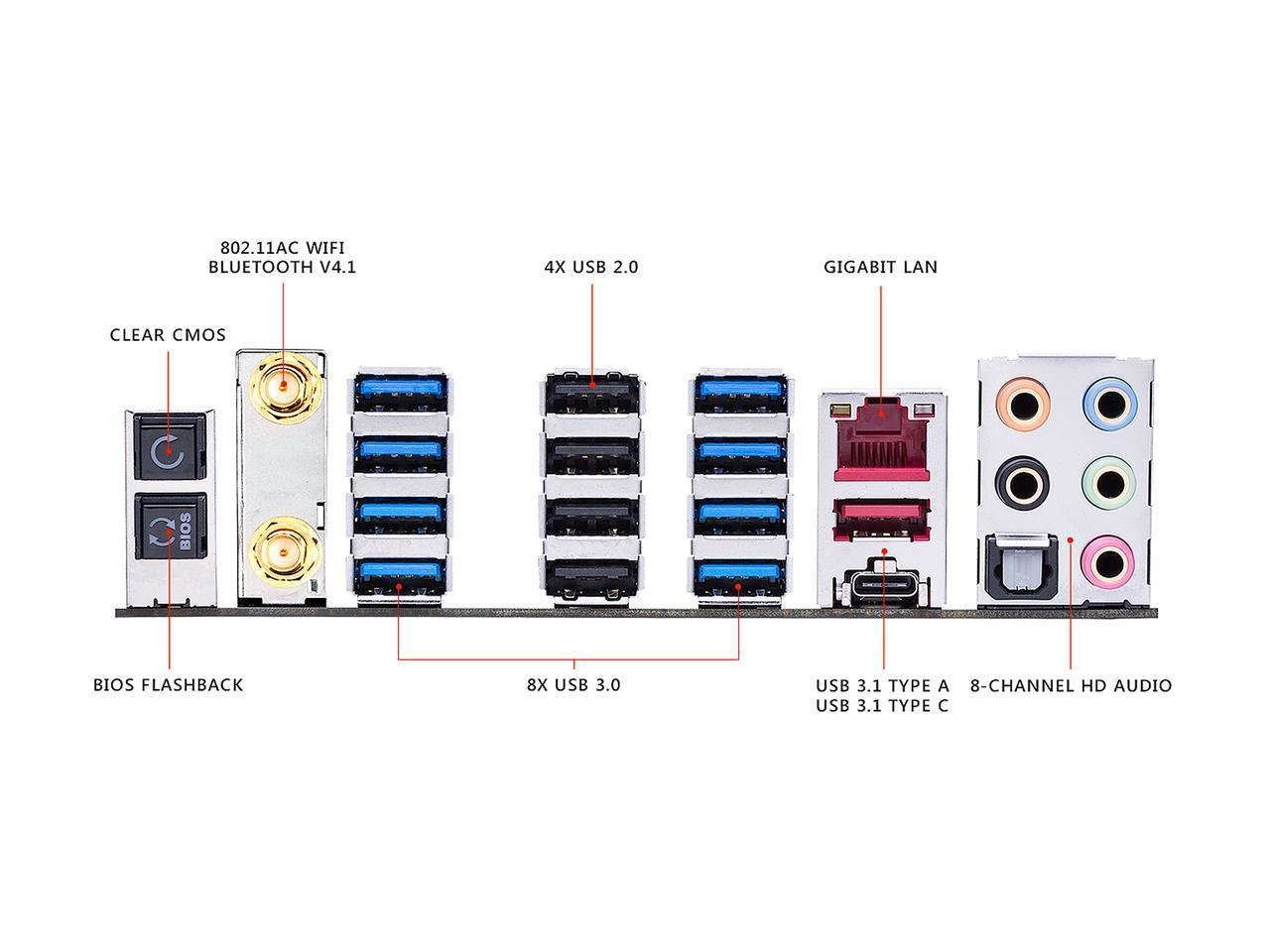

RJ45：1 x RJ45
USB 3.1：8 x USB 3.1 Gen 1 (blue)
1 x USB 3.1 Type-A (red)
1 x USB 3.1 Type-C (black)
USB 1.1/2.0：4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：1 x USB 3.1 Gen 2 front panel connector
1 x USB 3.0 connector support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector support(s) additional 2 USB 2.0 port(s)

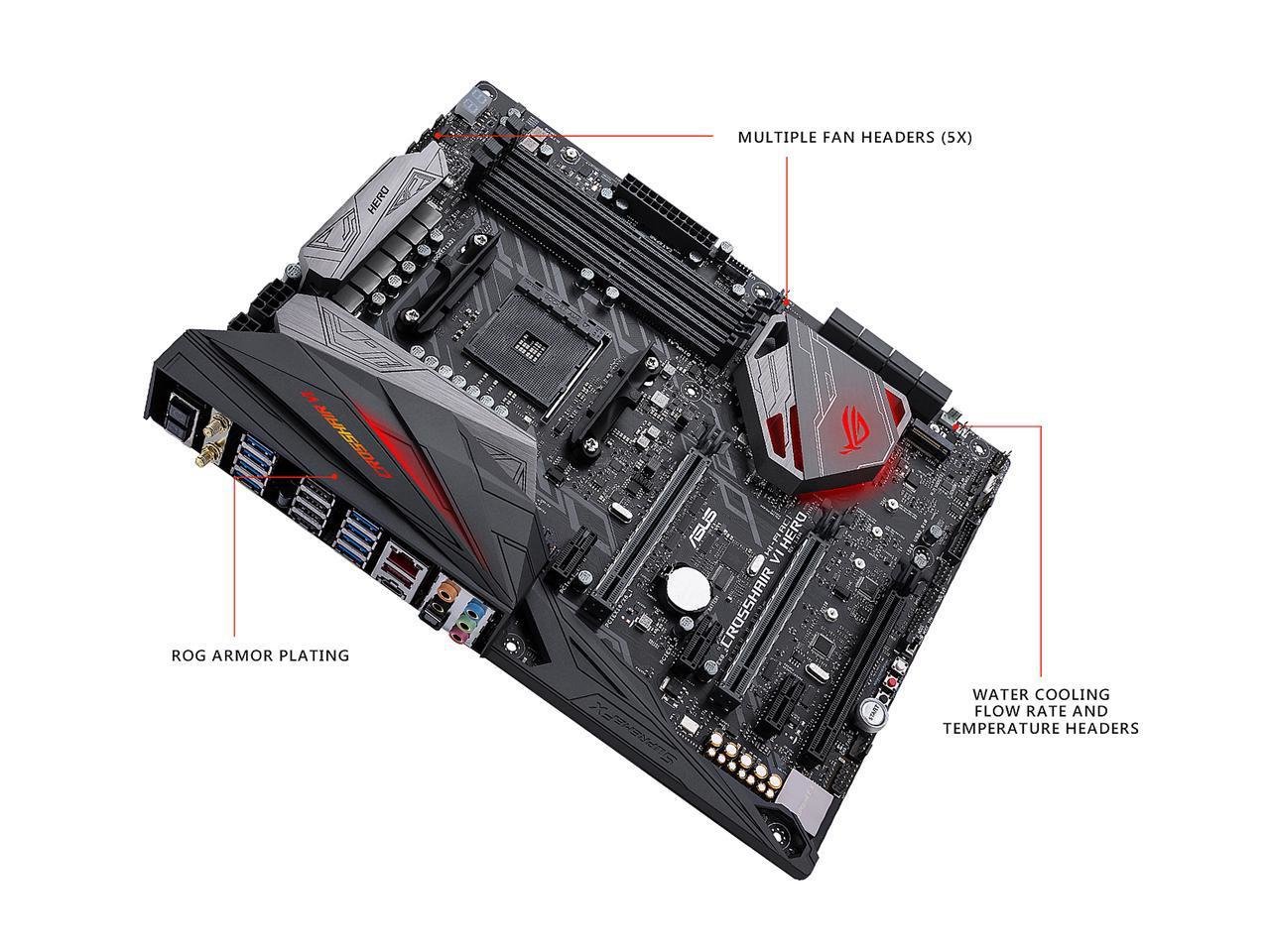

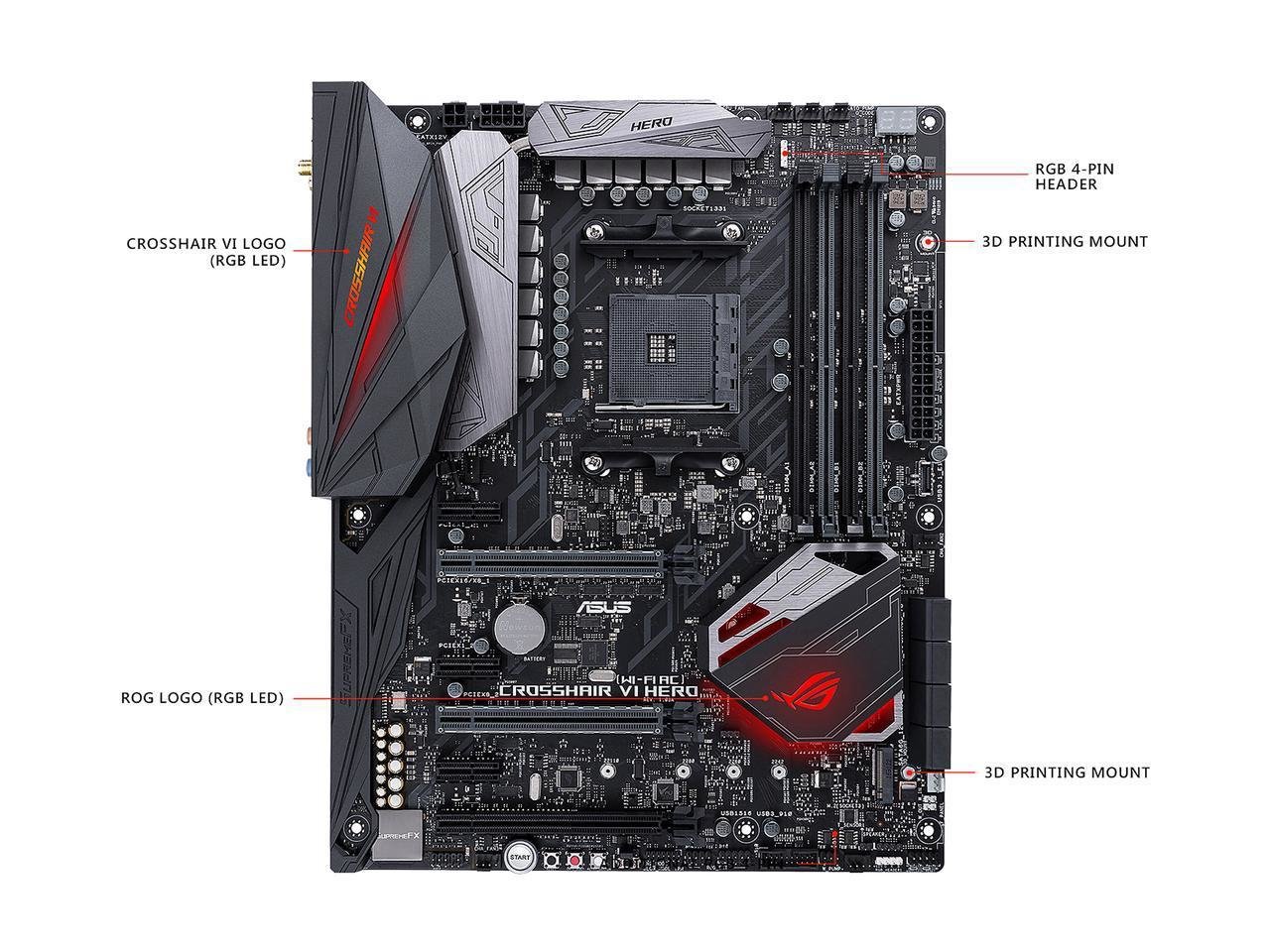

Other Connectors：2 x RGB Header(s)
1 x TPM connector
1 x CPU Fan connector
1 x CPU OPT Fan connector
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x Front panel audio connector (AAFP)
1 x Slow Mode switch
1 x Thermal sensor connector
1 x Reset button
1 x LN2 Mode switch
1 x ROG extension (ROG_EXT) header
1 x Safe Boot button
1 x ReTry button
1 x Slow Mode jumper
1 x System panel connector
2 x 3D Mount screw port(s)
1 x W_IN header
2 x W_OUT header
1 x W_FLOW header
1 x Start button
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 8-pin EATX 12V Power connector
1 x 4-pin EATX 12V_1 Power connector
1 x 24-pin EATX Power connector
Features：Multi-GPU Support:
Supports NVIDIA 2-Way SLI Technology *
Supports AMD CrossFireX Technology
* Due to CPU limitation, NVIDIA 2-Way SLI Technology is not supported for AMD 7th Gen A-series/Athlon Processors

ROG Exclusive Features:
Clear CMOS button
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
MemOK! Button
Slow Mode
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- NexFET Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- ClrCMOS
- Power On
UEFI BIOS features:
- O.C. Profile
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback

Special Features:
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
TPU
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- SafeSlot
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, WOL by PME, PXE

Operating System:
Windows 10 64-bit
