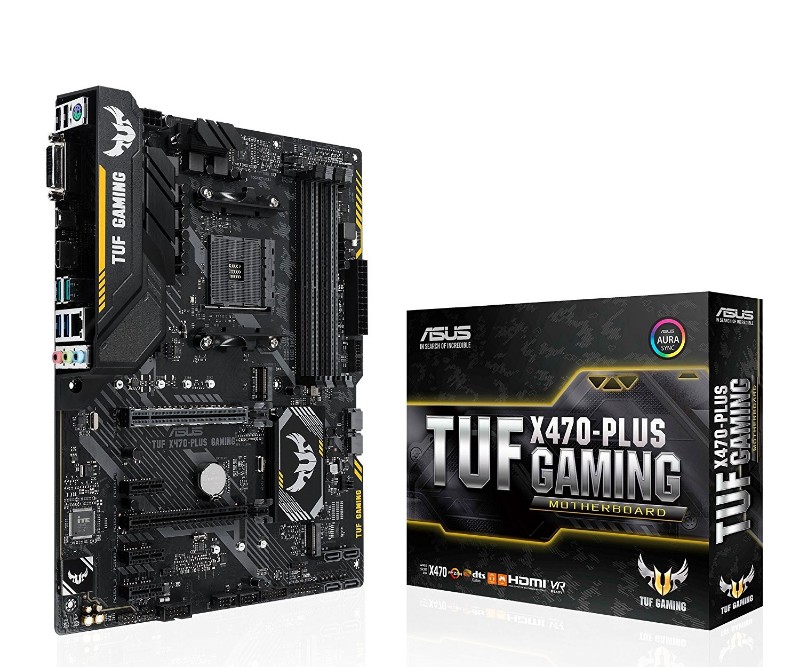

ASUS TUF X470-Plus Gaming AM4 AMD

Powered by AMD Ryzen 2 AM4 processors, the ASUS TUF X470-Plus Gaming delivers 24/7 performance. Unlock your system's full potential with Gamer's Guardian featuring SafeSlot and Fan Xpert 4 Core while personalizing your build with Aura Sync lighting. Integrated dual M.2, gigabit LAN and USB 3.1 Gen2 deliver maximum connectivity speeds.

The Asus X470-PLUS GAMING motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD X470 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black design.

• AMD X470
Compatible with 2nd Gen/ Ryzen with APU/ Ryzen 1st Gen/7th Generation A-Series/Athlon X4 CPUs
• * Hyper DIMM support varies to the physical characteristics of individual CPUs.

Manufacturer：ASUS
Classification：TUF
MPN：X470-Plus Gaming
CPU Socket Type：AM4
Processor Type：AM4 socket for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors
* Refer to www.asus.com for the AMD CPU support list.
Chipset：AMD X470
Number of Memory Slots：4×288pin
Memory Standard：AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors
DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C)/ 2666/ 2400/ 2133
AMD 7th Generation A-Series/Athlon X4 Processors
DDR4 2400/ 2133

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode)

AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series/Athlon X4 Processor
1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)
PCI Express 2.0 x16：1 x PCI Express 2.0 x16 slot (max.@x4 mode)
PCI Express x1：3 x PCI Express 2.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s
M.2 (Key M, Socket 3)：AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors:
1 x M.2, type 2242/2260/2280/22110(SATA & PCIE 3.0 x4 mode)
AMD 7th Generation A-Series/Athlon X4 CPU:
1 x M.2, type 2242/2260/2280/22110(SATA mode)
AMD X470 chipset:
1 x M.2, with M Key, type 2242/2260/2280(SATA & PCI Express 3.0 x2 mode)
SATA RAID：0/1/10
Onboard Video Chipset：Integrated Graphics in the AMD Ryzen APU/ 7th Generation A-Series APU
Multi-VGA output support: HDMI, DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200@60Hz
- Maximum shared memory of 2048MB (for iGPU exclusively)
Audio Chipset：Realtek ALC887-VD2
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D port
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen 2 (up to 10Gbps) ports (Type A, teal blue)
1 x USB 3.1 Gen 1 (up to 5Gbps) port (Type C)
2 x USB 3.1 Gen 1 (up to 5Gbps) ports (Type A, blue)
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 x Audio jacks support 8-channel audio output
Onboard USB：2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors：1 x RGB Header(s)
1 x CPU Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s) (3 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
Features：Multi-GPU Support:
Supports AMD CrossFireX Technology

Special Features:
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA:
- Aura Lighting Control
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)

BIOS:
256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control, F4 AURA ON/OFF, F9 Search

Manageability:
DMI 3.0, WOL by PME, PXE

Operating System:
Windows 10 64-bit
