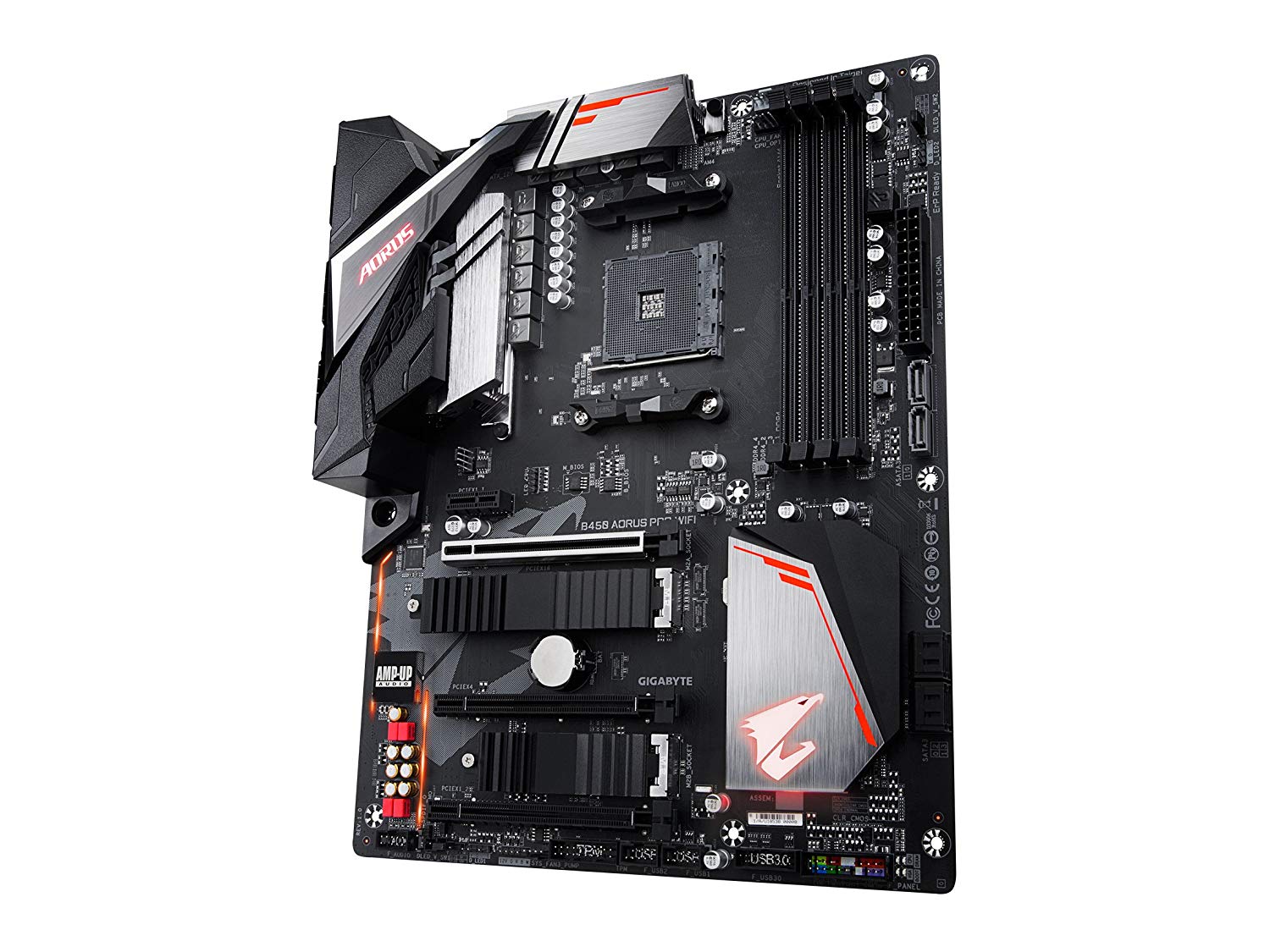

GIGABYTE B450 AORUS PRO WIFI (rev. 1.0) AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

The Gigabyte B450 AORUS PRO WIFI Motherboard supports the new AM4 socket for AMD Ryzen Processors, bringing a new era of efficiency and performance over the previous AM3 socket. Non-ECC DDR4 is supported along with 2-way graphics, PCIe Gen3 x4, and USB Type-C. Gigabyte's motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you ll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC's temperature or load.

• Supports AMD 1st & 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel Ethernet LAN + Dual Band 802.11 ac WI-FI
• Dual PCIe Gen3 M.2 NVMe with Dual Thermal Guards
• ALC1220-VB Enhanced Audio with WIMA Capacitors
• RGB FUSION with Digital LED & RGB LED Headers
• Smart Fan 5 with FAN STOP
• USB 3.1 Gen 2 with USB Type-C & Type-A
• Integrated I/O Shield of Ultra Durable Design
• CEC 2019 Ready

Manufacturer：GIGABYTE
MPN：B450 AORUS PRO WIFI (rev. 1.0)
CPU Socket Type：AM4
Processor Type：AM4 Socket:
AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics processors
AMD Ryzen 1st Generation processors
Chipset：AMD B450
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16：1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty.

1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
PCI Express x1：1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Other Slots：1 x M.2 Socket 1 connector for a wireless communication module (M2_WI-FI)
* B450 AORUS PRO WIFI includes the wireless communication module.
SATA 6Gb/s：6 x SATA 6Gb/s
M.2：1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET)
SATA RAID：0/1/10
Onboard Video Chipset：Supported only by CPU with integrated graphic:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Maximum shared memory of 16GB
Audio Chipset：Realtek ALC1220-VB codec
Audio Channels：2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Chipset：Intel GbE LAN chip
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11 ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth：BLUETOOTH 4.2
RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen 1 ports
1 x USB Type-C port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors：1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only)
1 x Clear CMOS jumper
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
