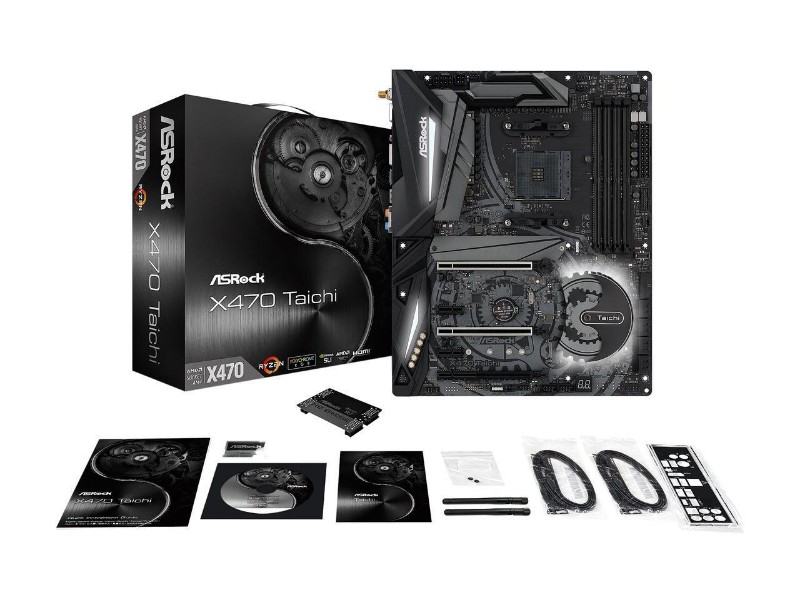

ASRock X470 Taichi AM4 AMD Promontory SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

"The X470 Taichi from ASRock, is based on the X470 chipset and thus its feature set. Like almost all X470 boards, the taichi includes support for two M.2-NVMe SSDs slots, one full speed, USB 3.1, as well as offering support for two-way SLI and CrossFireX configs. The board has a dark styled PCB comes with shielding on the two primary PCIe slots and the inclusion of what ASRock calls, Polychrome RGB, which is a subtle light accent RGB setup. Features wise you may expect triple x16 PCI-Express slots (16x/8x/4x), an 8-channel audio solution, the usual quality components and USB 3.1. Audio is based on Realtek 1220."

The ASRock X470 Taichi motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD X470 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2933 / 3200 / 3466. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, support for SLI, stylish Black / Silver design.

• AMD Promontory X470
• Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
• AMD Ryzen series CPUs (Pinnacle Ridge, Summit Ridge, Raven Ridge) supports DDR4 memory modules

Manufacturer：ASRock
MPN：X470 Taichi
CPU Socket Type：AM4
Processor Type：Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Chipset：AMD Promontory X470
Number of Memory Slots：4×288pin
Memory Standard：AMD Ryzen CPU (Pinnacle, Summit and, Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133*

* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information. (https://www.asrock.com/MB/AMD/X470%20Taichi/index.us.asp#Memory)
Maximum Memory Supported：64GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*
*Supports NVMe SSD as boot disks
PCI Express 2.0 x16：1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)
* If PCIE5 slot is occupied, M2_2 will be disabled
PCI Express x1：2 x PCI Express 2.0 x1 Slots (Flexible PCIe)
Other Slots：1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
M.2 (Key M)：1 x Ultra M.2 Socket (M2_1), type 2260/2280/22110*
1 x M.2 Socket (M2_2), type 2230/2242/2260/2280*

* If M2_2 is occupied, PCIE5 slot will be disabled
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
* M2_2 supports PCI Express Gen2 x4 (20Gb/s) and M2_1 supports M.2 SATA3 module and Gen3 x4 (32Gb/s) with Summit, Raven and Pinnacle Ridge
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Max. shared memory 4GB
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
Supports HDCP with HDMI Port
Supports 4K Ultra HD (UHD) playback with HDMI Port

*Actual support may vary by CPU
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel i211AT
Max LAN Speed： 10/100/1000Mbps
Wireless LAN：Intel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
Bluetooth：Supports Bluetooth 4.2 / 3.0 + High speed class II
PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
USB 3.1：1 x USB 3.1 Gen2 Type-A Port (10Gb/s)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s)
6 x USB 3.1 Gen1 Ports
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports)
1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142)
Other Connectors：1 x Power LED and Speaker Header
1 x AMD Fan LED Header*
1 x RGB LED Header**
1 x Addressable LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x AMD LED Fan USB Header
1 x Dr. Debug with LED
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
** Supports in total up to 12V/3A, 36W LED Strip.
*** Supports in total up to 5V/3A, 15W LED Strip.
**** The CPU Fan Connector supports the CPU fan max: 1A/12W.
***** The CPU/Water Pump Fan supports the water cooler fan max: 2A/24W.
****** The Chassis/Water Pump Fan support the water cooler fan max: 2A/24W.
****** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
Form Factor：ATX
LED Lighting：RGB
Dimensions (W x L)：12.0" x 9.6"
Power Pin (Hi-Density Power Connector)：1 x 24-pin ATX
1 x 8-pin 12V
1 x 4-pin 12V
