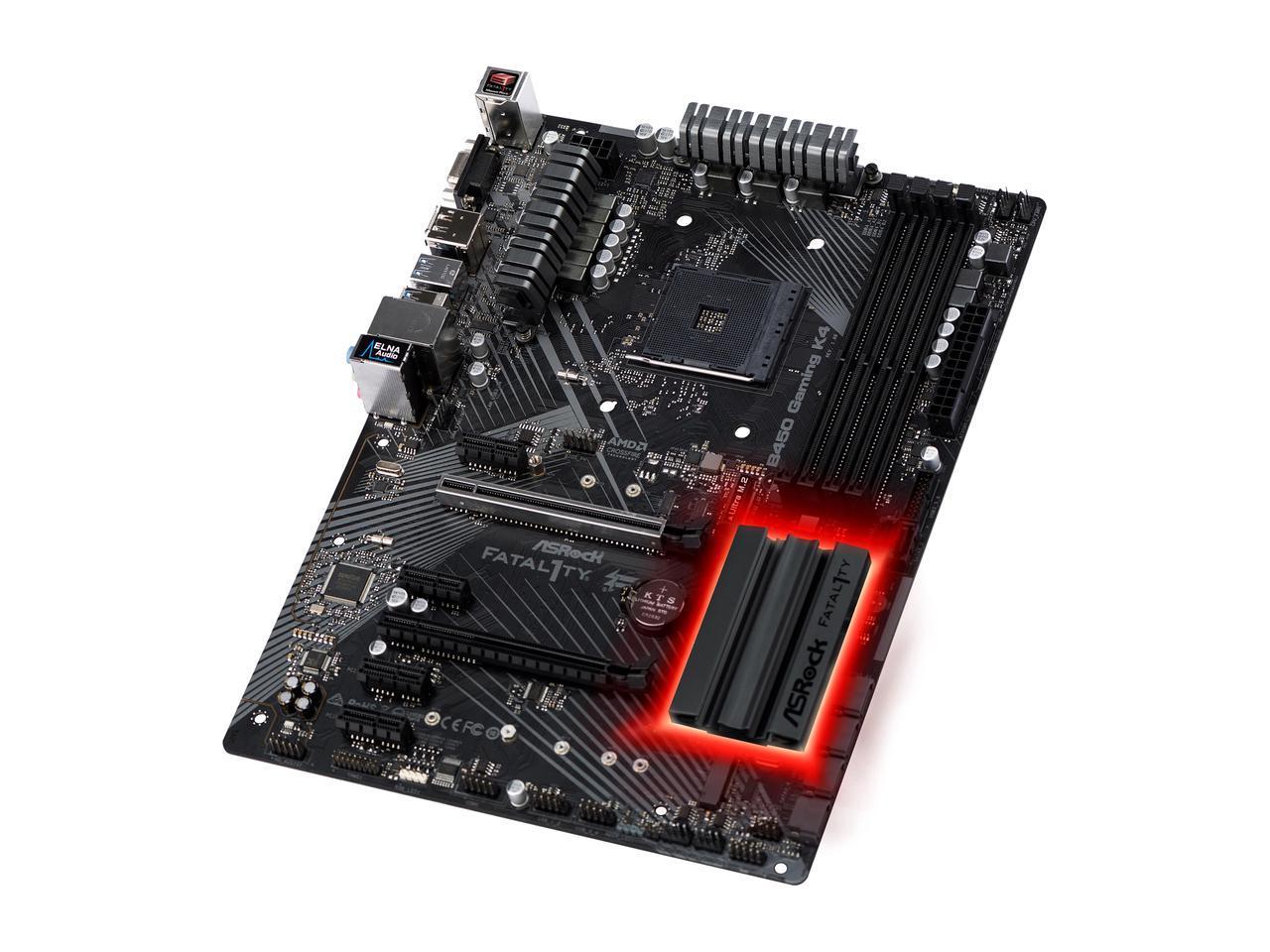

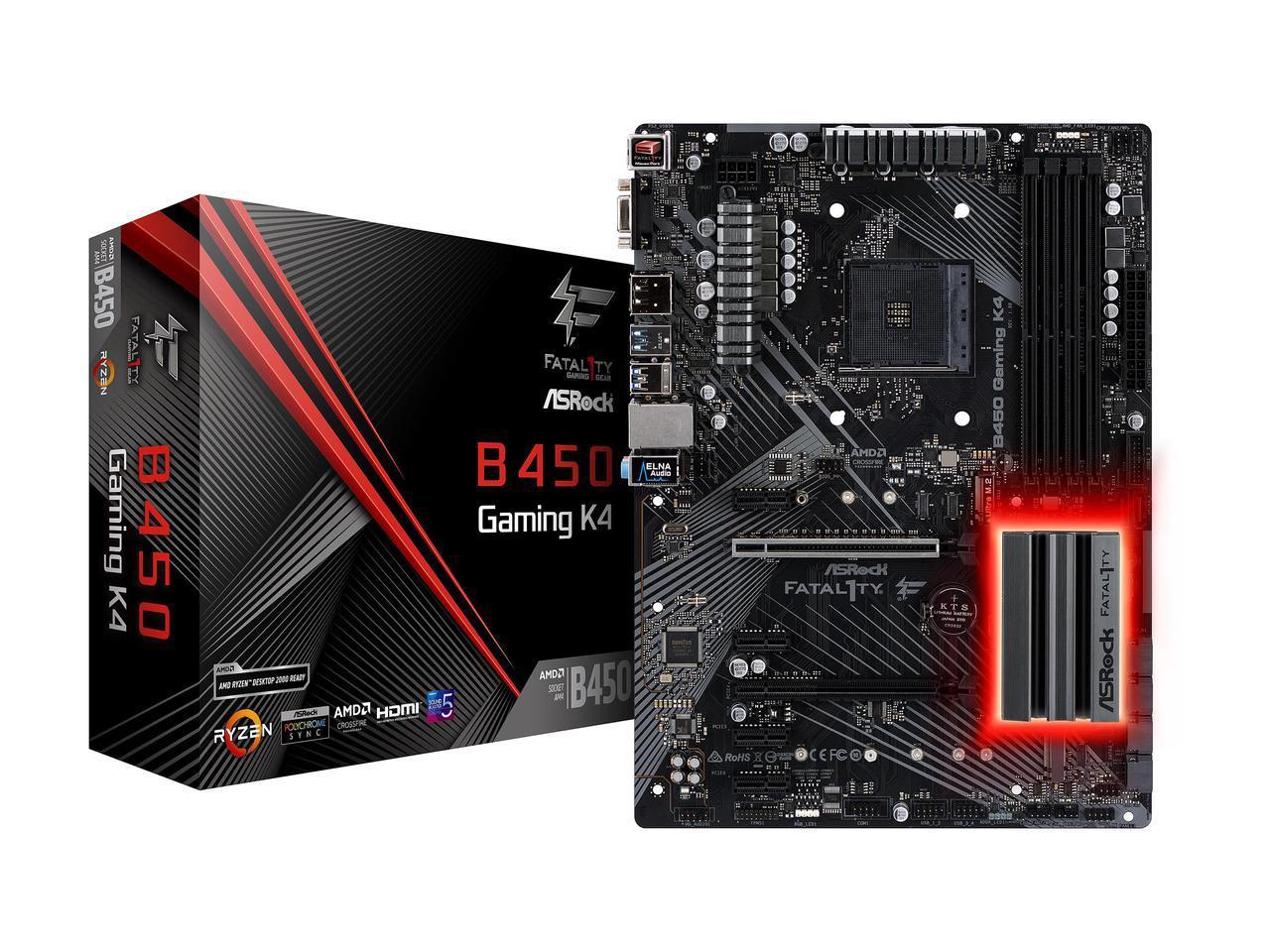

ASRock Fatal1ty B450 GAMING K4 AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

The ASRock Fatal1ty B450 GAMING K4 features a ATX form factor, this motherboard is targeted towards PC enthusiasts and gamers who's focused on building a solid machine in such low expense. This motherboard supports the AMD Ryzen series CPUs: Pinnacle Ridge, Summit Ridge and Raven Ridge. And each series comes with it's own features. 4 DDR4 memory slots; dual channel memory configuration supported, 64GB maximum memory supported. 4 SATA 6Gb/s connectors supports RAID and 2 other connectors. 1 USB 3.1 Type-A and USB 3.1 Type-C Ports (10Gb/s), 4 USB 3.1 Gen 1 Ports

• AMD AM4 Socket
• Supports DDR4 memory
• Supports Triple Monitor
• Realtek Gigabit LAN

Manufacturer：ASRock
Classification：Fatal1ty
MPN：B450 GAMING K4
CPU Socket Type：AM4
Processor Type：Pinnacle Ridge, Summit Ridge, Raven Ridge
Chipset：AMD B450
Number of Memory Slots：4×288pinMaximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*

* If M2_1 is occupied, PCIE4 will be disabled
PCI Express x1：4 x PCI Express 2.0 x1 Slots
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
* M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
M.2 (Supports Key M)：1 x Ultra M.2 Socket (M2_1), type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)**
1 x M.2 Socket (M2_2), type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s) **

** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
Supports Triple Monitor
Supports HDMI, max.: 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DisplayPort 1.2, max.: 4K x 2K (4096x2160) @ 60Hz
Supports D-Sub, max.: 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port
(Compliant HDMI monitor is required)
Supports HDCP & 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps

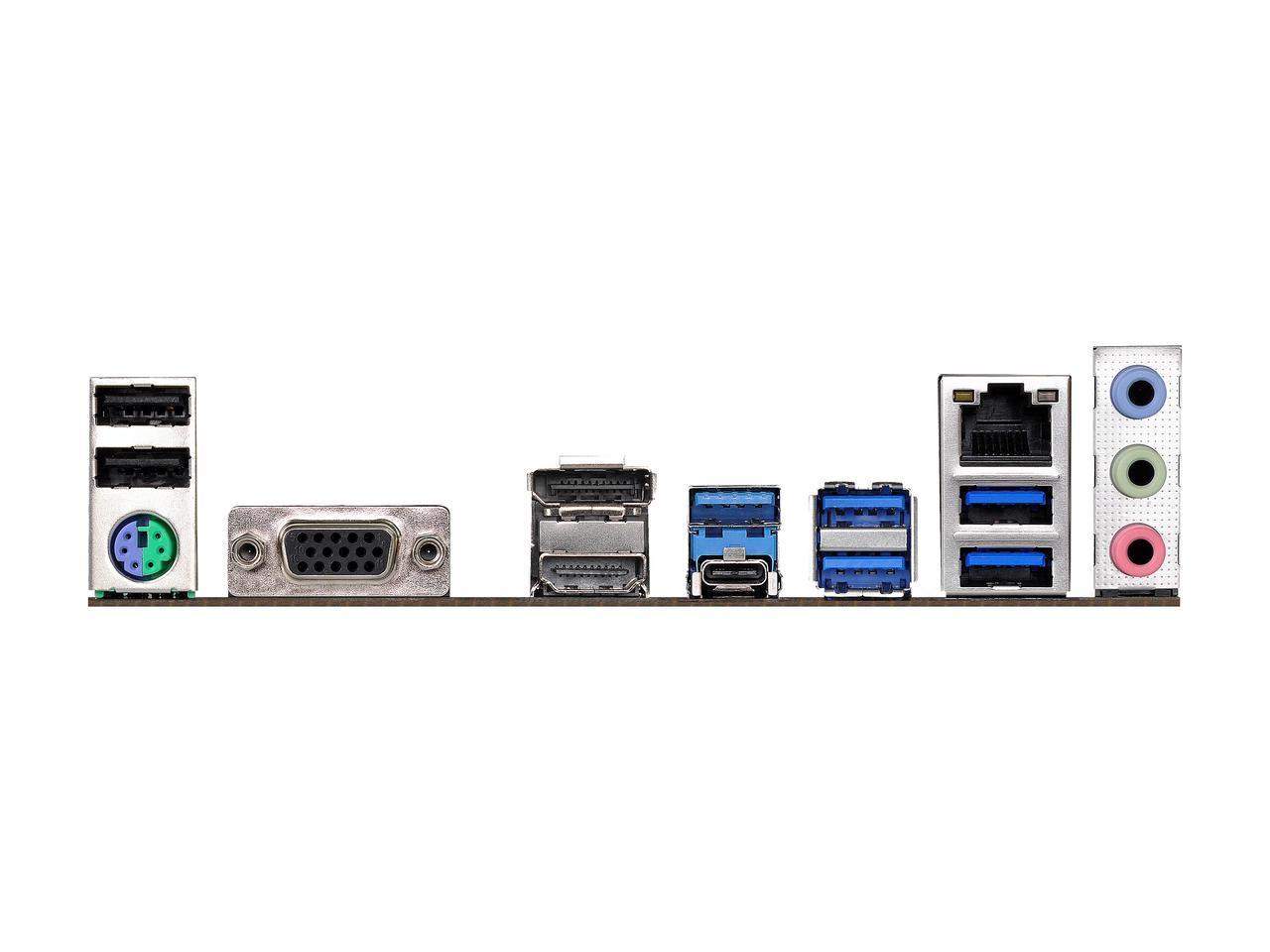

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort：1 x DisplayPort 1.2
USB 3.1：1 x USB 3.1 Gen2 Type-A Port (10Gb/s)
1 x USB 3.1 Gen Type-C Port (10Gb/s)
4 x USB 3.1 Gen1 Ports
USB 1.1/2.0：2 x USB 2.0 Ports
* 1 x Fatal1ty Mouse Port (USB 2.0) is included
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip.
1 x Addressable LED Header
* Support in total up to 5V/3A, 15W LED Strip.
1 x AMD Fan LED Header
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin)**
3 x Chassis/Water Pump Fan Connectors (4-pin)**
**CPU/Water Pump Fan & Chassis/Water Pump Fan supports the water cooler fan of ѕaximum 2A (24W) fan power (Smart Fan Speed Control).
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Form Factor：ATX
Dimensions (W x L)：12.0" x 8.8"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features：Unique Feature:
ASRock USB 3.1 Gen2
ASRock Super Alloy
- Premium Power Choke
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Gaming Armor:
Memory
- 15? Gold Contact in DIMM Slots
Audio
- Creative SoundBlaster Cinema5

BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

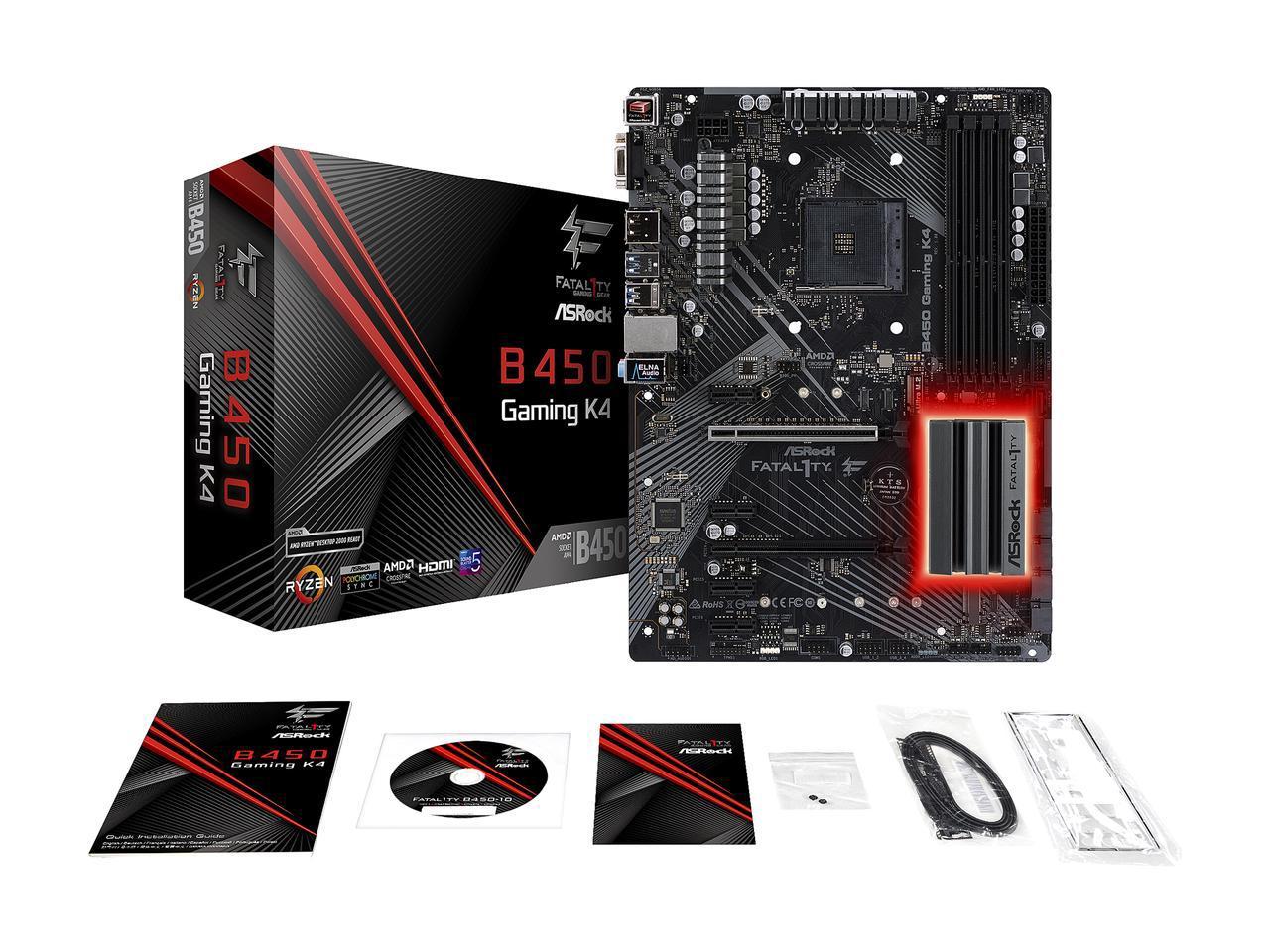

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI:
Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

Hardware Monitor (CPU, CPU/Water Pump, Chassis/Water Pump Fans):
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- Fan Multi-Speed Control

- Temperature Sensing: CPU, MB
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
