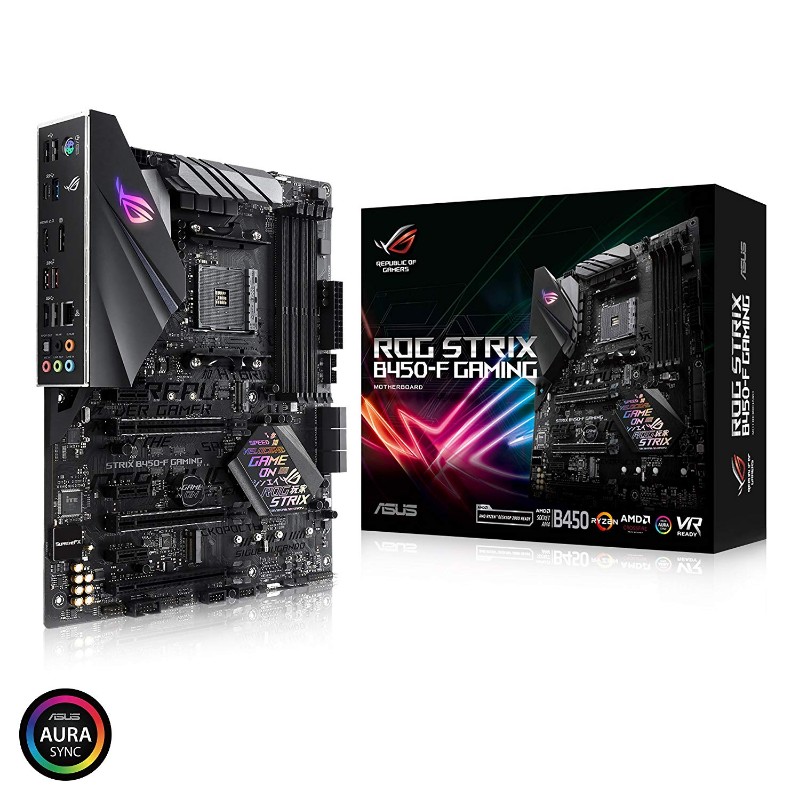

ASUS ROG STRIX B450-F GAMING AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

ASUS ROG STRIX B450-F GAMING AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard. Experience next-level performance with the ROG Strix B450-F Gaming, powered by 2nd generation AMD? Ryzen? AM4 processors. Unlock your systems potential with 5-Way Optimization featuring Fan Xpert 4 while personalizing your build with Aura Sync RGB. Integrated NVMe M.2, gigabit LAN and USB 3.1 Gen2 deliver maximum connectivity speeds.

8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors

PERFORMANCE LEVEL UP - With the exclusive AI Suite 3, you can push performance as far as possible for brilliant gaming thrills. Its dashboard-style control panel lets you fine-tune almost every aspect of your ROG Strix B450-F Gaming system. Get the best balance between performance, cooling, stability and efficiency via one simple and intuitive interface.

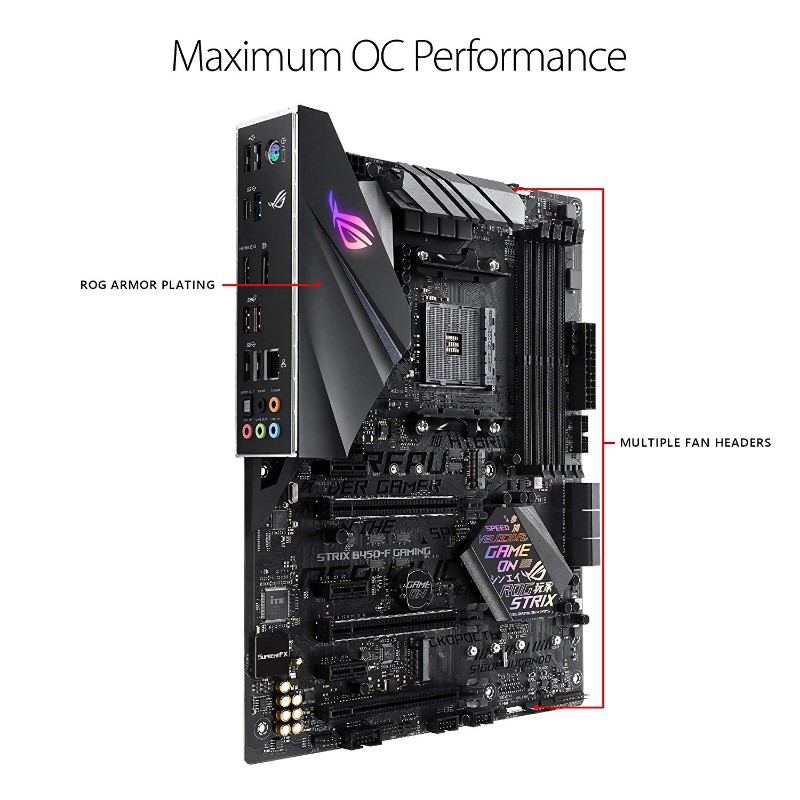

COOLER BY DESIGN - ROG Strix B450-F Gaming features comprehensive cooling options, configurable via Fan Xpert 4 or the UEFI BIOS. Every on board header supports auto-detection of PWM or DC fans. Lastly, a dedicated PWM/DC header for self-contained water-cooling setups.

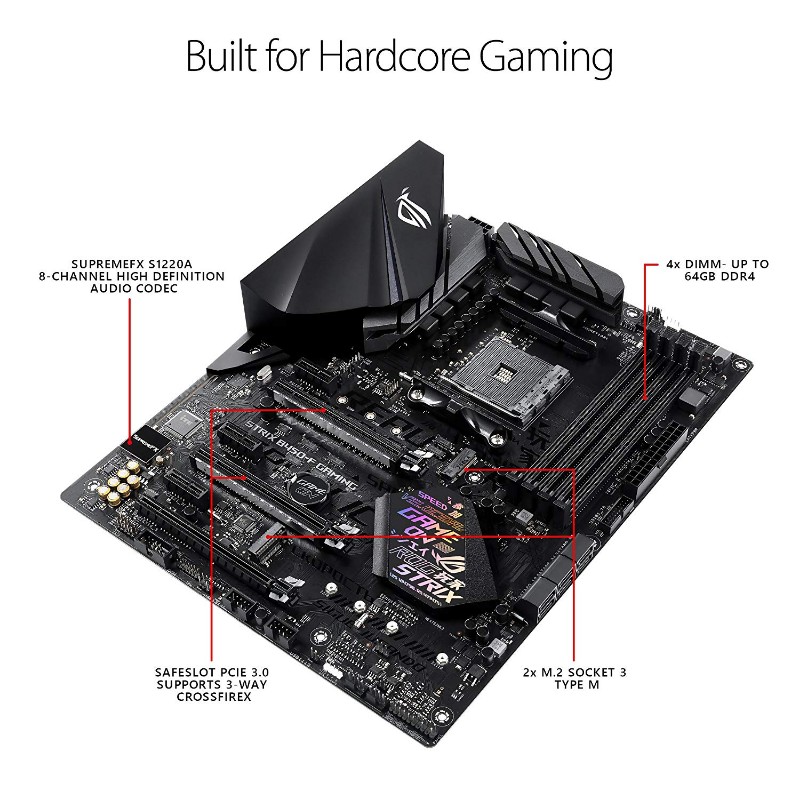

SUPREMEFX - Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

DESIGN, CUSTOMIZATION, AND SETUP - A host of design touches, customization options, comprehensive validation lists, and a diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix B450-F Gaming wonderfully easy. ROG's patent-pending I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.

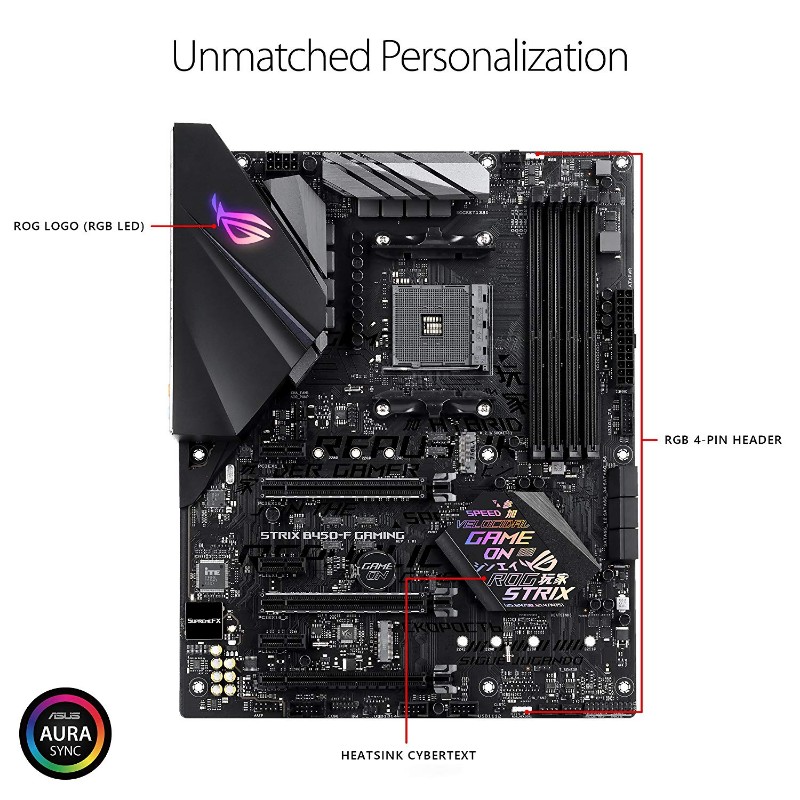

OUTSHINE THE COMPETITION - ROG Strix motherboards deliver superior performance and aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs and lighting strips connected to the RGB header. All lighting can be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

CYBER OUTLOOK - The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. If you prefer a subtler style, you can swap the PCH sticker with an included alternative. The choice is yours.

The Asus STRIX B450-F GAMING motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD B450 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200. This motherboard has 6 SATA ports. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black design.

• AMD B450
• AM4 socket for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
• DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133

Manufacturer：ASUS
Classification：ROG
MPN：STRIX B450-F GAMING
CPU Socket Type：AM4
Processor Type：AM4 socket for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
* Refer to www.asus.com for the AMD CPU support list.
Chipset：AMD B450
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors:
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen with Radeon Vega Graphics Processor:
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16：1 x PCI Express 2.0 x16 slots (max. at x4 mode)
* PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3.
PCI Express x1：3 x PCI Express 2.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s
M.2：AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors: *
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)**
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)***

AMD Ryzen with Radeon Vega Graphics Processor: *
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)***

* Support StoreMI and NVMe RAID.
** When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled.
*** When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.
SATA RAID：0/1/10
Onboard Video Chipset：Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Audio Chipset：ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels：8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps

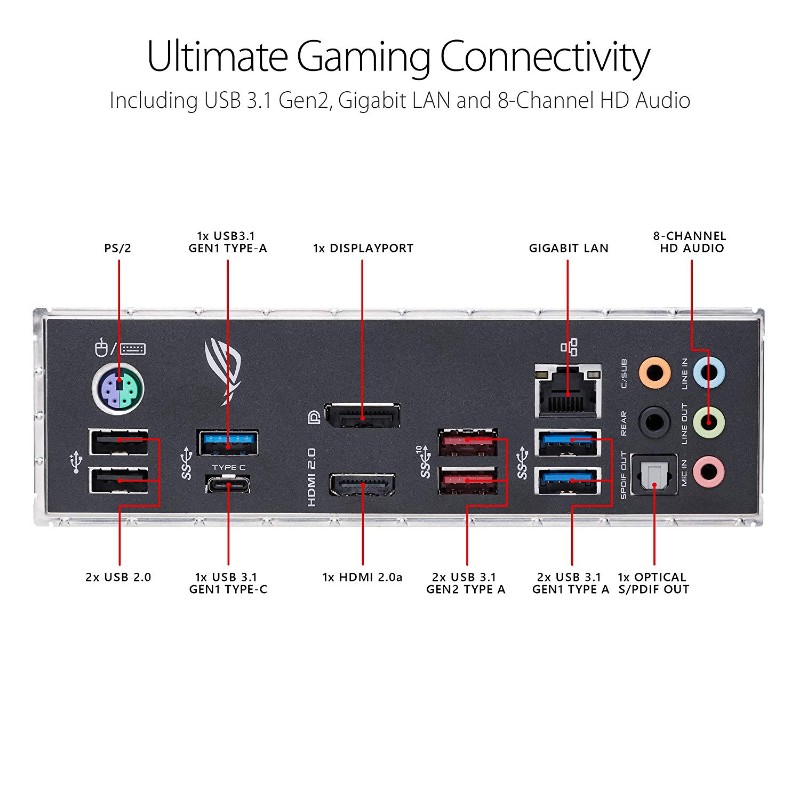

PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI 2.0b port
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：2 x USB 3.1 Gen2 ports (2 x Type-A [red] )
4 x USB 3.1 Gen1 ports (3 x Type-A [blue] and 1 x Type C)
USB 1.1/2.0：2 x USB 2.0
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Onboard USB：1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors：2 x Aura RGB Strip Headers
1 x TPM header
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
Features：Multi-GPU Support:
AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors
Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
Pre-mounted I/O Shield
Overwolf
GameFirst IV

Special Features:
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages
TPU
- Auto Tuning, TurboV, GPU Boost
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- SafeSlot
ASUS EPU:
- EPU
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ASUS Grid
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP
- featuring system performance tuning for selected applications

Operating System:
Windows 10 64-bit
