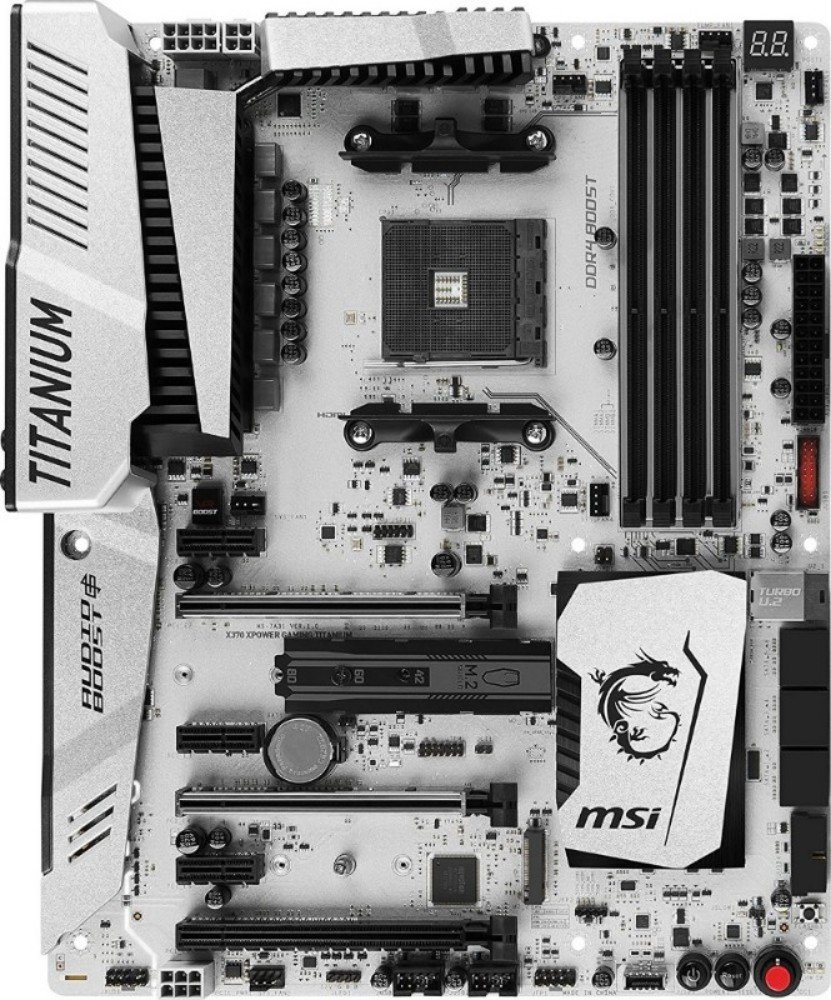

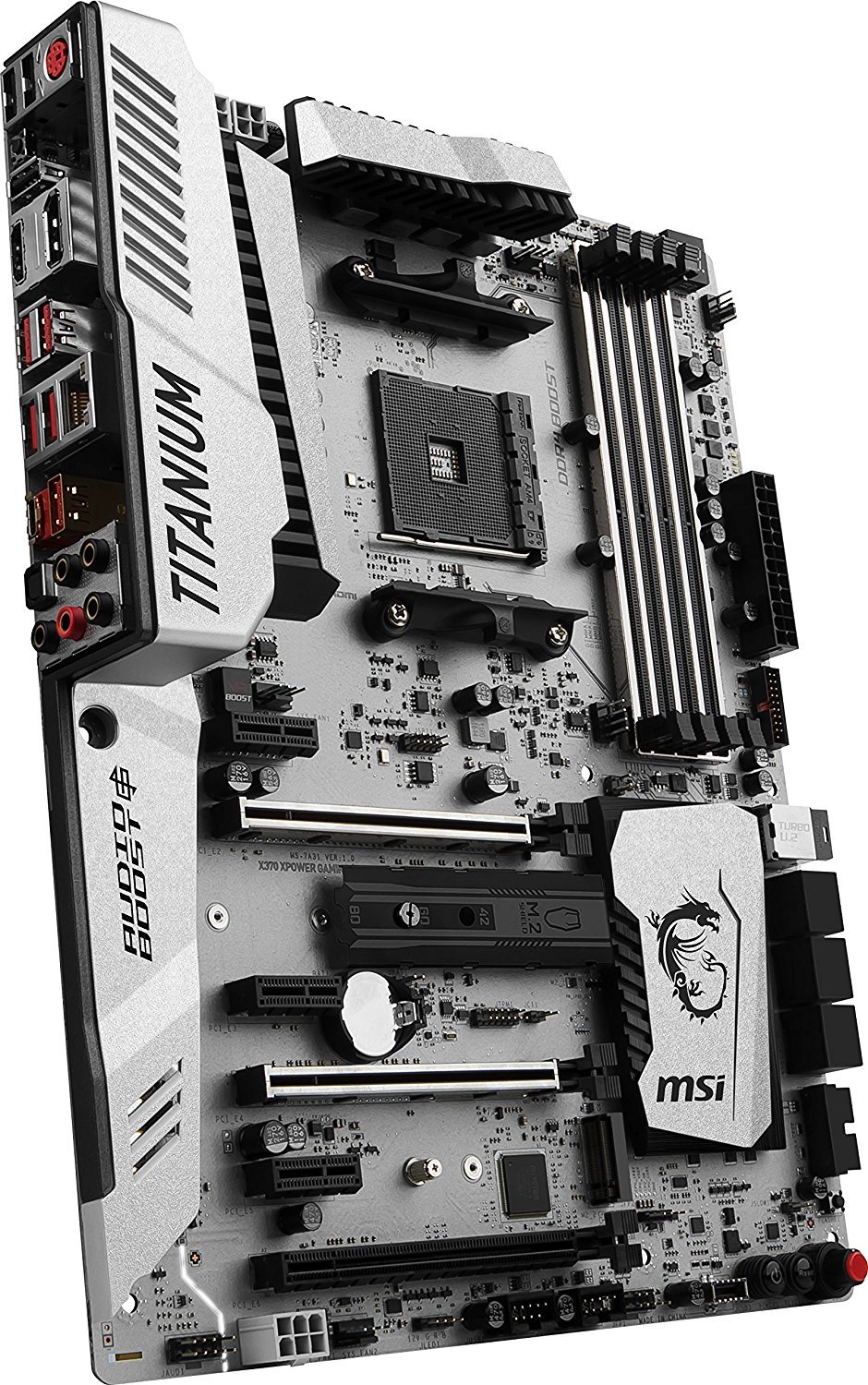

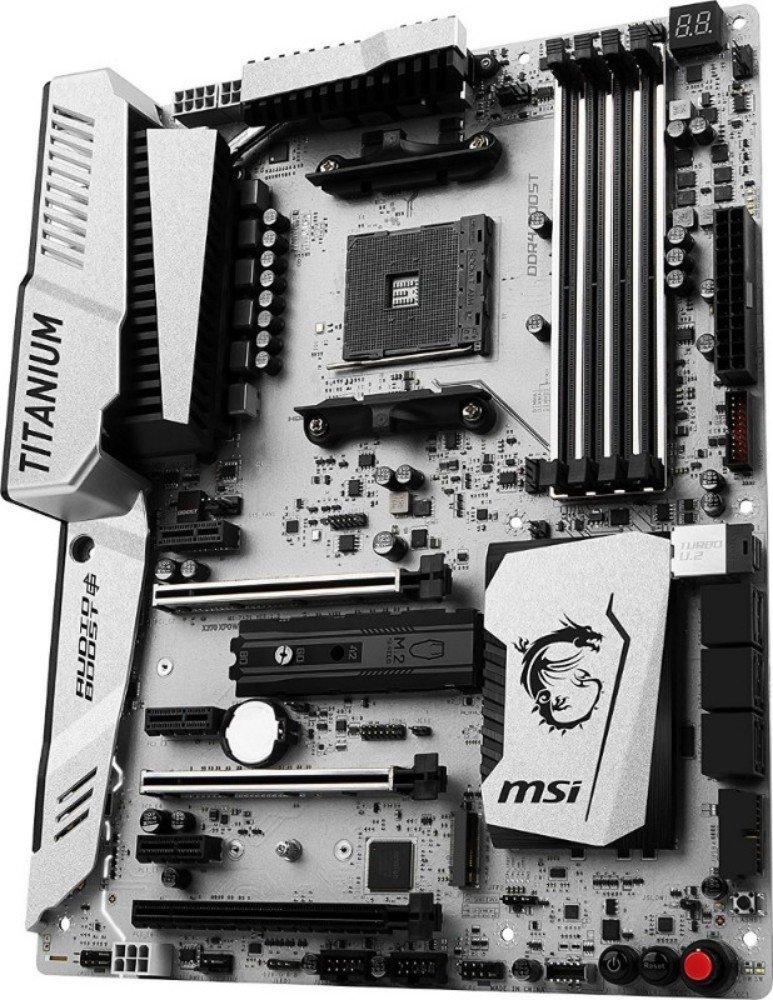

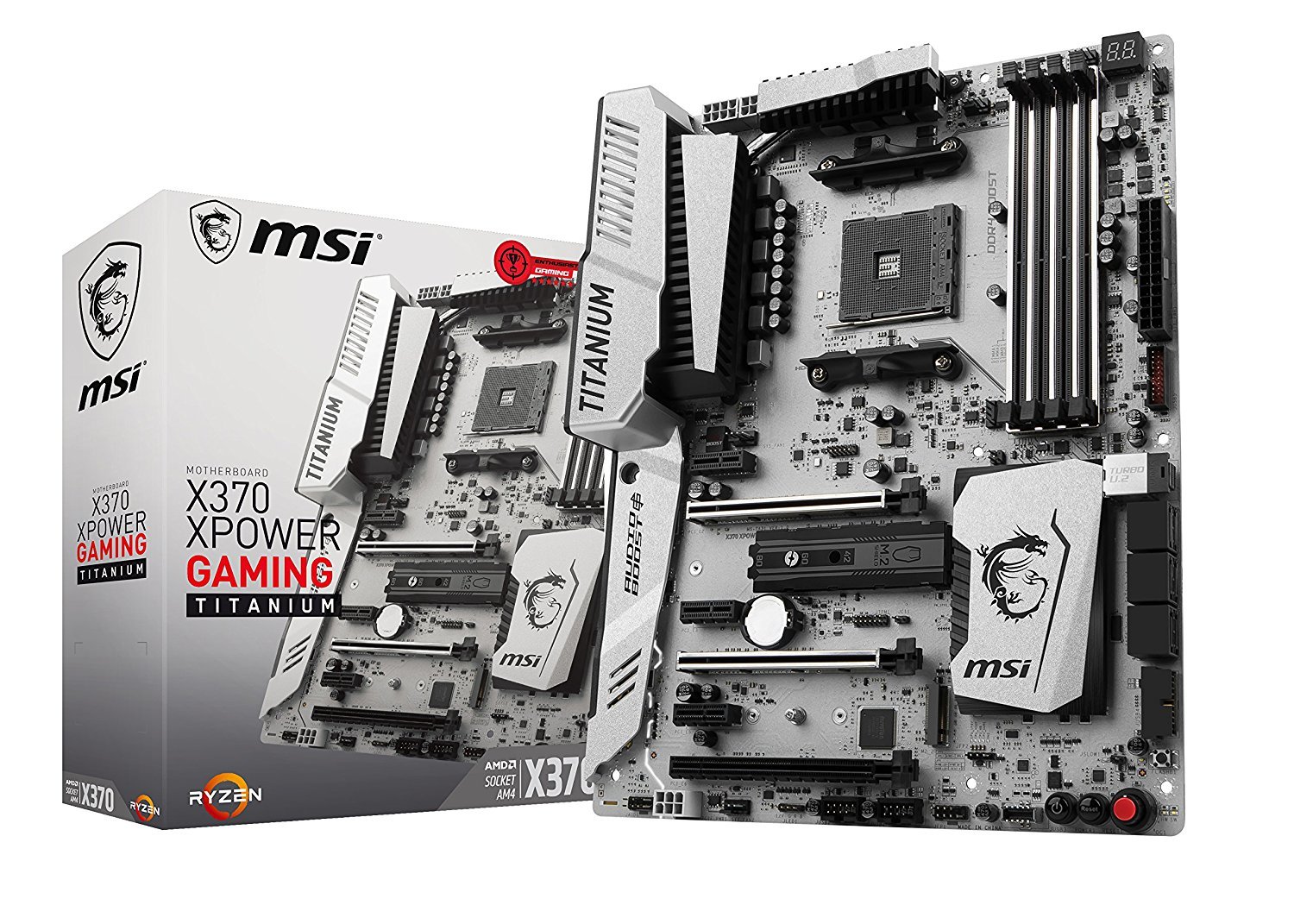

Msi X370 XPOWER Gaming Titanium AMD AM4 ATX Motherboard

The MSI X370 XPOWER GAMING TITANIUM provides bulletproof gaming, having many features for ample cooling and protection of components. A full gaming I/O and audio cover, heavy plated heatsinks, DDR4 boost with Steel Armor, and PCI-E Steel Armor makes this a durable motherboard. MSI AMD Ryzen X370 XPOWER GAMING TITANIUM ATX Gaming Motherboard. This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

The MSI X370 XPOWER GAMING TITANIUM motherboard supports AM4 processors and will fit in a standard ATX case. This board is powered by the AMD X370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-1866 / 2133 / 2400 / 2666 / 2933 / 3200. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, support for SLI, stylish Silver design.

• AMD X370
• Supports AMD RYZEN Series and 7th Gen A-series/ Athlon CPUs for Socket AM4
• DDR4 Memory
• * 7th Gen A-series / Athlon support a maximum of 2400 MHz.

Manufacturer：MSI
MPN：X370 XPOWER GAMING TITANIUM
CPU Socket Type：AM4
Processor Type：Supports AMD RYZEN Series Processors and 7th Gen A-series/ Athlon processors for Socket AM4
Chipset：AMD X370
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 *
* 7th Gen A-series / Athlon processors support a maximum of 2400 MHz.
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 mode
- 7th Gen A-series / Athlon processors support x8/x0 mode
PCI Express 2.0 x16：1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)
PCI Express x1：3 x PCIe 2.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s ports*
* Maximum support 2 x M.2 PCIe SSDs + 6 x SATA HDDs or 2 x M.2 SATA SSDs + 4 x SATA HDDs.
M.2：2 x M.2 ports (Key M)
- M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series / Athlon processors) and SATA 6Gb/s 2242 / 2260 / 2280 / 22110 storage devices
- M2_2 slot supports PCIe 2.0 x4 and SATA 6Gb/s 2242 / 2260 / 2280 storage devices
1 x U.2 port
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series / Athlon processors) NVMe storage
SATA RAID：0/1/10
Onboard Video Chipset：Supported only by CPU with integrated graphic
1 x HDMI 2.0 port, max.: 4096x2160@60Hz*
1 x DisplayPort, max.: 4096x2160@60Hz*
* Only support when using a 7th Gen A-series/ Athlon processors
* Maximum shared memory of 2048MB
Audio Chipset：Realtek ALC1220
Audio Channels：7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps

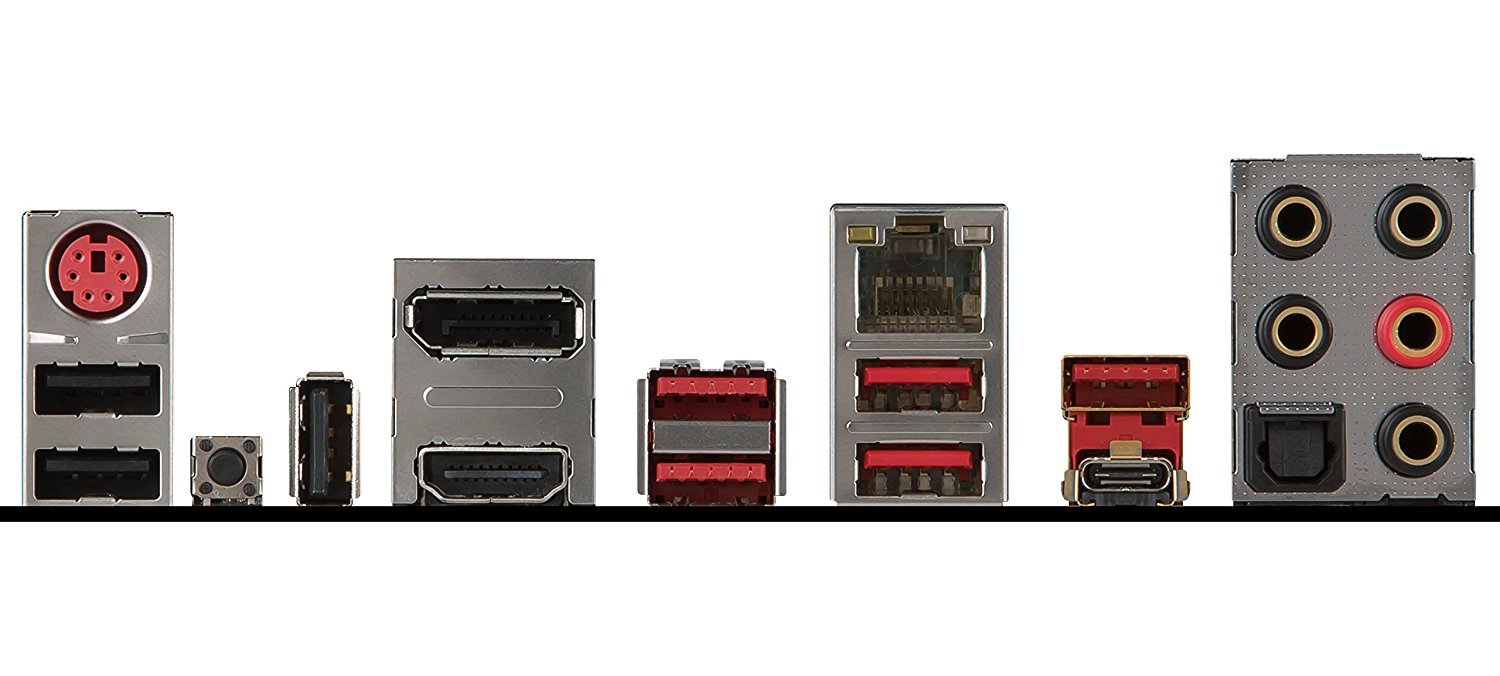

PS/2：1 x PS/2 keyboard/mouse port
RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen1 Type-A ports
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
USB 1.1/2.0：3 x USB 2.0 Type-A ports
S/PDIF Out：1 x Optical
Audio Ports：5 x OFC audio jacks
Onboard USB：2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
Other Connectors：1 x 4-pin CPU fan header
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x RGB LED connector
1 x Digit Debug Code LED
1 x 2-pin Slow mode connector
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power connector：1 x 24-pin ATX 12V
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x 6-pin ATX 12V
FeaturesSupports DDR4-3200+(OC) Memory

DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost

VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness

Mystic Light Extension and Mystic Light Sync: Control all LEDs in system with one click by GAMING APP or mobile devices

Turbo M.2 with M.2 Shield. Turbo U.2 with Steel Armor, Lightning USB 3.1 Gen2

Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience

GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency and bandwidth management

BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card

Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI & AMD Crossfire

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players

WHQL certified for Windows 10
