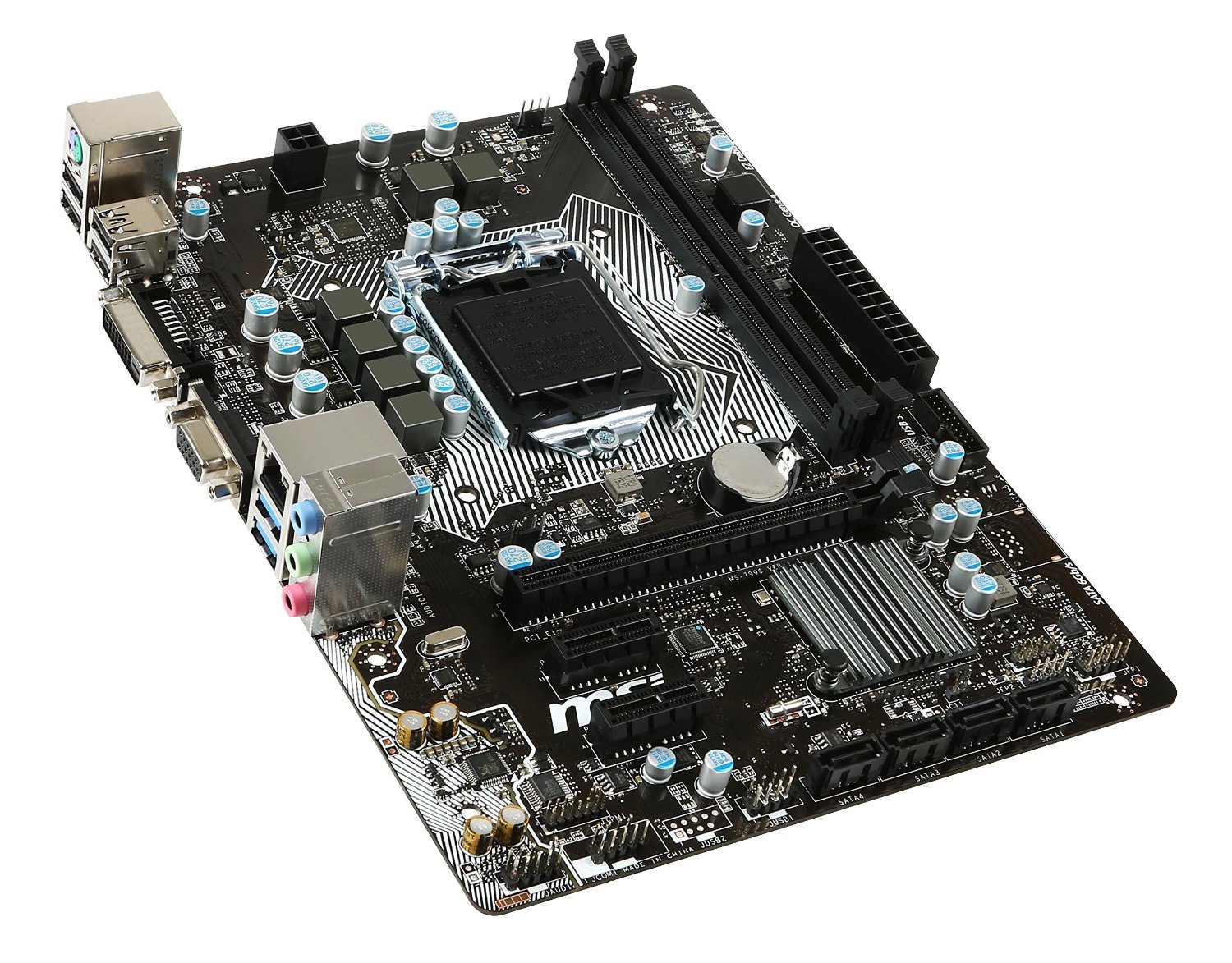

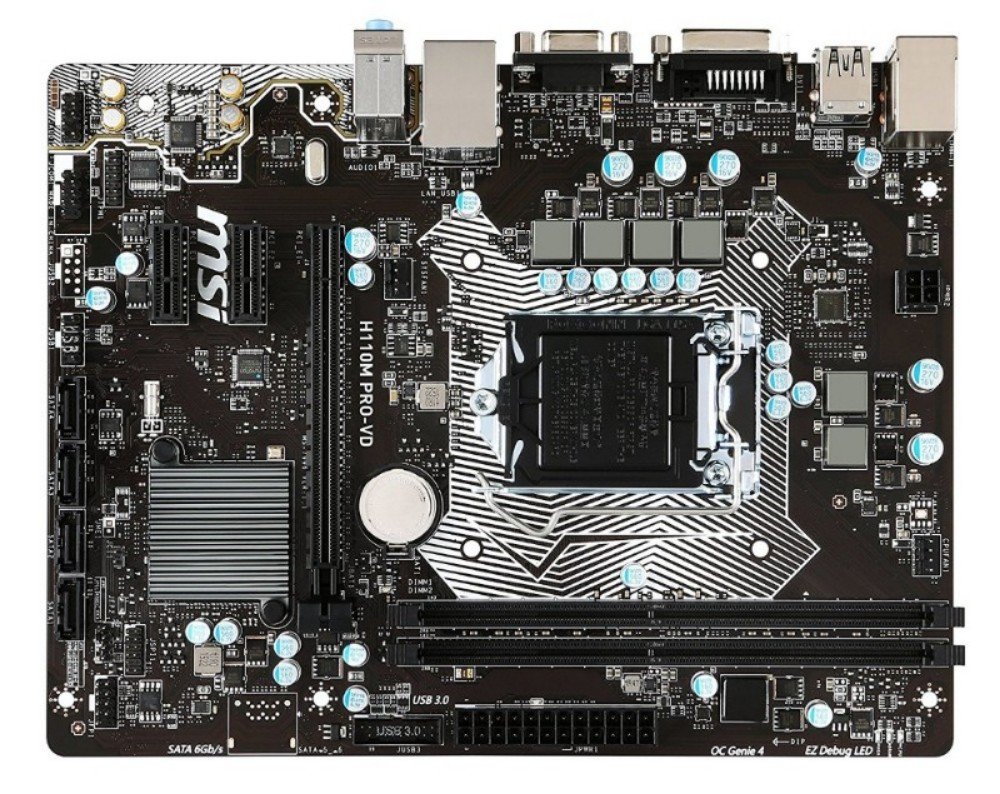

MSI H110M PRO-VD H110 Micro ATX Motherboard
- Model: dh73iw
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
MSI Intel Skylake H110 LGA 1151 DDR4 USB 3.1 Micro ATX Motherboard (H110M Pro-VD). The MSI H110M PRO-VD Motherboard provides a reliable and stable foundation for your PC, boosting your gaming performance and your system's efficiency.
Advanced DDR4 BoostWith traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
The MSI H110M Pro-VD motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel H110 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black / Silver design.
- Brand
- MSI
- Model
- H110M Pro-VD
- CPU Socket Type
- LGA 1151
- CPU Type
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- Chipset
- Intel H110
- Onboard Video Chipset
- None
- Number of Memory Slots
- 2×288pin
- Memory Standard
- DDR4 2133
- Maximum Memory Supported
- 32GB
- Channel Supported
- Dual Channel
- PCI Express 3.0 x16
- 1 x PCI Express 3.0 x16
- PCI Express x1
- 2 x PCIe 2.0 x1
- SATA 6Gb/s
- 4 x SATA 6Gb/s
- Audio Chipset
- Realtek ALC887
- Audio Channels
- 7.1 Channels
- LAN Chipset
- Realtek 8111H
- Max LAN Speed
- 10/100/1000Mbps
- PS/2
- 1 x PS/2 keyboard/mouse port
- Video Ports
- 1 x DVI-D; 1 x VGA
- RJ45
- 1 x LAN (RJ45) port
- USB 3.1
- 2 x USB 3.1 Gen1
- USB 1.1/2.0
- 4 x USB 2.0
- Audio Ports
- 3 Ports
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial Port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
Other Connectors
- Intel H110
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- DDR4 2133
Manufacturer：MSI
MPN：H110M Pro-VD
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel H110
Onboard Video Chipset：None
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2133
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16
PCI Express x1：2 x PCIe 2.0 x1
SATA 6Gb/s：4 x SATA 6Gb/s
Audio Chipset：Realtek ALC887
Audio Channels：7.1 Channels
LAN Chipset：Realtek 8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D
1 x VGA
RJ45：1 x LAN (RJ45) port
USB 3.1：2 x USB 3.1 Gen1
USB 1.1/2.0：4 x USB 2.0
Audio Ports：3 Ports
Onboard USB：1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors：1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Serial Port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：9.25" x 7.09"
Power Pin：24 Pin
Features：Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
Supports DDR4-2133 Memory
DDR4 Boost: Give your DDR4 memory a performance boost
USB 3.1 Gen1 + SATA 6Gb/s
VGA Armor: Reinforced Armor slot
Click BIOS: Secure and Reliable UEFI BIOS solution
Audio Boost: Reward your ears with studio grade sound quality
Military Class 4: Top Quality & Stability
Guard-Pro: Improved Protection and Power Efficiency
EZ Debug LED: Easiest way to troubleshoot
Overvoltage Protection: Prevent Unforeseen Damage
Intel SBB Support: Improves Productivity, Management and Security
WHQL CERTIFIED
WINDOWS 10 READY
Onboard Graphics:
- 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
- 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
Mounting: 6 mounting holes
Mounting: 6 mounting holes
