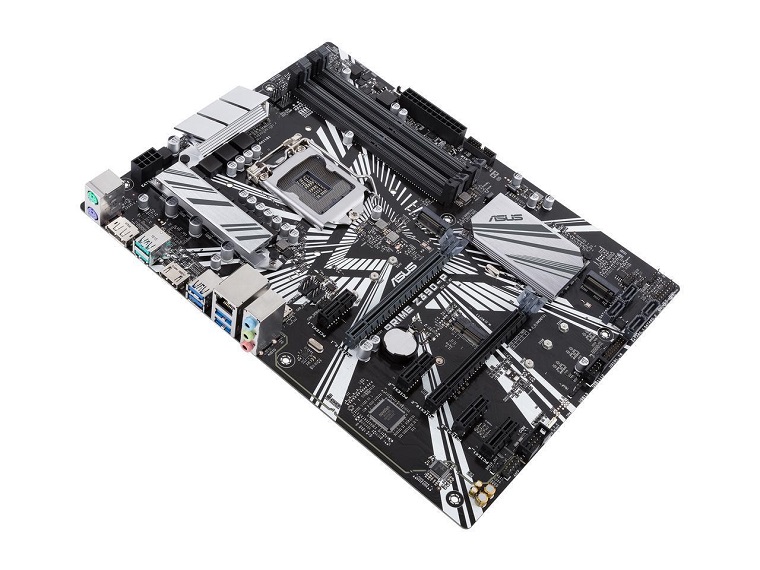

ASUS Prime Z390-P LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gbs USB 3.1 ATX Intel Motherboard
- Model: dwlwd2
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
The Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build. With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data. Also, with backward compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexability and blazing data-transfer speeds of up to 10Gbps. Our OptiMem ll tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling. Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU-intensive tasks. Combined onboard features deliver elevated audio. Intelligent design and premium hardware create audio quality unlike anything you've ever experienced! Brighten up your build. With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.
- ATX Form Factor
- Intel Z390 Chipset
- LGA 1151 Socket
- Realtek ALC887 8-Channel HD Audio Codec
- Realtek RTL8111H Gigabit LAN Controller
- Supports AMD CrossFire Technology
Brand：ASUS
Model：Prime Z390-P
CPU Socket Type：LGA 1151 (300 Series)
CPU Type：Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Not backward compatible with older generation of LGA 1151 CPUs
** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies：Supports Intel Turbo Boost Technology 3.0*
* The Intel Turbo Boost Technology 3.0 support depends on the CPU types.
Chipset：Intel Z390
Onboard Video Chipset：Integrated Graphics Processor - Intel UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
* The maximum memory frequency supported varies by processor
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x SATe 3.0/2.0 x16 (max at x4 mode)
* For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x1：4 x PCI Express 3.0/2.0 x1 slots
Other Slots：1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel CNVi (Integrated Wi-Fi/BT) module*
* The Wi-Fi/BT module is purchased separately
SATA 6Gb/s：4 x SATA 6.0Gb/s ports (gray)
M.2 (Socket 3, with M Key)：1 x M.2, 2242/2260/2280(SATA & PCIE 3.0 x4 mode)*
1 x M.2, 2242/2260/2280(SATA & PCIE 3.0 x2 mode)
* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
Intel Optane Ready：Yes
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
HDMI：1 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1 Type-A
Audio Ports：3 Ports
Onboard USB：2 x USB 3.1 Gen 1 (up to 5Gbps) connectors supports additional 4 USB 3.1 Gen 1 ports
1 x USB 2.0 1-port &99;onnector &115;upports &97;dditional 1 USB 2.0 port
1 x USB 2.0 &99;onnector &115;&117;pports &97;&68;ditional 2 USB 2.0 ports
Other Connectors：1 x Lighting Control RGB Strip Header
1 x COM port &99;onnector
1 x CPU Fan &99;onnector
2 x Chassis Fan connectors
1 x AIO_PUMP &99;onnector
1 x S/PDIF out header
1 x Front panel audio connector (AAFP)
1 x MemOK! II switch
1 x Clear CMOS jumper
1 x System panel connector
Form Factor：ATX
LED Lighting：RGB
Dimensions (W x L)：12.0" x 9.2"
Power Pin：1 x 24-pin EATX Power &99;onnector
1 x 8-pin EATX 12V Power &99;onnector
Features：Multi-GPU Support:
Supports AMD CrossFireX Technology
Special Features:
Fan Xpert4
- Advanced fan and liquid controls for ultimate cooling and quietness
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Optimem II:
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
MemOK! II
- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
Q-Installer
- Auto download driver and software. Friendly for first PC builder
BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System:
Windows 10 64-bit
Management Solution:
WOL by PME, PXE
