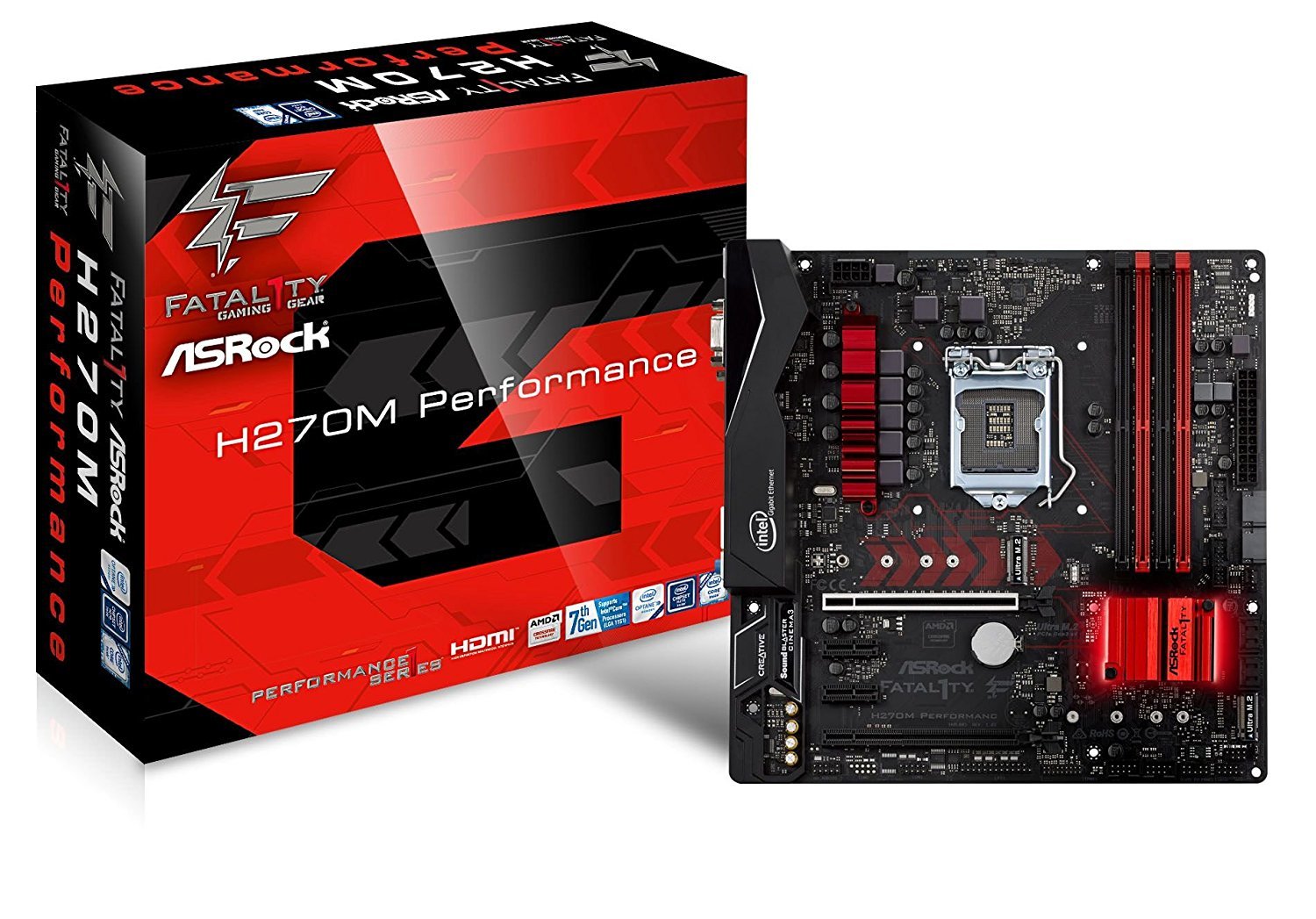

ASRock Fatal1ty H270M Performance LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboard

Hook up your high-performance components to the ASRock Fatal1ty H270M Performance Motherboard to get the most out of your system. ASRock FATAL1TY H270M PERFORMANCE LGA1151/Intel H270/DDR4/Quad CrossFireX/SATA3&USB3.0/M.2/A&GbE/MicroATX Motherboard.

The ASRock Fatal1ty H270M Performance motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel H270 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Red design.

• Intel H270
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 2400/2133
• ** 7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.

Manufacturer：ASRock
Classification：Fatal1ty
MPN：H270M Performance
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：Turbo Boost Technology 2.0
* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel H270
Onboard Video Chipset：* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTruTM 3D, Intel Clear Video HD Technology, Intel InsiderTM, Intel HD Graphics
- Gen9 LP, DX11.3, DX12
- HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPUs and 6th Gen Intel CPUs); GPU/SWEncode/Decode: VP9, HEVC 10b (Only for 6th Gen Intel Processors)
- Max. shared memory 1024MB
* The size of maximum shared memory may vary from different operating systems.
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI max.: 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D max.: 1920x1200 @ 60Hz
- Supports D-Sub max.: 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Number of Memory Slots：4×288pin
Memory Standard：DDR4 2400/2133
** 7th Gen Intel CPU supports DDR4 up to 2400; and 2133 for 6th Gen Processors.
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*

* Supports NVMe SSD as boot disks
PCI Express x1：2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2：1 x Ultra M.2 Socket (M2_1), type 2230/2242/2260/2280**
1 x Ultra M.2 Socket (M2_2), type 2230/2242/2260/2280**

** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
** M2 SATA3 and M.2 PCI Express module up to Gen3 x4(32Gb/s)
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
Video Ports：1 x D-Sub Port
1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0：3 x USB 3.0 Type-A Ports
1 x USB 3.0 Type-C Port
USB 1.1/2.0：1 x USB 2.0 Port
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.0 Headers (Support 4 USB 3.0 ports)
Other Connectors：1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x AURA RGB LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
* CHA_FAN1 and CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x Front Panel Audio Connector
Form Factor：Micro ATX
Dimensions (W x L)：9.6" x 9.6"
Power Pin：24 Pin
Features：Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
ASRock Intel
4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop

Gaming Armor
Memory
- 15µ Gold Contact in DIMM Slots
VGA Card
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel LAN
Audio
- Creative SoundBlaster Cinema3

BIOS Feature
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
* H270 chipset doesn't support Intel Smart Response technology.

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V

OS
- Microsoft Windows 10 64-bit (For 7th Gen Intel CPU) / 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen CPUs)
* To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
* For the updated Windows 10 driver, please visit ASRock's website for details.

Certifications
- FCC, CE, WHQL, RCM, BSMI
- ErP/EuP ready (ErP/EuP ready power supply is required)
