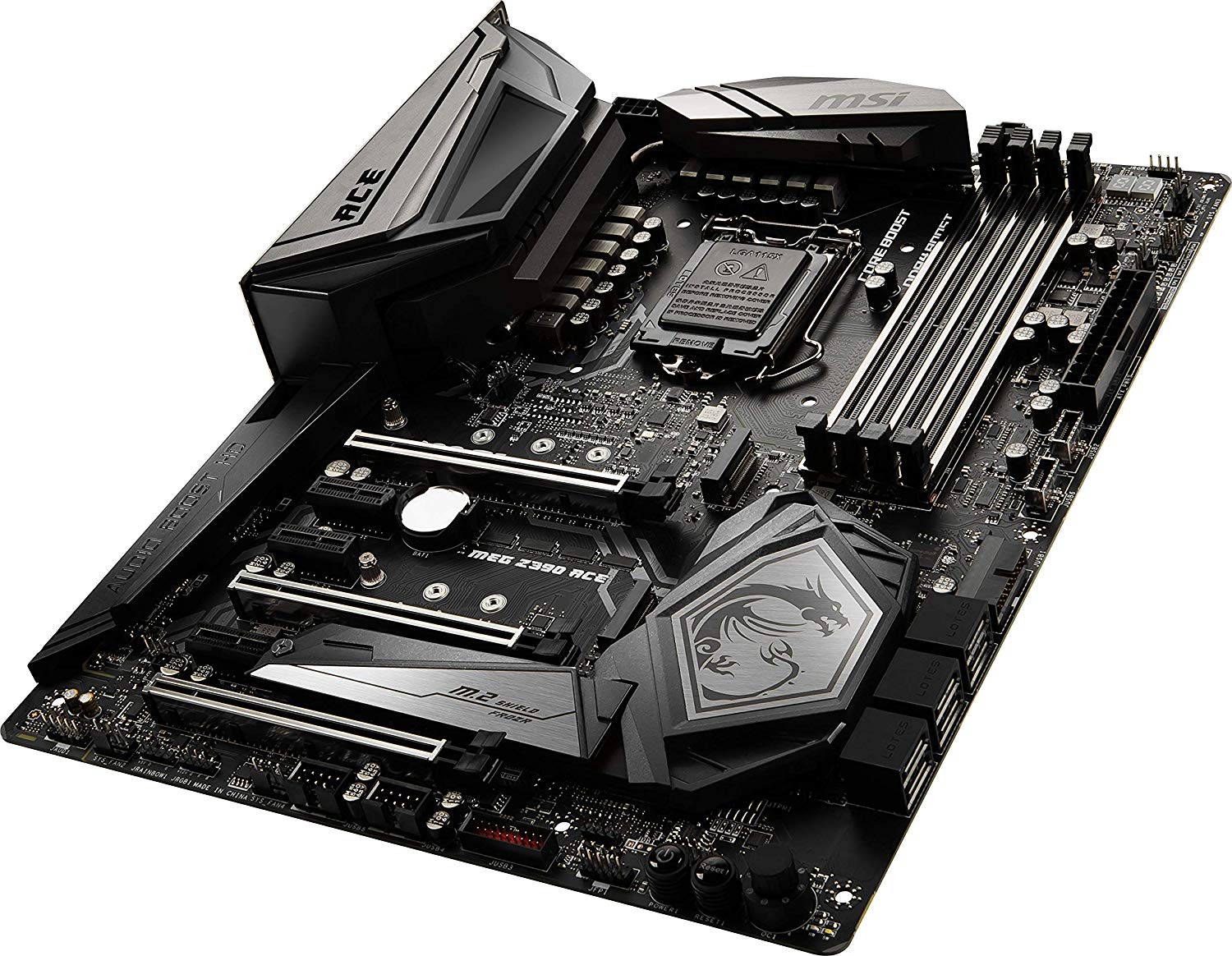

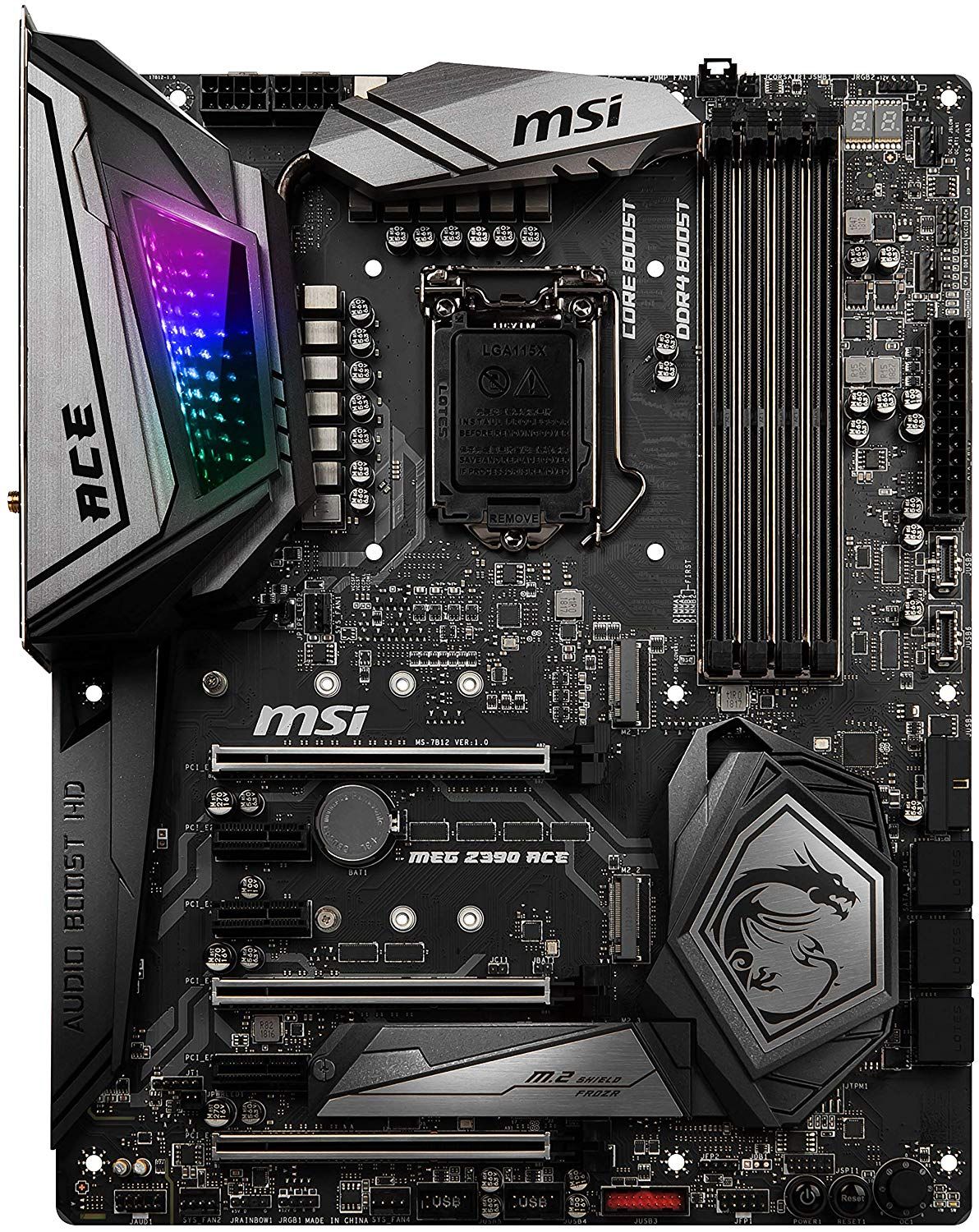

MSI MEG Z390 ACE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151
- Model: icfffm
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

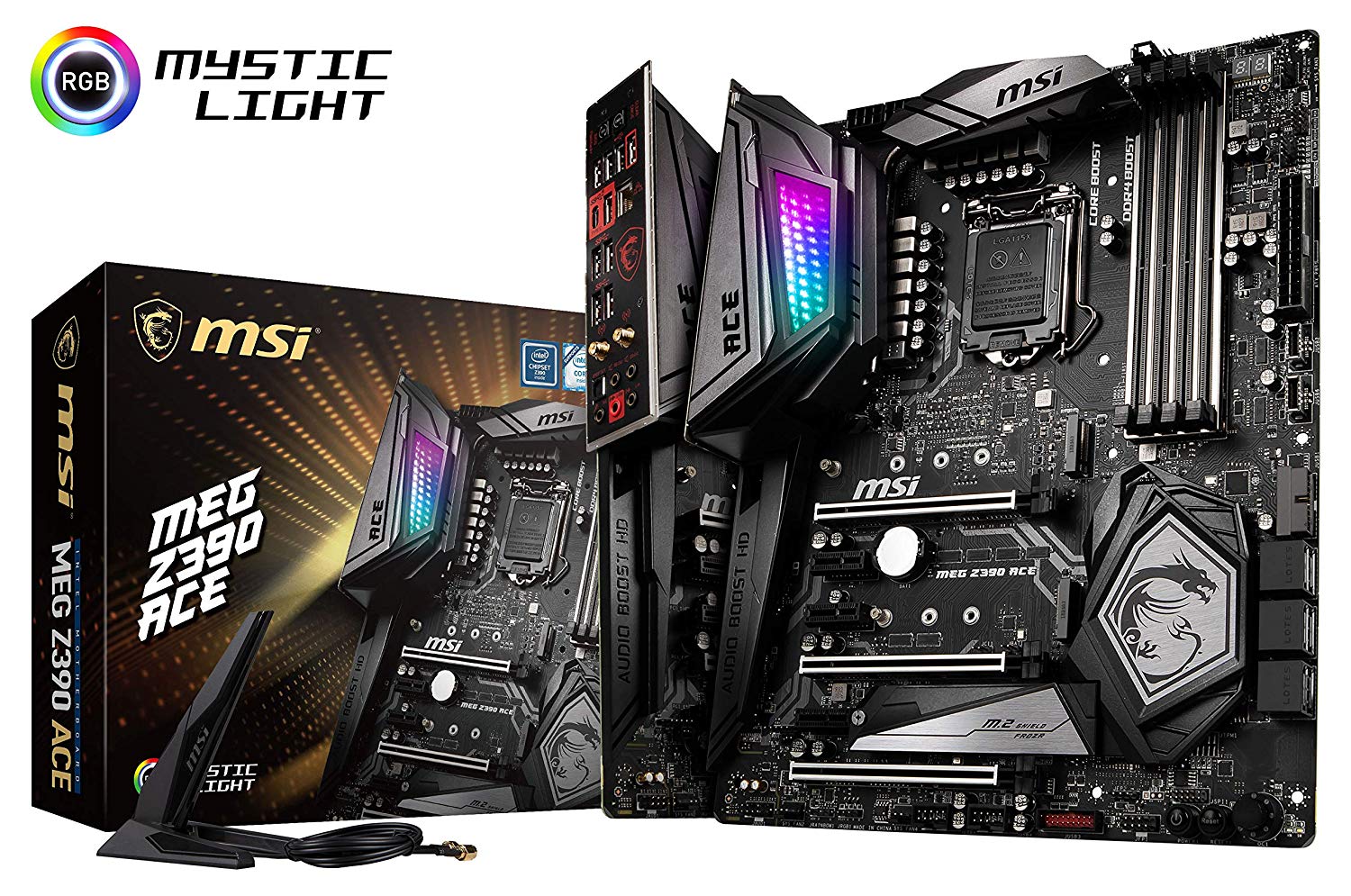

With a unique look and feel, packed with exclusive gaming features, MSI ENTHUSIAST GAMING motherboards offer the best possible gaming experience. Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second! Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
- Intel Z390
- Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- * Not backward compatible with older generation of LGA 1151 CPUs
- Supports DDR4 memory
Manufacturer：MSI
MPN：MEG Z390 ACE
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset：Intel Z390
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：3 x PCIe 3.0 x16 slots
- Support x16/x0/x0, x8/x8/x0, x8/x4/x4 modes
PCI Express x1：3 x PCIe 3.0 x1 slots
SATA 6Gb/s：6 x SATA 6Gb/s ports*
M.2：3 x M.2 slot (Key M)*
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices
* M.2 slots and SATA ports share the bandwidth.
Intel Optane Ready：Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC1220
Audio Channels：7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset：1 x Killer E2500 Gigabit LAN controller
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4 GHz / 5 GHz (160 MHz) up to 1.73 Gbps
Bluetooth：Supports Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 5

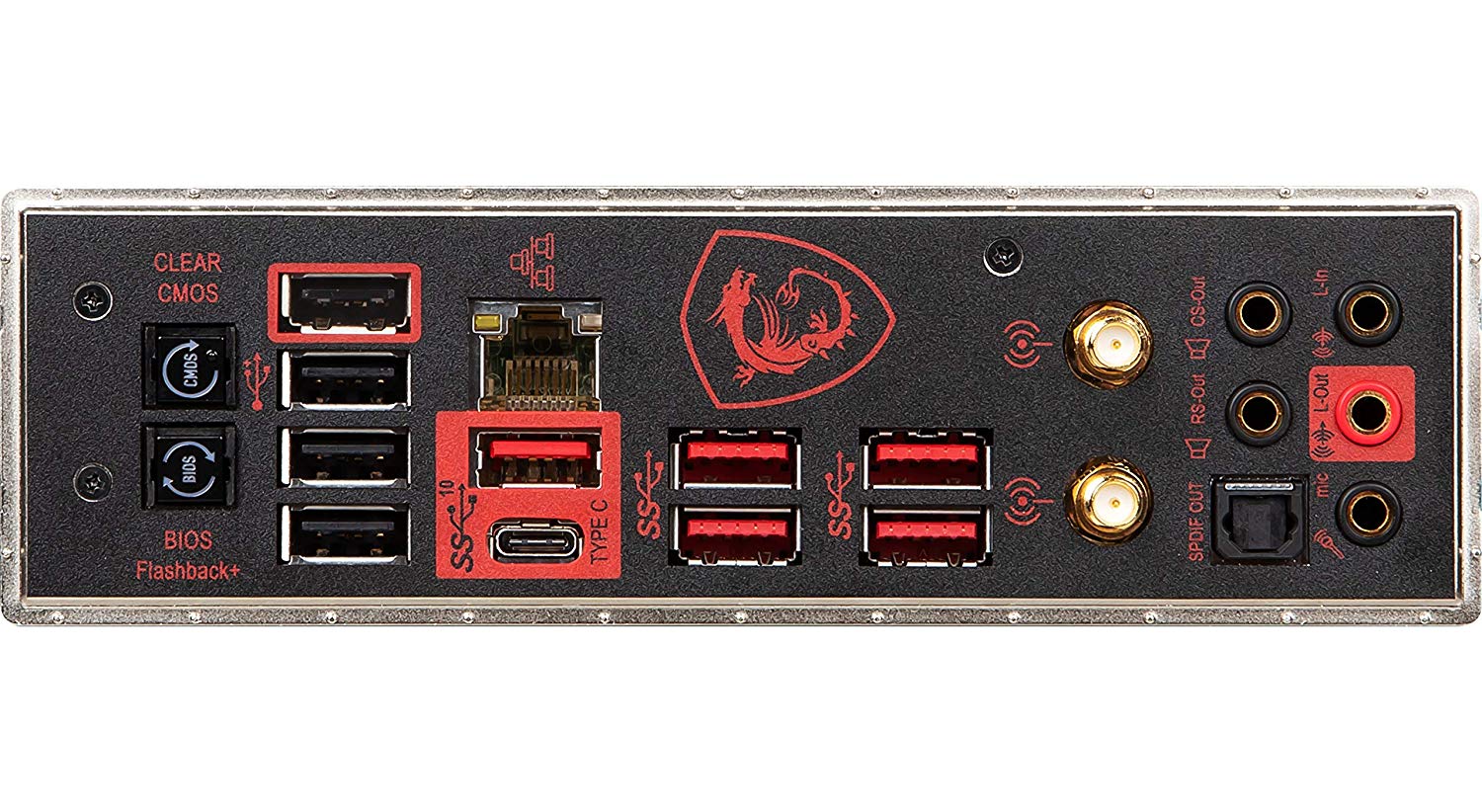

RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)
2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 x Type-A, 1 x Type-C)
USB 1.1/2.0：4 x USB 2.0 (High-speed USB) ports (Type-A)
S/PDIF Out：1 x Optical
Audio Ports：5 Ports
Antenna Connectors：Wi-Fi/Bluetooth Antenna Connectors
Onboard USB：2 x USB 3.1 Gen2 Type-C ports
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connector
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features：DIY Friendly:
Pre-installed I/O Shielding
Keep Out Zone
XL PCI-E Clip
Easy Button3
EZ Debug LED
Debug LED
Pump Fan
Total Fan Control
Enhance Performance:
Dual 8 Pin Connectors
Triple Turbo M.2
Intel Turbo USB 3.1 Gen2
Lightning USB
Dual Front USB 3.1 Gen2 Type C
Core Boost
DDR4 Boost
Multi GPU-2-Way NVIDIA SLI Technology
Multi GPU-3-Way AMD CrossFire Technology
Game Boost (8 modes)
*BIOS
Click BIOS5
BIOS FLASHBACK+
XMP
Hardware Moniter
*Software
Dragon Center
MSI APP Player
Mystic Light 3
In-Game Advantages:
*Audio
Audio Boost HD
Nahimic3
Voice Boost
*LAN
Killer LAN
Intel Wi-Fi
GAMING LAN with Killer LAN Manager
GAMING HOTKEY
GAMING MOUSE Control
VR Ready
Exhilarating and Inspiring:
Mystic Light Infinity
Mystic Light Extension (RGB)
Mystic Light Extension (RAINBOW)
Mystic Light Extension (CORSAIR)
Mystic Light Sync
Loyal Comrade:
DDR4 Steel Armor
M.2 Shield Frozr
PCI-E Steel Armor
7000+ Quality Test
