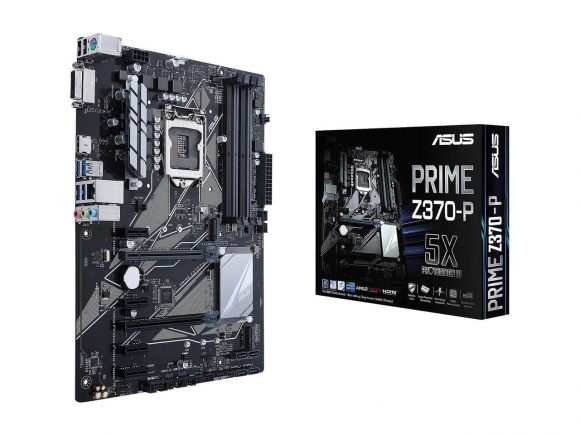

ASUS Prime Z370-P LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 ATX Motherboard

Designed for 8th generation Intel© Core™ processors, the Prime Z370-P delivers fully customizable performance. 5X Protection III with FanXpert 4 Core provides hardware-level safeguards. CrossFireX drives support for Multiple GPUs, while Dual M.2 slots and USB 3.1 delivers maximum transfer speeds.

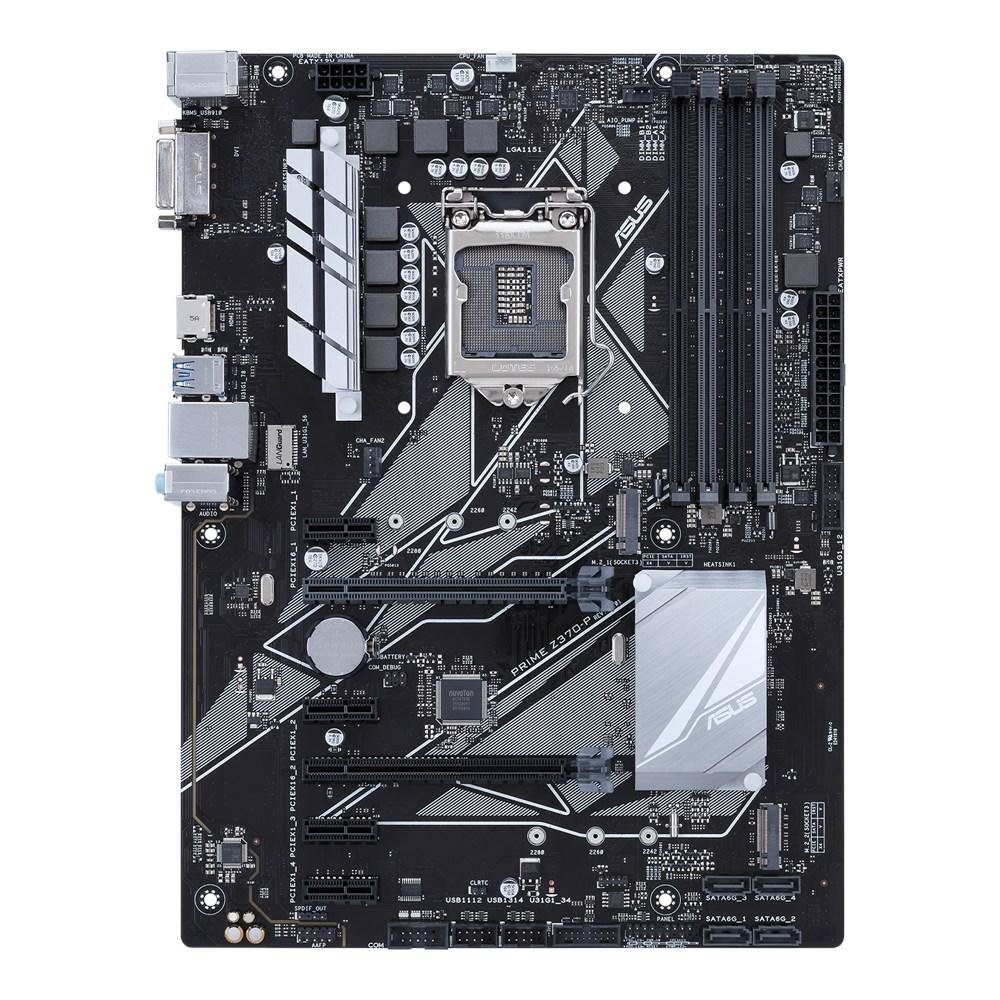

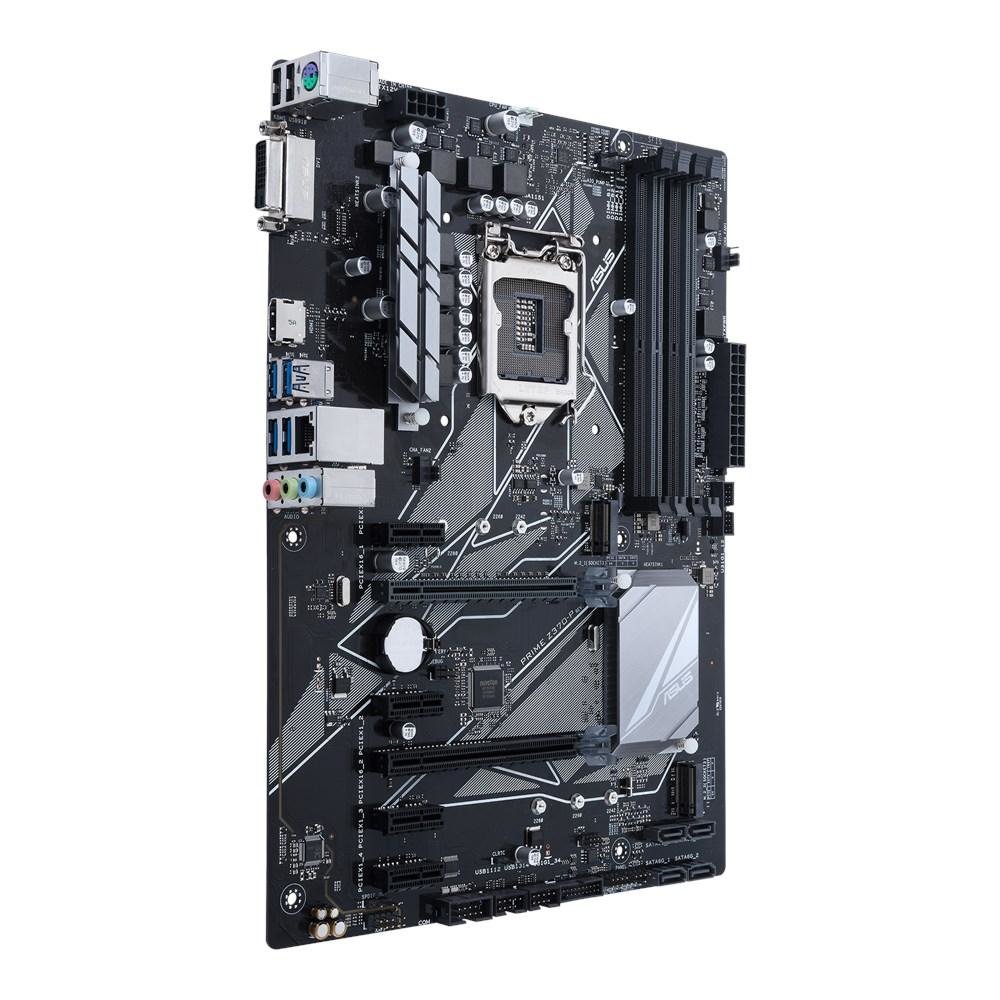

The Asus Prime Z370-P motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z370 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3333 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Silver design.

• Intel Z370
• LGA1151 socket only for 8th Gen Intel Core Processor
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666 / 2400 / 2133
• *The maximum memory frequency supported varies by processor
• 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
• Unique SafeSlot Core fortifies PCIe slots preventing damage caused by heavyweight GPUs
• FanXpert 4 Core with AIO Pump Header delivers advanced fan control for dynamic system cooling
• 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec

Manufacturer：ASUS
MPN：Prime Z370-P
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Intel Socket 1151 for 8th Generation Core Processors
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel Z370
Onboard Video Chipset：Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI 1.4b max.: 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D max.: 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* The maximum memory frequency supported varies by processor.
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x1：4 x PCIe 3.0/2.0 x1
SATA 6Gb/s：4 x SATA 6Gb/s port(s), gray
M.2：2 x M.2 Socket 3*, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps

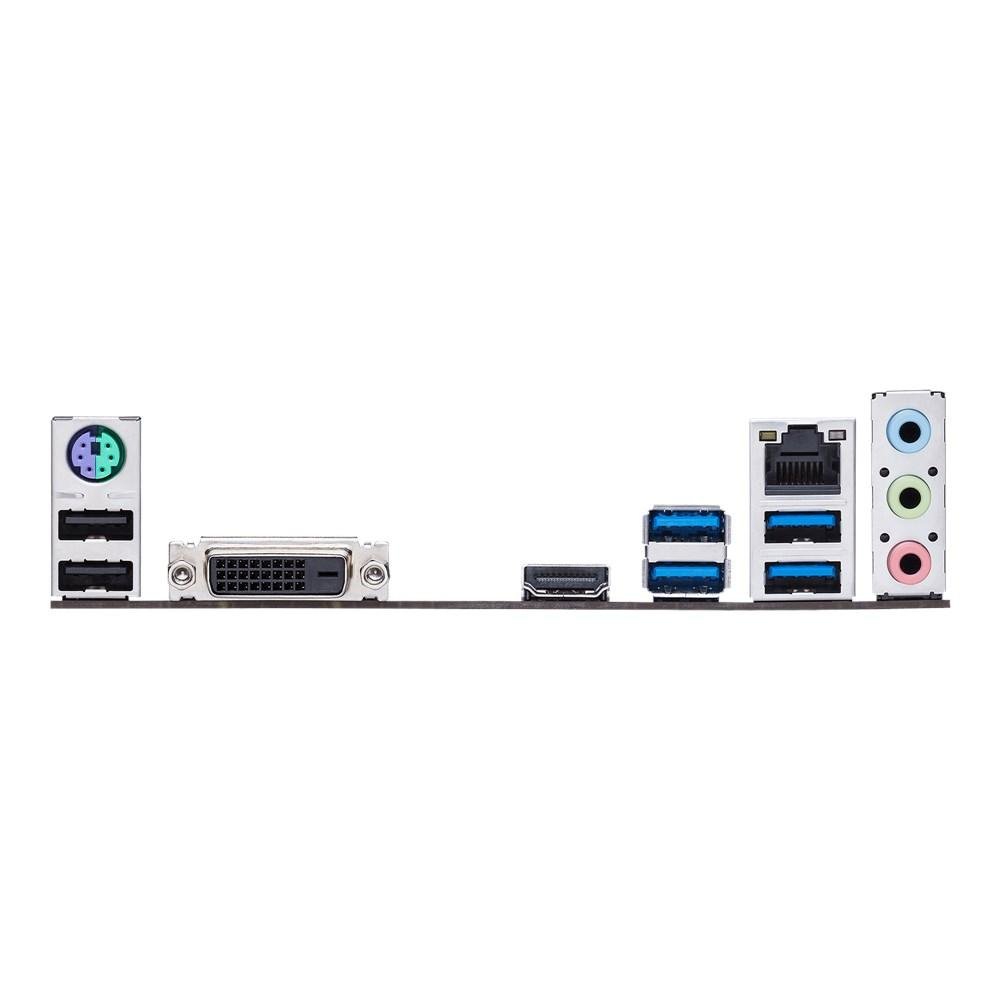

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：4 x USB 3.1 Gen 1 (blue) Type-A
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 Ports
Onboard USB：2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors：1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x AIO PUMP Header
Form Factor：ATX
Dimensions (W x L)：12.0" x 8.9"
Power Pin：1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
Features：Multi-GPU Support:
Supports AMD CrossFireX Technology

Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operating System:
Windows 10 64-bit
