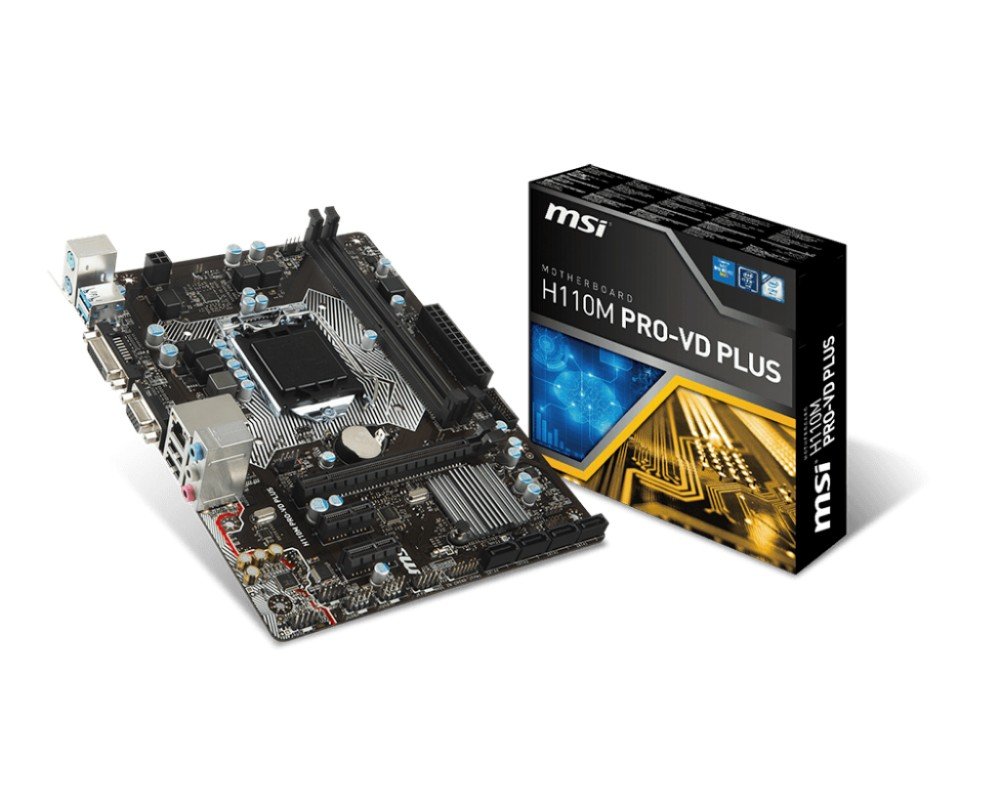

MSI H110M PRO-VD PLUS LGA 1151 Intel H110 SATA 6Gb/s USB 3.1 Micro ATX Motherboard

MSI H110M PRO-VD PLUS supports 6th Generation Intel Core/Pentium/Celeron processors that uses LGA 1151 socket. Has two DDR4-2133 MHz memory slots on board and can be boosted with DDR4 Boost optimizing performance and stability for your memory. The motherboard has USB 3.1 Gen1 and SATA 6Gb/s available for faster data management. Next generation BIOS - Click BIOS is a secure and reliable UEFI BIOS which is fast and is easy to use, this BIOS is perfect for system builders, is optimized for Windows 10 and is packed with security features. Audio Boost, will make your listening experience the best with studio grade sound quality. Ensure top quality and stability with Military Class 4 components. Has Guard-Pro for improved protection and power efficiency. EZ Debug LED for faster troubleshooting of CPU/Memory/VGA . Intel SBB Support which improves productivity, management and security. WHQL Certified. Windows 10 ready.

The MSI H110M PRO-VD PLUS motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel H110 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black / White design.

• Intel H110
• DDR4 2133

Manufacturer：MSI
MPN：H110M PRO-VD PLUS
CPU Socket Type：LGA 1151
Processor Type：Supports 6th Gen Intel Core i3/i5/i7 CPUs, and Intel Pentium and Celeron CPUs for Socket LGA1151
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel H110
Onboard Video Chipset：Supported only by CPU with integrated graphic
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs
* DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel chipset limitation
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16
PCI Express x1：2 x PCIe 2.0 x1 slots
SATA 6Gb/s：4 x SATA 6Gb/s
Audio Chipset：Realtek ALC887
Audio Channels：7.1 Channels
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 mouse port
1 x PS/2 keyboard port
Video Ports：1 x DVI-D port
1 x VGA port
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen1 ports
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 Ports
Onboard USB：2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Serial Port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：8.9" x 6.8"
Power Pin：1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Features：Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

Supports DDR4-2133 Memory

DDR4 Boost: Give your DDR4 memory a performance boost

USB 3.1 Gen1 + SATA 6Gb/s

VGA Armor: Reinforced Armor slot

Click BIOS: Secure and Reliable UEFI BIOS solution

Audio Boost: Reward your ears with studio grade sound quality

Military Class 4: Top Quality & Stability

Guard-Pro: Improved Protection and Power Efficiency

EZ Debug LED: Easiest way to troubleshoot

Intel SBB Support: Improves Productivity, Management and Security

WHQL CERTIFIED.WINDOWS 10 READY.
