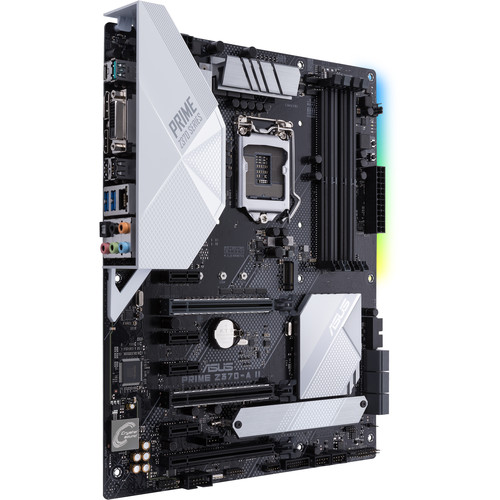

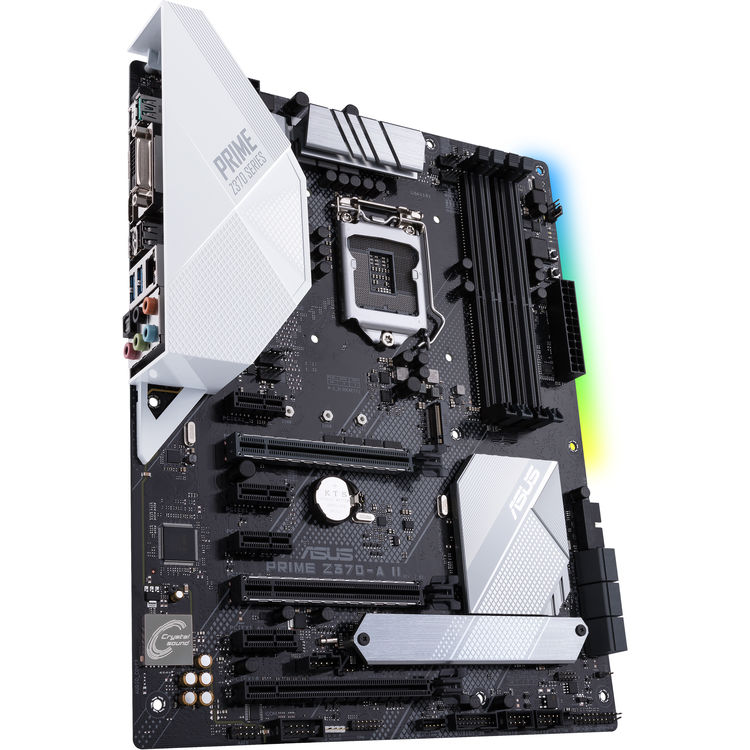

ASUS PRIME Z370-A II LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

ASUS Prime Z370-A II LGA1151 (Intel 8th Gen) DDR4 DP HDMI DVI M.2 USB 3.1 Z370 II ATX Motherboard with Gigabit LAN and USB 3.1

• Intel Z370
• Intel Socket 1151 for Intel 8th Generation Core i7/i5/i3, Pentium and Celeron processors
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4000(O.C)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666/ 2400/ 2133
• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Manufacturer：ASUS
MPN：PRIME Z370-A II
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Intel Socket 1151 for Intel 8th Generation Core i7/i5/i3, Pentium and Celeron processors
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies：Supports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset：Intel Z370
Onboard Video Chipset：Integrated Graphics Processor - Intel UHD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports DisplayPort 1.2* with max. resolution 4096x2304@60Hz
Supports HDMI 1.4b with max. resolution 4096x2160@30Hz
Supports DVI-D with max. resolution 1920x1200@60Hz
Supports Intel InTru 3D / Quick Sync Video / Clear Video HD Technology / Insider
Supports up to 3 displays simultaneously
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4000(O.C)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
* PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.***
** PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.***
*** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
PCI Express x1：4 x PCI Express 3.0/2.0 x1 slots
SATA 6Gb/s：6 x SATA 6.0Gb/s ports (gray)
M.2：1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & X4 PCIE mode)*
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)**

* The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
Audio Chipset：Realtek S1220A high definition audio CODEC featuring Crystal Sound 3
Audio Channels：8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio. 32-Bit / 192kHz is only available under Windows 10.
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
Video Ports：1 x DVI-D
HDMI：1 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：1 x USB 3.1 Gen 2 ports (teal blue, Type A)
1 x USB 3.1 Gen 2 port (USB TypeC)
2 x USB 3.1 Gen 1 ports
USB 1.1/2.0：2 x USB 2.0
S/PDIF Out：1 x Optical
Onboard USB：2 x USB 3.1 Gen 1 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1.1 connectors support additional 4 USB ports
Other Connectors：1 x CPU Fan header (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan header (4-pin)
1 x AIO Pump header (4-pin)
1 x M.2 Fan header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control with auto detection support
1 x Aura RGB Strip header
1 x Front panel audio connector (AAFP)
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x COM connector
1 x System Panel (Q-Connector)
1 x MemOK! switch
1 x Power-on button
1 x CPU OV jumper
1 x Clear CMOS header
1 x Thermal Sensor header
1 x 5-pin EXT_FAN (Extension Fan) connector
Form Factor：ATX
Dimensions (W x L)：12.0" x 9.6"
Power Pin：1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
Features：Multi-GPU support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way GPU CrossFireX Technology

ASUS Exclusive Features:
<superb performance="">
OC Design: ASUS OptiMem
OC Design: ASUS PRO Clock Technology
5-Way Optimization
- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages
DIGI+ VRM
- Digital 8+1 phase power design with Dr. MOS
TPU
- Auto Tuning, GPU Boost
EPU
- EPU
Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App featuring system performance tuning, network priority, and audio scene configuration for selected applications
UEFI BIOS
CrashFree BIOS 3
EZ Flash 3
EZ Tuning Wizard
<connectivity>
32Gb/s M.2 onboard - PCIe 3.0 x4
Intel Thunderbolt 3 Support
- Blistering-fast 40Gb/s data transfers upgrades with ThunderboltEX 3 Card
<ez management="">
PC Cleaner
- Fast and easy way to get rid of unnecessary junk files
<gaming>
AURA Lighting Control
Turbo LAN
Turbo APP
<ez diy="">
Q-Design
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

ASUS Special Features:
M.2 Heat-sink Design
ASUS SafeSlot - Protect your graphics card Investment
ASUS 5X Protection III
- ASUS SafeSlot Core - Fortified PCIe with solid soldering
- ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - Digital 8+1 phase power design with Dr. MOS
- ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS ESD Guards - Enhanced ESD protection
- AI Suite 3
- Ai Charger
- MemOK!</ez></gaming></ez></connectivity></superb>
Package Includes：Accessories:
3 x Serial ATA 6.0Gb/s cables
1 x SLI HB BRIDGE (2-WAY-M)
1 x ASUS Q-Shield
1 x Q-connector
1 x M.2 screw package
1 x user's manual
