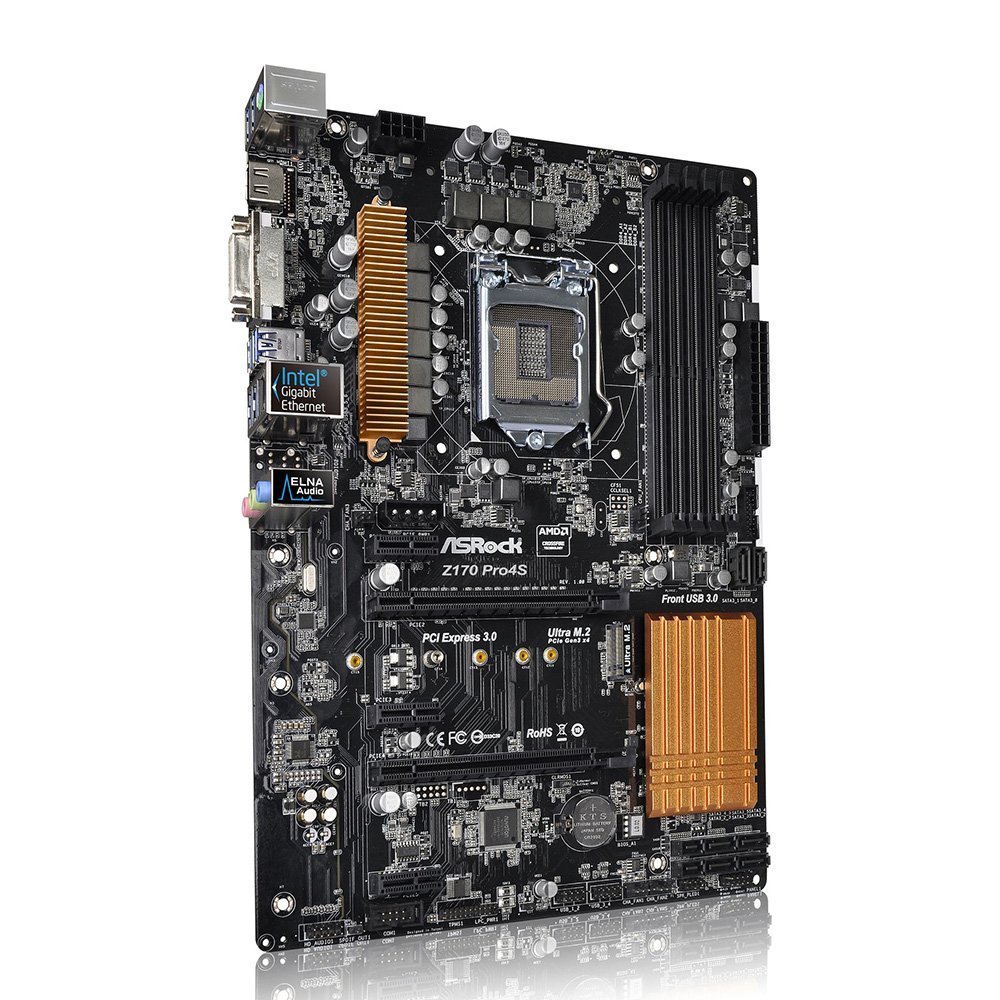

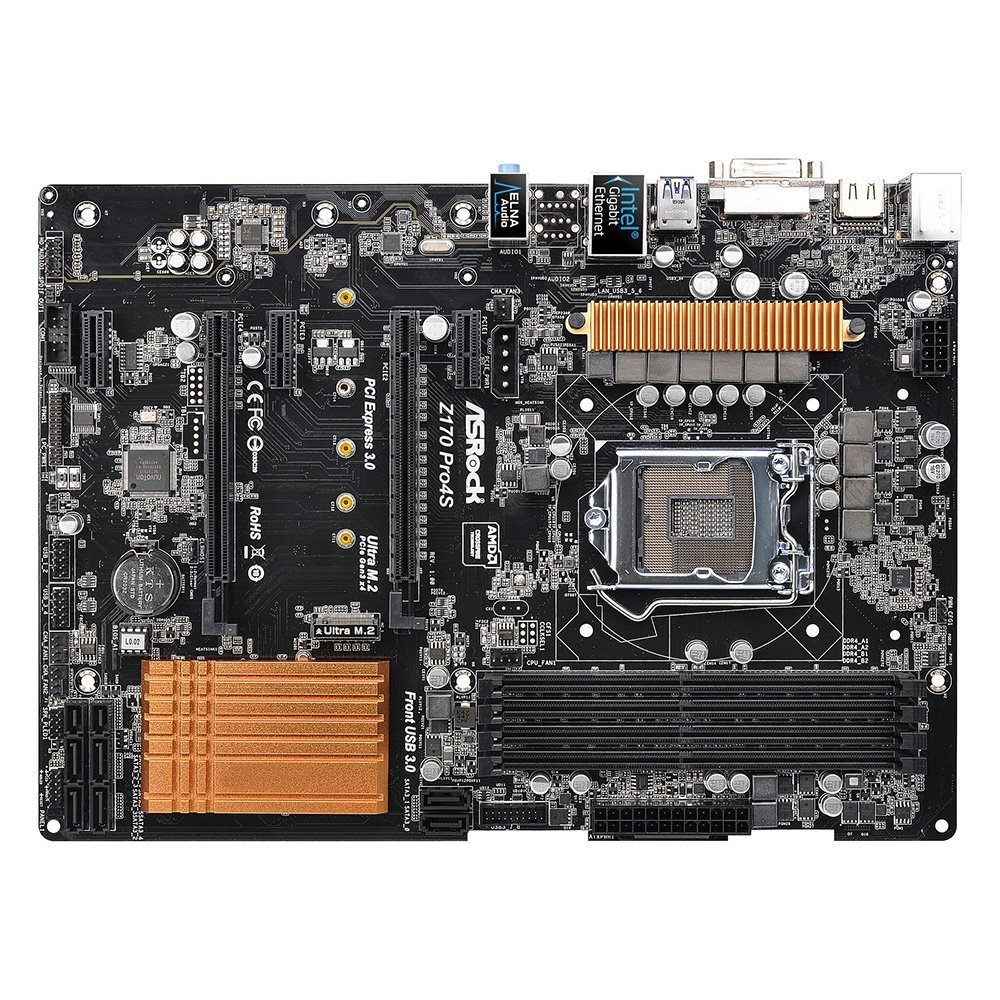

ASRock Z170 Pro4S LGA1151 6Gb/s ATX Intel Intel HDMI Motherboard

The ASRock Z170 Pro4S is built with high-end components, and provides the industry's highest level of features and technologies. It offers you more than enough for an exceptional experience in every aspect.

The ASRock Z170 Pro4S motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel Z170 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2800 / 2933 / 3200. This motherboard has 2 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: support for RAID, support for Crossfire, stylish Black / Orange design.

• Intel Z170
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133

Manufacturer：ASRock
MPN：Z170 Pro4S
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel Z170
Onboard Video Chipset：- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1792MB
- Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
DVI-D and HDMI Ports Support:
- HDCP
- Full HD 1080p Blu-ray (BD) playback

*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supported only under Windows 8 / 8 64-bit / 7 / 7 64-bit:
**Blu-ray playback of Intel HD Graphics
***Intel InTru 3D
Number of Memory Slots：4×288pin
Memory Standard：DDR4 3866+*(*OC)/ 3600*/ 3200*/ 2933*/ 2800*/ 2400*/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)
PCI Express x1：3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
SATA 6Gb/s：6 x SATA3 6.0Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug
SATA Express：2 x SATA Express 10Gb/s Connectors**
** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and SATA3_1 will be disabled.
M.2：1 x Ultra M.2 Socket, supports M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)***
***Supports ASRock U.2 Kit
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps

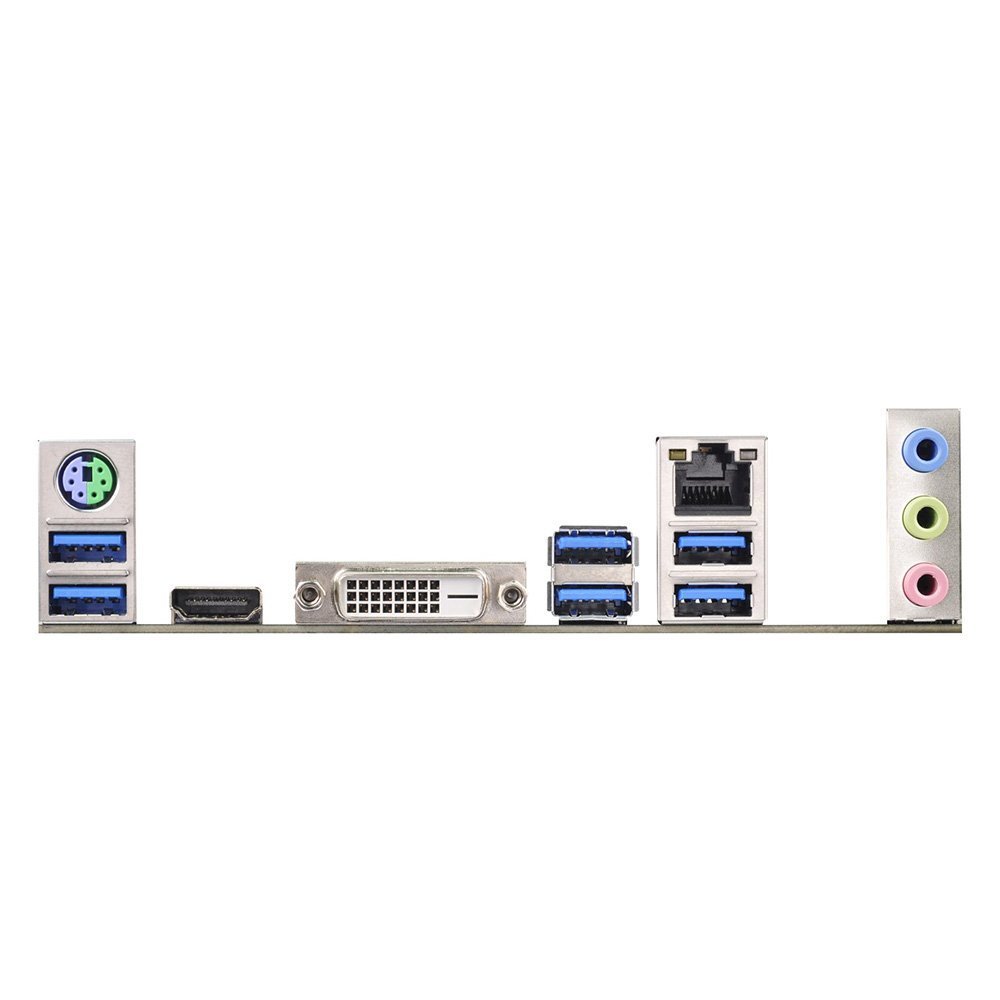

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0：6 x USB 3.0 Ports
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.0 Header (Supports 2 USB 3.0 ports)
Other Connectors：1 x COM Port Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)*
3 x Chassis Fan Connectors (2 x 4-pin, 1 x 3-pin)*
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
1 x PCIe Power Connector
1 x Front Panel Audio Connector

*Smart Fan Speed Control
Power Pin：24 Pin
Features：Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 Support
- CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment

Software
- ASRock A-Tuning
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI, Instant Boot)*
UEFI
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
*To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
*For the updated Windows 10 driver, please visit ASRock's website for details.

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Package Includes：Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
