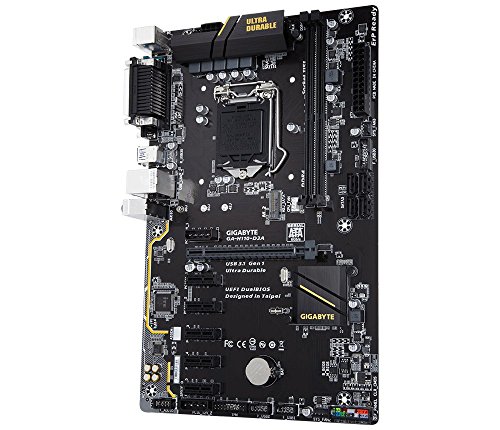

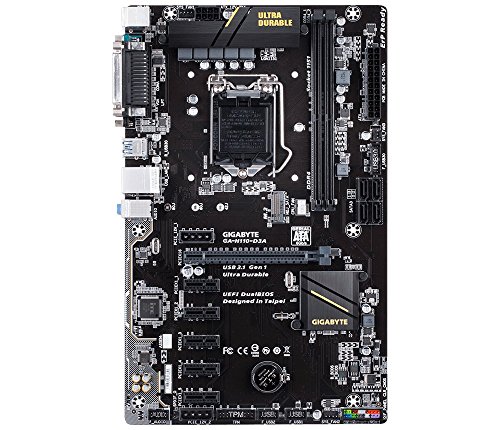

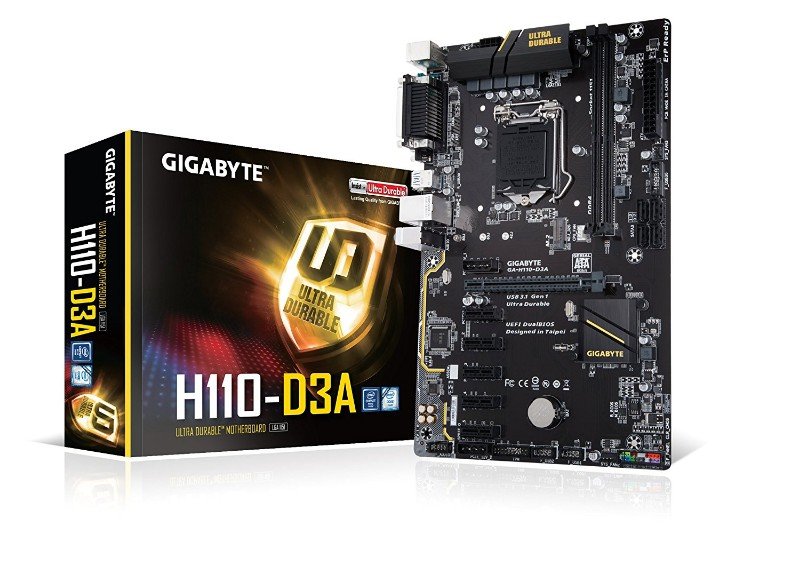

GIGABYTE GA-H110-D3A (rev. 1.0) LGA 1151 Intel H110 SATA 6Gb/s USB 3.1 ATX (Cryptocurrency Mining/Intel Motherboard)

The Gigabyte GA-H110-D3A motherboard supports LGA1151 processors and will fit in a standard ATX case. This board is powered by the Intel H110 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133 / 2400. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black design.

• Audio Noise Guard with LED Trace Path Lighting
• Realtek GbE LAN with cFosSpeed Internet Accelerator Software
• APP Center Including EasyTune? and Cloud Station? Utilities
• GIGABYTE UEFI DualBIOS? Technology

Brand：GIGABYTE
Model：GA-H110-D3A (rev. 1.0)
CPU Socket Type：LGA 1151
CPU Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel H110
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1GB
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2400/ 2133
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1：5 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
SATA 6Gb/s：4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
M.2：1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
Audio Chipset：Realtek ALC887
Audio Channels：2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN Chipset：Realtek GbE LAN chip
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 mouse port
1 x PS/2 Keyboard port
Video Ports：1 x D-Sub port
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen 1 ports
USB 1.1/2.0：2 x USB 2.0/1.1 ports
Audio Ports：3 x audio jacks (Line In, Line Out, Mic In)
Onboard USB：1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors：2 x PCIe power connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Form Factor：ATX
Dimensions (W x L)：12.0" x 7.5"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：I/O Controller: iTE I/O Controller Chip

H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
ON/OFF Charge
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Xpress Install

Bundle Software:
- Norton Internet Security (OEM version)
- cFosSpeed

Operating System:
- Windows 10 64-bit (for 7th Generation Intel Processors)
- Windіws 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (for 6th Generation Intel Prncessnrs)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
