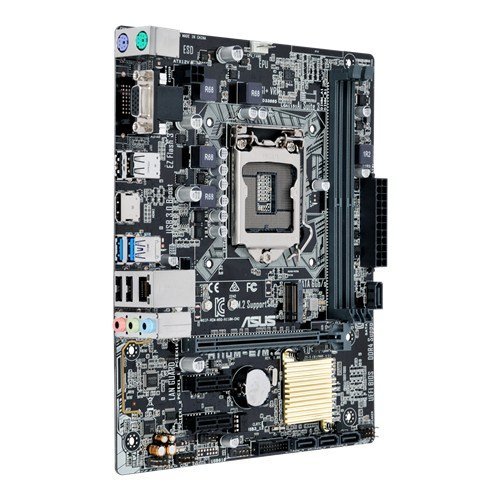

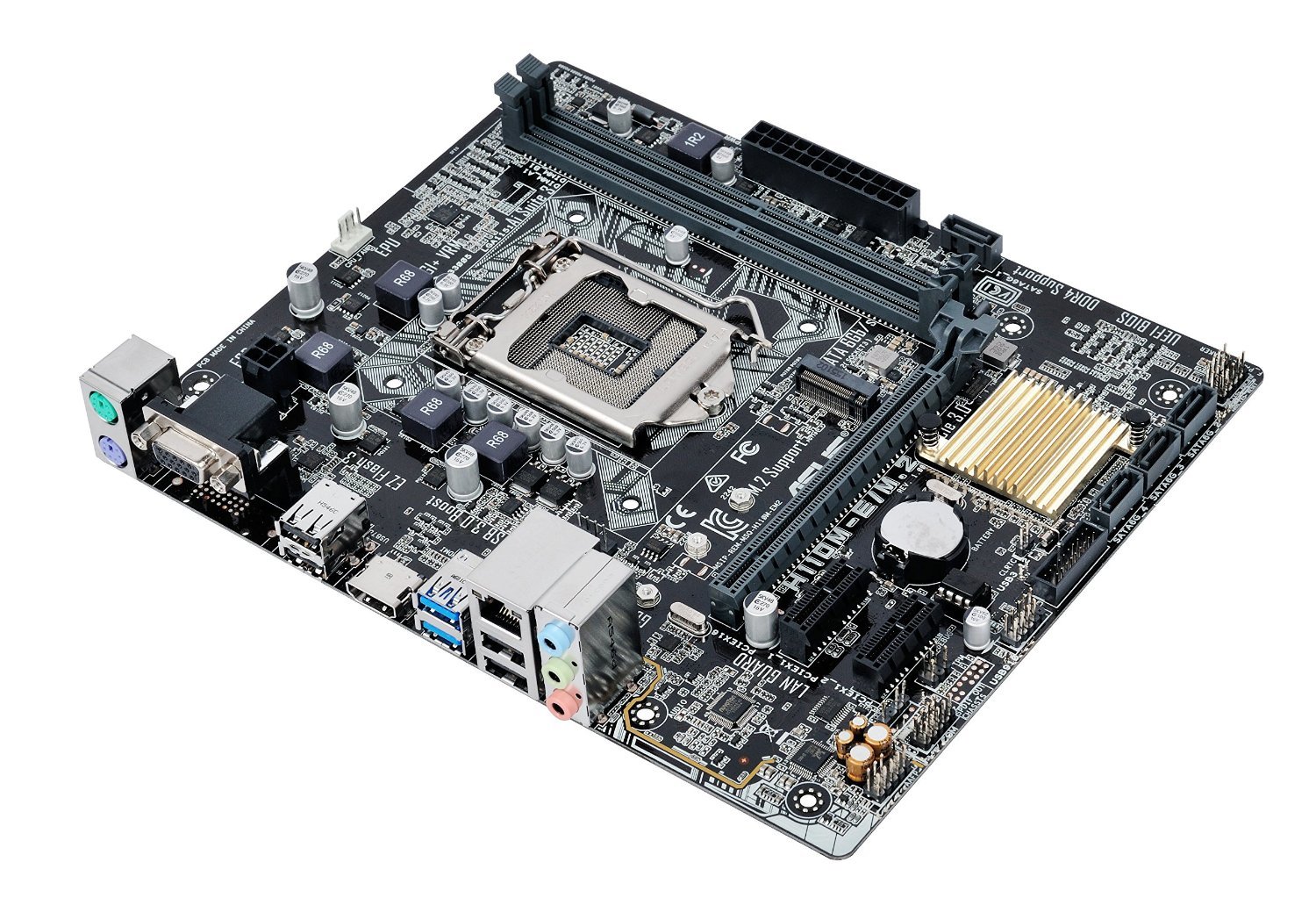

ASUS H110M-E/M.2 H110M E M2 LGA1151 Motherboard

Supporting 6th Gen Intel processors and including a host of easy DIY & 5x protection features plus gaming-grade integrated audio, the H110M-E/M.2 is a no-fuss motherboard that includes an M.2 slot for 2242/2260/2280 length SSDs, perfect for everything from first-time gaming builds to large-scale projects for corporations. The UEFI BIOS gives you a multitude of options to tweak your settings to exactly what you want.

The Asus H110M-E/M.2 motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel H110 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Black / Gold design.

• Brand: ASUS
• Model: H110M-E/M.2
• CPU Socket Type: LGA 1151
• CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• Supported CPU Technologies: Turbo Boost Technology 2.0
• Chipset: Intel H110
• Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support
• Number of Memory Slots: 2×288pin
• Memory Standard: DDR4 2133
• Maximum Memory Supported: 32GB
• PCI Express 3.0 x16: 1 x PCIe 3.0/2.0 x16 (x16 mode)
• PCI Express x1: 2 x PCIe 2.0 x1
• SATA 6Gb/s: 4 x SATA 6Gb/s
• M.2: 1 x M.2 Socket 3
• Audio Chipset: Realtek ALC887
• Audio Channels: 8 Channels
• LAN Chipset: Realtek 8111H
• Max LAN Speed: 10/100/1000Mbps

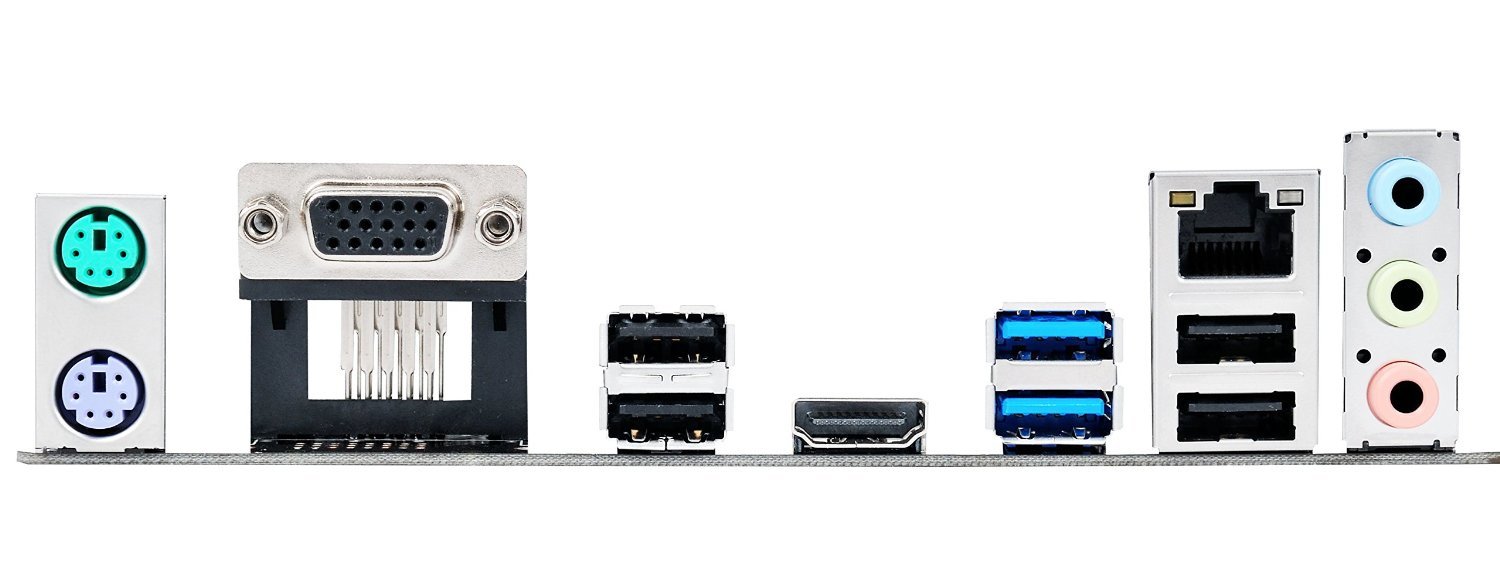

• PS/2: 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green)
• Video Ports: 1 x D-Sub
• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• USB 3.0: 2 x USB 3.0 (blue)
• USB 1.1/2.0: 4 x USB 2.0
• Audio Ports: 3 Ports
• Onboard USB
• -1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• -1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• Form Factor: Micro ATX
• Dimensions (W x L): 8.9" x 7.3"

• Intel H110
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 2133

Manufacturer：ASUS
MPN：H110M-E/M.2
CPU Socket Type：LGA 1151
Processor Type：Intel Socket 1151 for 6th Generation Core i7/i5/i3/ Pentium/Celeron Processors
* Not Compatible with Intel 8th Gen CPUs
* Refer to www.asus.com for CPU support list
Supported CPU Technologies：Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset：Intel H110
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB
Supports up to 2 displays simultaneously
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
* Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 MHz.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported：32GB
PCI Express 3.0 x16：1 x PCIe 3.0/2.0 x16 (x16 mode)
PCI Express x1：2 x PCIe 2.0 x1
SATA 6Gb/s：4 x SATA 6Gb/s port(s) *1
*1: When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_1 port.
M.2：1 x M.2 Socket 3
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
Video Ports：1 x D-Sub
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0：4 x USB 2.0
Audio Ports：3 Ports
Onboard USB：1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors：1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
Form Factor：Micro ATX
Dimensions (W x L)：8.9" x 7.3"
Power Pin：1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Features：Special Features:
ASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS DIGI+ VRM - 4 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Low EMI Solution
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM

Operating System Support:
Windows 10, 64-bit
Windows 8.1, 64-bit
Windows 7, 32-bit/64-bit *
* Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

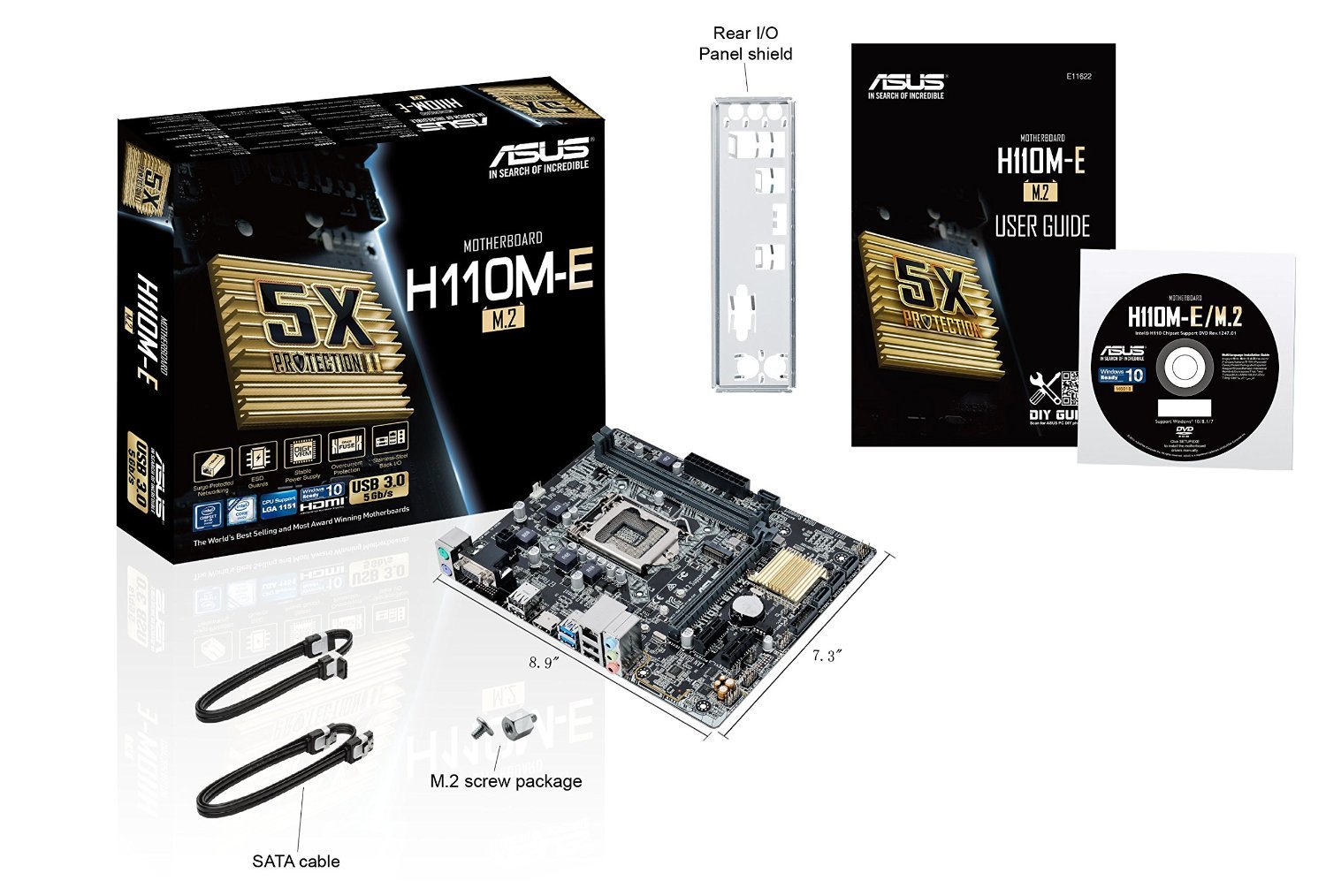

Package Includes：Accessories:
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
