ASRock H310M-HDV LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

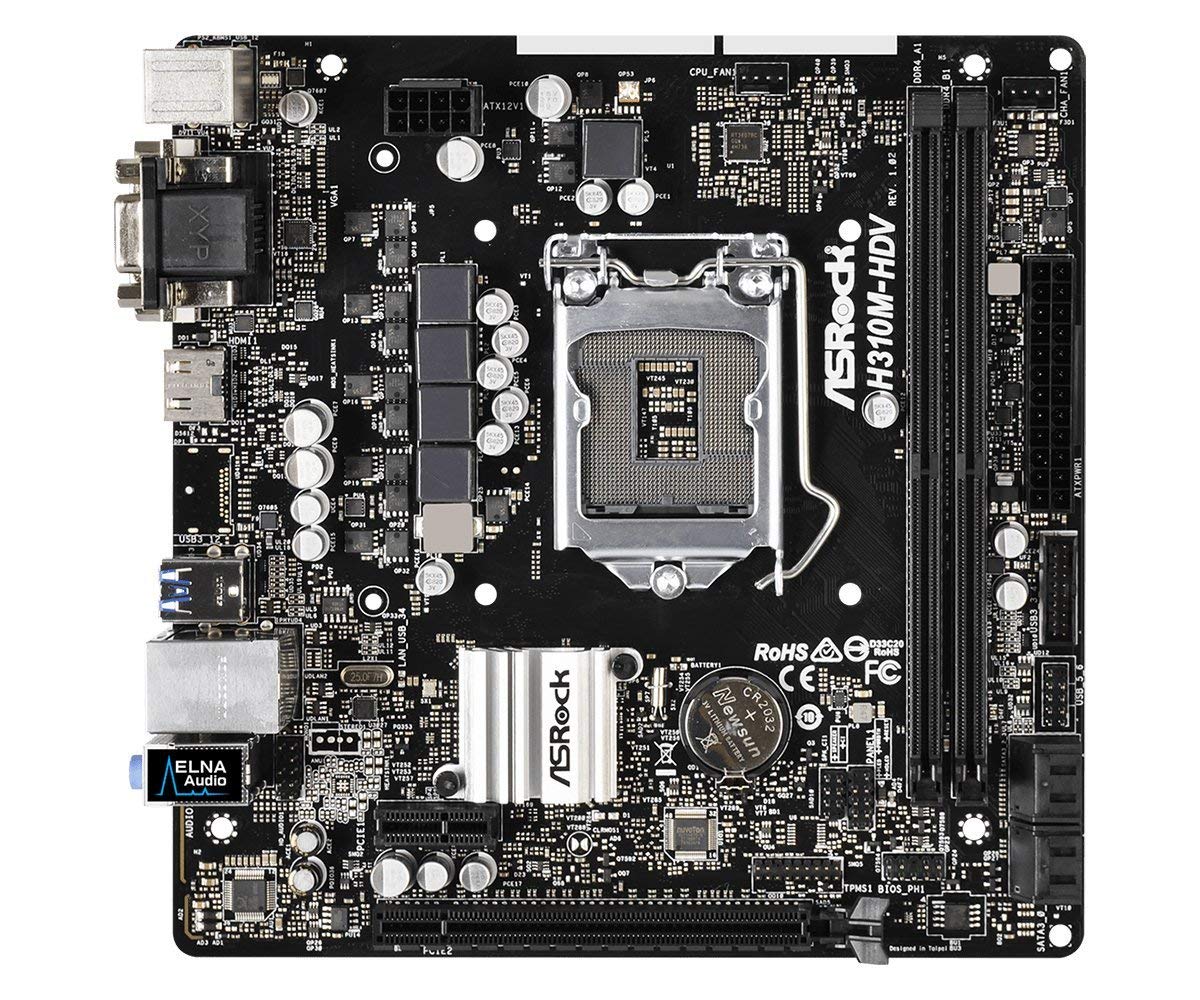

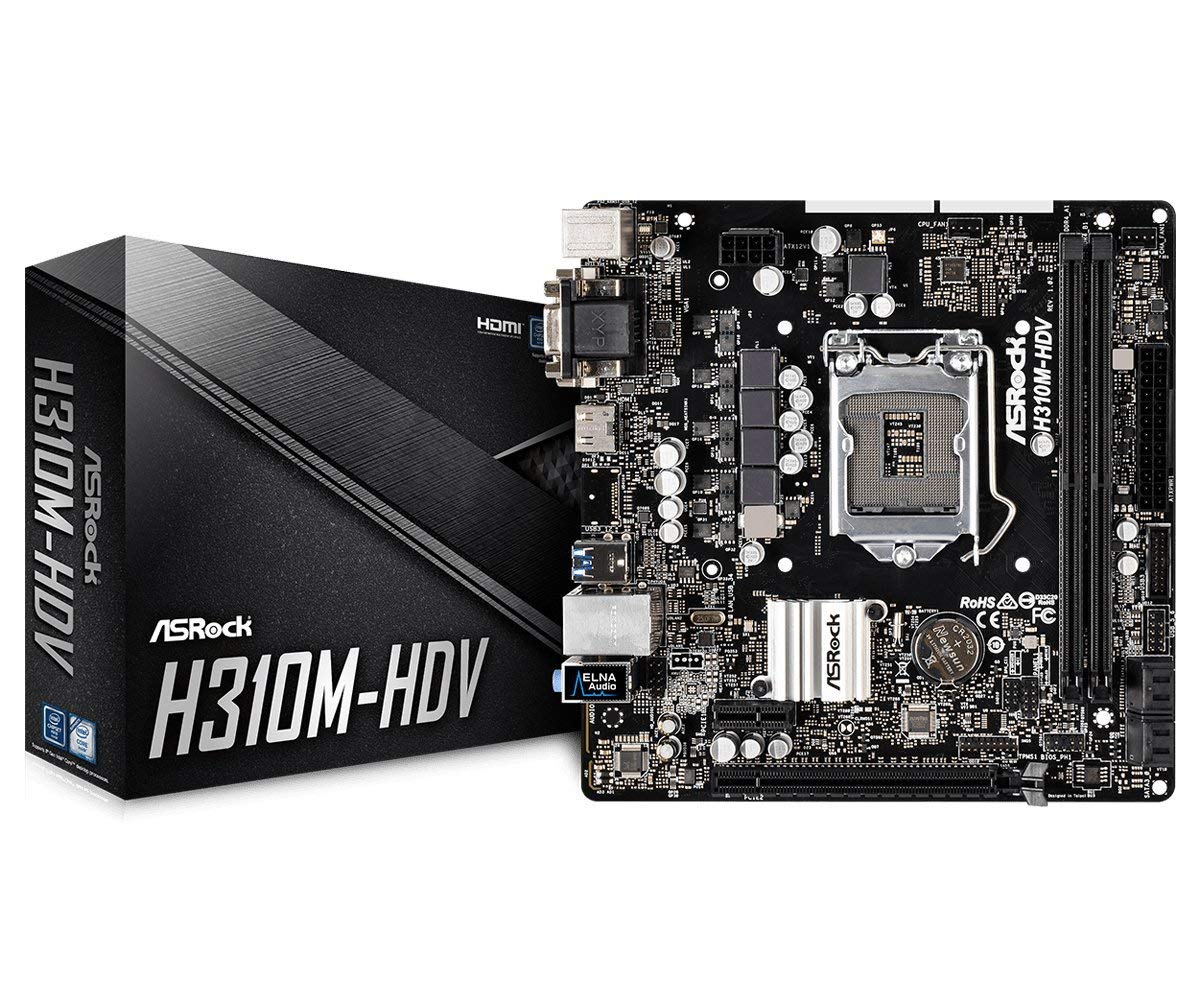

The ASRock H310M-HDV is actually a Micro-ATX board, you might have mistaken it for a Mini-ITX board from the first pic and we dont blame you. The board comes with 5-phase power design and supports up to 95W processor. Its just one PCI-E slot larger than a Mini-ITX board, however this board could often fit Mini-ITX casings and have room to spare and you can even use graphics cards as long as it doesnt take up 2 PCI-E expansion slots. Supports the latest 8th Gen Intel CPUs, however, this motherboard doesn't support overclocking for the K sku processors.

• Intel H310
• Supports 8th Generation Intel Core Processors (Socket 1151)
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 2666/ 2400/ 2133

Manufacturer：ASRock
MPN：H310M-HDV
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：Supports 8th Generation Intel Core CPUs (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies：Turbo Boost Technology 2.0
Chipset：Intel H310
Onboard Video Chipset：* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D and HDMI
* Supports up to 2 displays simultaneously
- Supports HDMI, max.: up to 4K x 2K (4096x2160) @30Hz
- Supports DVI-D, max.: up to 1920x1200 @ 60Hz
- Supports D-Sub , max.: up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2666/ 2400/ 2133
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disks
PCI Express x1：1 x PCI Express 2.0 x1 Slot
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug
Audio Chipset：Realtek ALC887
Audio Channels：7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Supports Surge Protection
LAN Chipset：Realtek RTL8111H
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub Port
1 x DVI-D Port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1：2 x USB 3.1 Gen1 Ports
USB 1.1/2.0：4 x USB 2.0 Ports
Audio Ports：HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB：1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector
Form Factor：Micro ATX
Dimensions (W x L)：7.5" x 7.4"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
Features：Unique Feature:
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS Feature:
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.05V Voltage Multi-adjustment

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI:
Software
- ASRock A-Tuning
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash

Hardware Monitor (CPU, Chassis/Water Pump Fans ):
- Temperature Sensing
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit

Certi?cations:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
