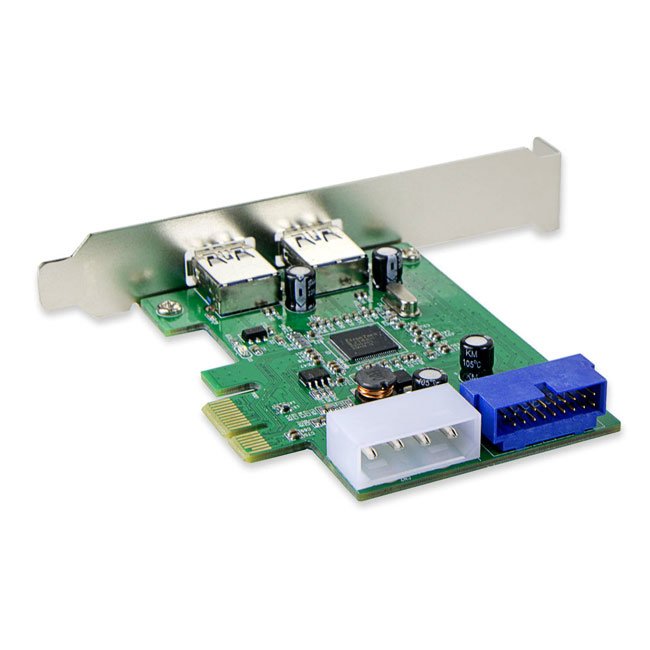

Syba SY-PEX20140 PCI-E x1 Low Profile Ready USB 3.0 Controller Card
- Model: d02tj5
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
PCI-Express USB 3.0 2x External Port + 1x Header (2x Internal Port) Card, Etron Chipset, with LPB, Molex Power. Usb 3.0 PCI card. IO Crest 2 Port USB 3.0 and One 19 Pin Internal USB 3.0 Header Components SY-PEX20140, Green IOCrest SY-PEX20140 2 port USB 3.0 and 19 pin internal USB 3.0 header PCI-Express x1 card provides your desktop PC with 4 additional USB 3.0 ports. With a PCI-E slot and a 4 pin power cable, enjoy 10x faster transfer speed compared with USB 2.0. USB 3.0 is the latest generation of USB technology, boasting enhanced transfer rates of up to 5 Gbps, which means you can copy videos, music, photos, data files between USB devices and the computer at blazing fast speeds. Syba SY-PEX20140 PCI-E x1 Adapter USB 3.0 Controller Card.Bring USB 3.0 transfer speed and power with this USB 3.0 controller card from Syba! Designed to fit in slimline or full size desktop systems, this low profile USB 3.0 card hooks into your PC via the PCI Express x1 interface, and gives you two USB 3.0 ports, in addition to a USB 3.0 header to hook to your case's USB 3.0 front panel! Start experiencing USB 3.0 today with this low profile Superspeed USB controller from Syba!
- Ports/Connectors
- USB 3.0 External 2-port
- USB 3.0 19-pin Header
- Molex/IDE 4-pin Power Connector
- Interface
- PCI Express x1
- Data Rates
- Super Speed (5Gb/s)
- High Speed (480Mb/s)
- Full Speed (12Mb/s)
- Low Speed (1.5Mb/s)
Syba SY-PEX20140
- Low Profile Ready
- Installs in full size computer cases, as well as slinline and low profile systems
- SuperSpeed USB 3.0
- Enjoy data transfer rates of up to 5Gb/s
- PCI Express to USB Card
- USB 3.0
- Fully Compliant with PCI Express Base Specification Revision 2.0
Manufacturer：SYBA
MPN：SY-PEX20140
Type：PCI Express to USB Card
External USB Ports：2x USB Ports
Standard：USB 3.0
Operating Systems Supported：Windows 7
Windows Vista
Windows XP
Windows 2008
Windows 2003
Windows 2000
Specifications：Ports/Connectors:
USB 3.0 External 2-port
USB 3.0 19-pin Header
Molex/IDE 4-pin Power Connector
Supports 4 Downstream Ports for All Speeds
Single-lane (x1) PCI Express Throughput Rates up to 5Gbps
Fully Compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
Supports Simultaneous Operation of Multiple USB 3.0, USB 2.0 and USB 1.1 Devices
Supports Date Rates:
Super Speed (5Gb/s)
High Speed (480Mb/s)
Full Speed (12Mb/s)
Low Speed (1.5Mb/s)
Compliant with Intel's Extensible Host Controller Interface Specification Revision1.0
Features：Step into the future, the USB 3.0 future that is, with this dual USB 3.0 controller card.
Enjoy up to 5Gbps of throughput speed for video backup and data intensive applications.
Easily add two external USB 3.0 ports and one 19-pin internal header. Includes a free low profile bracket
Package Includes：USB 3.0 2-port with Header PCI-e Card
Low Profile Bracket
User Manual
Driver CD
