Syba PCI-E 2.0 1x Bus Card 2-port USB Hub and USB 3.0 Internal Header
- Model: 39bt6z
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns

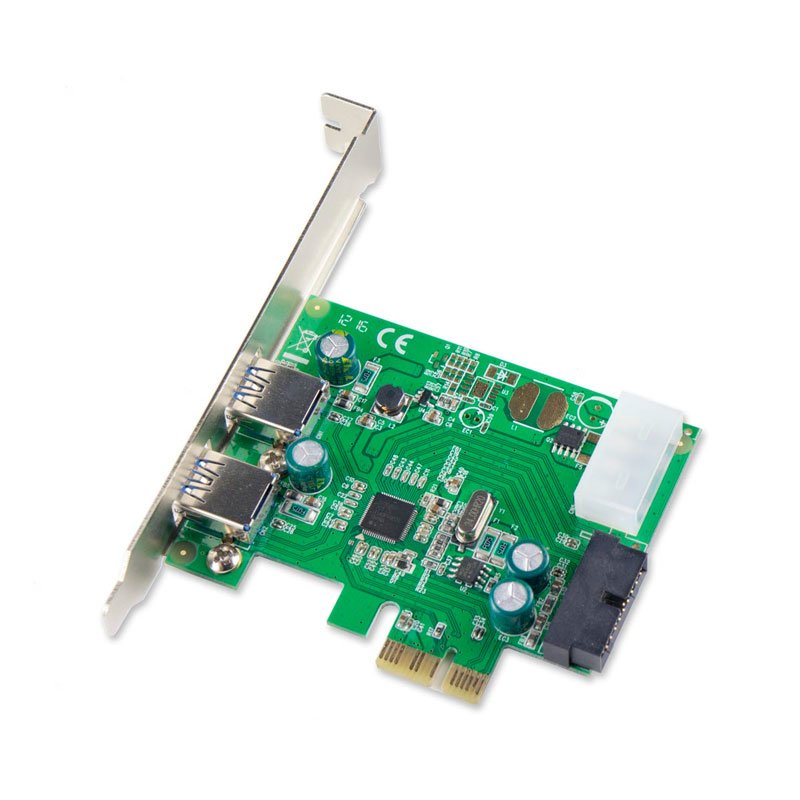

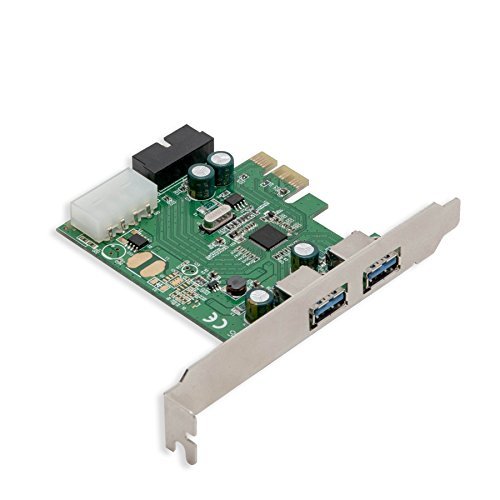

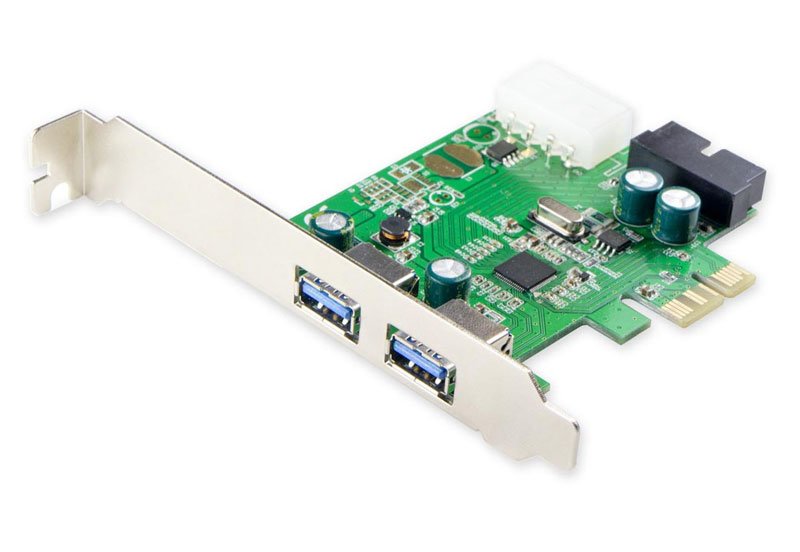

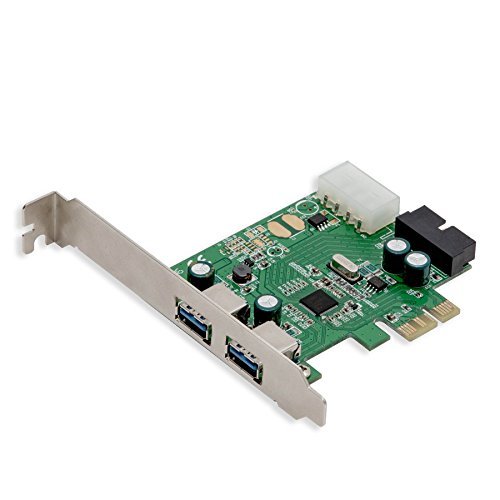

PCI-Express USB 3.0 2x External Port + 1x Header (2x Internal Port) Card, Renesas Chipset, with LPB, Molex Power. Syba PCIe x1 USB 3.0 Expansion Card - This USB 3.0 desktop add-on card from Syba lets you upgrade your desktop PC to USB 3.0, giving you Superspeed data transfer rates of up to 5GB/s. The included low profile bracket allows for installation even in small form factor systems. The internal header allows you to connect USB 3.0 front panel ports and drive bay devices.
- PCI Express 2.0 x1 Interface
- Provides 2 External USB 3.0 Ports & Internal Header
- Low Profile System Compatible
- Ports
- 2 External USB 3.0 Port
- 1 USB 3.0 19-pin Header
- 1 Molex 5V Power Feed Connector
- Controller
- Renesas USB 3.0 Host Controller IC
- PCI-Express Interface
- PCI-Express 2.0 1-Lane (x1) Interface
- Compliant with PCI Express Base Specification 2.0
- Supports PCI-Bus Power Management Interface Specification Revision 1.2
- USB Interface
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
- USB 3.0 Super-Speed (5Gbps) Host Ports, Backward Compatible with USB 2.0 High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface
- Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt/Isochronous)
- Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, Etc.)
- Full Support of Real Time Dynamic Insertion and Removal of USB Devices
- Internal HDD Power Connector for Supplying +5V Power to the USB Ports
- Chipset
- Renesas D720201
Syba SD-PEX20139
- PCI Express to USB Card
- USB 3.0
- Based on Renesas USB 3.0 Host Controller IC
Manufacturer：SYBA
MPN：SD-PEX20139
Type：PCI Express to USB Card
External USB Ports：2x USB Ports
Internal USB Ports：1 x USB 3.0 19-pin Header
Internal Ports：1 Molex 5V Power Feed Connector
Operating Systems Supported：Microsoft Certified WHQL Drivers for:
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Server 2008 R2 64-bit
Specifications：Based on Renesas USB 3.0 Host Controller IC
Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports Standard and Low-profile Desktop Computer
PCI-Express Interface:
- PCI-Express 2.0 1-Lane (x1) Interface
- Compliant with PCI Express Base Specification 2.0
- Supports PCI-Bus Power Management Interface Specification Revision 1.2
USB Interface:
- Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
- USB 3.0 Super-Speed (5Gbps) Host Ports, Backward Compatible with USB 2.0 High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface
- Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt/Isochronous)
- Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, Etc.)
- Full Support of Real Time Dynamic Insertion and Removal of USB Devices
- Internal HDD Power Connector for Supplying +5V Power to the USB Ports

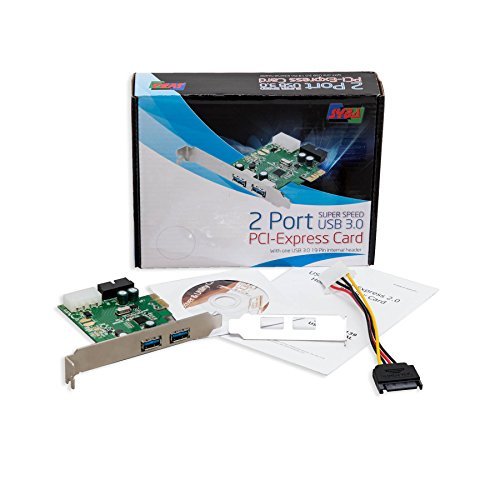

Package Includes：PCI-Express USB 3.0 Host Controller Card
Driver CD
User Manual
Low Profile Bracket
