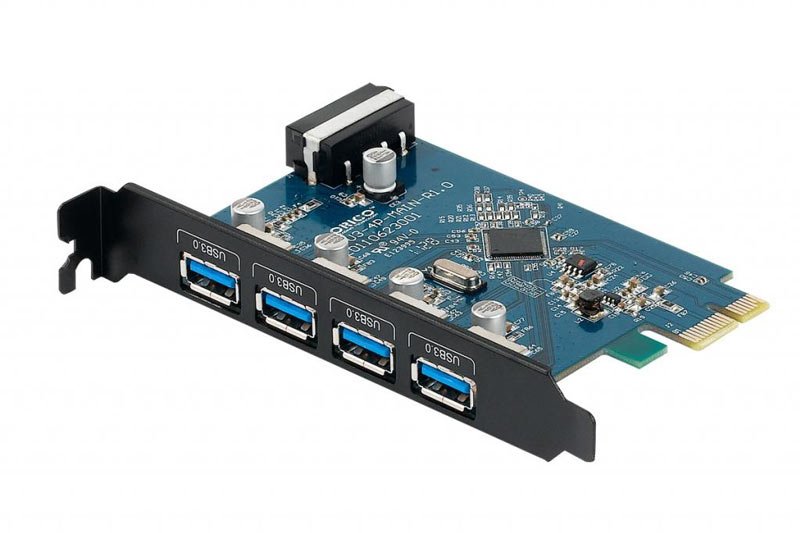

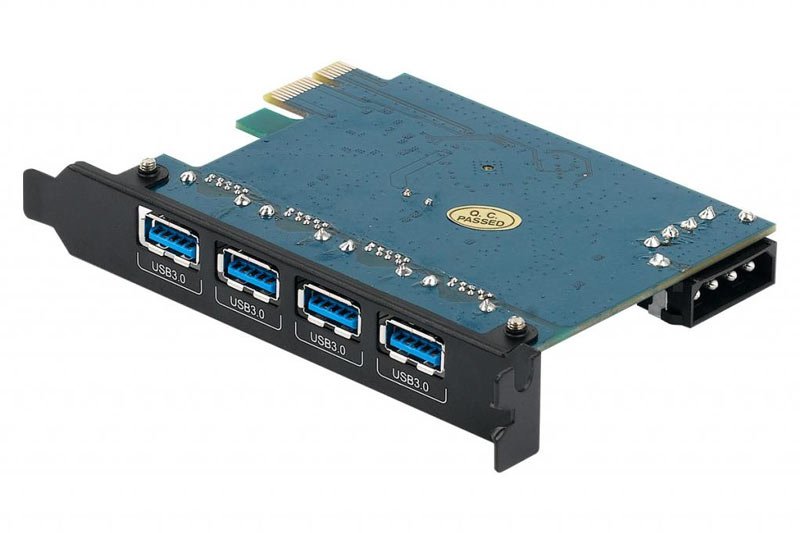

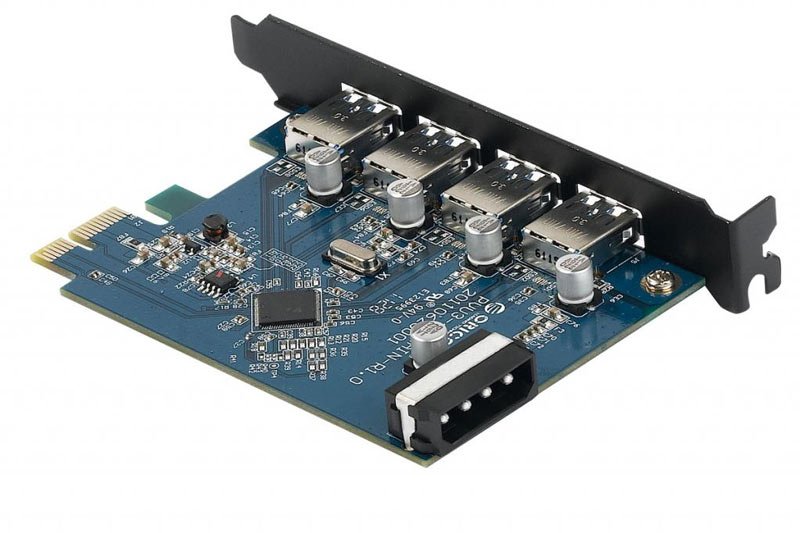

Orico 4 Port PCIe x1 USB 3.0 Expansion Card

This 4-port PCIe x1 USB 3.0 Expansion Card allows for more peripherals and storage to be connected to your system. Give your system a boost in connectivity by installing this Orico PVU3-4P USB Hub PCI-E Card. Orico PVU3-4P 4 Port PCIe x1 USB 3. ORICO released the newest desktop 4ports USB3.0 high speed express card. USB3.0 has already become one of the most popular interfaces in present IT world. Its previous generation USB2.0 is the interface with widest range of users in IT products, and nearly over 2billions USB devices sell out till now. USB3.0 will replace USB2.0 gradually, because it can reach the high speed which USB2.0 can’t reach. First its theoretical transfer rate up to 5Gbps, much higher than USB2.0 480Mbps, and also higher than eSATA 3Gbps speed. Besides, USB3.0 is compatible with USB2.0 and 1.1 standards, that is to say you can use it in your USB2.0 interface. Product Features:Conform to PCI-Express standard 2.0 versionProduct main control IC: VLI8004ports USB3.0 can connect with 4pcs USB device at same timeUSB3.0 interface transfer rate up to 5Gbps, downward compatible with USB2.0/1.1USB3.0 use big 4pin interface for power supplySupport USB hot-swap, plug and playLow power consumption and energy saving productWindow 2000/XP/VISTA/7 Product Application:By using ORICO PVU3-4P, you can make your mainboard instantly upgrade to USB3.0 high speed, and enjoy the great capacity and high efficient storage ability. This product fit for multimedia video edit system, server database, DVR data storage, 2D/3D cartoon, artiest plot and system data backup using environment, and support Windows! It makes desktop mainboard upgrade to USB3.0 easily. Product Accessories:Express cardUser manualDrive diskInstall screw Product Name4ports USB3.0 PCI-E express cardProduct ModePVU3-4PProduct UIexpress cardProduct Dimension120*70* 19mmProduct Weight58gSupport SystemWindow 2000/XP/VISTA/7Safety CertificateCE and FCC approvalOperation environment0?/50?(use); -20?/70?(storage)

• Model: 4-port USB 3.0 PCI-E Express card
• MPN: PVU3-4P
• Internal interface: PCI-E x1
• Output interface: 4 x USB 3.0
• Product weight: 58G

• USB 3.0 Host Controller
• PCI Express to USB Card
• 5Gbps Data Transfer Rate
• with 15-Pin Power Cord
• Hot Swap No Driver Nedded
• Compatible with Windows,XP,Vista

Manufacturer：ORICO
Classification：ORICO PVU3 Series
MPN：ORICO PVU3-4P-V1
Type：PCI Express to USB Card
External USB Ports：4x USB Ports
External Ports：4x Rear USB3.0 Ports
Standard：USB 3.0
Data Transfer Rate：Up to 5.0 Gbps
Operating Systems Supported：Windows XP , 2003 , Vista , 2008 , 7 and Windows 8 32 Bit or 64 Bit
Cache Size/Speed：Driver Link: http://www.orico.cc/drive.php?keywords=PVU3&act=query
Compatibility：Fully Compliant with PCI Express Base Specification 2.0 and Compatible with PCI Express 3.0 , 1.0
Specifications：Achieved with Gen2 VL800 USB3.0 Host Controller from VIA-Labs , FIt in Any PCI E x1 , x2 , x4 , x8 or x16 Socket , Offer 4 USB3.0 Host Allow Transfer Rates Up To 5Gbps , Integrated Filtering Unit with Solid Capacitors , Easy Powered by 4PIN IDE/ATA Power through Power Supply of Desktop Computer
Features：One Step Update your Windows Computer to USB3.0 , Gen2 VL800 Super Speed USB3.0 Host Controller from Via-Labs inside , Enable 4x USB3.0 Hosts offer Transfer Rates Up To 5Gbps , 10x Faster of USB2.0 , Filtering Unit with Solid Capacitors offer a Reliable Connectivity
Dimensions：4.7 x 2.8 x 0.8 inches
Weight：0.12 lbs
Package Includes：1x ORICO PVU3-4P 4 Port USB3.0 PCI Express I/O Card , 1x Power Cord, 1x User's Manual , 1x Warranty Card
