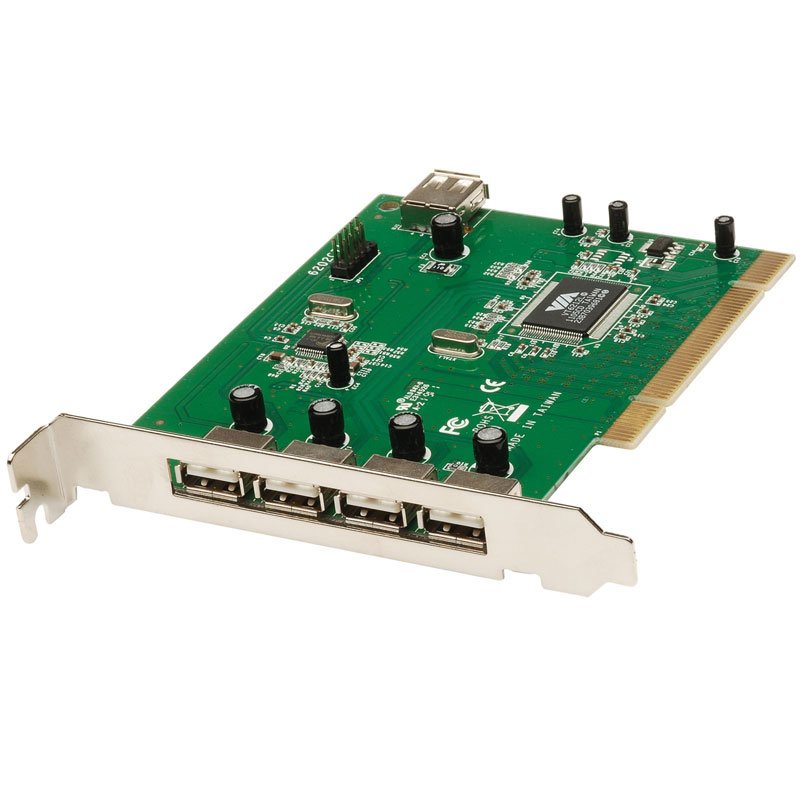

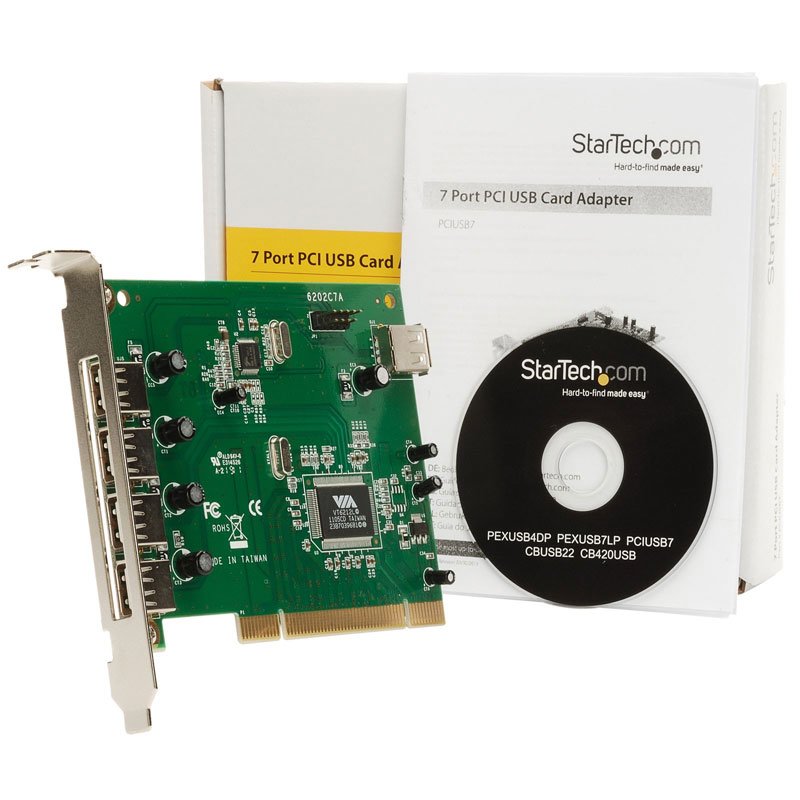

Startech PCIUSB7 7-Port USB PCI Controller Card
- Model: deh9uk
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Startech.com PCIUSB7 7PORT PCI USB 2.0 ADAPTER CARD USB CONTROLLER CARD This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female 2 internal USB motherboard header and 4 external USB A Female) to your PCIcapable PC. 7 Port PCI USB Adapter Card. This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female 2 internal USB motherboard header and 4 external USB A Female) to your PCIcapable PC.
- Expand Your USB Ports
- Install this Startech PCIUSB7 7-Port USB PCI Controller Card to expand the amount of USB ports available. With extra ports internally and externally, you'll have plenty of ports for your extra peripherals. Use this Startech 7-port PCI USB Controller Card to give your system more functionality through your peripherals!
- Manufacturer
- StarTech
- Model
- PCIUSB7
- Interface
- USB 2.0
- Ports
- 7
- Bus Type
- PCI / PCI-X (5 / 3.3V)
- Connector Type(s)
- 1 - PCI Male
- Internal Ports
- 1 - USB Female
- 2 - IDC Male
- External Ports
- 4 - USB A Female
Startech 7-port PCI USB Controller Card
- Interface
- USB 2.0
- Ports
- 7
- Bus Type
- PCI / PCI-X (5 / 3.3V)
- Card Type
- Standard Profile
- Industry Standards
- EHCI 2.0
- OHCI 1.1
- PCI 2.2
- Power Management 1.1
- Chipset ID
- VIA - VT6212
- Connector Type(s)
- 1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male
- Internal Ports
- 1 - USB A (4 pin) Female
- 2 - IDC (10 pin; Motherboard Header) Male
- External Ports
- 4 - USB A (4 pin) Female
- Maximum Data Transfer Rate
- 480 Mbps
- OS Compatibility
- Windows 98SE/ ME/ 2000/ XP(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit)
- Linux
- Microsoft WHQL Certified
- Yes
- Product Length
- 4.8 in [122 mm]
- Product Width
- 4.7 in [120 mm]
- Product Height
- 0.8 in [20 mm]
- Product Weight
- 2.5 oz [71 g]
- System and Cable Requirements
- Unused PCI slot
Hardware
Connector(s)
Performance
Software
Physical Characteristics
Special Notes / Requirements
- USB 2.0
- 480/12/1.5 Mbps Data Transfer Rate
Manufacturer：StarTech
MPN：PCIUSB7
Type：PCI to USB Card
External USB Ports：4x USB Ports
Internal USB Ports：1x USB Port
Internal Ports：2 - 9 pin IDC (Motherboard Header) Male
Standard：USB 2.0
Data Transfer Rate：480/12/1.5 Mbps
Operating Systems Supported：Windows 98SE/ ME/ 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, and Linux
Weight：0.3
