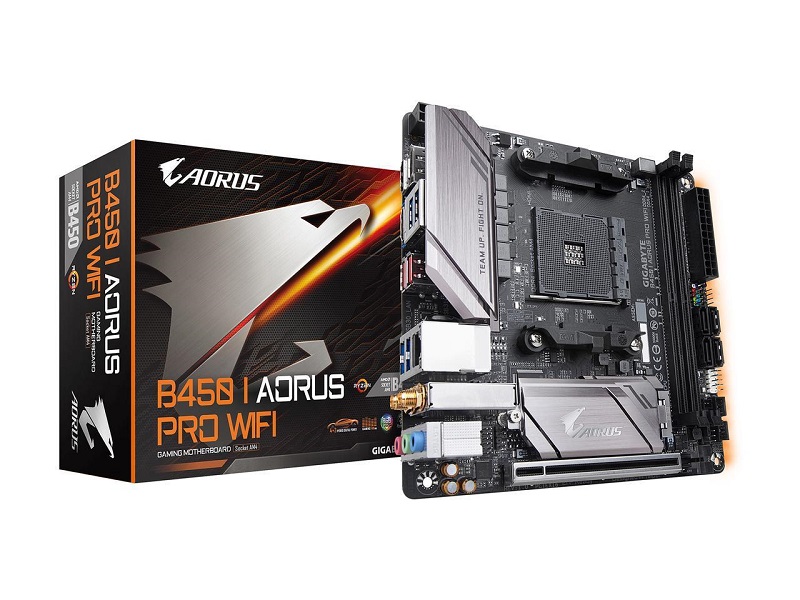

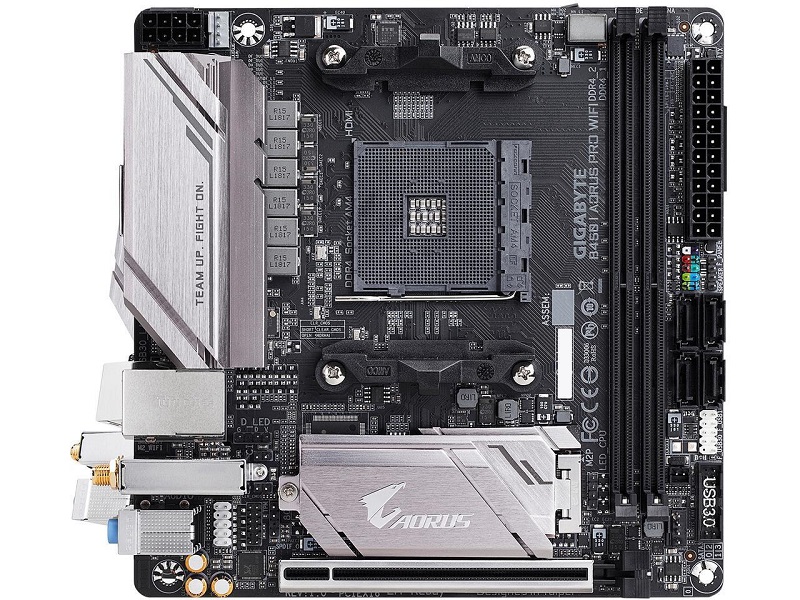

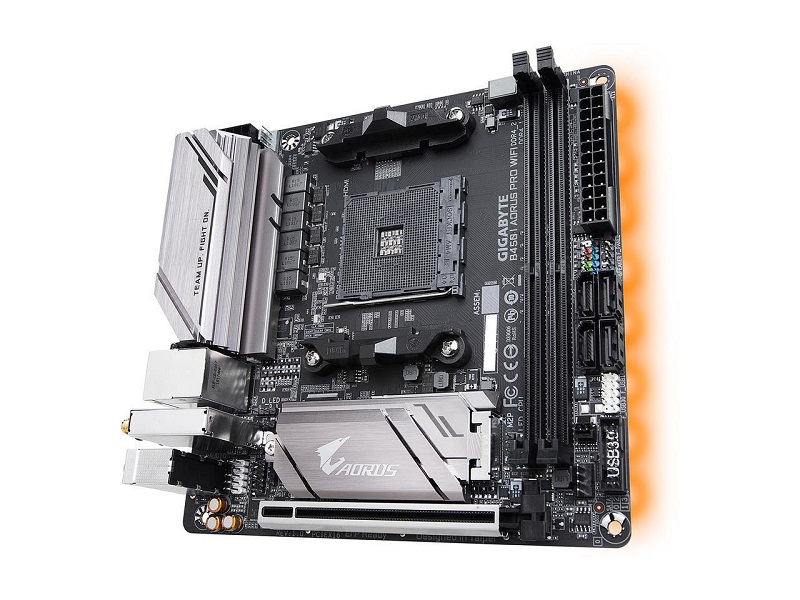

GIGABYTE B450 I AORUS PRO WIFI AM4 AMD B450 SATA 6Gbs USB 3.1 HDMI Mini ITX AMD Motherboard
- Model: 4m8u2p
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating one of the worlds best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality. Experience next-level performance on the mITX form factor with the ROG Strix B450-I Gaming, powered by 2nd generation AMD Ryzen AM4 processors. Unlock your systems potential with 5-Way Optimization while personalizing your build with Aura Sync RGB. Integrated dual NVMe M.2, gigabit LAN and USB 3.1 Gen2 maximize connectivity speeds.

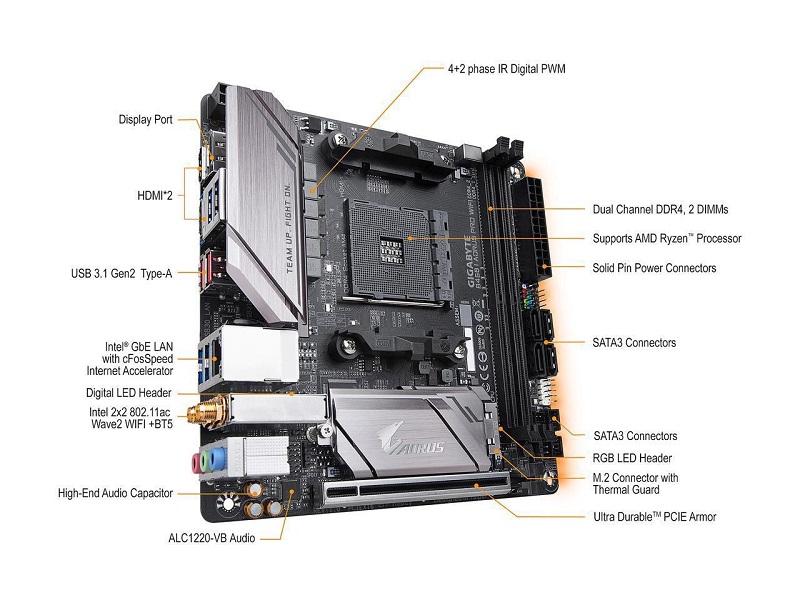

- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Intel? Dual Band 802.11ac Wave2 WIFI & BT 5
- DisplayPort, HDMI*2 Ports for Multiple Display
- Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
- ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with High-end Audio Capacitors
- RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
- Intel? GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune? and Cloud Station? Utilities
- CEC 2019 Ready, Save Power with a Simple Click
Brand：GIGABYTE
Model：B450 I AORUS PRO WIFI
CPU Socket Type：AM4
CPU Type：AM4 Socket:
AMD Ryzen 2nd Generation processors
AMD Ryzen with Radeon Vega Graphics processors
AMD Ryzen 1st Generation processors
Chipset：AMD B450
Number of Memory Slots：2×288pin
Memory Standard：DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express x16 slot, running at x16*
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* Actual support may vary by CPU.
Other Slots：1 x M.2 Socket 1 connector for the wireless communication module (M2_WI-FI)
SATA 6Gb/s：4 x SATA 6Gb/s
M.2：1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID：0/1/10
Onboard Video Chipset：Integrated Graphics Processor:
1 x DisplayPort, max resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
2 x HDMI ports, max resolution of 4096x2160@60 Hz*
* Support for HDMI 2.0 version and HDCP 2.2.*
Support for up to 3 displays at the same time
Maximum shared memory of 16GB
* Actual support may vary by CPU.
Audio Chipset：Realtek ALC1220-VB
Audio Channels：2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN Chipset：Intel GbE LAN chip
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Support for 11 ac 160 MHz wireless standard and up to 1.73Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Bluetooth：BLUETOOTH 5

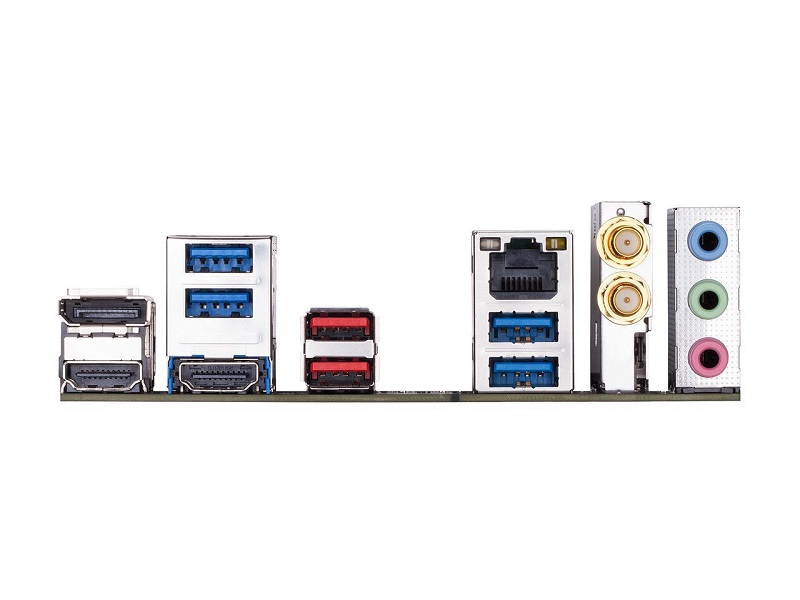

HDMI：2 x HDMI
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：2 x USB 3.1 Gen 2 Type-A ports (red)
4 x USB 3.1 Gen 1 ports
Aucio Ports：3 Ports
Onboard USB：1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors：1 x CPU fan header
1 x system fan header
1 x digital LED strip header
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x speaker header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x chassis intrusion header
Form Factor：Mini ITX
LED Lighting：RGB
Dimensions (W x L)：6.7" x 6.7"
Power Pin：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features：I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Ean speed detection
Overheating warning
Ean fail warning
Ean speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed
Operating System:
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
