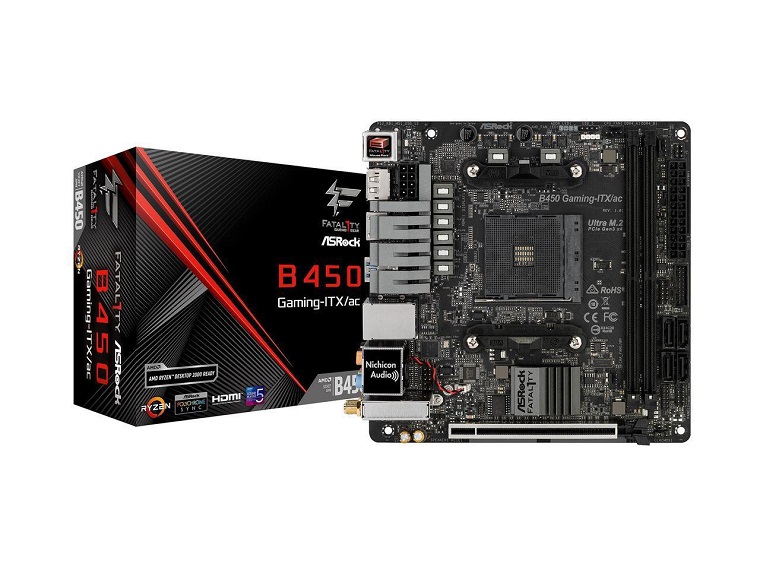

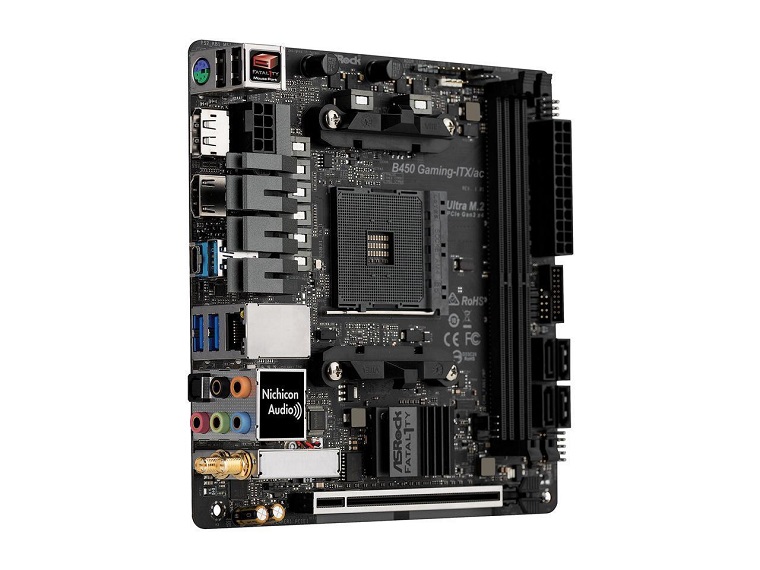

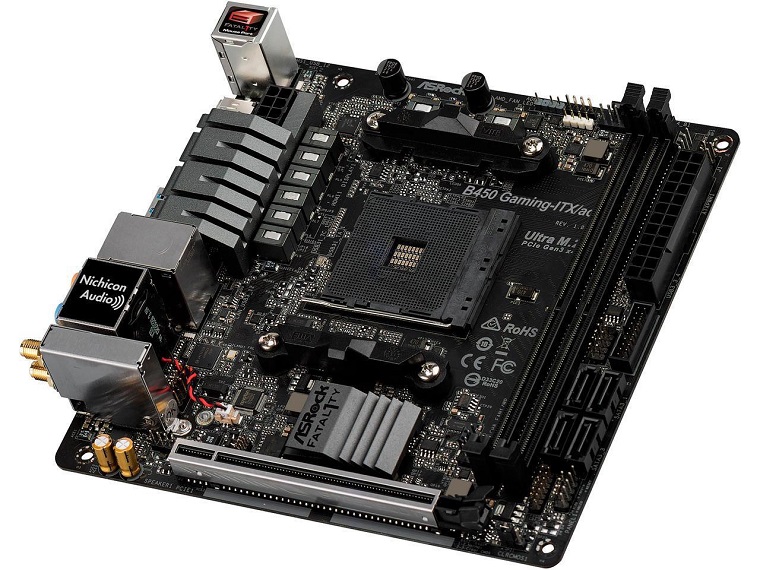

ASRock Fatal1ty B450 GAMING-ITX/AC AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI Mini ITX AMD Motherboard

This motherboard, even small is in par with most of the ATX motherboards with the same B450 chipset. The B450 chipset features the AMD StoreMI technology, StoreMI moves frequently-accessed files to the faster drive to improve important things like boot and program loading times, providing users flexibility. Overclocking is still supported with this chipset. Supports AMD AM4 processors (Pinnacle Ridge, Summit Ridge, Raven Ridge). DDR4 memory compatible, up to 3466+ MHz (OC) across all compatible processors. Four SATA 3 interfaces and a single Ultra M.2 slot.

• AMD B450
• Supports DDR4 memory

Brand：ASRock
Series：Fatal1ty
Model：B450 GAMING-ITX/AC
CPU Socket Type：AM4
CPU Type：Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset：AMD B450
Number of Memory Slots：2×288pin
Memory Standard：Pinnacle Ridge support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
Summit Ridge support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
Raven Ridge support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*

* For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCII1: x8 mode)*

* Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
* Supports NVMe SSD as boot disks
Other Slots：1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi-802.11ac module (on the rear I/O)
15? Gold Contact in VGA PCIe Slot (PCIE1)
SATA 6Gb/s：4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2：1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*
SATA RAID：0/1/10
Onboard Video Chipset：Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Max. shared memory 2GB
Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers
Supports HDMI 2.0, max. up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.2, max. up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports
(Compliant HDMI 2.0 monitor is required)
Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Audio Chipset：Realtek ALC1220
Audio Channels：7.1 Channels
LAN Chipset：Intel i211AT
Max LAN Speed：10/100/1000Mbps
Wireless LAN：Intel 802.11 ac Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 Mbps
Bluetooth：Supports Bluetooth 4.2 / 3.0 + High speed class II

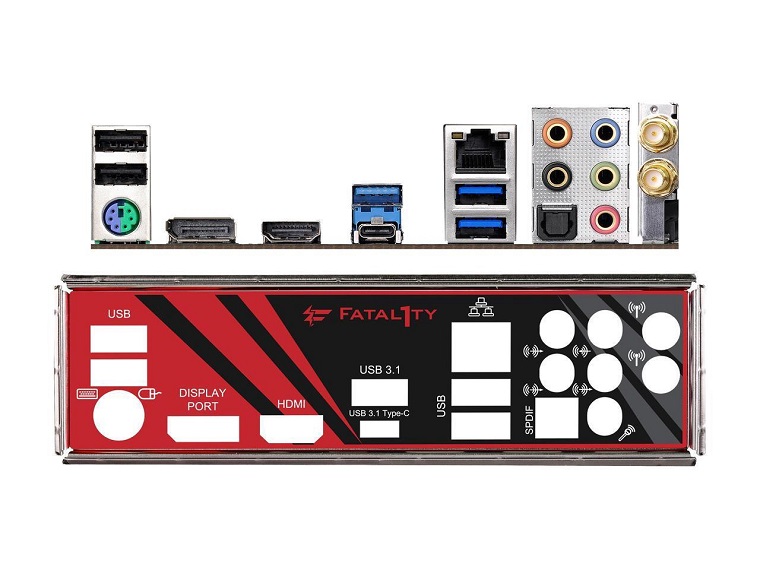

PS/2：1 x PS/2 keyboard/mouse port
HDMI：1 x HDMI
RJ45：1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort：1 x DisplayPort 1.2
USB 3.1 (Supports ESD Protection)：1 x USB 3.1 Gen2 Type-A Port (10Gb/s)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s)
2 x USB 3.1 Gen1 Ports
USB 1.1/2.0 (Supports ESD Protection)：2 x USB 2.0 Ports
* 1 x Fatal1ty Mouse Port (USB 2.0) is included
S/PDIF Out：1 x Optical
Audio Ports：HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB (Supports ESD Protection)：1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
Other Connectors：1 x LPC Header
1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip.
1 x AMD Fan LED Header
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector (15? Gold Audio Connector)
1 x AMD LED Fan USB Header
Form Factor：Mini ITX
Dimensions (W x L)：6.7" x 6.7"
Power Pin：1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
Features：Unique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
Intel 802.11 ac Wi-Fi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Gaming Armor:
Power
- Hi-Density Power Connector (8-pin)
Memory
- 15? Gold Contact in DIMM Slots
Internet
- Intel LAN
Cooling
- 2oz Copper PCB
Audio
- Creative SoundBlaster Cinema5

BIOS Feature:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Software and UEFI Software:
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

Hardware Monitor (CPU, Chassis/Water Pump Fans):
- Temperature Sensing
- Fan Tachometer
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- Fan Multi-Speed Control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
