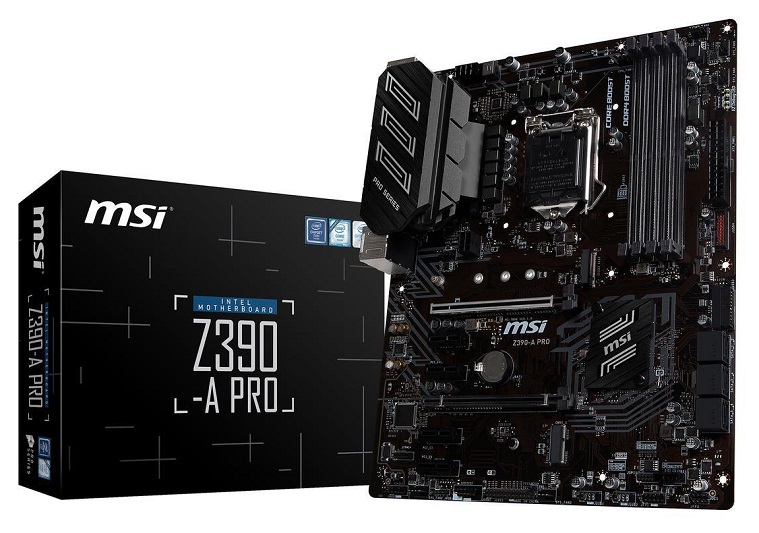

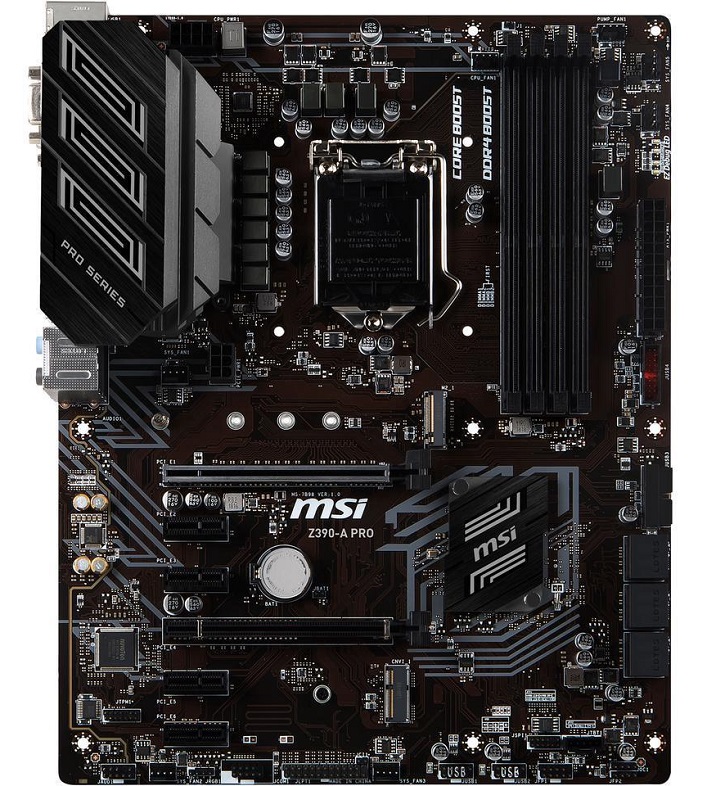

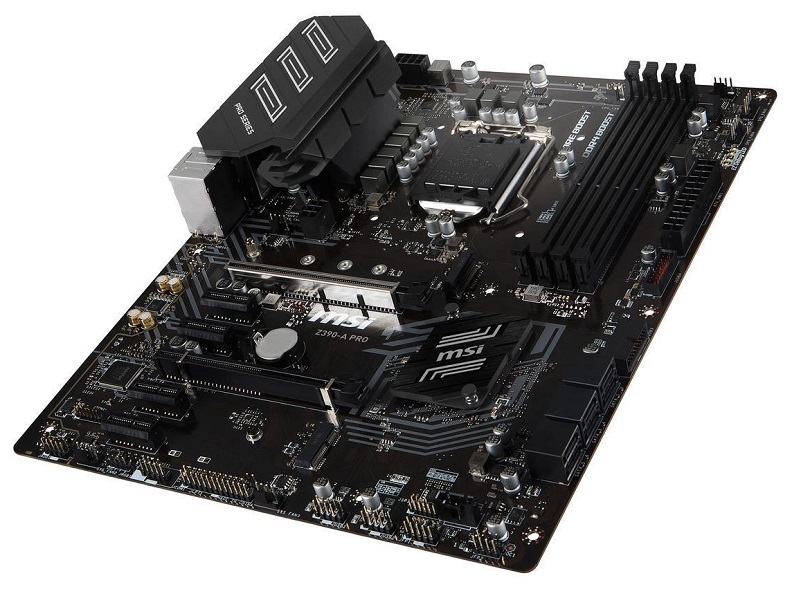

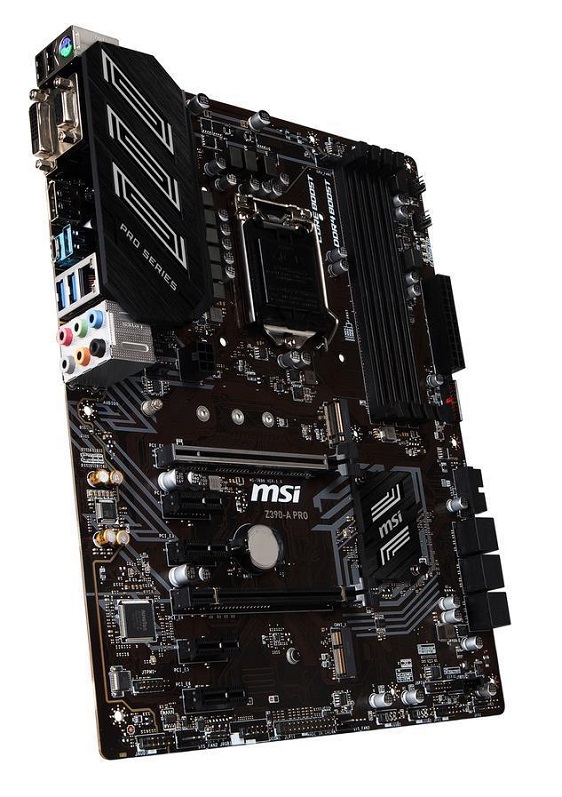

MSI Z390-A PRO LGA 1151 (300 Series) Intel Z390 SATA 6Gbs USB 3.1 ATX Intel Motherboard

The MSI Z390-A PRO was built on the latest Intel chipset on the day of this writing, the Z390. This motherboard is loaded with four DDR4 memory slots that supports up to 64GB and up to 4400 MHz speed. Two PCI Express 3.0 x16 slots, and four 3.0 x1 slots. Six SATA III ports and a 1 M.2 slot. This motherboard can be used for AMD CrossFire setup. The M.2 slot supports Intel Optane for your storage, the M.2 slot support up to PCIe 3.0 x4 speeds, meaning, the data read and write are significantly faster than the SATA III drives.

• Intel Z390
• Supports DDR4 memory

Brand：MSI
Model：Z390-A PRO
CPU Socket Type：LGA 1151 (300 Series)
CPU Type：Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs
Chipset：Intel Z390
Onboard Video Chipset：Supported only by CPU with integrated graphic:
1 x VGA port, max.: 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, max: 1920x1200@60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz
Number of Memory Slots：4×288pin
Memory Standard：DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：2 x PCI Express 3.0 x16
PCI Express x1：4 x PCIe 3.0 x1 slots
Other Slots：1 x M.2 slot with E key for Integrated Intel Wireless-AC (CNVi) module only
SATA 6Gb/s：6 x SATA 6Gb/s ports*
M.2：1 x M.2 slot (Key M)*
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices

* The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
Intel Optane Ready：Yes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID：0/1/5/10
Audio Chipset：Realtek ALC892
Audio Channels：7.1 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps
PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x D-Sub
1 x DVI-D
RJ45：1 x RJ45
DisplayPort：1 x DisplayPort
USB 3.1：2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C)
2 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)
USB 1.1/2.0：2 x USB 2.0 (High-speed USB) ports (Type-A)*
* The CNVI_1 and JUSB2 share the same bandwidth.
Audio Ports：6 Ports
Onboard USB：2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors：1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector
Form Factor：ATX
LED Lighting：RGB
Dimensions (W x L)：12.0" x 9.6"
Power Connector：1 x 24-pin ATX main
1 x 8-pin ATX 12V
1 x 6-pin ATX 12V power connector
Features：DIY Friendly:
Keep Out Zone
XL PCI-E Clip
EZ Debug LED
Pump Fan

Enhance Performance:
Extended Heatsink Design
8-Pin Power Connectors
Turbo M.2
Intel Turbo USB 3.1 Gen2
Core Boost
DDR4 Boost
Multi GPU-2-Way AMD CrossFire Technology
OC GENIE 4

*BIOS
Click BIOS5
XMP
Hardware Moniter

*Software
Dragon Center

In-Game Advantages:
*Audio
Audio Boost
*LAN
Intel LAN
Intel CNVi Ready

VR Ready

Exhilarating and Inspiring:
Mystic Light Extension (RGB)
Mystic Light Sync

Loyal Comrade:
PCI-E Steel Armor
PCI-E Steel Slot
7000+ Quality Test
