Gigabyte GA-H110M-S2H GSM LGA1151 Ultra Durable GSM Motherboard

GIGABYTE GA-H110M-S2H-GSM (rev. 1.0) LGA 1151 Intel H110 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard. Looking for the best motherboard for your new Skylake rig? Don't settle for anything less than the best. Get the Gigabyte GA-H110M-S2H-GSM Motherboard, ultra-durable and high-performance. This board features high quality Audio and LAN components for realistic sound effects and superior networking for fast web browsing and lagless online gaming experience. USB 3.0 and SATA 6.0Gb/s for ultrafast file transfer speeds. 8 Channel ATX Micro H110 Chip.

GIGABYTE 100 series motherboards support the latest 6th Generation Intel? Core? processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

The Gigabyte GA-H110M-S2H GSM motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel H110 chipset and has support for 2 x 288-pin DIMM memory sticks with a max memory of up to 32GB. You can choose memory speeds of up to DDR4-2133. This motherboard has 4 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Brown / Black design.

• Intel H110
• Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
• DDR4 2133

Manufacturer：GIGABYTE
MPN：GA-H110M-S2H-GSM (rev. 1.0)
CPU Socket Type：LGA 1151
Processor Type：Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Supported CPU Technologies：* Not Compatible with Intel 8th Gen CPUs
Chipset：Intel H110
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port max.: 1920x1200@60 Hz
1 x DVI-D port max.: 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port max.: 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 2 displays at the same time
Maximum shared memory of 512MB
Number of Memory Slots：2×288pin
Memory Standard：DDR4 2133
Maximum Memory Supported：32GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1：2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
SATA 6Gb/s：4 x SATA 6Gb/s
Audio Chipset：Realtek ALC887
Audio Channels：7.1 Channels
LAN Chipset：Realtek GbE LAN chip
Max LAN Speed：10/100/1000Mbps

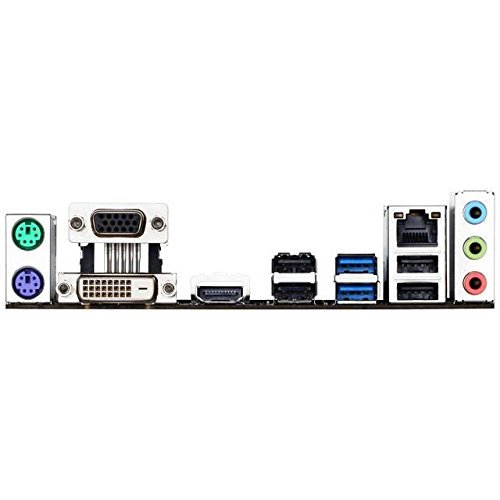

PS/2：1 x PS/2 mouse port
1 x PS/2 Keyboard port
Video Ports：1 x D-Sub port
1 x DVI-D port
RJ45：1 x RJ45
USB 3.0：2 x USB 3.0
USB 1.1/2.0：4 x USB 2.0
Audio Ports：3 x audio jacks (Line In, Line Out, Mic In)
Onboard USB：1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
Other Connectors：1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x Clear CMOS jumper
Form Factor：Micro ATX
Dimensions (W x L)：8.90" x 6.85"
Power Pin：24 Pin
Features：I/O Controller:
- iTE I/O Controller Chip

H/W Monitoring:
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install

Bundle Software:
- Norton Internet Security (OEM version)
- cFosSpeed

Operating System:
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
