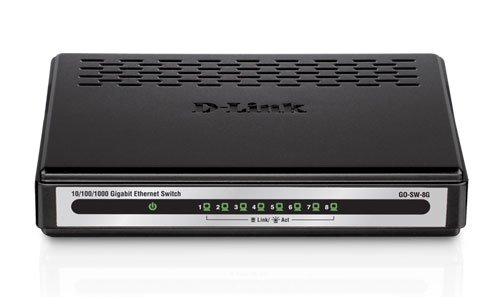

D-Link GO-SW-8G 8-Port Unmanaged Gigabit Network Switch

Dlink's GO-SW-8G 8-Port Unmanaged Gigabit Ethernet Switch uses D-Link's Green Technology for energy conservation and power savings. This switch supports speeds of up to 1000Mbps (Gigabit) and has 8 ports on it. The unmanaged nature of it makes it plug and play and it is both lightweight and works in both full and half duplex modes. 8 Port Gig Desktop Switch.

Duplex Mode

With support for Full-Duplex Mode operation, this 8-port Gigabit Ethernet switch can achieve data transfer rates of up to 2 Gbps with compatible hardware.

Plug & Play

There's no setup or diver installation required - this unmanaged 8-port Gigabit switch configures itself in moments, and continues to operate without supervision or any need for outside interference.

Energy Efficient

With a low power footprint and support for Energy Efficient Etehernet, this green Gigabit network switch helps save the environment - and your power bill!

Switching Fabric

16Gbps

Standards

IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)

ANSI/IEEE 802.3 Nway auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

CSMA/CD

Data Transfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Topology

Star

Network Cables

10BASE-T:

UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX, 1000BASE-T:

UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed

Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

8K

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128KB per device

Jumbo Frames

9,216 Bytes

DC Input

External 5 V/1 A Level "V" Power Adapter

Power Consumption

DC input: 3.06 watts

AC input: 3.9 watts

MTBF

412,433 hours

Dimensions

5.0 x 2.7 x 1.0 inches (128 x 68.5 x 25.4 mm)

Weight

6.88 ounces (195 grams)

• 8 Gigabit ports for blazing fast wired connectivity
• Easy "Plug & Play" Installation
• Eco-friendly with innovative power-saving design
• 3-Year Limited Warranty

Manufacturer：D-Link
MPN：GO-SW-8G
Format：External
Standards：IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：8 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：8K
Switching Method：Store and Forward
Jumbo Frames：9,216 Bytes
Protocols：CSMA/CD
Layer：Layer 2 Only
Topology：Star
LEDs：Per port: Link/Activity/Speed
Per device: Power
Power：External 5 V/1 A Level "V" Power Adapter
Features：Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
16 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
RoHS compliant
Plug-and-play installation
Dimensions：5.00" x 2.70" x 1.00"
Weight：0.65 lb.
Temperature：0ºC to 40ºC (32ºF to 104ºF)
Humidity：10% - 90%, Non-condensing
