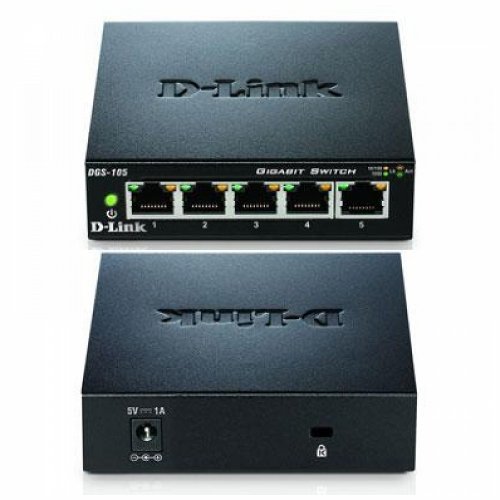

D-Link DGS-105 5-Port Unmanaged Gigabit Ethernet Switch
- Model: yo1d9j
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Expand your network the modern way with this 5-port unmanaged Gigabit switch from D-Link! Designed to handle the fastest wired networks on the market, you'll be able to quickly and easily transfer data throughout your network without any delays or latency, all without any complicated setup. The DGS-105 5 Port Gigabit Switch provides a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 2000 Mbps the DGS-105 is ideal for fast file transfers and easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network. Compact design with metal case that is ideal for wiring closets, conference rooms or small offices. Use it on a flat surface or use the included wall mount kit.
- Gigabit Speed
- With support for Gigabit Ethernet speeds, this 5-port unmanaged Gigabit switch allows you to enjoy transfer speeds of 2000Mbps in full duplex mode, letting you effortlessly move large files across your network.
- Robust Design
- With a durable, rugged metal exterior, your Gigabit switch will be protected from haphazard accidents, as well as dissipate heat more efficiently for a longer product lifetime.
- Plug & Play
- This unmanaged Gigabit switch requires no setup of any kind - just plug in your various network devices and enjoy high speed computer networking!
- Switching Fabric
- 10Gbps
- Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1pQoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Protocol
- CSMA/CD
- Data Transfer Rates
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
- Topology
- Star
- Network Cables
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
- Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
- LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
- Transmission Method
- Store-and-forward
- MAC Address Table
- 2K
- MAC Address Learning
- Automatic update
- Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
- RAM Buffer
- 128KB per device
- Jumbo Frames
- 9,000 Bytes
- QoS
- 4 Queues,strict mode
- Power Consumption
- Power On (Standby):
- DC input: 0.5 watts
- AC input: 1.0 watts
- Maximum:
- DC input: 2.01 watts
- AC input: 3.10 watts
- Heat Dissipation
- Power On (Standby) AC input: 3.41 BTU/h
- Maximum DC input: 6.854 BTU/h
- MTBF
- 1,688,338 hours
- Dimensions
- 3.9 x 3.8 x 1.1 inches(100 x 98 x 28 mm)
- Weight
- 10.08 ounces(286 grams)
- 5 Gigabit ports for blazing fast wired connectivity
- Integrated QoS Engine for traffic optimization
- Eco-friendly with innovative power-saving design
- Easy "Plug & Play" Installation
Manufacturer：D-Link
MPN：DGS-105
Format：Desktop/Wall Mount
Standards：IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：5 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：2K
Switching Method：Store and Forward
Jumbo Frames：9000 bytes
Protocols：CSMA/CD
Layer：Layer 2 Only
Cabling：10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Topology：Star
LEDs：Per device: Power
Per port: Link/Activity/Speed
Power：External 5 V/1 A Level 'V' Power Adapter
Features：Switching Fabric: 10Gbps
Packet Filtering/Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer: 128KB per device
QoS: 4 Queues, strict mode
Plug-n-Play Installation
Dlink Green Eco-Friendly Power Design
High reliability with Rugged Metal Case and High MTBF.
Dimensions：3.9" x 3.8" x 1.1"
Weight：10.08 ounces
Temperature：0ºC to 50ºC (32ºF to 122ºF)
Humidity：10% - 90%, Non-condensing
