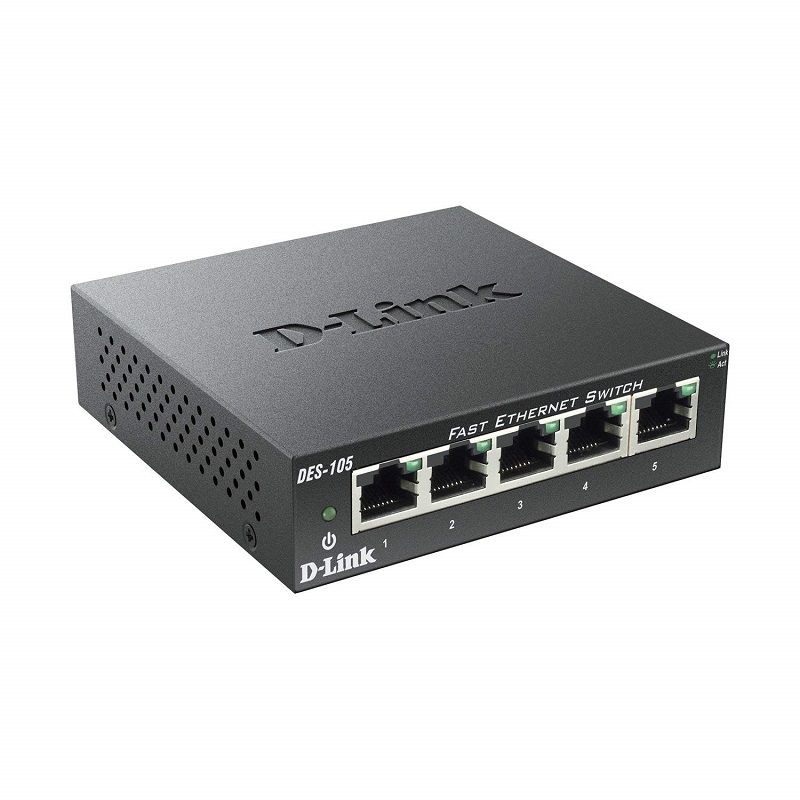

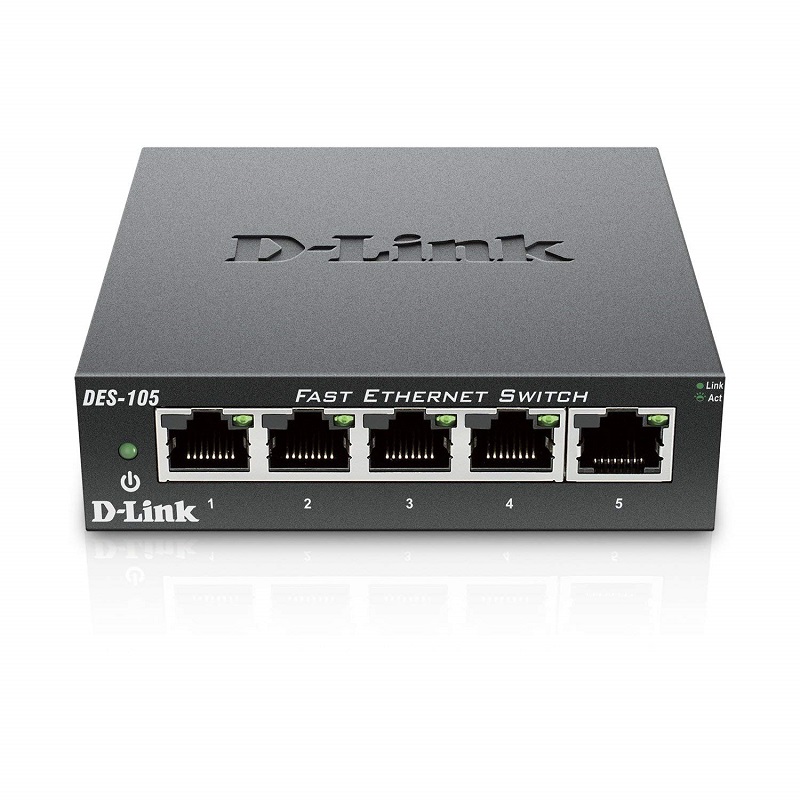

D-Link Business DES-105 Switch 5-Port 10/100 Desktop

The DES-105 5 Port 10/100 Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 200 Mbps the DES-105 is ideal for fast file transfers. It provides five ports for easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network. Features easy access auto sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-105 switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organizes and prioritizes time-sensitive and important data for efficient delivery. The DES-105 is a plug-and-play networking switch that offers D-Links Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls. The DES-105 switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. It is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an Energy Star Level V qualified power adapter all with recyclable packaging making this product truly environmental friendly.

• 2K MAC Address Table
• Unmanaged
• Auto MDI/MDIX crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports Jumbo Frames
• Supports 802.1p QoS
• RoHS compliant
• Plug-and-play installation

Brand：D-Link
Model：DES-105
Format：Desktop/Wall Mount
Standards：IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Network Management Type：Unmanaged
Primary Ports：5 x RJ45
Primary Port Speed：10/100Mbps
MAC Address Table：2K
Switching Method：Store and Forward
Jumbo Frames：2047 Bytes
Protocols：CSMA/CD
QoS：Yes
Cabling：10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Topology：Star
LEDs：Per device: Power
Per port: Link/Activity

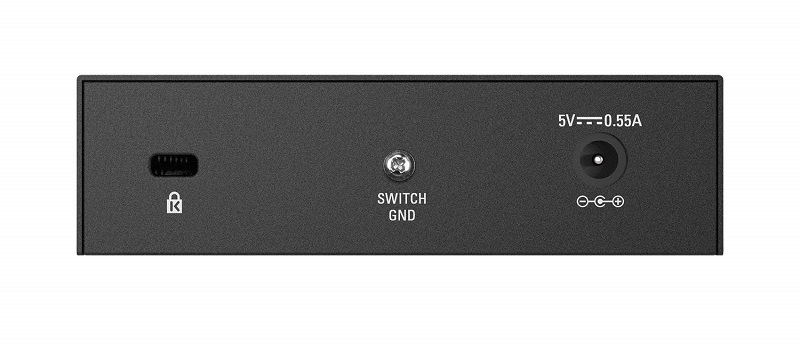

Power：External 5 V/1 A Level 'V' Power Adapter
Dimensions：3.9" x 3.8" x 1.1"
Weight：9.35 ounces
Temperature：0?C to 50?C (32?F to 122?F)
Humidity：10% - 90%, Non-condensing
