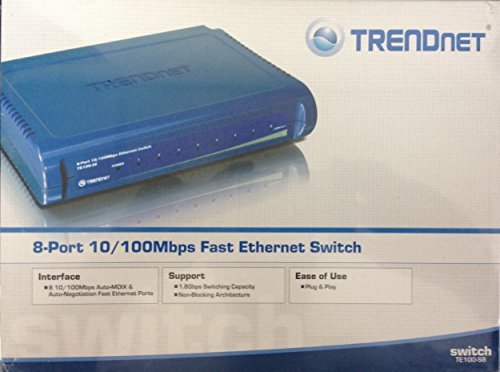

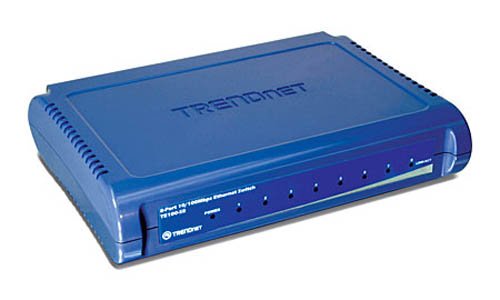

TRENDnet TE100-S8 8-Port 10/100Mbps Fast Ethernet Switch
- Model: gr06ix
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
TRENDnet TE100-S8 Fast Ethernet Switch - This 8-port Fast Ethernet switch from TRENDnet provides 8 10/100Mbps Ethernet ports, letting you expand your network with ease. Each port provides its own dedicated bandwidth, reducing network congestion and improving data transfer rates for all systems on the network. Setup is a snap - just plug your network cables into this plug & play Ethernet switch, and you'll be ready to network right away. 8 Port 10 100 Mini Switch. The compact 8-Port 10/100Mbps GREENnet Switch (model TE100-S80g) provides improved bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 40%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management required. Boost your office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps with Full-Duplex Mode.
- Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x Flow Control
- Network Media
- Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
- Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
- Data Rate
- Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
- Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
- Switch Fabric
- 1.6Gbps Forwarding Capacity
- Interface
- 8 10/100Mbps Auto-MDIX RJ-45 Ports
TRENDnet TE100-S8
- Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x Flow Control
- Network Media
- Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
- Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
- Data Rate
- Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
- Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
- Switch Fabric
- 1.6Gbps Forwarding Capacity
- Topology
- Star
- Interface
- 8 10/100Mbps Auto-MDIX RJ-45 Ports
- Filtering Table
- 1K Entries per device
- Buffer Memory
- 512Kbits per device
- Power Consumption
- 2.8 watts (max)
- Diagnostic LED
- Power, Link/ACT, 100Mbps
- Power Adapter
- Switching Power 5V DC 800mAor
- Linear Power 7.5V DC 1A
- Dimension
- 154 x 110 x 33mm (6 x 4.3 x 1.3 inches)
- Weight
- 225g (8oz.)
- Temperature
- Operating: 0 Degrees ~ 50 Degrees C (32 Degrees ~ 122 Degrees F)
- Humidity
- 10%~90% (Non-Condensing)
TRENDnet TE100-S8
- Device Type - Fast Ethernet Switch
- Ports Qty - 8 Ports
- Data Transfer Rate - 10/100 Mbps
- Provide 1K MAC address entries
Manufacturer：TRENDnet
MPN：TE100-S8
Format：Desktop
Standards：IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：8 x RJ45
Primary Port Speed：10/100Mbps
MAC Address Table：1K
Switching Method：Store and Forward
Layer：Layer 2 Only
Cabling：Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
Topology：Star
LEDs：Power, Link/ACT, 100Mbps
Power：Switching Power 5V DC 800mAor
Linear Power 7.5V DC 1A
Features：Compliant with Windows, Linux, and Mac Operating Systems.
Store-and-Forward Switching method
Non-blocking Architecture
Diagnostic LEDs
Plug & Play
Dimensions：6.0" x 4.3" x 1.3"
Weight：8.0 oz.
Temperature：0ºC to 50ºC (32ºF to 122ºF)
Humidity：10% - 90%, Non-condensing
