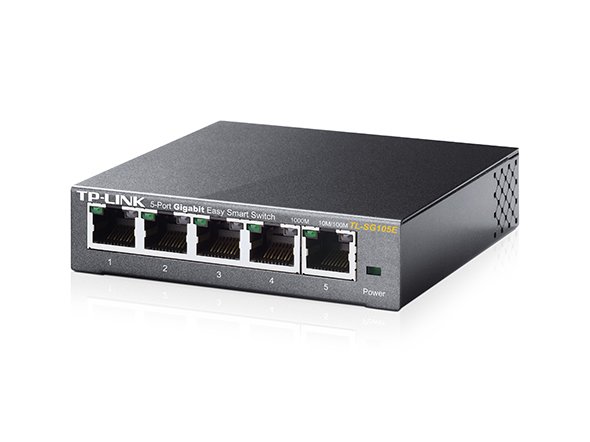

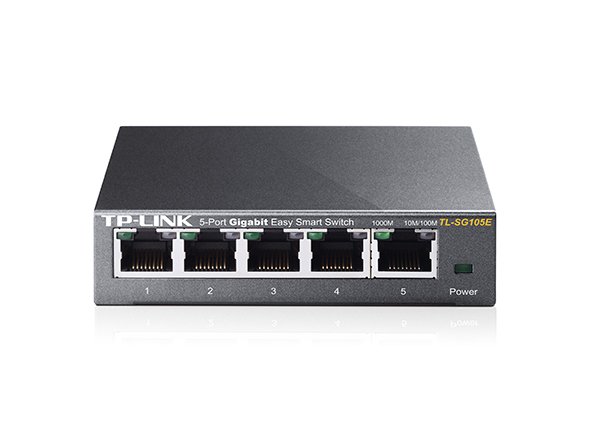

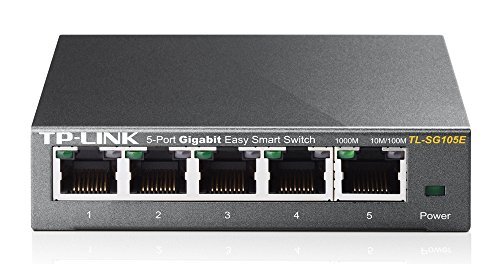

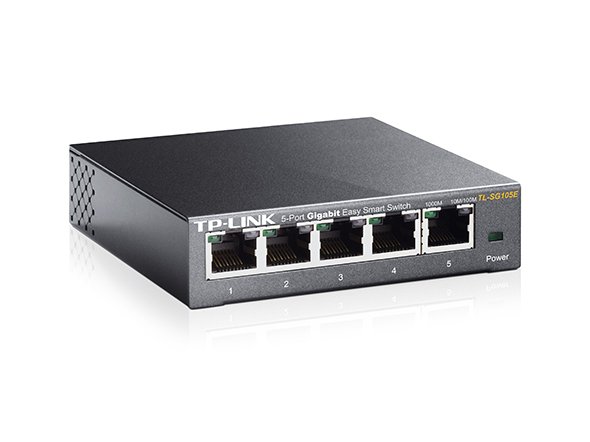

TP-Link TL-SG105E 5Port Gigabit Easy Smart Switch
- Model: 7385gx
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This TP-Link TL-SG105E aims to satisfy owners of small and medium-sized businesses. Administrators can monitor traffic with Port Mirroring, Loop Prevention, and Cable Diagnostics. Any error can be identified by the device itself. To save power, the switch features energy-efficient technologies, the ability to power down idle ports, and apply a certain amount of power to a port based on cable length. Attach more devices to your network with this TL-SG105E switch by TP-Link. 5Port Gigabit Easy Smart Swtch.
- 5 x 10/100/1000Mbps RJ45 ports
- Energy-efficient
- Plug-and-Play
- Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface
- 5 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity
- Fanless
- Dimensions (W x D x H)
- 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm)
- Power Supply
- 100-240VAC, 50/60Hz
- MAC Address Table
- 8K
- Packet Buffer Memory
- 2Mb
- Packet Forwarding Rate
- 7.4Mpps
- Jumbo Frame
- 16KB
- Certification
- FCC, CE, RoHS
- Environment
- Operating Temperature: 0~40 degrees C (32~104 degrees F)
- Storage Temperature: -40~70 degrees C (-40~158 degrees F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Easy Smart Configuration Utility and web-based user interface
- Full gigabit ports
- 16K Jumbo frame
- Network monitoring, traffic prioritization(DSCP QoS supported) and LAN features
Manufacturer：TP-Link
MPN：TL-SG105E
Format：Desktop
Standards：IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Management Type：Unmanaged
Primary Ports：5 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：8K
Switching Method：Store and Forward
VLAN Support：Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Jumbo Frames：16KB
Buffer Memory：2MB
Power：100~240VAC, 50/60Hz
Features：5 10/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 75%
Simple network set-up on top of plug-and-play connectivity
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
Dimensions：1.00" x 3.90" x 3.90" (H x W x D)
Weight：0.3
Temperature：0ºC to 40ºC (32ºF to 104ºF)
Humidity：10% - 90%, Non-condensing
Package Includes：TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
Case：None
