StarTech DS51072 5-Port 10/100Mbps Network Switch
- Model: 65fdkk
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
StarTech 5 Port Fast Ethernet Switch - This 5 port fast Ethernet switch from StarTech lets you add more ports to a wireless router, or network your computers together over a wired network.Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch. The DS51072 5-Port Ethernet Network Switch enables up to 5 users to share files and devices (e.g. printers, scanners) over a LAN connection, by expanding an existing network's capacity with additional ports. Compatible with both 10Base-T (10 Mbps) and 100Base-TX (100Mbps) networks, this Fast Ethernet switch can automatically detect the type of network (auto- negotiation) as well as the type of cable (auto MDIX) and configure itself, making for an easy to install, Plug-and-Play networking solution. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Ports
- 5
- Industry Standards
- IEEE 802.3, IEEE 802.3u
- External Ports
- 5 - RJ-45 Female
- Maximum Data Transfer Rate
- 100 Mbps
- Flow Control
- IEEE 802.3x
StarTech DS51072
- Ports
- 5
- Industry Standards
- IEEE 802.3, IEEE 802.3u
- Chipset ID
- Atheros AR8236
- External Ports
- 5 - RJ-45 Female
- Maximum Data Transfer Rate
- 100 Mbps
- Maximum Cable Length
- 328 ft [100 m]
- Flow Control
- IEEE 802.3x
- Auto MDIX
- Yes
- Full Duplex Support
- Yes
- MAC Address
- Automatic learning, Automatic aging
- Switching Architecture
- Store and Forward
- Supported Protocols
- CSMA/CD
- Color
- Black
- Enclosure Type
- Plastic
- LED Indicators
- 1 - Power (green)
- 5 - Link/ Activity (green)
- Shipping (Package) Weight
- 11.7 oz [331 g]
StarTech DS51072
- Connect and network up to 5 Ethernet devices through a single 10/100 Mbps desktop switch
- 5 Port Ethernet Switch
- 5 Port 10/100 Switch
- 5 Port Network Switch
- 5 Port Desktop Switch
- 5 Port Fast Ethernet Switch
- Wall Mount Network Switch
Manufacturer：StarTech
MPN：DS51072
Format：External
Standards：IEEE802.3, IEEE802.3u, IEEE 802.3x
Network Management Type：Unmanaged
Primary Ports：5 x RJ45
Primary Port Speed：10/100Mbps
Switching Method：Store and Forward
Protocols：CSMA/CD
LEDs：Power, Link/ Activity
Power：Input Voltage: 110 ~ 240 AC
Output Voltage: 9 DC
Output Current: 0.6A
Features：Chipset ID: Atheros AR8236
MAC Address: Automatic learning, Automatic aging
Color: Black
Enclosure Type: Plastic
Five 10/100 Mbps capable RJ45 Ethernet ports
Compliant with IEEE 802.3 (10Base-T) and 802.3u (100Base-TX) standards
Wall-mounted or desktop installation options
Auto-negotiation and Auto-MDIX detection on each port
IEEE 802.3x compliant flow control for full duplex and backpressure for half duplex operation
Supports automatic MAC address learning and aging
Compact, desktop-style form factor, with rubber stabilizer feet
No configuration, Plug-and-Play installation.
Dimensions：5.5" x 3.5" x 1"
Weight：4.3 oz.
Temperature：0ºC to 40ºC (32ºF to 104ºF)
Humidity：10% - 90%, Non-condensing

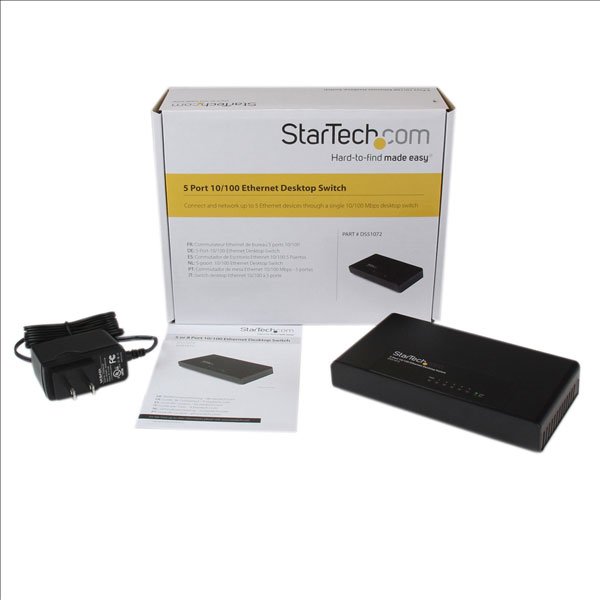

Package Includes：Power Adapter
Instruction Manual
Ethernet Switch
