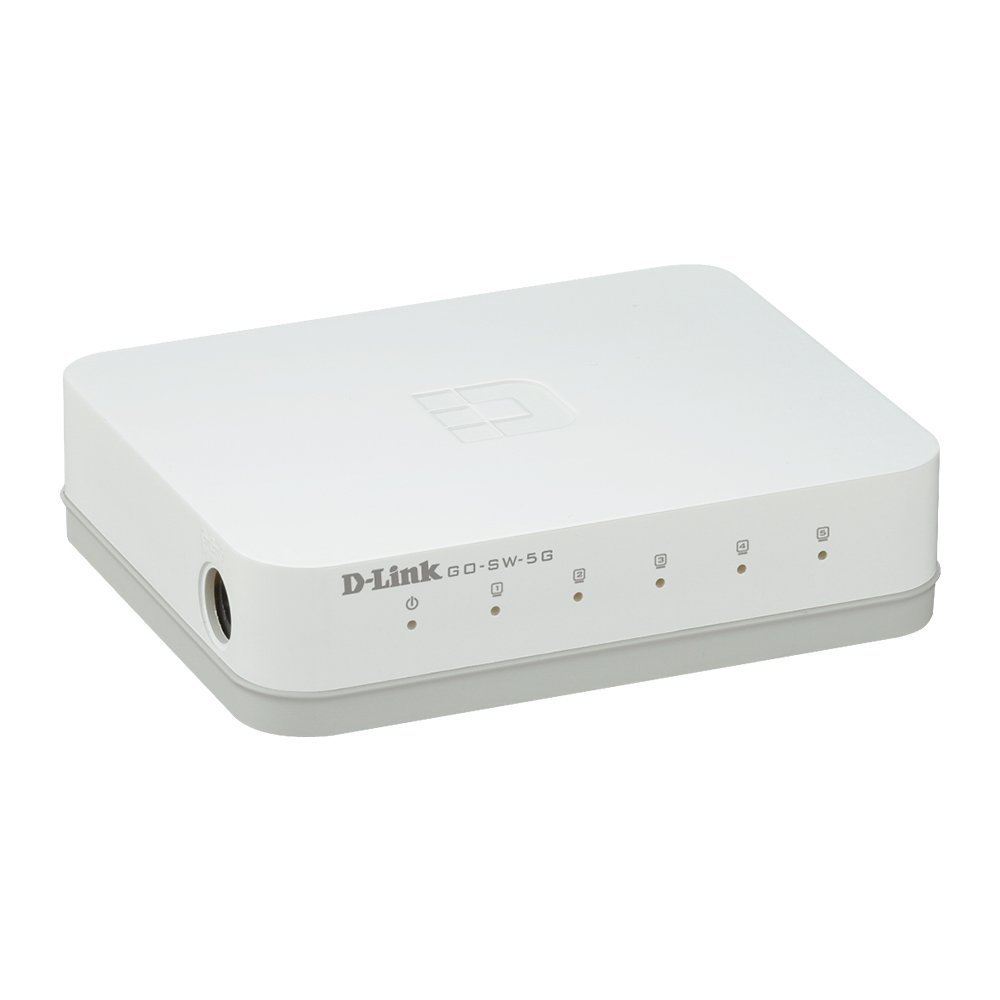

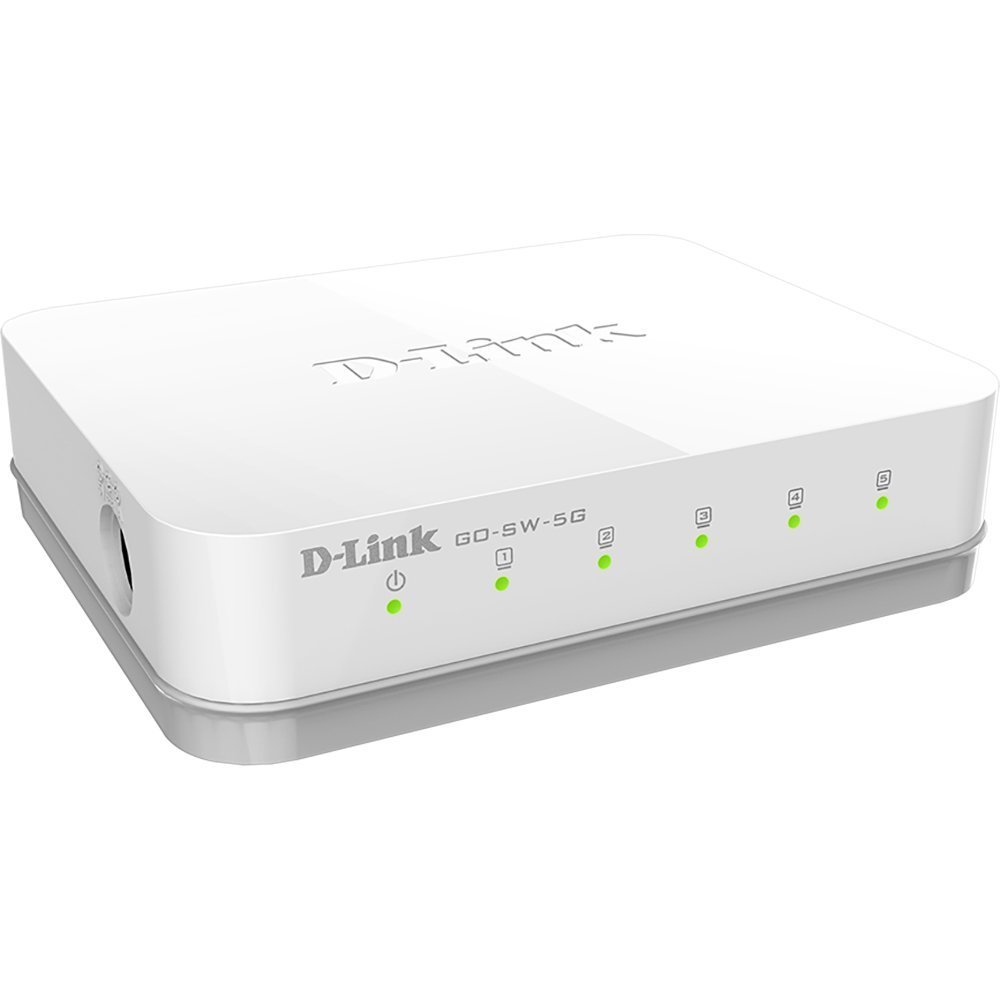

D-Link GO-SW-5G 5-Port Gigabit Desktop Switch
- Model: 5fmcax
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
D-Link 5-Port Unmanaged Gigabit Switch (GO-SW-5G). The GO-SW-5G offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. The D-Link 5-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
- Gigabit Speed
- Get the latest networking technology with Gigabit Ethernet, and experience data transfer rates of up to 2,000Mbps when used on compatible devices! Transfer and stream data over your network like never before.
- Compact Design

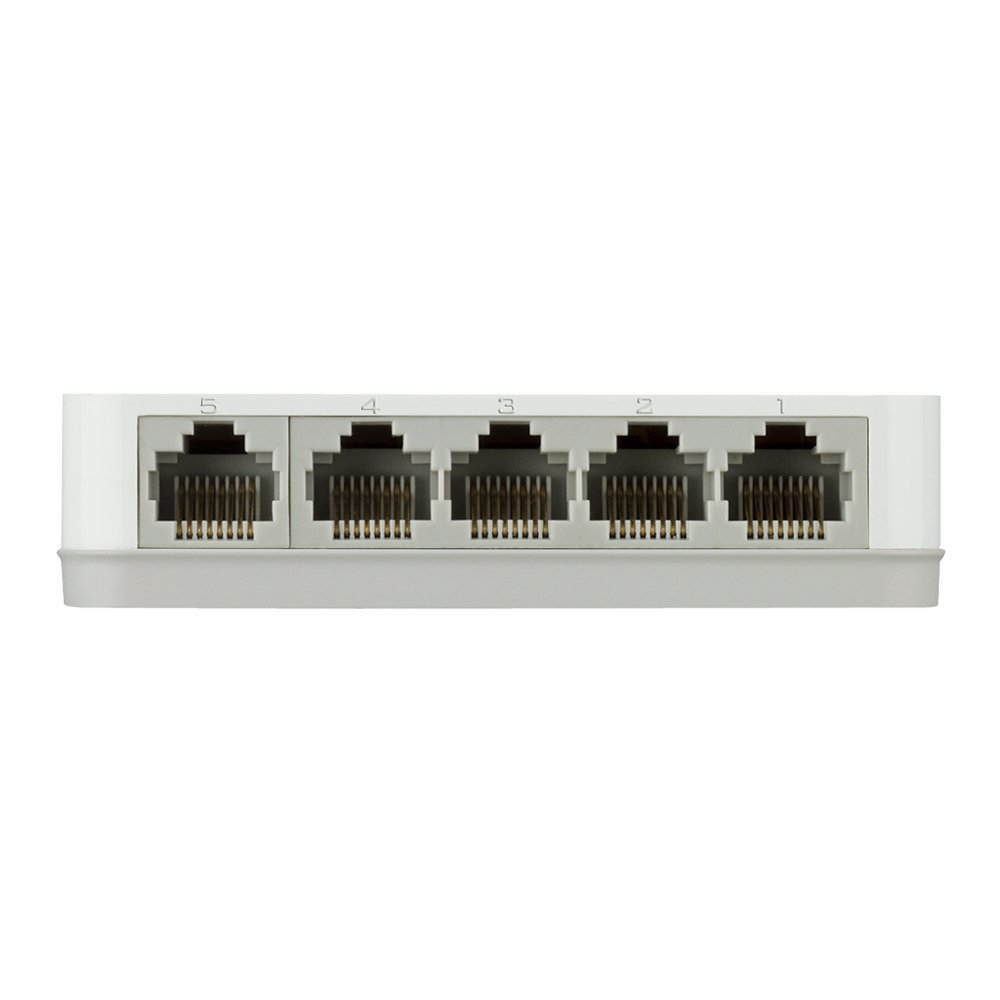

- This desktop Gigabit Ethernet switch will fit into just about any space, due to the compact design. All cords and cables are located at the rear of the switch for easy cable management.
- Plug & Play
- You don't have to install special software or drivers to expand your network - just plug the cables into this unmanaged switch, and it configures itself!
- Switching Fabric
- 10Gbps
- Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
- ANSI/IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Data Transfer Rates
- Ethernet:
- 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet:
- 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet:
- 2000 Mbps (full duplex)
- Network Cables
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
- Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
D-Link GO-SW-5G
- Switching Fabric
- 10Gbps
- Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
- ANSI/IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Protocol
- CSMA/CD
- Data Transfer Rates
- Ethernet:
- 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet:
- 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet:
- 2000 Mbps (full duplex)
- Topology
- Star
- Network Cables
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
- Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
- LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
- Transmission Method
- Store-and-forward
- MAC Address Table
- 2K
- MAC Address Learning
- Automatic update
- Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
- RAM Buffer
- 128KB per device
- Jumbo Frames
- 9,216 Bytes
- DC Input
- External 5 V/1 A Level "V" Power Adapter
- Power Consumption
- DC input: 1.67 watts
- AC input: 2.7 watts
- MTBF
- 815,700 hours
- Dimensions
- 3.8 x 3.1 x 1.1 inches (97 x 79 x 28 mm)
- Weight
- 3.688 ounces (105 grams)
- 5 Gigabit ports for blazing fast wired connectivity
- Easy "Plug & Play" Installation
- Eco-friendly with innovative power-saving design
- 3-Year Limited Warranty
Manufacturer：D-Link
MPN：GO-SW-5G
Format：External
Standards：IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：5 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：2K
Switching Method：Store and Forward
Jumbo Frames：9,216 Bytes
Protocols：CSMA/CD
Layer：Layer 2 Only
Topology：Star
LEDs：Per port: Link/Activity/Speed
Per device: Power
Power：External 5 V/1 A Level "V" Power Adapter
Features：Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
10 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
RoHS compliant
Plug-and-play installation
Dimensions：3.80" x 3.10" x 1.10"
Weight：0.50 lb.
Temperature：0ºC to 40ºC (32ºF to 104ºF)
Humidity：10% - 90%, Non-condensing
