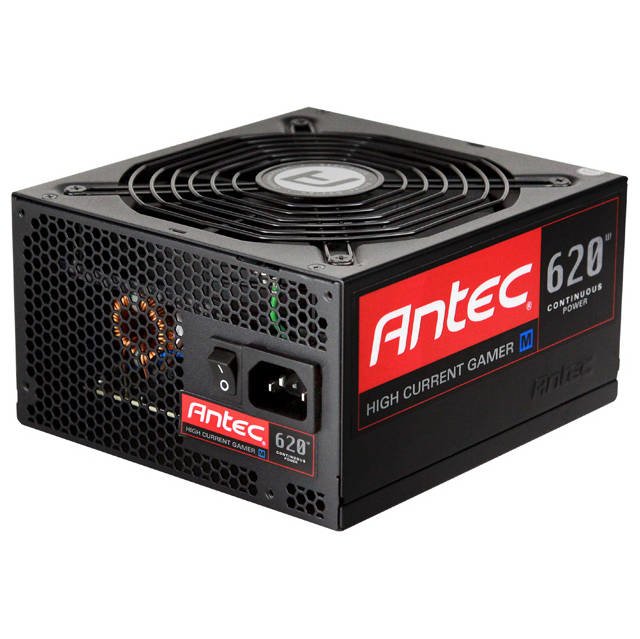

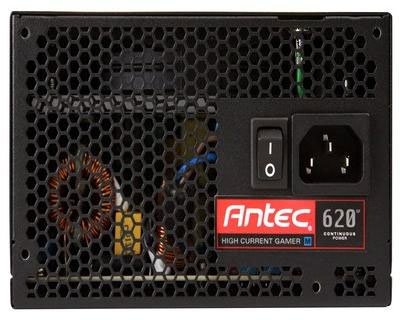

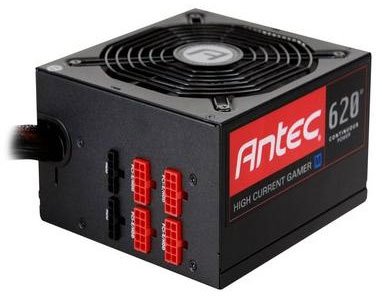

Antec 620M 620W 80 PLUS Bronze ATX Power Supply

This Antec 620m gaming power supply will provide a terrific source of power for your new gaming rig. This is an 80 plus certified power supply which will serve as an efficient power supply, offering 620 watts of energy to your CPU, video cards, and other components. The Antec high current gamer 620 series is fully modular, reducing cable clutter and waste. 620W Power Supply. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the package.

Antec High Current Gamer Series

Model Number

HCG-620M

Power Output

620 Watts

Energy Efficiency

80+ Bronze

DC Output

+5V@24A

+3.3V@24A

+12V@48A

Power Connectors

1 x 20+4-pin Main Connector

1 x 4+4-pin ATX12V / EPS12V Connector

2 x 6+2-pin PCI-E

6 x SATA

6 x Molex

1 x Floppy

• 620 watts of Continuous Power
• 80 PLUS Bronze certified - up to 88% efficient
• High Current +12V rail for graphics card compatibility and over current protection (OCP) for safety
• Quiet 135 mm double ball bearing cooling fan
• All Japanese brand capacitors for reliability
• Gold-plated High Current terminals for optimal conductivity
• ATX12V version 2.3 and EPS12V version 2.91 compliant
• Full industrial-grade protection:
  • Over current protection (OCP)
  • Over voltage protection (OVP)
  • Short circuit protection (SCP)
  • Over power protection (OPP)
• Universal Input - works on any 100V - 240V grid
• Active PFC with PF: 0.99 - less harmonic pollution and more savings on corporate electrical bills
• MTBF: 100,000 hours
• Meets ErP Lot 6: 2010 requirement: 5Vsb < 1W
• Safety: cUL, TUV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
• AQ3 Antec Quality 3 year limited warranty on parts and labor
• Unit Dimensions
  • 3.4" (H) x 5.9" (W) x 6.3" (D)
  • 86 mm (H) x 150 mm (W) x 160 mm (D)
• Package Dimensions
  • 4.5" (H) x 10.9" (W) x 7.1" (D)
  • 115 mm (H) x 273 mm (W) x 181 mm (D)
• Weight
  • Net : 4.3 lbs / 2.0 kg
  • Gross : 5.7 lbs / 2.6 kg

• ATX12V / EPS12V
• Modular
• 80 PLUS BRONZE Certified
• 100 - 240 VAC +/- 10% 50/60 Hz
• +5V@24A, +3.3V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A

Manufacturer：Antec
MPN：HCG-620M
Classification：HCG M Series
Type：ATX12V / EPS12V
Maximum Power：620W
Fans：1 x Quiet 135 mm Double Ball Bearing cooling fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
SLI：SLI Ready
Haswell Support：Yes
CrossFire：CrossFire Ready
Modular：Modular
Efficiency：Up to 87%
Energy-Efficient：80 PLUS BRONZE Certified
Input Voltage：100 - 240 VAC +/- 10%
Input Frequency Range：50/60 Hz
Input Current：9 - 4.5 A
Output：+5V@24A, +3.3V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A
MTBF：>100,000 Hours
Approvals：UL, cUL, CE, TUV, CB, FCC, GOST-R, CCC, C-Tick, BSMI
Dimensions：3.40" x 5.90" x 6.30"
Weight：4.20 lbs.
Connectors：1 x 20+4-pin Main Connector
1 x 4+4-pin ATX12V / EPS12V Connector
2 x 6+2-pin PCI-E
6 x SATA
6 x Molex
1 x Floppy
Features：High Current Hybrid Cable Management - special 10-pin and 5-pin modular connectors for High Current rail

Quiet 135 mm Double Ball Bearing cooling fan

Stealth Wires All wires darkened for minimal visibility in chassis

All Japanese brand capacitors for reliability

Thermal Manager, an advanced low voltage fan control for optimal heat & noise management

Up to 90% power available on +12V rail

ATX12V version 2.32 and EPS12V version 2.92 compliant

Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Surge & Inrush Protection (SIP)
