Rosewill CAPSTONE-550 Continuous 550W & 50 degree C Power Supply
- Model: amx5l1
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This Rosewill CAPSTONE Series 500W Power Supply delivers remarkable performance and features. Its 80 PLUS Gold efficiency compliments high-end systems. It features meshed cables so air flow is not compromised and makes cable routing easy, a large 140mm fan to provide silent cooling, and an outstanding number of safety approvals to make it one of the most cost-effective PSU options.
- 550 Watts
- 80 Plus Gold Certified
- Silent Cooling
- Model
- CAPSTONE-550
- Type
- ATX12V v2.31 & EPS12V v2.92
- Maximum Power
- Continuous 550W @ 50 degree C
- Fans
- 1 x Silent 140mm Fan
- PFC
- Active
- SLI/Crossfire
- Yes
- Modular
- No
- Power Good Signal
- 100-500ms
- Hold-up Time
- >16ms
- Energy Efficient
- 80 PLUS GOLD Certified
- Over Voltage Protection
- +3.3V, +5V, +12V
- Input Voltage
- 100 - 240 V
- Input Frequency Range
- 47 - 63 Hz
- Input Current
- 10A
- Output

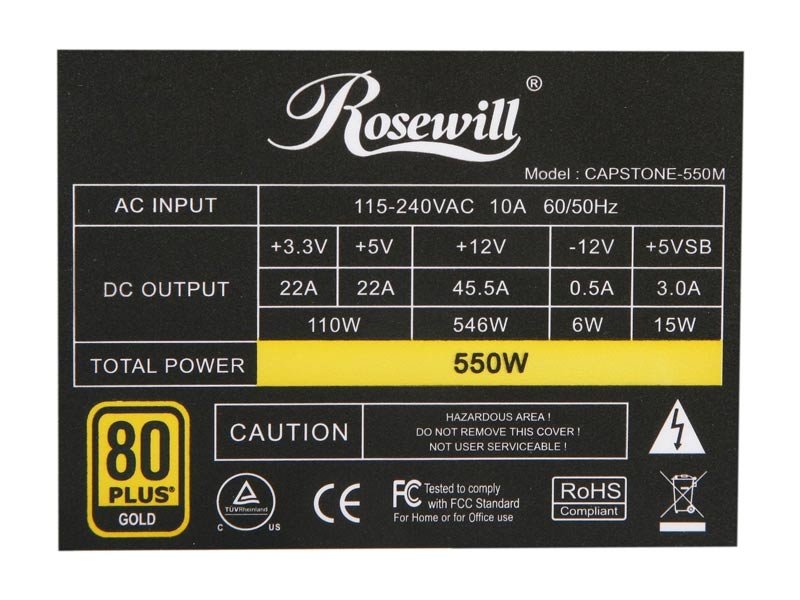

- +3.3V@22A,+5V@22A,+12V@45.5A,-12V@0.5A,+5VSB@3A
- MTBF (Mean Time Between Failures)
- 100,000 hours
- Approvals
- cTUVus, FCC, CE, ROHS
- Dimensions
- 5.91" x 3.39" x 6.42" (W x H x D)
- Connectors
- 1 x 20+4-Pin Main Connector
- 1 x 4+4-Pin ATX12V / EPS12V Connector
- 2 x 6+2-Pin PCI-E Connector
- 5 x 4-Pin Peripheral Connector
- 6 x 5-Pin SATA Connector
- 1 x 4-Pin Floppy Connector
