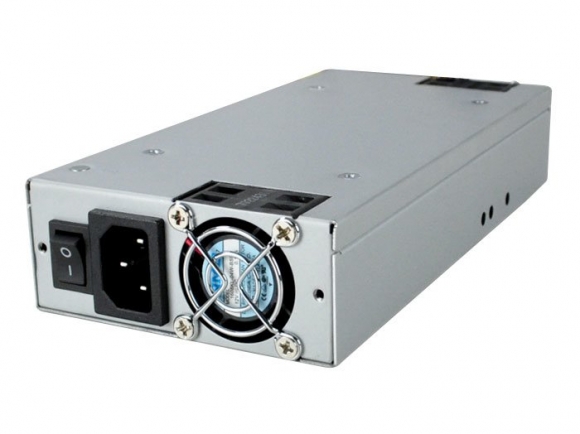

Athena Power Ap-u1atx40p8 400w 1u Power Supply W/ 8-pin P4 Connector
- Model: csa5zb
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Introducing Athena Power's 400W 1U (AP-U1ATX40P8) power supply. Designed for the 1U form factor, the 400 Watt 1U PSU provides a compact fit alongside flexibility for small industrial computer rackmounts. The EPS-12V 8pin and the addtional P4 4+4 pin connector gives full support for core 2 dual processors. The U1ATX40 also includes the Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability. With its internal front and rear 40mm ball-bearing fan and thermal fan speed control, allow this PSU to handle heavy server loads.
- Brand: Athena Power
- Model: AP-U1ATX40P8
- Single/Redundant: Single
- Maximum Power: 400W
- Main Connector: 20+4Pin
- Output Current: +3.3V@16A, +5V@16A, +12V1@11A, +12V2@11A, -12V@0.8A, +5VSB@3.0A
- Input Voltage: 88 -264 Volts Ac
- Input Frequency Range: 47 - 63 Hz
- Fans: 2
- MTBF: 100,000 Hours on Maximum Load at +25°C
- Hold-up Time: 17ms Minimum at Nominal Input Voltage
- Protection: Over voltage and circuit protection
- Dimensions: 3.93" x 1.57" x 7.87"
- Weight: 3.0lbs.
- Connectors
- ATX 24(20+4) Pin x 1
- P4-12V 4 Pin x 2
- EPS-12V 8 Pin x 1
- PCIE 6 Pin x 2
- SATA 15 Pin x 3
- Molex 4 Pin x 2
- Floppy 4 Pin x 1
- 400W Single
- 20+4Pin
- 60 / 50 Hz Frequency Range
Manufacturer：Athena Power
MPN：AP-U1ATX40P8
Single/Redundant：Single
Maximum Power：400W
Main Connector：20+4Pin
Output Current：+3.3V@16A, +5V@16A, +12V1@11A, +12V2@11A, -12V@0.8A, +5VSB@3.0A
Input Voltage：88 -264 Volts Ac
Input Frequency Range：47 - 63 Hz
MTBF：100,000 Hours on Maximum Load at +25°C
Hold-up Time：17ms Minimum at Nominal Input Voltage
Protection：Over voltage and circuit protection
Features：80PLUS Bronze Certification
Active PFC (Power Factor Correction) meets EN61000-3-2
Full Range Input: 90~264 Volts AC
Smart Auto Fan Speed Controller
100% Hi-pot, ATE and Burn-in Tested
Output Over Voltage, Short Circuit and Overload Protection.
Low Noise and Ripple
RoHS Compliance
Connectors
ATX 24(20+4) Pin x 1
P4-12V 4 Pin x 2
EPS-12V 8 Pin x 1
PCIE 6 Pin x 2
SATA 15 Pin x 3
Molex 4 Pin x 2
Floppy 4 Pin x 1
Dimensions：3.93" x 1.57" x 7.87"
Weight：3.0lbs.
Humidity：5 ~ 90% on Operating, 5 ~ 95% on Storage
Temperature：Operating: 0°C ~ +50°C on Full Load
Package Includes：1 x AP-U1ATX40P8
1 x Power Cord
