Rosewill ARC Series 650W Gaming Power Supply, 80 PLUS Bronze Certified, Single +12V Rail ARC-650
- Model: 5oz6mi
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
Employ high quality continuous power to all your components for your gaming needs by getting this Rosewill ARC Series 650W Gaming Power Supply.With performance and reliability, the 80 PLUS Bronze Certified Rosewill ARC 650 power supply is a great choice for your mainstream system. It features a strong single 12V rail and two 6+2-pin PCIe connectors that deliver robust power for your demanding processor and even multi-VGAs. A speed-adjustable 120mm fan cools the PSU efficiently. This power supply is also built with precision, and incorporates top-notch protection features to make sure all your components are safe and stable.
- Brand
- Rosewill
- Model
- ARC 650
- Series
- ARC Series
- Type
- ATX12V v2.31 & EPS12V v2.92
- Maximum Power Output
- 650W
- Efficiency
- > 82%, Up to 87%
- Energy-Efficiency
- 80 PLUS BRONZE Certified
- Cable Type
- Non-Modular
- Power Good Signal
- 100 - 500 ms
- Hold-Up Time
- > 16ms at 75% load
- Over Voltage Protection
- +3.3V, +5V, +12V
- Overload Protection
- Yes
- Temperature Rating
- 40° C
- Fan Diameter
- 120 mm
- Power Factor Correction (PFC)
- Active
- Main Connector
- 20+4Pin
- +12V Rails
- Single
- PCI-Express Connector
- 2 x 6+2-Pin
- SATA Power Connector
- 6
- SLI Support
- Yes
- CrossFire Support
- No
- Haswell Support
- No
- Input Voltage
- 100 - 240 V
- Input Frequency Range
- 50/60 Hz
- Input Current
- 10A
- Output
- +3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@2.5A
- MTBF
- 100k hours at 25 C degree, max. load, nominal input
- Approvals
- UL, FCC, CE, ROHS
- Over Voltage Protection
- Yes
- Over Load Protection
- Yes
- Short Circuit Protection
- Yes
- Under Voltage Protection
- Yes
- Over Current Protection
- Yes
- Over Power Protection
- Yes
- Color
- Black
- Dimensions
- 3.39" x 5.51" x 5.91"
- Weight
- 4.28 lbs

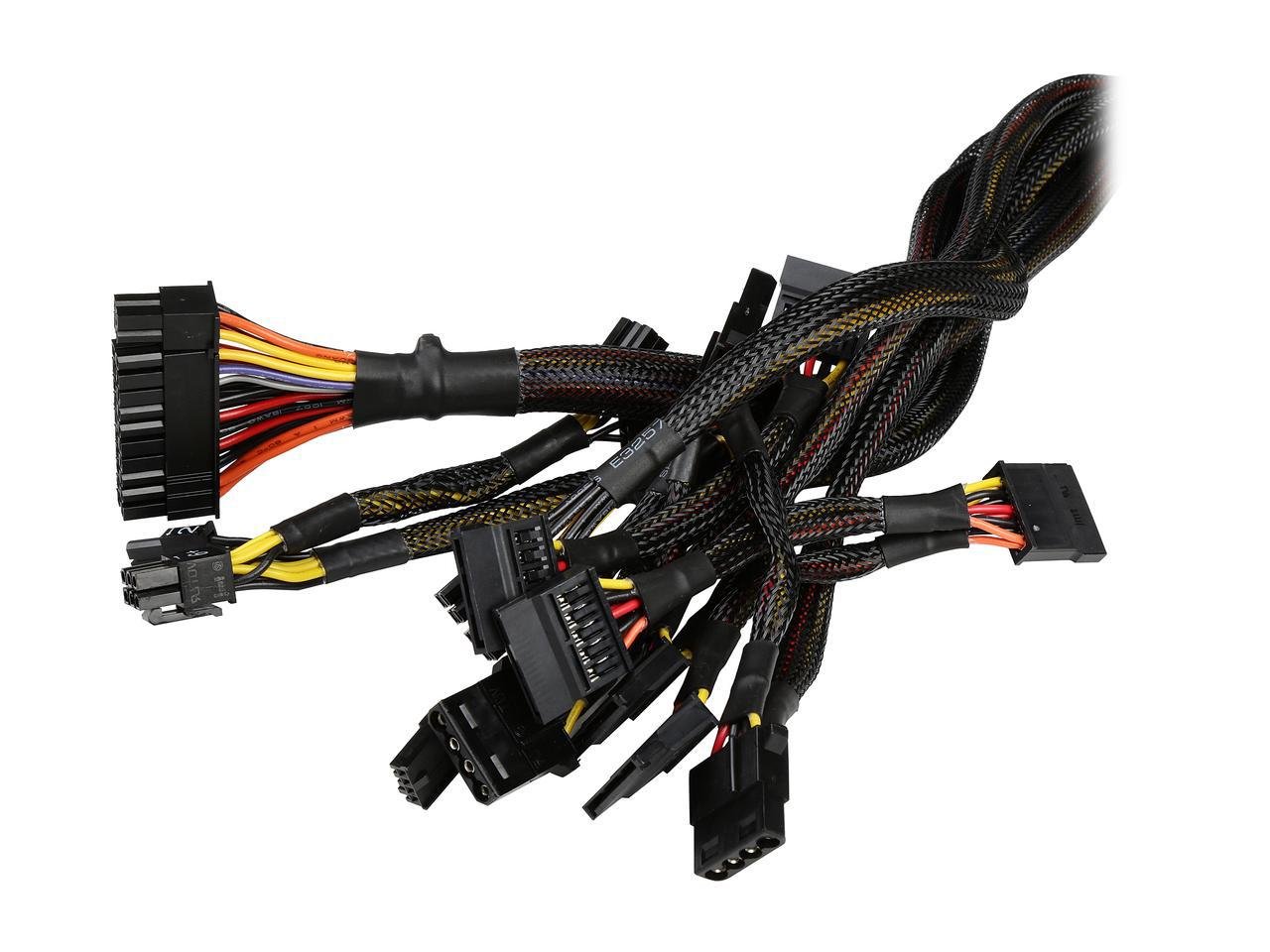

- Connectors
- 1 x 20+4-Pin Main Connector
- 1 x 4+4-Pin ATX12V / EPS12V Connector
- 2 x 6+2-Pin PCI-E Connector
- 4 x 4-Pin Peripheral Connector
- 6 x 5-Pin SATA Connector
- 1 x 4-Pin Floppy Connector
- Other Features
- 80 PLUS Bronze Certified
- Continuous 650W@40 C degree
- Single strong 12V rail - ideal for gaming systems
- SLI & CrossFire Ready - 2 x 6+2-Pin Connector
- 1 x Silent 120mm Fan with Auto Fan Speed Control for better silence
- Active-PFC with auto AC-input voltage adjustment (100-240V)
- Mesh sleeving on all cables for easier cable routing and better ventilation
- Over Voltage / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components
- Safety & EMI Approval: UL, FCC, CE, ROHS
Rosewill ARC 650
Details
Protection
Physical Features
Connectors
Other Features
- 650W Power Supply
- ATX 12V v2.31 & EPS 12V v2.92
- 100 - 240V AC 50 / 60 Hz
- 80 PLUS BRONZE Certified
- Silent 120mm Fan with Auto Fan Speed Control
- Strong Single +12V Rail - Ideal for Gaming Systems
- SLI & CrossFire-Ready / Intel 4th Gen CPU Certified
Manufacturer：Rosewill
MPN：ARC 650
Type：ATX12V v2.31 & EPS12V v2.92
Maximum Power：Continuous 650W at 40 Celsius degrees
Fans：1 x Silent 120mm Fan
PFC：Active
Main Connector：20+4Pin
+12V Rails：Single
PCI-Express Connector：2 x 6+2-Pin
SLI：Yes
Haswell Support：No
CrossFire：CrossFire Ready
Modular：Non-Modular
Power Good Signal：100-500ms
Hold-up Time：> 16ms at 75% load
Efficiency：> 82%, Up to 87%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：+3.3V, +5V, +12V
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：10A
Output：+3.3V @ 20A, +5V @ 20A, +12V @ 54A, -12V @ 0.5A, +5VSB @ 2.5A
MTBF：100k hours at 25 Celsius degrees, max. load, nominal input
Approvals：TUV, cTUVus, CE, FCC certified
Dimensions：3.39" x 5.51" x 5.91"
Weight：4.28 lbs.
