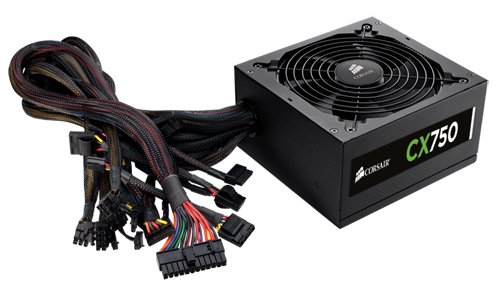

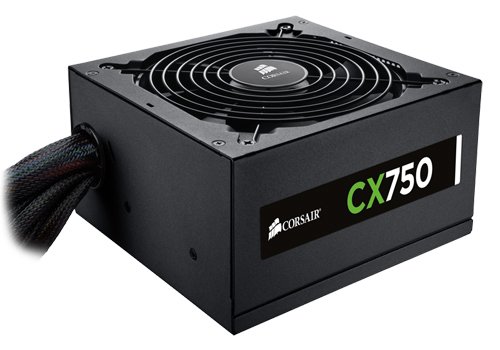

Corsair CX750 750 Watt 80 PLUS Bronze Certified ATX Power Supply
- Model: u2tjwp
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This Corsair 750W 80 PLUS ATX PSU gives high performance at over 80% efficiency, uses sleeved cables for improved airflow, and has a 120mm fan for cooling. Install this and use with multiple GPUs, as well as SATA drives and Floppy-disk drives. With this Corsair 750W 80 PLUS ATX PSU you'll have a power supply that stays strong under heavy loads.
- 750 Watts
- 80 Plus Bronze
- SATA connector X 6
- PCI-E Connector X 2
- 4 Pin Peripheral Connector X 4
- 100,000 hours MTBF
- Brand
- CORSAIR
- Model
- CX750
- Series
- CX series
- Type
- ATX12V / EPS12V
- Maximum Power
- 750W
- Fans
- 1
- PFC
- Active
- Main Connector
- 24Pin
- +12V Rails
- Single
- PCI-Express Connector
- 2 x 6-Pin
- SATA Power Connector
- 6
- SLI
- SLI Ready
- Haswell Support
- Certified
- CrossFire
- CrossFire Ready
- Modular
- No
- Efficiency
- Up to 85%
- Energy-Efficient
- 80 PLUS BRONZE Certified
- Over Voltage Protection
- Yes
- Input Voltage
- 90 - 264 V
- Input Frequency Range
- 47 - 63 Hz
- Input Current
- 10 - 5 A
- Connectors
- 1 x ATX Connector
- 1 x 4+4 EPS Connector
- 2 x PCI-E Connector
- 4 x 4 Pin Peripheral Connector
- 6 x SATA Connector
- 1 x Floppy Connector
- Output
- +3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
- MTBF
- 100,000 hours
- Dimensions
- 5.9" x 3.4" x 6.3"
- Weight
- 7.2 lbs.
Model
Spec
- ATX12V / EPS12V
- 80 PLUS BRONZE Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
- ATX12V & EPS12V Power Supply
- 80 Plus Bronze ErP Lot 6
Manufacturer：CORSAIR
MPN：CX750
Classification：CX series
Type：ATX12V / EPS12V
Maximum Power：750W
Fans：1 x Ultra-quiet 120mm fan
PFC：Active
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：4 x 6+2-Pin
SLI：SLI Ready
CrossFire：CrossFire Ready
Modular：Non-Modular
Efficiency：Up to 85%
Energy-Efficient：80 PLUS BRONZE Certified
Over Voltage Protection：Yes
Input Voltage：90 - 264 V
Input Frequency Range：47 - 63 Hz
Input Current：12 - 6 A
Output：+3.3V@25A, +5V@25A, +12V@62A, -12V@0.8A, +5VSB@3A
MTBF：100,000 hours
Approvals：UL, CUL, CE, CB, FCC Class B, TÜV, CCC, C-tick
Dimensions：3.39" x 5.91" x 6.30"
Weight：7.20 lbs.
Connectors：1 x ATX Connector
1 x EPS Connector
4 x PCI-E Connector
4 x 4 Pin Peripheral Connector
6 x SATA Connector
1 x Floppy Connector

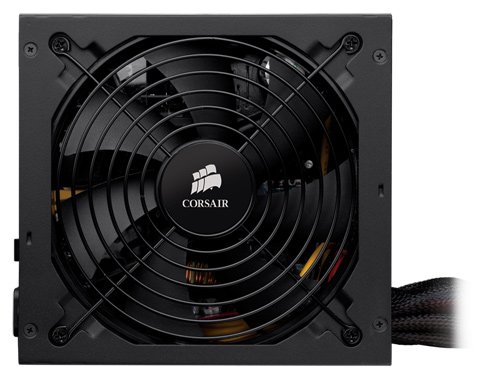

Features：Ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature
80 PLUS Bronze certified
0.99 Active Power Factor Correction provides clean and reliable power
Complies with ErP Lot 6 European Union standard for low standby power consumption
Universal AC input from 90 - 264V - No more hassle of flipping that tiny red switch to select the voltage input!
Extra long fully-sleeved cables support full tower chassis
Dedicated single +12V rail offers maximum compatibility with the latest components
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components
Supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems
