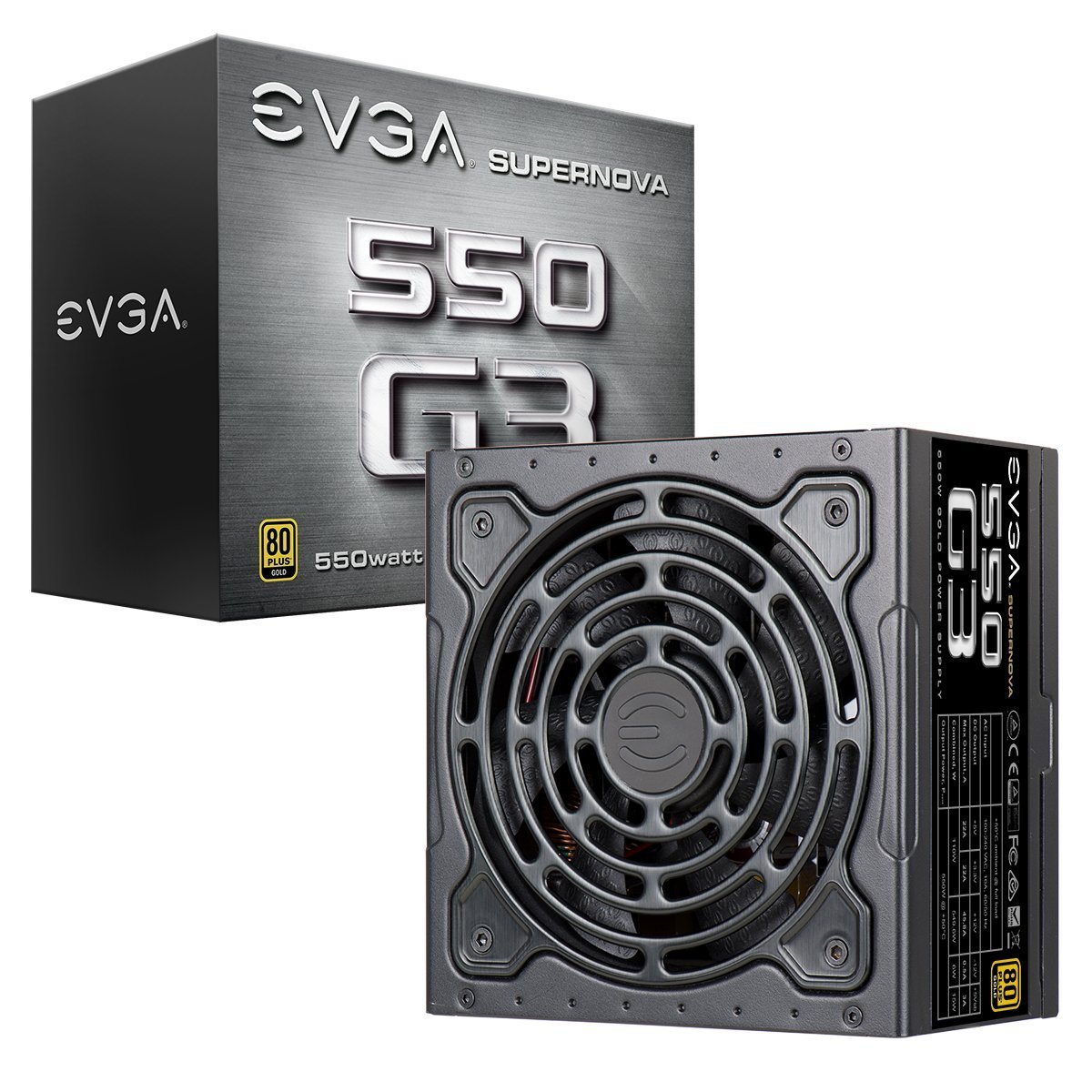

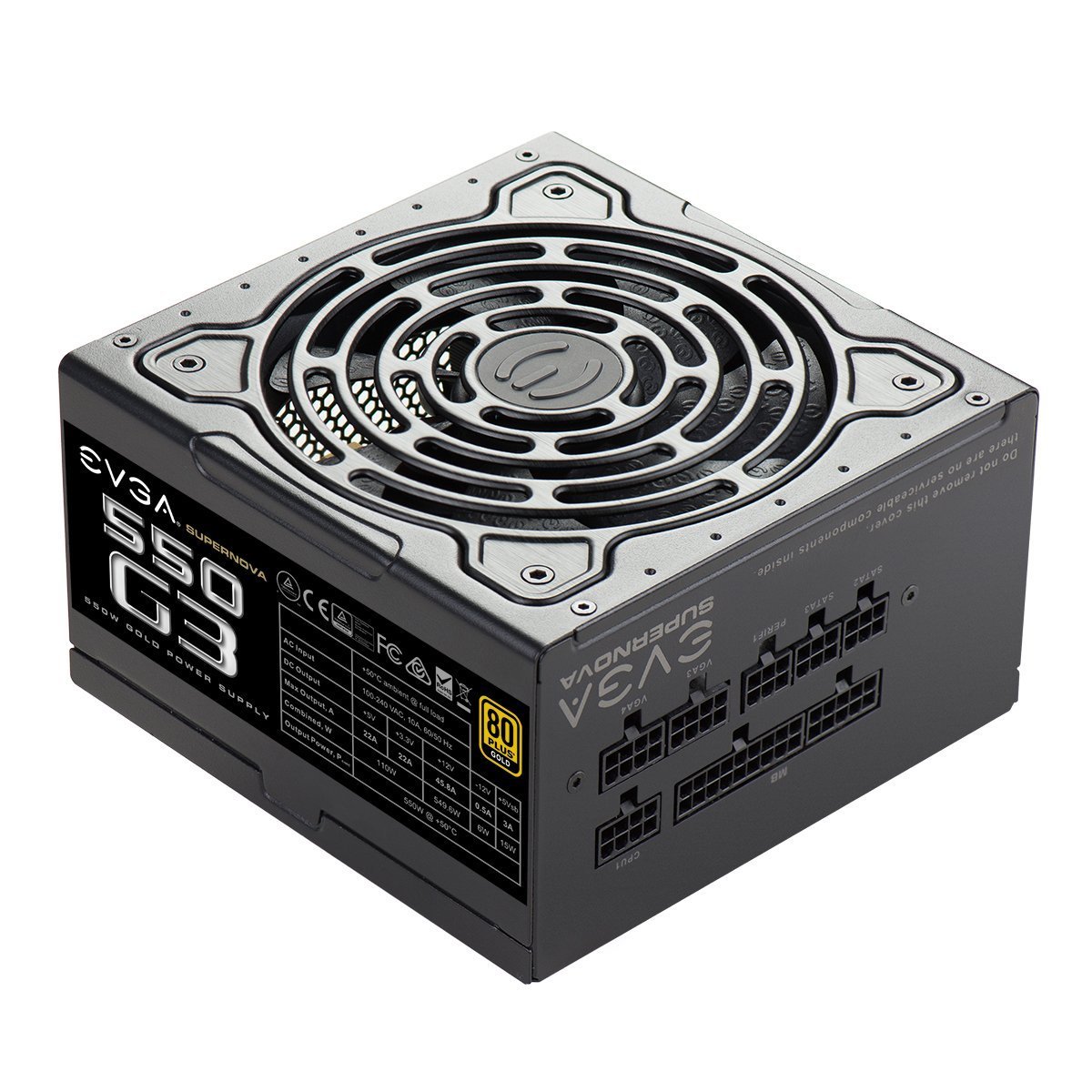

EVGA SuperNOVA 550 G3, 220-G3-0550-Y1, 80+ GOLD, 550W Fully Modular Power Supply
- Model: tz2kxr
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
EVGA SuperNOVA 550 G3, 80 Plus Gold 550W, Fully Modular, Eco Mode with New HDB Fan, 7 Year Warranty, Includes Power ON Self Tester, Compact 150mm Size, Power Supply 220-G3-0550-Y1. Unleash the next generation in power with the EVGA SuperNOVA 550 G3 Power Supply. Based on the award winning G2 series Power Supplies from EVGA, This power supply features 80 PLUS Gold rated efficiency, and clean, continuous power to every component. The ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations.
A reduced size does not mean reduced performance with the EVGA SuperNOVA G3 power supplies. At only 150mm long, this makes these some of the smallest power supplies on the market today, while offering improved performance and features.
- ATX12V / EPS12V
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
- +3.3V @ 22A, +5V @ 22A, +12V @ 45.8A, +5Vsb @ 3.0A, -12V @ 0.5A
Manufacturer：EVGA
MPN：220-G3-0550-Y1
Classification：G3 Series
Type：ATX12V / EPS12V
Maximum Power：550W
Fans：1 x 130mm Hydraulic Dynamic Bearing Fan
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：3 x 6+2-Pin
SLI：SLI Ready
CrossFire：CrossFire Ready
Modular：Full Modular
Efficiency：90% (115 VAC) / 92% (220 VAC - 240 VAC)
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：10A

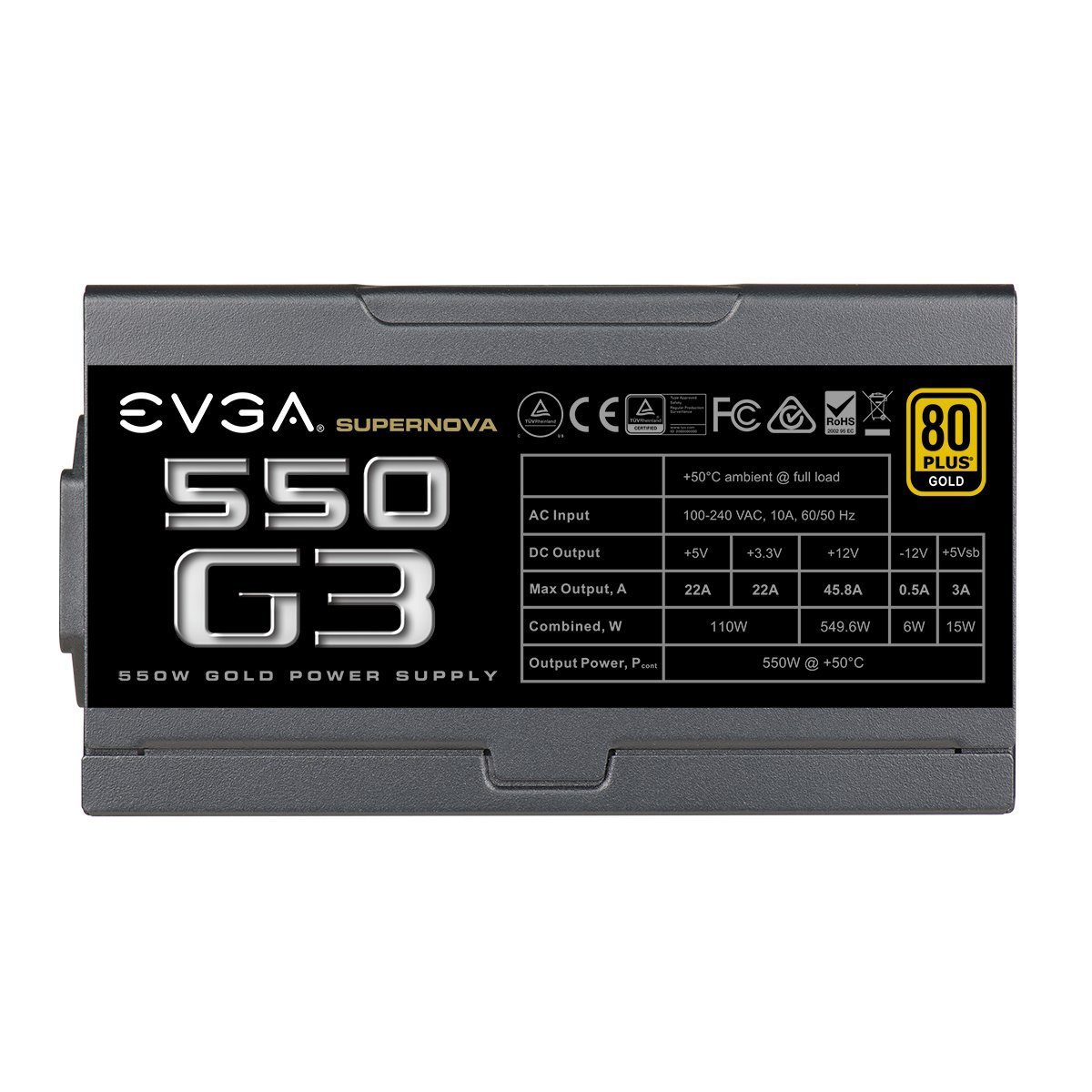

Output：+3.3V @ 22A, +5V @ 22A, +12V @ 45.8A, +5Vsb @ 3.0A, -12V @ 0.5A
MTBF：100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.91" x 5.91"
Weight：4.00 lbs.

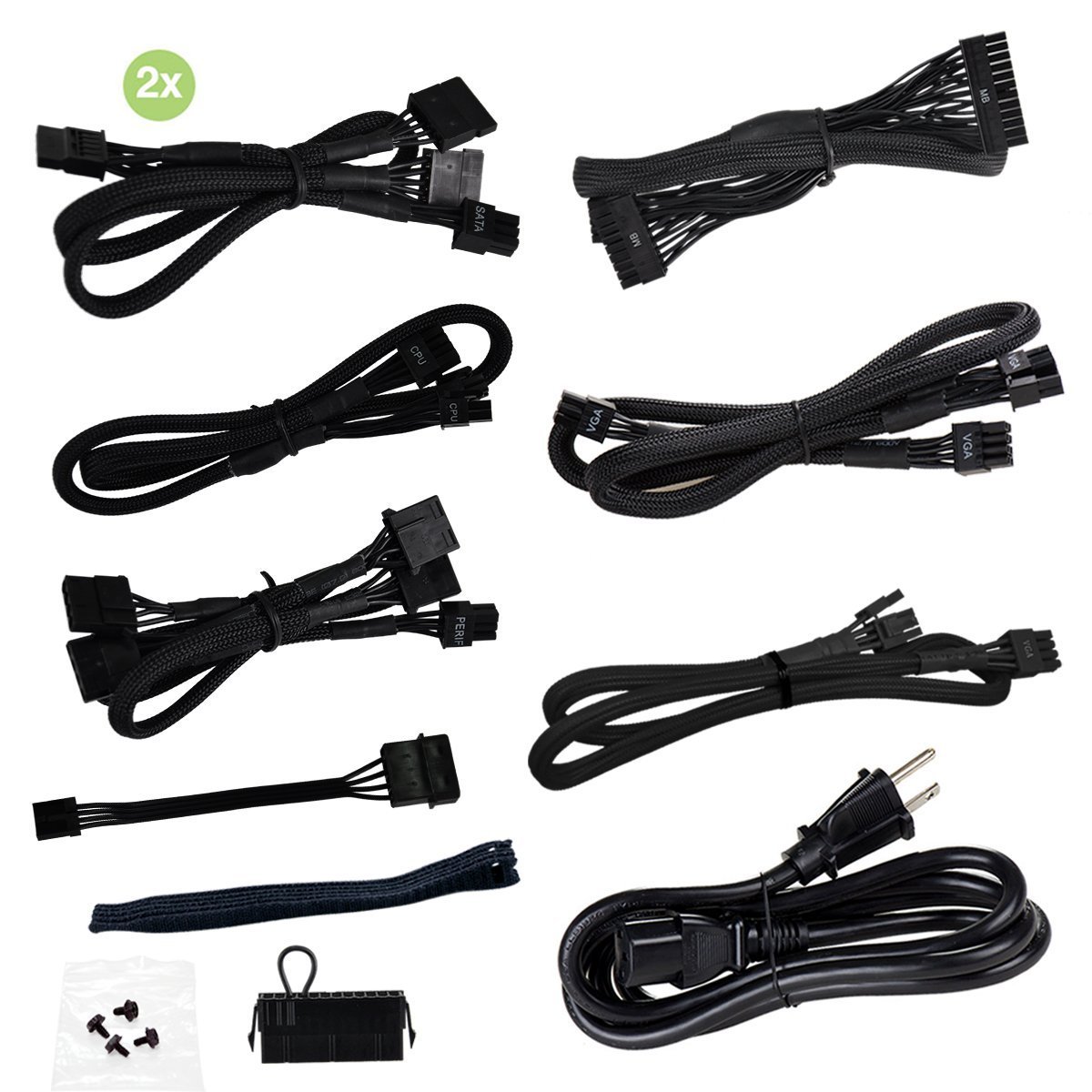

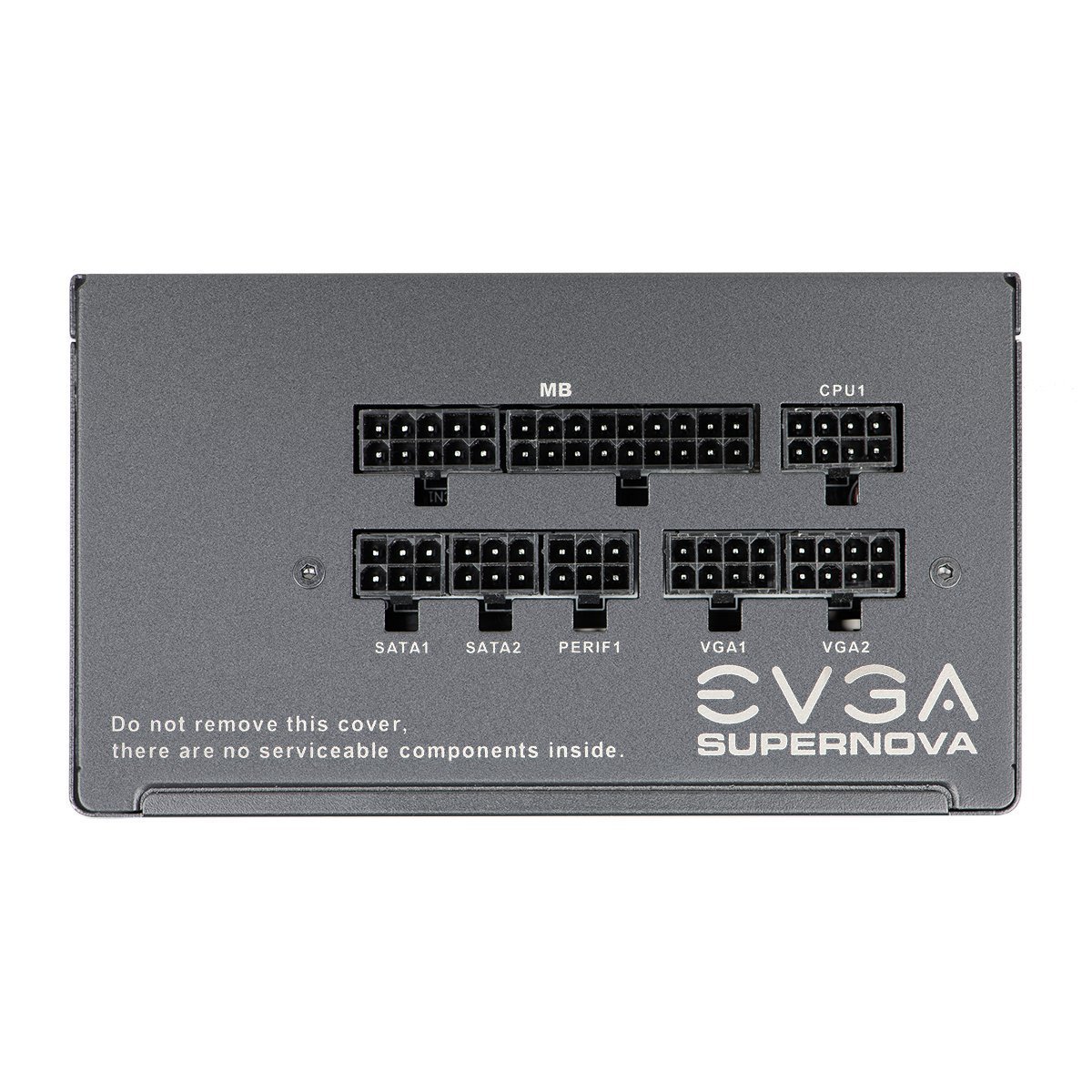

Connectors：1 x 24Pin ATX
1 x 8pin (4+4) EPS (CPU)
3 x 8pin (6+2) PCIE
6 x SATA
4 x Four-Pin Peripheral
1 x Floppy
Features：80 PLUS Gold certified, with 90% (115 VAC) / 92% (220 VAC - 240 VAC) efficiency or higher under typical loads
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
