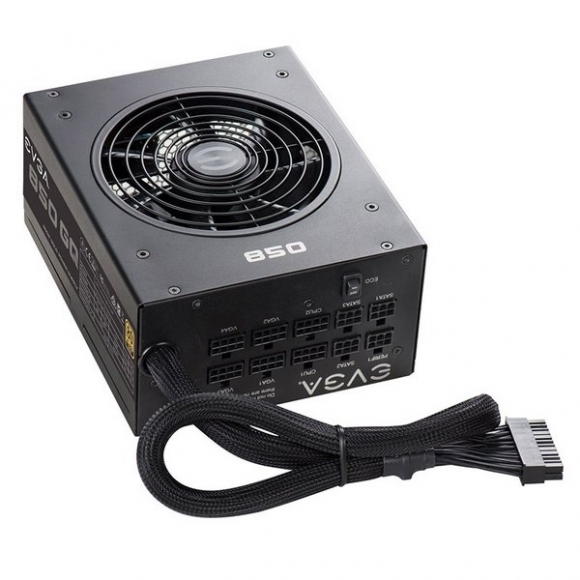

EVGA 210-GQ-0850-V1 850W ATX Power Supply

Are you building a new high-end rig? Use the EVGA 850 GQ Power Supply to run that monstrous system. This unit is SLI and CrossFire ready as well as Haswell ready so you can go all out in your GPU and CPU choices. It has 80PLUS Gold rated efficiency so you are assured that the unit is not wasting any power and generating unnecessary heat. Its modular design is a big help in cable management to ensure your case has enough airflow for your cooling components. The unit uses only 100% high quality Japanese Nippon Chemi-Con Solid State Capacitors so you get the most reliability and performance. The unit also has an EVGA ECO feature which makes the fan spin only when necessary, resulting in completely silent operation during low to medium load.

• Unrivaled Performance
• Superior Silence
• 80PLUS Gold Rated Efficiency
• Modular Design
• Single +12V Rail
• Active Clamp Circuit Design
• NVIDIA SLI and AMD Crossfire Ready
• 100% High Quality Japanese Nippon Chemi-Con Solid State Capacitors
• 5 Year Warranty and unparalleled EVGA Customer Support

Product Specifications

Power Capacity

850W

OPERATING TEMPERATURE

0 to 50 C

JAPANESE CAPACITORS

100%

ECO MODE

Yes

MTBF

100,000 Hours

NET WEIGHT

7 lbs

SIZE

85mm (H) x 150mm (W) x 180mm (L)

APPROVALS

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 6 2013 Requirement

FAN SIZE / BEARING

135mm Fluid Dynamic Bearing

• 80 PLUS GOLD Certified
• Whisper silent with 135mm Fluid Dynamic Bearing Fan
• 100% Japanese Capacitors ensure long-term reliability
• Semi-Modular Design to reduce clutter and improve airflow
• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Manufacturer：EVGA
MPN：210-GQ-0850-V1
Classification：850 GQ
Type：ATX12V / EPS12V
Maximum Power：850W
Fans：1 x 135mm Fluid Dynamic Bearing Fan
PFC：Active
Main Connector：24Pin
+12V Rails：Single
PCI-Express Connector：8 x 6+2-Pin
SATA Power Connector：9
SLI：SLI Ready
CrossFire：CrossFire Ready
Modular：Semi-Modular
Efficiency：90% (115 VAC) / 92% (220 VAC - 240 VAC) or Higher Typical
Energy-Efficient：80 PLUS GOLD Certified
Over Voltage Protection：Yes
Input Voltage：100 - 240 V
Input Frequency Range：50/60 Hz
Input Current：14 A
Output：+3.3V@24A, +5V@24A, +12V@70.8A, +5VSB@3A, -12V@0.5A
MTBF：>100,000 Hours
Approvals：TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement
Dimensions：3.35" x 5.91" x 7.00"
Weight：6.00 lbs.
Connectors：1 x 24-Pin ATX
2 x 8-Pin (4+4) EPS (CPU)
8 x 8-Pin (6+2) PCIE
9 x SATA
3 x FourPin Peripheral
2 x Floppy
Features：80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

NVIDIA SLI & AMD Crossfire Ready

Modular Design to reduce clutter and improve airflow

100% Japanese Capacitors ensure long-term reliability

Active Clamp +DC to DC design for efficient operation

EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads

Whisper Silent with 135mm Fluid Dynamic Bearing Fan

Active Power Factor Correction (PFC)

Heavyduty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
