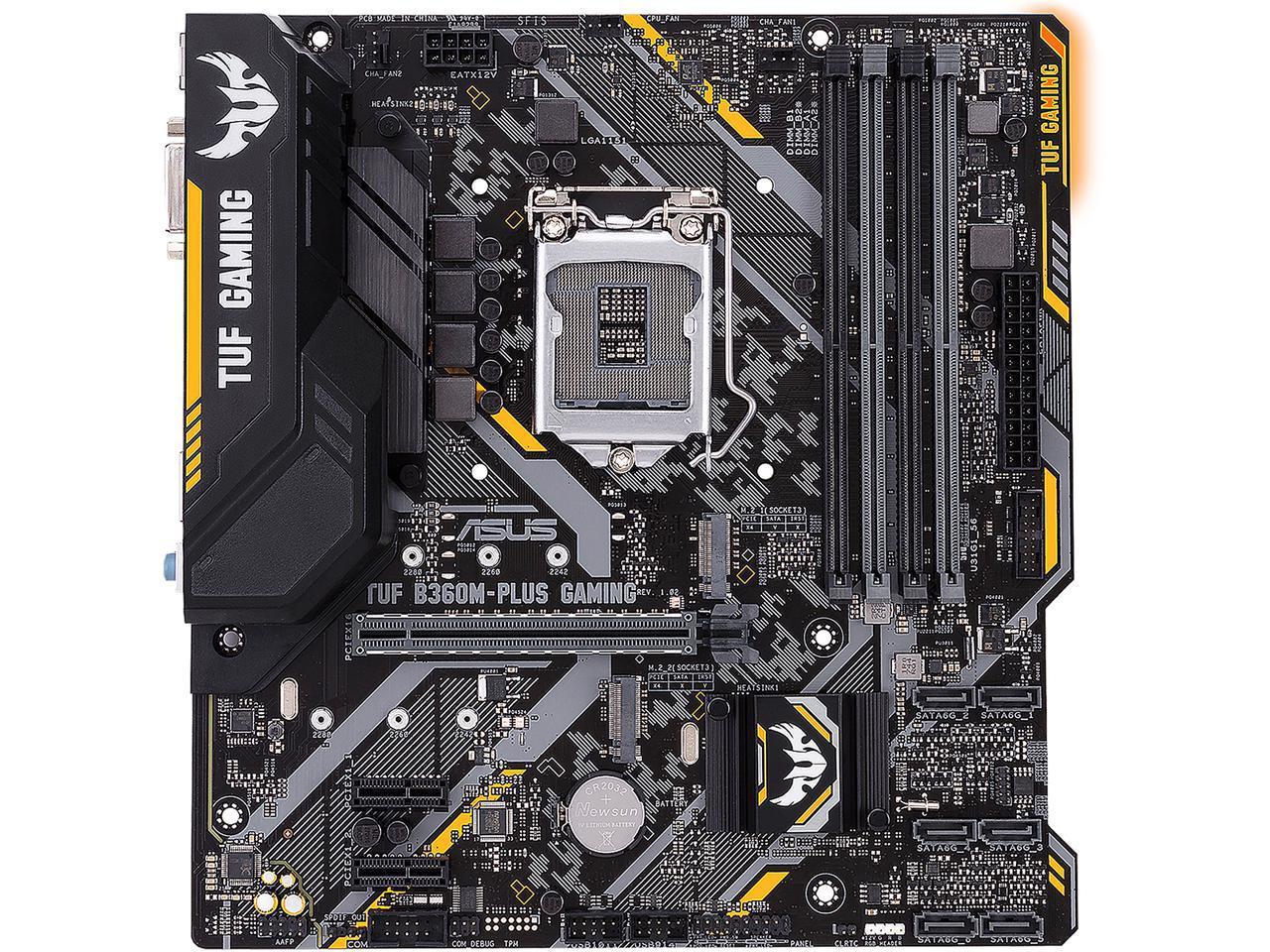

ASUS TUF B360M-PLUS GAMING LGA 1151 Intel B360 HDMI SATA 6Gb/s USB 3.1 Micro ATX Motherboard

This ASUS TUF B360M-PLUS GAMING LGA 1151 motherboard is compatible with the latest (8th) generation Intel processor for maximum performance. Built with ASUS TUF military grade components for maximum durability for years of service and a 3 year warranty to back that claim. Ambient lighting via the Aura Sync RGB provides an additional layer of customization to your custom PC build.

TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

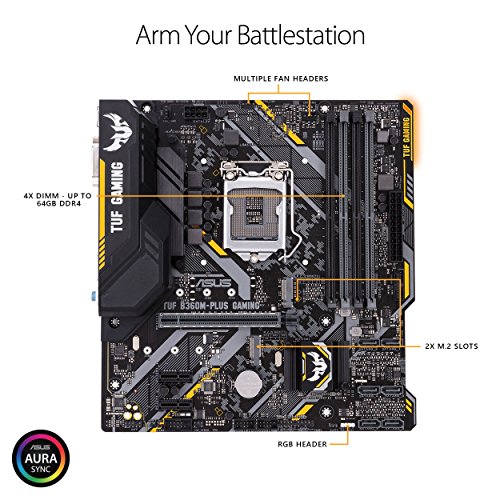

The Asus B360M-PLUS GAMING motherboard supports LGA1151 processors and will fit in a standard Micro ATX case. This board is powered by the Intel B360 chipset and has support for 4 x 288-pin DIMM memory sticks with a max memory of up to 64GB. You can choose memory speeds of up to DDR4-2133 / 2400 / 2666. This motherboard has 6 SATA ports and 1 x 10/100/1000 Mbps Ethernet built-in. Advanced features of the motherboard include: stylish Silver / Orange design.

• mATX Form Factor
• LGA 1151 Socket
• Intel B360 Chipset

• Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN, USB 3.1 Gen2, and Intel Optane Memory compatibility
• Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
• Fan Xpert 2+ provides advanced fan and liquid cooling controls for dynamic system cooling and management

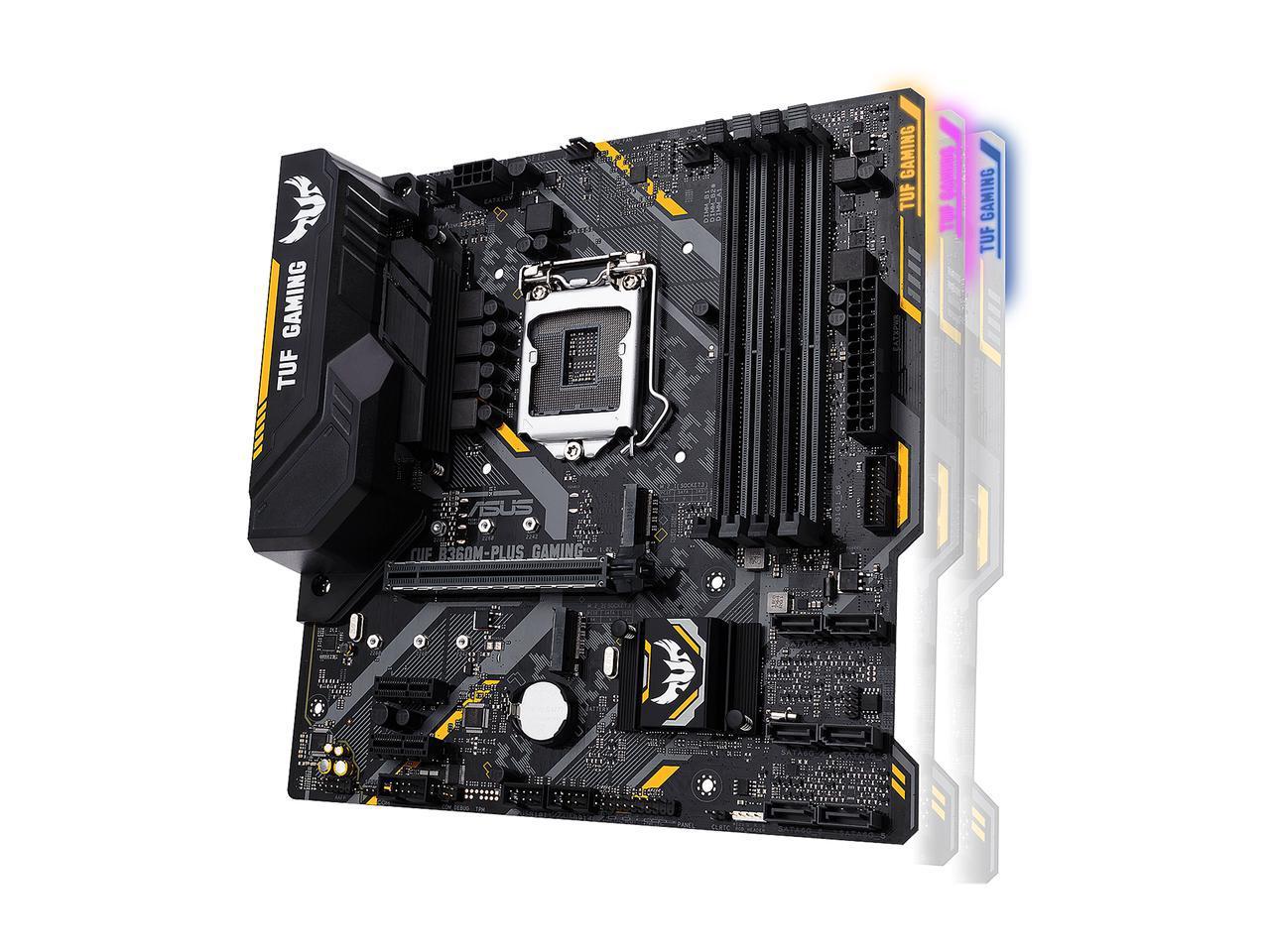

• Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
• Guaranteed reliability built on military-grade engineering

Manufacturer：ASUS
Classification：TUF
MPN：B360M-PLUS GAMING
CPU Socket Type：LGA 1151 (300 Series)
Processor Type：LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Pentium and Celeron processors* Not backward compatible with older generation of LGA 1151 CPUs** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies：Turbo Boost Technology 2.0* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset：Intel B360
Onboard Video Chipset：Integrated Graphics Processor - Intel HD Graphics supportMulti-VGA output support: HDMI, DVI-D portsSupports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60HzSupports DVI-D with max. resolution 1920 x 1200@60Hz Maximum shared memory of 1024MB (for iGPU exclusively)
Number of Memory Slots：4×288pin
Memory Standard：DDR4 2666/ 2400/ 2133 * The maximum memory frequency supported varies by processor.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Maximum Memory Supported：64GB
Channel Supported：Dual Channel
PCI Express 3.0 x16：1 x PCI Express 3.0 x16 slot (at x16 mode)
PCI Express x1：2 x PCI Express 3.0 x1 slots
SATA 6Gb/s：6 x SATA 6.0Gb/s ports (gray)
M.2：1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 mode)*1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)*** When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used** Only the M.2_2 supports Intel IRST Technology and Intel Optane memory
Audio Chipset：Realtek ALC887
Audio Channels：8 Channels
LAN Chipset：Intel I219-V
Max LAN Speed：10/100/1000Mbps

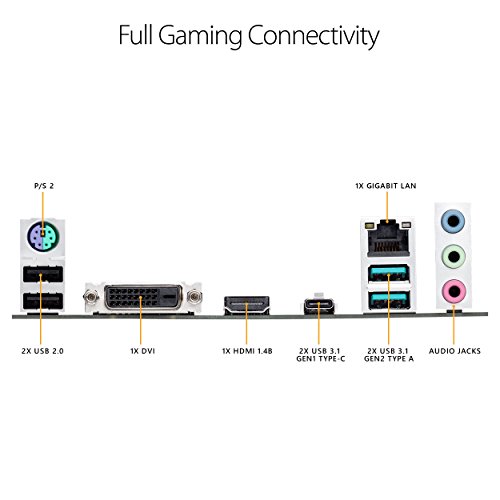

PS/2：1 x PS/2 keyboard/mouse port
Video Ports：1 x DVI-D port
HDMI：1 x HDMI
RJ45：1 x RJ45
USB 3.1：2 x USB 3.1 Gen 2 (up to 10Gbps) ports (Type A, teal blue)1 x USB 3.1 Gen 1 (up to 5Gbps) port (Type C)
USB 1.1/2.0：2 x USB 2.0
Audio Ports：3 Audio jacks support 8 channels** Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Onboard USB：1 x USB 3.1 Gen 1 (up to 5Gbps) connector support additional 2 USB ports (19-pin)2 x USB 2.0/1.1 connectors support additional 4 USB ports
Other Connectors：1 x CPU Fan connector2 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control1 x Front panel audio connector (AAFP)1 x system panel connector1 x Clear CMOS header1 x S/PDIF out header1 x COM header1 x Aura RGB Strip header
Form Factor：Micro ATX
Dimensions (W x L)：9.6" x 9.1"
Power Pin：1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector
Features：ASUS Special Features:TUF Components (TUF Cap, TUF Chokes, MOSFET & LANGuard; certified by military-standard)ASUS TUF PROTECTION - ASUS SafeSlot - Protect your graphics card investment- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 5 Phase digital power designSuperb PerformanceASUS OptiMem- Improved DDR4 stabilityM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer speedsASUS Fan Xpert 2+- Ultimate cooling and quietnessASUS EPU- EPUUEFI BIOS- Most advanced options with fast response timeGaming ScenarioAURA- Bright up your BuildAudio Features - Audio that roars on the battlefieldASUS Exclusive Features- ASUS Ai Charger- ASUS AI Suite 3- ASUS File Transfer- ASUS PC CleanerEZ DIYUEFI BIOS EZ Mode- featuring friendly graphics user interface- ASUS CrashFree BIOS 3- ASUS EZ Flash 3Q-Design- ASUS Q-Slot- ASUS Q-DIMMASUS Quiet Thermal Solution:Quiet Thermal Design- ASUS Fan Xpert 2+- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sinkBIOS:128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WOL by PME, PXESupport DVD:DriversASUS UtilitiesEZ Update Anti-virus software (OEM version)Operating System Support:Windows 10 (64-bit)
Package Includes：Accessories:2 x Serial ATA 6.0Gb/s cable1 x Support DVD1 x M.2 Screw package1 x I/O Shield1 x TUF GAMING sticker User's manual1 x TUF Certification Card
