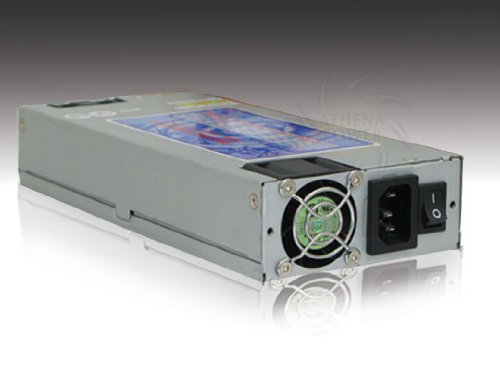

Athena Power AP-U1ATX50 1U 500W Power Supply with Remote ON/OFF

Power up your system with this 500W 1U power supply from Athena Power! The unique 1U form factor fits in a variety of rackmount servers, giving you everything you need for stable operating and long lasting uptimes. This 500W server power supply has dual fans for maximum cooling and reliability.. 1U EPS-12V/P4-ATX v2.2 500W IPC. Athena Computer Power AP-U1ATX50 1U 500W Server Power Supply. This is a very affordable option to get 500 watts of peak power to run your server. A very stable, high quality unit that is rated for continuous server use, the AP-U1ATX50 fits standard 1u chassis and is 80 Plus Bronze Certified with Active PFC. Dual Fans cooling (one on the front and one in the rear of the supply) create great airflow and cooling throughout your enclosure. 20+4pin ATX connector, P4-12V 4 Pin x 2, EPS-12V 8 Pin x 1, SATA 15 Pin x 4, Molex 4 Pin x 4, and Floppy 4 Pin x 1.

Athena Power AP-U1ATX50

Output Power

500 Watts

Input Votage

88 ~ 264 Volts AC

Frequency

60/50 Hz

Connectors

ATX Connector 24 (20+4) Pin x 1

EPS-12V 8 Pin x 1

EPS8(4+4) 4+4 Pin x 1

SATA 15 Pin x 6

Molex 4 Pin x 5

Floppy 4 Pin x 1

PCIE (6+2) Pin x 1

Dimension

3.93" x 1.57" x 8.66"

SLI / CrossFire Support

The included PCI Express x16 6-Pin connectors allow you to hook up more than one high end graphics card

Dual Fans

The included 40mm cooling fans keep your power supply running cool in addition to moving the hot air out of your system

Output Power

500 Watts

Input Votage

88 ~ 264 Volts AC

Frequency

60/50 Hz

Temperature Range

Operating: 0 Degrees C ~ +50 Degrees C on Full Load; Storage & Shipping: -20 Degrees C ~ +80 Degrees C

MTBF

100,000 Hours on Maximum Load at +25 Degrees C

Rise time

Less than 20 ms

Hold-up Time

17 ms Minimum at Nominal Input Voltage

Connectors

ATX Connector 24 (20+4) Pin x 1

EPS-12V 8 Pin x 1

EPS8(4+4) 4+4 Pin x 1

SATA 15 Pin x 6

Molex 4 Pin x 5

Floppy 4 Pin x 1

PCIE (6+2) Pin x 1

Dimension

3.93" x 1.57" x 8.66"

Weight

3.50lb

• 500W Single
• 20+4Pin

Manufacturer：Athena Power
MPN：AP-U1ATX50
Single/Redundant：Single
Maximum Power：500W
Main Connector：20+4Pin
Output Current：+3.3@20A,+5V@20A,+12V1@20A, +12V2@20A, +12V3@16A, -12V@0.5A, +5VSB@3A
Input Voltage：88 - 264 V
Input Frequency Range：47 - 63 Hz
MTBF：100,000 Hours on Maximum Load at +25 degree C
Hold-up Time：17 ms Minimum at Nominal Input Voltage
Features：Connectors:
ATX Connector 24 (20+4) Pin x 1
EPS-12V 8 Pin x 1
P4-12V (4+4) Pin x 1
SATA 15 Pin x 4
Molex 4 Pin x 4
Floppy 4 Pin x 1
Dimensions：1.59" x 8.66" x 3.94"
Weight：3.50 lbs.
Humidity：Operating: 0 degree C ~ +50 degree C on Full Load
Storage & Shipping: -20 degree C ~ +80 degree C
