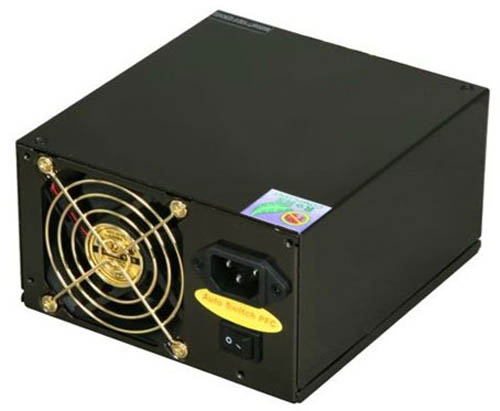

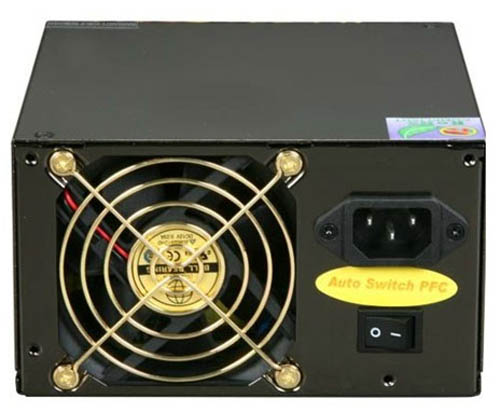

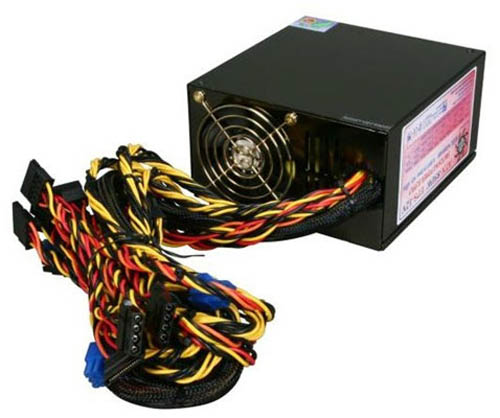

Athena Power AP-P4ATX85FE 850W ATX12V Server Power Supply
- Model: z28r66
- Availability: In stock
-
(0) Write Review
- Description
- Reviews
- Shipping & Returns
This Athena Power AP-P4ATX85FE 850W ATX12V Power Supply is a high performance power supply that delivers 850W of output and features silent and heat resistant dual fans with smart temperature and automatic fan speed control. It also supports Core 2 Dual and Quad Core Processors. It is specially designed for new OEM PC and server assemblies, including MiniServers and rackmount servers. It supports both 20- or 24-pin ATX v.2.2 and EPS-12V Xeon motherboards and is also Nvidia Sli and Quad SLi compatible. It also includes four PCI Express 6pin / 8pin connectors for Multi-GPU graphic card, which can supply power to advanced Graphics cards require Dual 6pin or Dual 8pin. ACTIVE PFC Auto switch is built-in. This power supply supports Intel Skulltrail and Core i7 platform systems.
- Model: AP-P4ATX85FE
- Brand: Athena Power
- Dielectric Withstand: Primary Frame Ground 1800V AC for 3 Second
- Rise time: Less than 70ms
- ACTIVE PFC
- Single/Redundant: Single
- Maximum Power: 850W
- Main Connector: 20+4Pin
- Output: +3.3V@24A, +5V@24A, +12V1@14A, +12V2@14A, +12V3@14A, +12V4@14A, -12V@0.8A, +5VSB@4A
- Input Voltage: 88 -264 Volts Ac
- Input Frequency Range: 50/60 Hz
- Fans: 2
- MTBF: 100,000 Hours on Maximum Load at +25 Degrees C
- Hold-up Time: 17ms Minimum at Nominal Input Voltage
- Dimensions: 5.75" x 3.25" x 6.25"
- Weight: 5 lbs.
- 850W Single
- 20+4Pin
- 2 Fans
Manufacturer：Athena Power
MPN：AP-P4ATX85FE
Single/Redundant：Single
Maximum Power：850W
Main Connector：20+4Pin
Output：+3.3V@24A, +5V@24A, +12V1@14A, +12V2@14A, +12V3@14A, +12V4@14A, -12V@0.8A, +5VSB@4A
Input Voltage：88 -264 Volts Ac
Input Frequency Range：50/60 Hz
MTBF：100,000 Hours on Maximum Load at +25°C
Hold-up Time：17ms Minimum at Nominal Input Voltage
Features：Dielectric Withstand: Primary Frame Ground 1800V AC for 3 Second
Rise time: Less than 70ms
ACTIVE PFC
Dimensions：5.75" x 3.25" x 6.25"
Weight：5 lbs.
