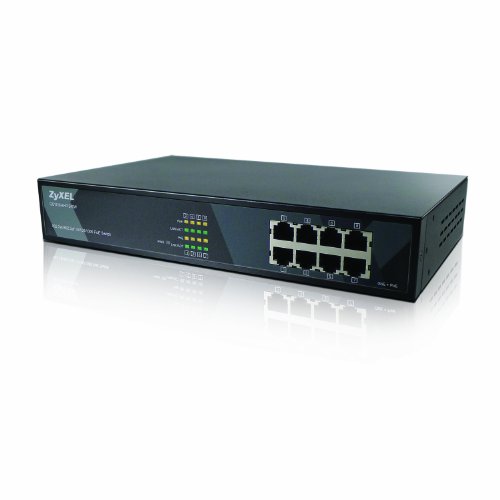

ZyXEL GS1100-8HP-240W 1100 Series Unamanaged 8-port PoE Gigabit Switch

This ZyXEL PoE+ Unmanaged 8-port Gigabit Switch gives flexibility in creating a network. Use PoE to easily install APs where power is not as easily accessible, needing only one cable to be run, saving time and resources. This unmanaged 8-Port PoE+ Switch allows for plug and play connections, so network is made fast and simple.

• Gigabit Full-Duplex Capability
• 8 x RJ-45 10/100/1000Mbps Unmanaged Ports
• PoE Compatibility

Manufacturer

ZyXEL

Series

1100 Series

Model

GS1100-8HP-240W

Format

Desktop

Standards

IEEE 802.3/3u/3ab, IEEE 802.3af/at

Network Management Type

Unmanaged

Jumbo Frames

9K

Ports

8 x RJ45

Speed

10/100/1000Mbps

MAC Address Table

8K

Buffer Memory

2M bits

PoE

Yes

Cabling

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m

100BaseTX Cat. 5 UTP/STP, up to 100 m

1000Base T cat 5,6 UTP

Power

AC input (90-260V/AC, 50-60Hz)

UL Safety 250Watt.

PoE Max Consumption 30W per port, 240Watt total max.

Dimensions

263 x 160 x 44 mm (L x W x H)

Weight

1320g

Temperature

0 Degrees to 55 Degrees C (32 Degrees to 131 Degrees F)

Humidity

10% - 90%, Non-condensing

• 8 Ports Gigabit (10/100/1000) PoE+ (802.3af/802.3at)
• 30W of power to each port with FULL power budget of 240 Watts
• Compliant with IEEE 802.3ab 1000 Base-T and IEEE 802.3af/802.3at standards

Manufacturer：ZyXEL
Classification：1100 Series
MPN：GS1100-8HP-240W
Format：Desktop
Standards：IEEE 802.3/3u/3ab, IEEE 802.3af/at
Network Management Type：Unmanaged
Uplink Ports：None
Primary Ports：8 x RJ45
Primary Port Speed：10/100/1000Mbps
MAC Address Table：8K
Jumbo Frames：9K
Buffer Memory：2M bits
PoE：Yes
Layer：Layer 2 Only
Cabling：10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m
1000Base T cat 5,6 UTP
Power：AC input (90-260V/AC, 50-60Hz)
UL Safety 250Watt.
PoE Max Consumption 30W per port, 240Watt total max.
Features：The ZyXEL GS1100-8HP-240W is the best solution for instant connectivity in office environments. The GS1100-8HP-240W provides plug-and-play no configuration simplicity for high-bandwidth network applications.

The GS1100-8HP-240W offers 8 ports of Gigabit for Simple Home or Office Networking of Desktops, Servers and Printers.

The GS1100-8HP-240W also provides up to 30W of power to each port for the latest PoE+ devices, such as High Power Access Points, IP Cameras, and VoIP Phones. This powerful switch provides devices with a FULL power budget of 240 Watts.

With its Smart Plug and Play design, you can install the GS1100-8HP-240W easily with no configurations required.

Compliant with IEEE 802.3ab1000Base-T and IEEE 802.3af/802.3at standards, the GS1100-8HP-240W ensures compatability with each standard.

The compact, rigid desktop size of the GS1100-8HP-240W was specifically designed for small to medium workgroups where it can be installed where space is limited.
Dimensions：263 x 160 x 44 mm (L x W x H)
Weight：1320g
Temperature：0° to 55° C (32° to 131° F)
Humidity：10% - 90%, Non-condensing
