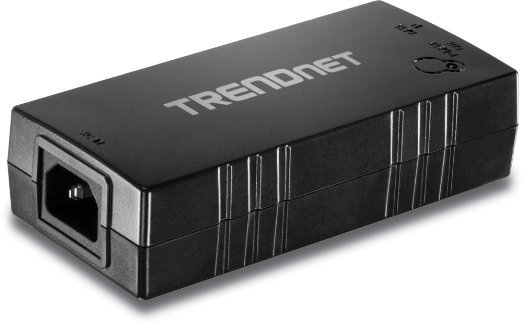

Trendnet Tpe-115Gi Gigabit Poe Plus Injector

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter. Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch-use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.

• IEEE 802.3at PoE+ (30 Watt) compliant
• Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
• Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device
• Integrated power supply
• Network devices for distances of up to 100 meters (328 ft.)
• 1 x 10/100/1000 Mbps Auto-MDIX Data In port
• 1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port
• Power port with LED indicator
• Easily install a PoE+ or POE device where a power outlet is not available
• Reduce installation and network equipment costs
• Safeguards network devices with short circuit protection

• Full Duplex Gigabit speeds
• Converts a non-PoE Gigabit port to a PoE+ or PoE Gigabit port
• Integrated power supply
• Network distances of up to 100 meters (328 feet)

Manufacturer：TRENDnet
MPN：TPE-115GI
Type：Gigabit PoE+ Injector
Color：Black
Specifications：Standard: IEEE 802.3/3u/3ab, IEEE 802.3af/3at

Ports: 1 x 10/100/1000 Mbps Data-In (Data only), 1 x 10/100/1000 Mbps PWR+Data out (Data + Power)

PoE Delivery: Pair 1: Pin 1, 2; Pair 2: Pin 3, 6

Power: Input: 100~240 V, 50~60 Hz, 0.65 A max.

Power Consumption: Max 30 Watts

Dimensions: 5.2" x 2.5" x 1.4"

Weight: 162 g (5.7 oz.)

Certifications: CE, FCC
Features：IEEE 802.3at PoE+ (30 Watt) compliant

Backwards compatible with IEEE 802.3af PoE (15 Watt) devices

Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device

Integrated power supply

Network devices for distances of up to 100 meters (328 ft.)

1 x 10/100/1000 Mbps Auto-MDIX Data In port

1 x 10/100/1000 Mbps PoE+ Auto-MDIX Data Out port

Power port with LED indicator

Easily install a PoE+ or PoE device where a power outlet is not available

Reduce installation and network equipment costs

Safeguards network devices with short circuit protection

Package Contents:
TPE-115GI
Quick Installation Guide
Power cord
Electrical Outlet Plug Type：Plug Type "A" (USA, Canada, Mexico, Japan)
